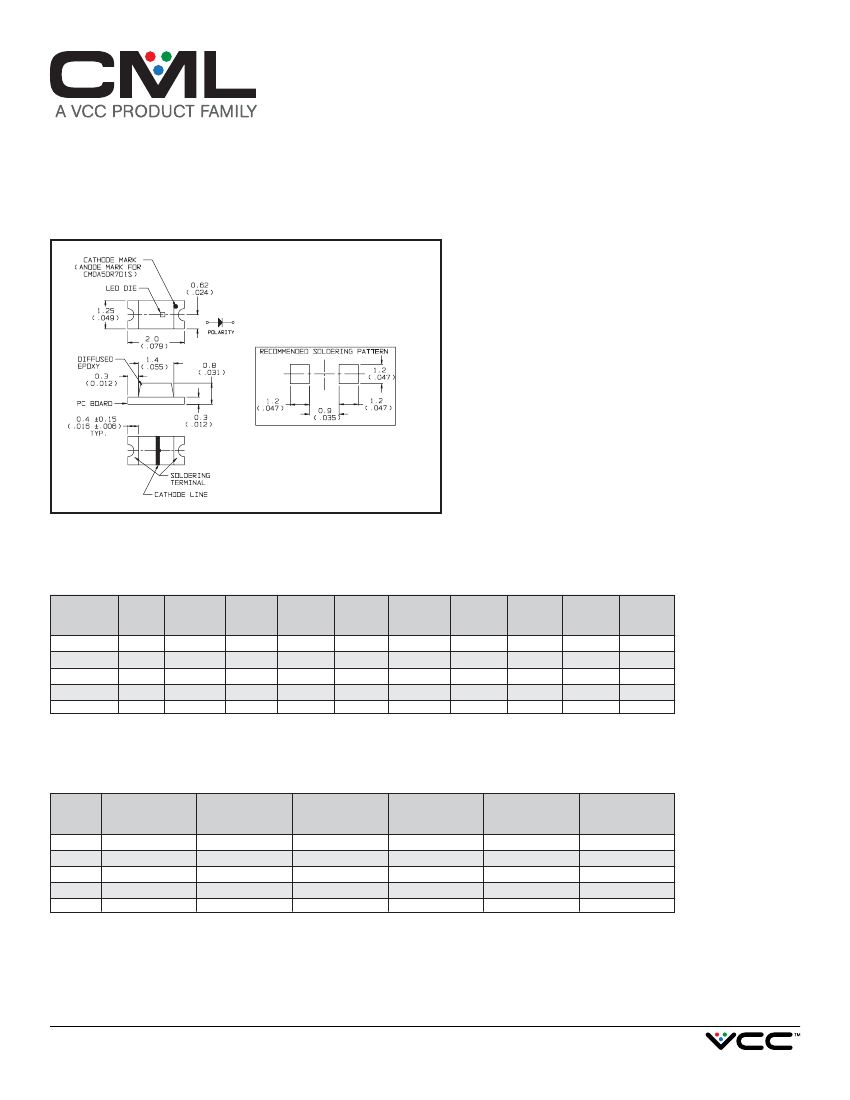

CMDA5 Series 0805 Package Size Surface Mount LED
Description and Features
Features
• Small size
• Industry standard 0805
Footprint
• Compatible with IR solder
profiles
• Diffused optics
• Top emitting
• Ideal for use with Light
Pipes
• Available in 8 mm tape on
7” (178 mm) diameter
reels
• Packaged 4,000 pieces
per reel
Applications
• Keypad backlighting
• Push-button
backlighting
• LCD backlighting
• Symbol backlighting
• Front panel indicator
NOTES:
1. All dimensions are in millimeters (in).
2. 1 micro second @ 10% duty cycle
Electro-Optical Characteristics and Ratings
Part
Number
CMDA5AY7D1S
CMDA5CY7D1S
CMDA5AA7D1S
CMDA5BR7D1S
CMDA5DR7D1S
Output
Color
Green
Yellow
Orange
HE Red
Red
Diffusion
Package
Color
Clear
Clear
Clear
Clear
Clear
Test
Current
(mA)
20
20
20
20
20
Forward
Voltage
Typ. (V)
2.2
2.1
2.2
2.1
1.8
Forward
Luminous
Voltage
Intensity
Max. Typ. (V) Min. (mcd)
2.6
2.6
2.6
2.6
2.6
4.0
2.5
2.5
2.5
6.3
Luminous
Intensity
Typ. (mcd)
15
8
8
10
17
Peak
Wavelength
(nm)
570
589
605
630
660
Viewing
Angle
(Degrees)
170
170
170
170
170
Diffused
Diffused
Diffused
Diffused
Diffused
Absolute Maximum Ratings to = 25°C
Part
Number
AY
CY
AA
BR
DR
Power
Dissipation
(mW)
52
52
52
52
65
Operating
Temperature
(°C)
-30 to +85
-30 to +85
-30 to +85
-30 to +85
-30 to +85
Storage
Temperature
(°C)
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
Peak Forward
Current Max.
(See note 2) (mA)
100
100
100
100
100
Reverse Voltage
(IR = 100 mA)
(V)
5
5
5
5
5
Lead Solder Time
at 230°C
(Seconds)
10
10
10
10
10
The model numbers listed above are standard off the shelf parts. For the user who may have a requirement calling for
various color/electrical specifications, a part number can be determined by calling the factory.
CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.
