Ethernet Connector System
RJ45-ECS

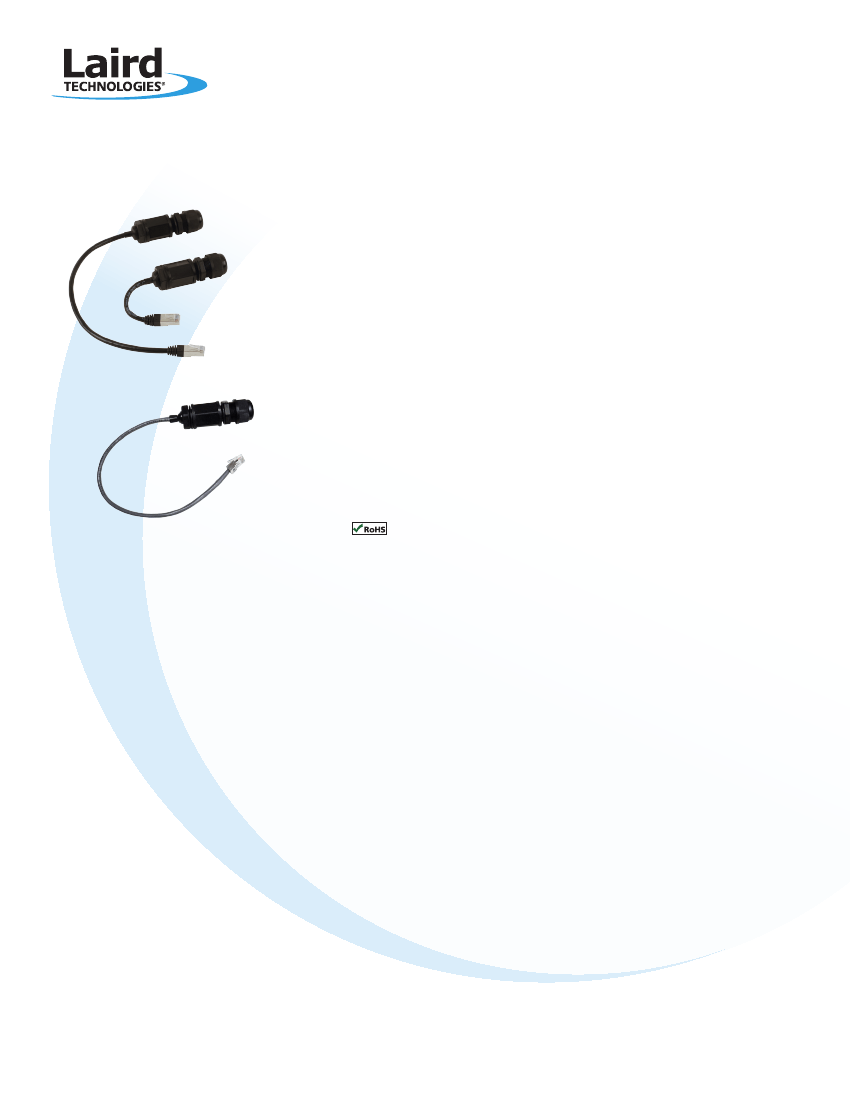

ETHERNET CONNECTOR SYSTEM
The patented RJ45-ECS Ethernet connector system, available exclusively from Laird Technologies,
is a field replaceable outdoor rated and shielded Ethernet connection system for high speed
10BaseT, 100BaseT and 1000BaseT networks. The system features a shielded RJ45 receptacle
mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector
and seals the cable to IP67 requirements. The system provides for quick and easy disconnect and
reconnect of equipment. Because of its many unique design features and low cost, the RJ45-ECS
is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet
connection is required. These include outdoor applications such as wireless equipment or video
surveillance equipment, and indoor applications such as equipment used in factory automation
or harsh industrial processes.
RJ45 connectors are not designed for high reliability in the presence of moisture, dust, or
corrosive elements. For this reason, the IP67 sealing ability of the RJ45-ECS provides a reliable
connection, even in very harsh environments, for many years of trouble free service. The shielded
nature of the Cat5e cable and connectors provide maximum shielding against external EMI for
consistent data communications.
For modern wireless systems, the quick disconnect feature allows for ready replacement of
rooftop equipment, to minimize field time spent servicing customer’s equipment, and minimizing
downtime for the customer. This helps to increase operator profitability and customer satisfaction.
* No Relief Version
Shown Here
FEATURES
•
Patented low cost design
• Field replaceable waterproof connector system
for RJ45 shielded or unshielded connectors
• Constructed of UV protective materials for
long life in harsh outdoor environments
• Seal meets IP67 criteria
• Shock and vibration resistant
• Positive locking RJ45 connector
• 12 in Cat5E strain relieved cable
MARKETS
• Wireless base stations
• Telecom equipment
• Wireless client radios
• 802.11 a/b/g wireless systems
• Direct burial equipment
• 10BaseT, 100BaseT or 1000BaseT networks
• Industrial process control
• Factory automation
• WiMAX
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
www.lairdtech.com
Innovative
Technology
for a
Connected
World
Ethernet Connector System
RJ45-ECS
Specifications
Data
10BaseT, 100BaseT and 1000BaseT Networks
CAT5e per TIA/EIA 568B
ClassD per ISO/IEC 11801
Mating Cycles >500
Positive RJ45 bayonet coupling
Cat5 Cable Strain Relief
UV Resistant Nylon 66
IP67
>1000 h
UL94VO
10 cycles -40 to +100°C
-40°C to +85°C
0.787 in (20 mm)
3.75 in x 1.18 in (95 x 30 mm)
2 oz (57 gm)
Mechanical
Material
Sealing
Salt Spray
Flammability
Thermal Shock
Temperature Range
Installation Hole Dia
Overall Size (L x Dia)
Weight

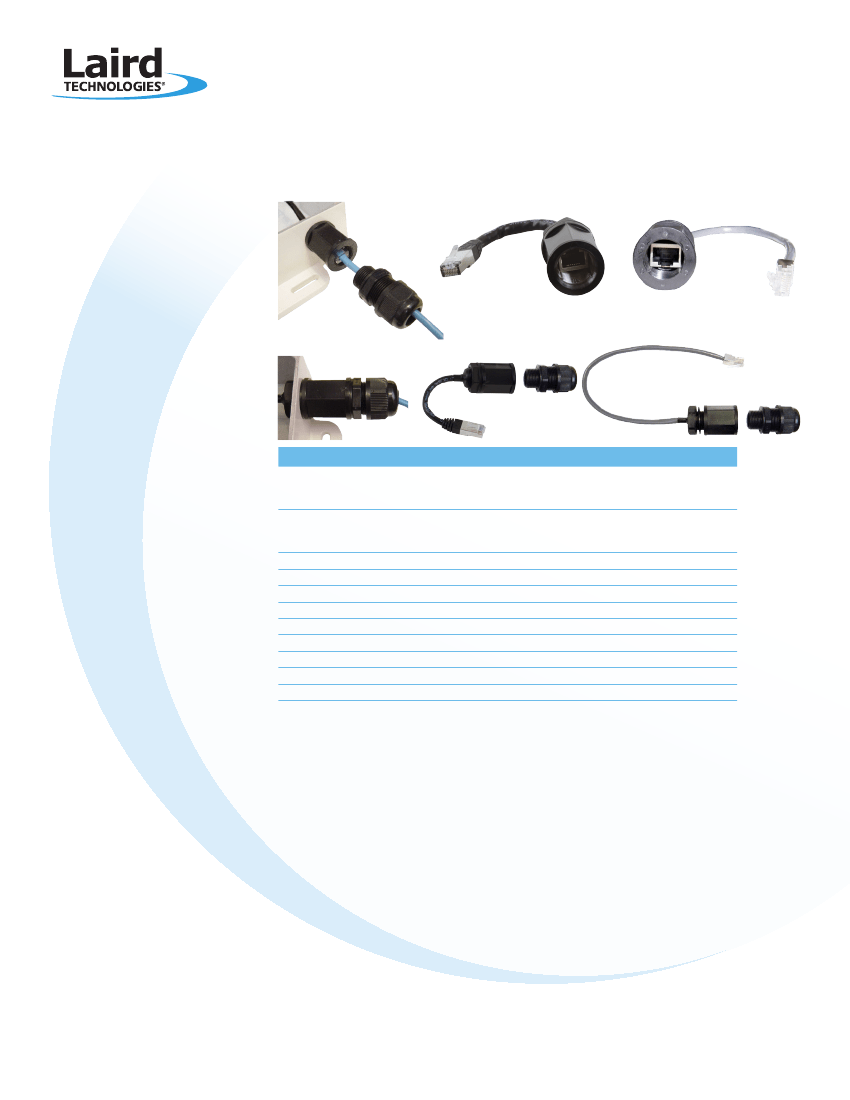

RJ45-ECS
RJ45-ECS-NR
RJ45-ECS-4
RJ45-ECS-4-NR
RJ45-ECS-6
RJ45-ECS-6-NR
SYSTEM ORDERING INFORMATION
12 in RJ45 Waterproof Outdoor Ethernet Connector System
12 in RJ45 Waterproof Outdoor Ethernet Connector System with no relief
4 in RJ45 Waterproof Outdoor Ethernet Connector System
4 in RJ45 Waterproof Outdoor Ethernet Connector System with no relief
6 in RJ45 Waterproof Outdoor Ethernet Connector System
6 in RJ45 Waterproof Outdoor Ethernet Connector System with no relief
NOTES
• All shipments F.O.B. Schaumburg, IL 60173
ANT-DS-RJ45-ECS 0611
