MAX359EPE+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MAX359EPE+

MAX359EPE+: DescriptionIC MUX ANLG FAULT PROTECT 16-DIP; CategoryAnalog mixed-signal IC The signal circuit; File Size439KB，11 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

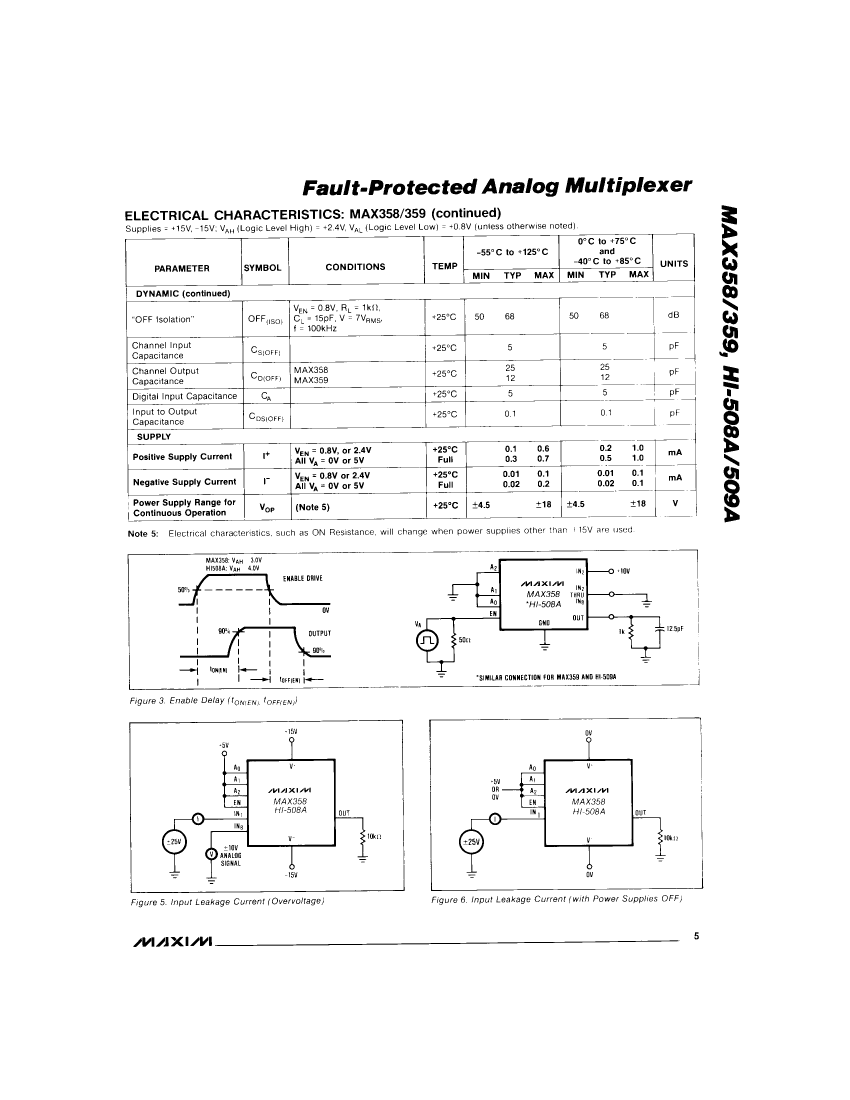

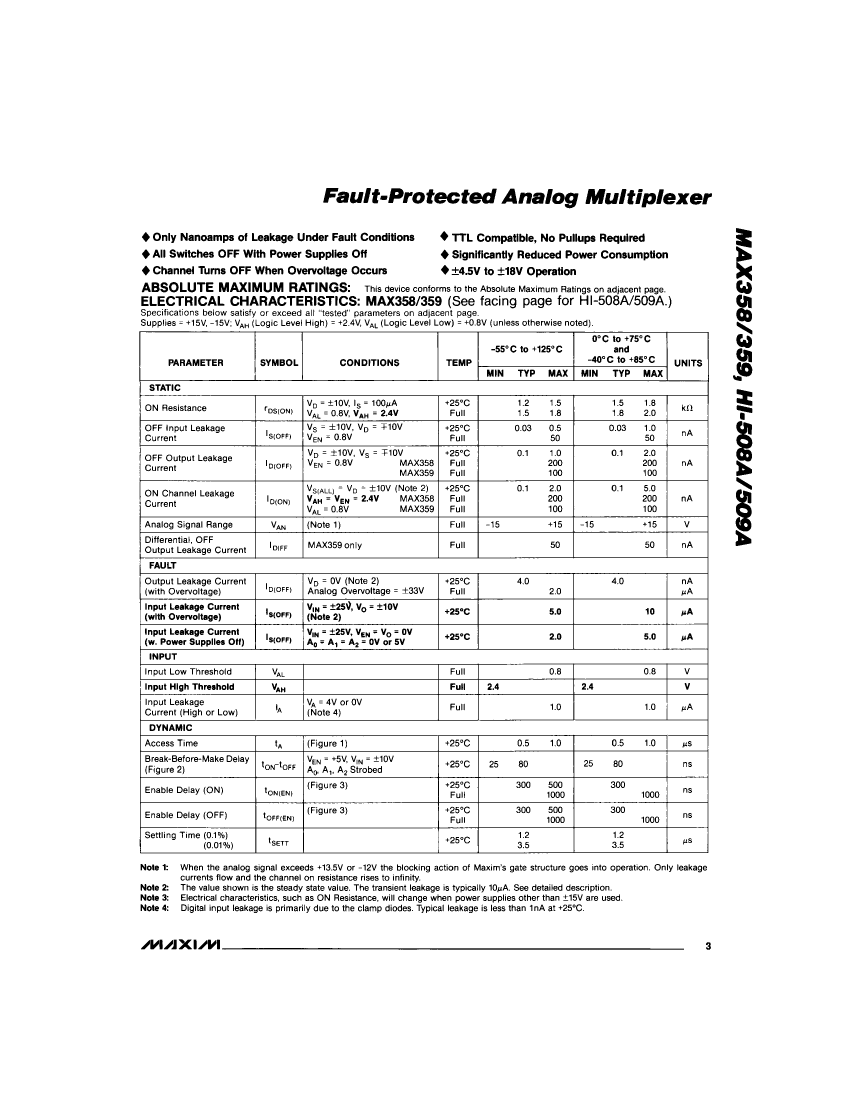

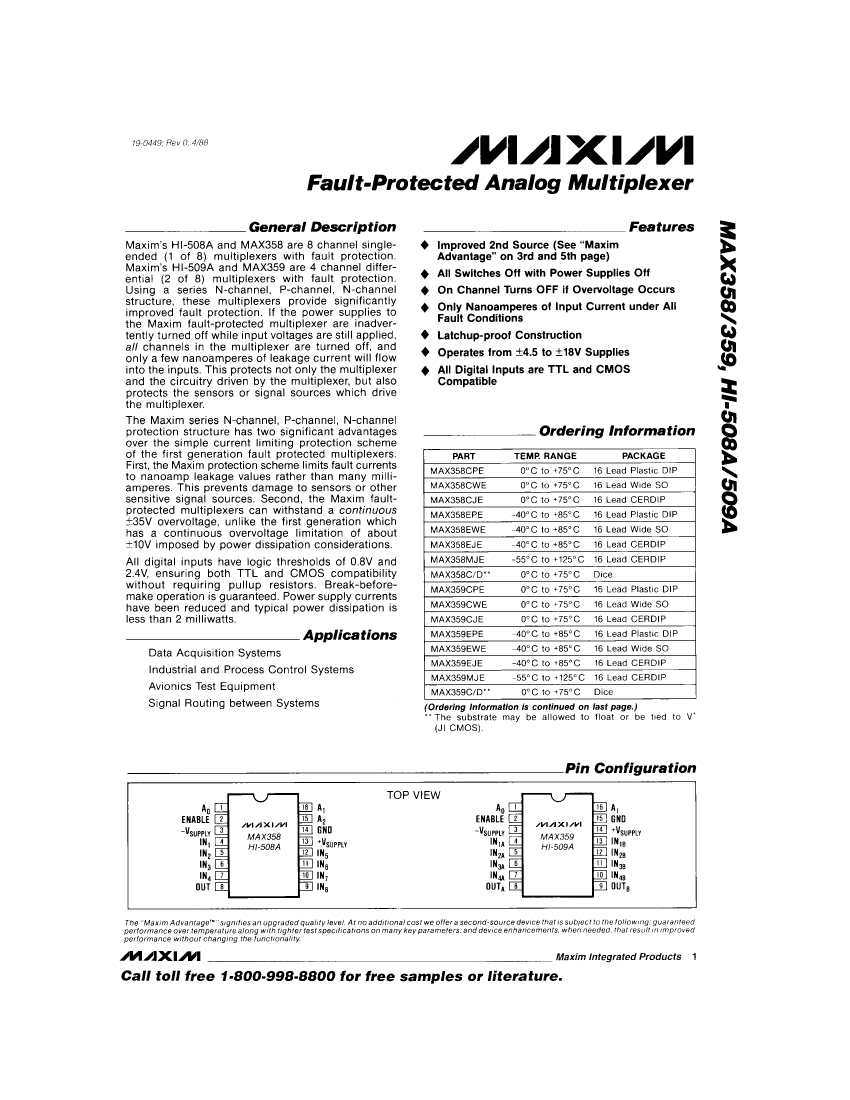

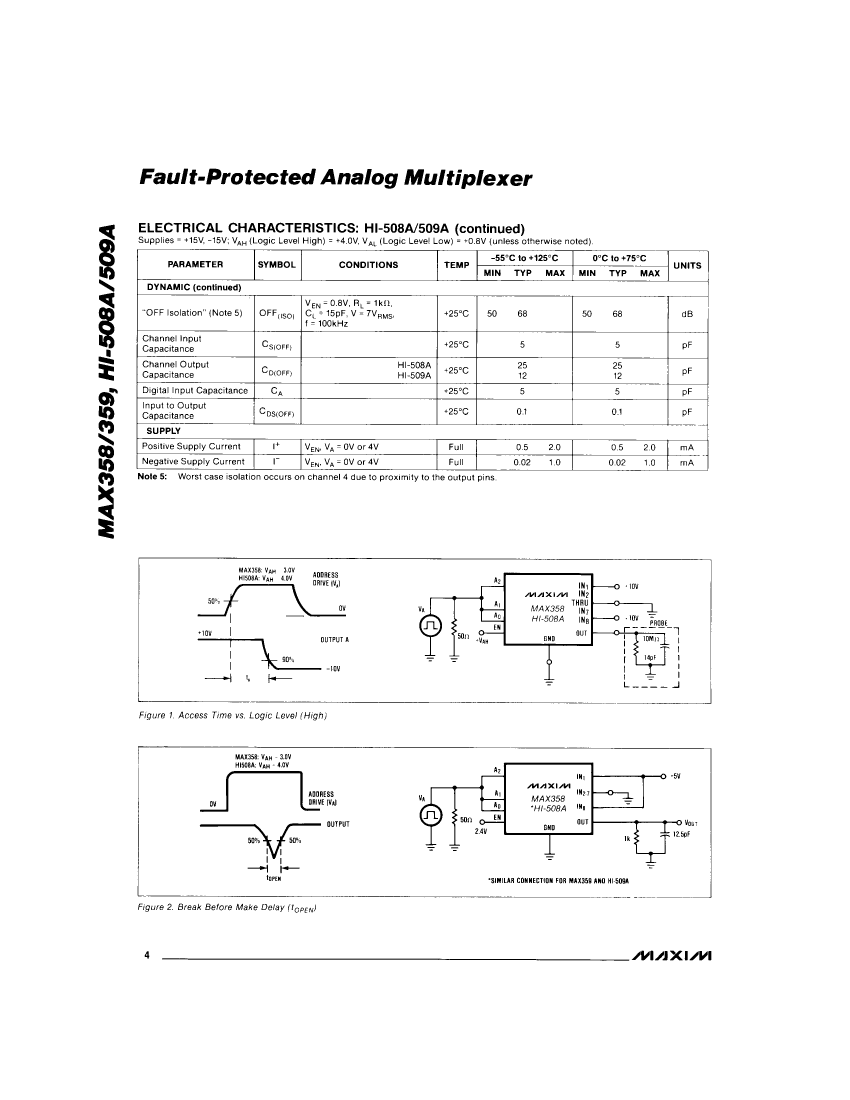

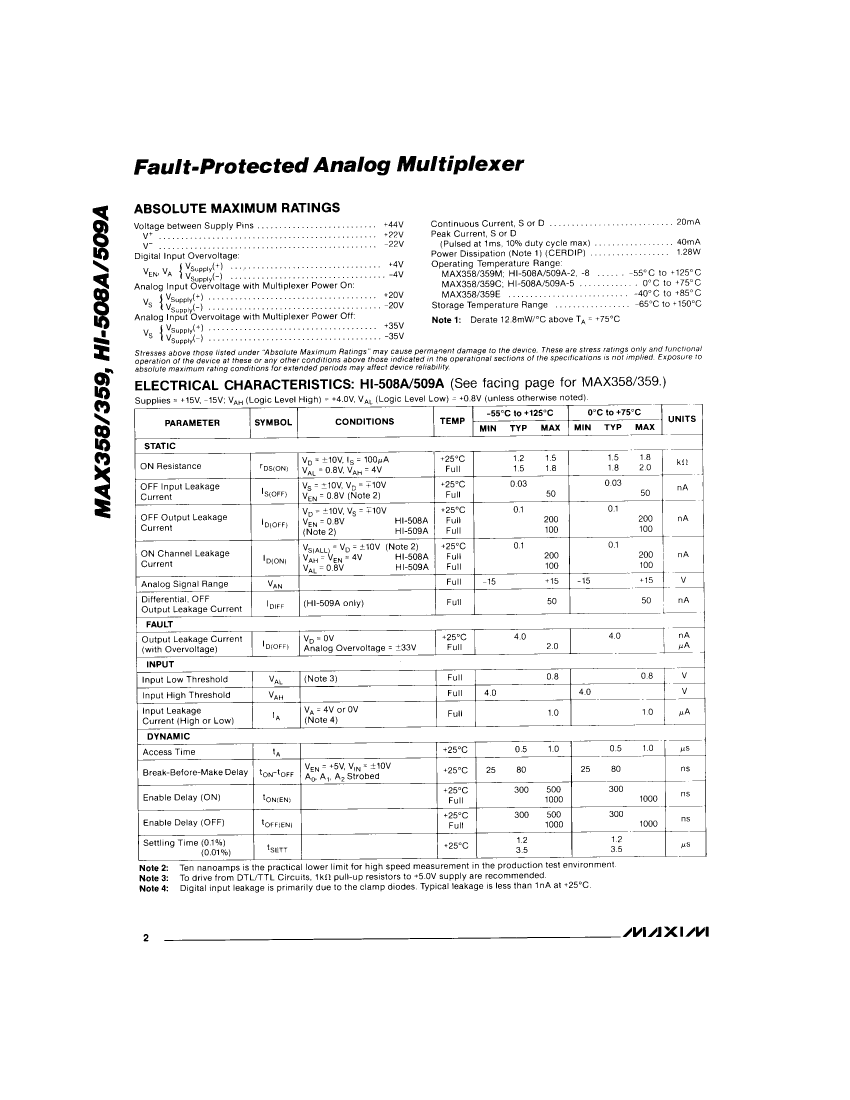

MAX359EPE+ Overview

IC MUX ANLG FAULT PROTECT 16-DIP

MAX359EPE+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDIP-T16
JESD-609 code	e3
length	19.175 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum signal current	0.02 A
Maximum supply current (Isup)	1 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

MAX359EPE+ Related Products

	MAX359EPE+	MAX358C-D	MAX359CWE+T	MAX359CWE+TG55	MAX359CWE+G55	MAX358MJE/M30002	HI4-0508A-8
Description	IC MUX ANLG FAULT PROTECT 16-DIP	Multiplexer Switch ICs	IC MULTIPLEXER DUAL 4X1 16SOIC	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, SO-16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDSO16, 0.300 INCH, SO-16	Single-Ended Multiplexer	Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CQCC20
Is it lead-free?	Lead free	-	Lead free	-	-	Contains lead	Contains lead
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	incompatible	incompatible
Maker	Maxim	-	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	-	SOIC	SOIC	SOIC	-	-
package instruction	PLASTIC, DIP-16	-	SOP, SOP16,.4	SOP,	SOP,	,	-
Contacts	16	-	16	16	16	-	-
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	not_compliant
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	-	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	-
JESD-30 code	R-PDIP-T16	-	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	-	S-XQCC-N20
Maximum negative supply voltage (Vsup)	-18 V	-	-18 V	-18 V	-18 V	-	-
Negative supply voltage minimum (Vsup)	-4.5 V	-	-4.5 V	-4.5 V	-4.5 V	-	-
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V	-15 V	-15 V	-	-15 V
Number of channels	4	-	4	4	4	-	8
Number of functions	1	-	1	1	1	-	1
Number of terminals	16	-	16	16	16	-	20
Nominal off-state isolation	68 dB	-	68 dB	68 dB	68 dB	-	-
Maximum on-state resistance (Ron)	1800 Ω	-	1800 Ω	1800 Ω	1800 Ω	-	-
Maximum operating temperature	85 °C	-	75 °C	75 °C	75 °C	-	125 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	CERAMIC
encapsulated code	DIP	-	SOP	SOP	SOP	-	QCCN
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	SQUARE
Package form	IN-LINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260	-	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	4.572 mm	-	2.642 mm	2.642 mm	2.642 mm	-	-
Maximum supply voltage (Vsup)	18 V	-	18 V	18 V	18 V	-	-
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V	4.5 V	-	-
Nominal supply voltage (Vsup)	15 V	-	15 V	15 V	15 V	-	15 V
surface mount	NO	-	YES	YES	YES	-	YES
Maximum disconnect time	1000 ns	-	1000 ns	1000 ns	1000 ns	-	-
Maximum connection time	1000 ns	-	1000 ns	1000 ns	1000 ns	-	-
technology	CMOS	-	CMOS	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	-	MILITARY
Terminal form	THROUGH-HOLE	-	GULL WING	GULL WING	GULL WING	-	NO LEAD
Terminal pitch	2.54 mm	-	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	-	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	-	7.6745 mm	7.6745 mm	7.6745 mm	-	-
