108457032001051 Overview

Board Euro Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT

108457032001051 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.335 inch
body length	2.1 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8457
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

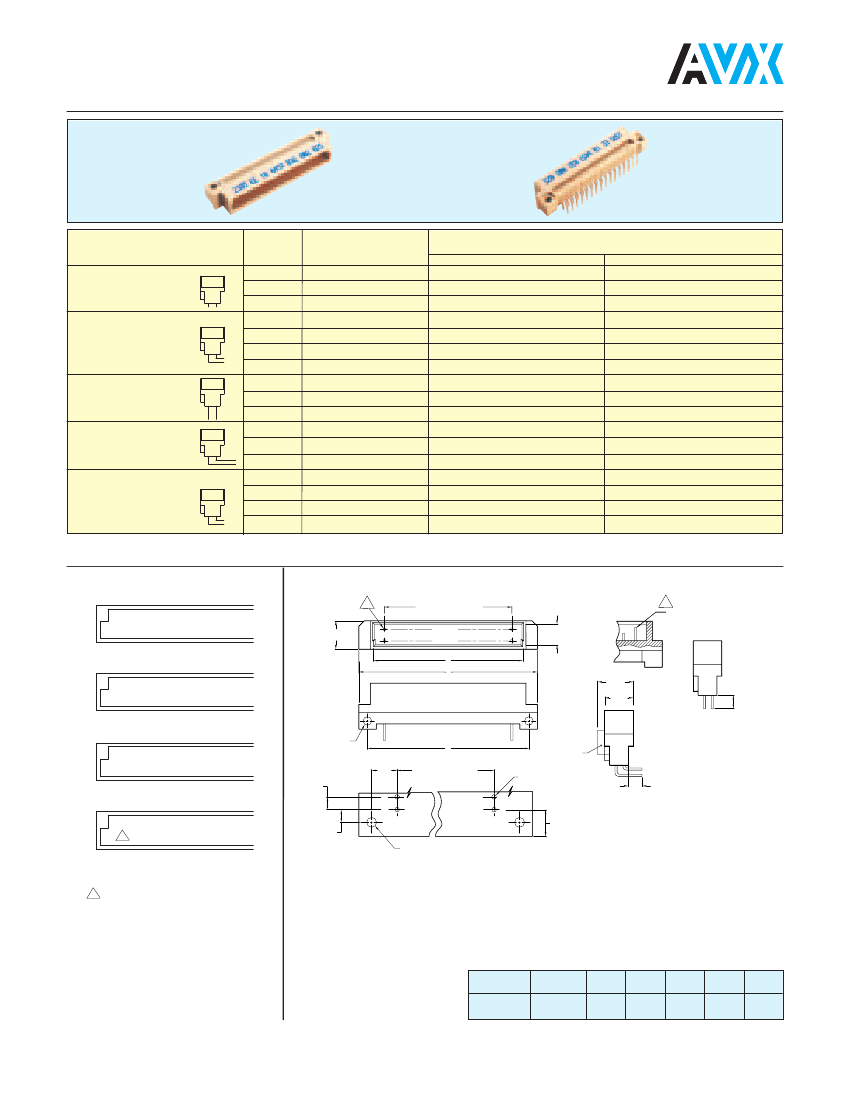

Male Style 1/2 B

Series 8457 – 2 rows (2 x 16)

Contact Design

and

Termination Length

3.4 mm (Y)

Straight

Number of

Contacts

32

16

32

16

Loading Description

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

fully loaded + ground

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

a + b fully loaded

a + b even loading

a loading only

fully loaded + ground

Part Number

Performance classes according to DIN 41612

II

I

10 8457 032 001 025

10 8457 032 001 049

10 8457 032 001 031

10 8457 032 001 027

10 8457 032 002 025

10 8457 032 002 031

10 8457 032 002 027

10 8457 032 102 025

10 8457 032 003 025

10 8457 032 003 031

10 8457 032 003 027

10 8457 032 004 025

10 8457 032 004 031

10 8457 032 004 027

10 8457 032 008 025

10 8457 032 008 031

10 8457 032 008 027

10 8457 032 108 025

10 8457 032 001 055

10 8457 032 001 051

10 8457 032 002 049

10 8457 032 002 055

10 8457 032 002 051

10 8457 032 102 049

10 8457 032 003 049

10 8457 032 003 055

10 8457 032 003 051

10 8457 032 004 049

10 8457 032 004 055

10 8457 032 004 051

10 8457 032 008 049

10 8457 032 008 055

10 8457 032 008 051

10 8457 032 108 049

3.0 mm (Y)

Right Angled

13.0 mm (Y)

Straight

11.3 mm (Y)

Right Angled

16

30 + 2

32

16

32

16

32

16

2.3 mm (Y)

Right Angled

16

30 + 2

NB: Alternative Prefix Variations Available: 12, 16 & 17, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

1

A EQ SP @ 2.54 [0.100] = B

1

GROUND

CONTACT

8.51

[0.335]

ROW A

ROW B

6.20

[0.244]

b

a

32 contacts, rows a + b fully loaded

C

E

✕

●

✕

●

✕

b

a

11.1

[0.437]

8.51

[0.335]

Y

16 contacts, rows a + b even loading

2.54

[0.100] DIA.

For Y dimension see

contact design

D

KEYING

0.200

TYP

2.54

[0.100]

A EQ SP @ 2.54 [0.100] = B

✕

●

✕

●

✕

●

✕

●

✕

●

b

a

1.02

[0.040] DIA.

Y

16 contacts, row a loading only

●

b

a

2.54

[0.100]

2.84

[0.112] DIA.

5.31

[0.209]

30 + 2 contacts, fully loaded

with ground in A1 & A16

denotes ground pin

HOLE PATTERN

Unit: millimeters (inches)

No. Contact

Positions

32

Contact

Rows

2 (2 x 16)

A

15

B

38.10

(1.500)

C

44.55

(1.754)

D

48.26

(1.900)

E

53.34

(2.100)
