TECHNICAL CHARACTERISTICS
1,20
2,60
SPECIFICATION
>Contact Rating:
Switching:
150mA, 24VDC
Non-Switching:
400mA, 24VDC
>Contact Resistance:
Initial:
80mOHM max.
After Life Test:
200mOHM max.
>Insulation Resistance:
min. 100MOHM at 250VDC
>Dielectric Strength:
250VAC for 1 minute
>Operating Force:
700g max.
>Life cycle:
10.000 steps
>Position:
16
>Actuator:
Cross type
MATERIAL
>Cover:
LCP UL 94V-0, color grey
>Base:
LCP UL 94V-0, color grey
>Actuator
: PA 66 UL 94V-0
>Contact:
Gold Plated
>Terminal:
Gold Plated
SOLDERING INFORMATION
>Terminal in SMD version
>Reflow soldering according to
JEDEC J-STD 020 Hot Air
WASHABLE DEFINITION
Please do not submerse washable products into water
or cleaning agents or put them in locations exposed to
water or liquids completely. When cleaning by hand
(brushing), please do not use excessive force on our
switch to avoid malfunction afterwards, because you
could deform function relevant areas or you could
damage sealing functions. Do not clean washable
series immediately after soldering. The cleaning agent
may be absorbed into the switch through respiration
while the switch cools.
ENVIRONMENTAL
>Storage condition: -40°C ~ +85°C
>Operation condition: -40°C ~ +85°C
>Compliance: Lead Free, ROHS, Reach
16 Position
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
8
C
2
14,60
9,60 ±0,1
2,20
1
C
4
5,08
h
0,10 Ref.
0,54
12,00
RECOMMENDED LAYOUT
Real Code
C 1 2 4 8
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
6,50
6,80
16 Position
5,08
10,00
Scale - 3:1
This electronic component is designed and developed with the intention
for use in general electronics equipments.
Before incorporating the components into any equipments in the field
such as aerospace, aviation, nuclear control, submarine, transportation,
(automotive control, train control, ship control), transportation signal,
disaster prevention, medical, public information network etc. where higher
safety and reliability are especially required or if there is possibility of
direct damage or injury to human body, Wurth Elektronik must be asked
for a written approval.
Projection
GENERAL TOLERANCE
.x = +/- 0,2
.xx = +/- 0,15
Date
09-11-05
PACKAGING INFORMATION
>Tape and Reel
Part number Color of Actuator Position
Code
428 521 520 816
light grey
16
Real Code
428 521 520 817
blue
16
complement code
Complement Code
C 1 2 4 8
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
A
11
B
12
C
13
D
14
E
15
F
10,00
Basic material
Drawn
Checked 09-11-05
d
c
revised MatchCode 14-07-25 AL
Washable Definition
14-03-05 DaF
Name
Jelisarow
Hsu
DESCRIPTION

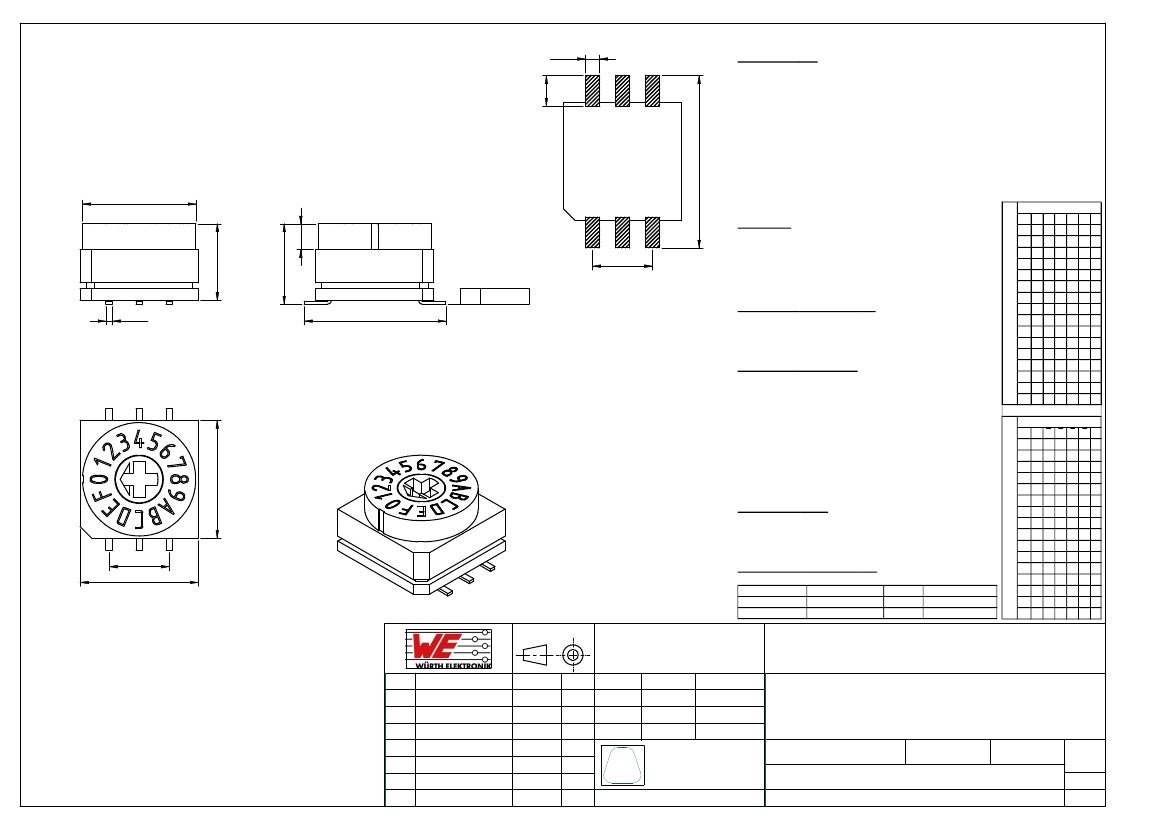

WS-ROSV Rotary Switch 10x10mm, 16 position, SMD version
In addition, even electronic component in general electronic equipments,
b new contact rating 12-02-02 WJ
when used in electrical circuits that require high safety, reliability functions
a
warning text
11-09-30 WJ
or performance, the sufficient reliability evaluation-check for the safety
must be performed before by the user before usage.
REV FILE
DATE BY
WE
eiCan
Würth Elektronik
eiCan
Scale
3:1
Position
SIZE
A4
CAD
Drawing.- No. 42852152081x
System :Solid Edge V20
EDV NO 42852152081x.dft
