FEATURES
GALAXY ELECTRICAL
BZW06 --- SERIES
BREAKDOWN VOLTAGE: 5.8 --- 376 V
PEAK PULSE POWER: 600 W
TRANSIENT VOLTAGE SUPPRESSOR
◇
Plastic package
has
Underwriters Laboratory
Flammability Classification 94V-0
◇
Glass passivated junction
◇
600W
peak pulse power capability with a 10/1000µs
waveform, repetition rate (duty cycle): 0.01%
◇
Excellent clamping capability
◇
Fast response time: typically less than 1.0ps from 0 Volts to
V
(BR)
for uni-directional and 5.0ns for bi-directional types
◇
Devices with V
(BR)
≥
10V I
D
are typically I
D
less than 1.0 µA
◇
High temperature soldering guaranteed:265
℃
/ 10 seconds,
0.375"(9.5mm) lead length, 5Ibs. (2.3kg) tension
DO -
15
MECHANICAL DATA
◇
Case:JEDEC DO--15, molded plastic body over
passivated junction
◇
Terminals: Axial leads, solderable per MIL-STD-750,
method 2026
◇
Polarity: Foruni-directional types the color band denotes
the cathode, which is postitive with respect to the
anode under normal TVS operation
◇
Weight: 0.014 ounces, 0.39 grams
◇
Mounting position: Any
DEVICES FOR BIDIRECTIONAL APPLICATIONS
For bi-directional use add suffix letter "B" (e.g. BZW06P-6V4B).
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25
℃
ambient temperature unless otherwise specified.
SYMBOL
Peak pow er sissipation w ith a 10/1000µs w aveform (NOTE 1, FIG.1)
Peak pulse current w ith a 10/1000µs w aveform (NOTE 1)
Steady state pow er dissipation at T
L
=75
℃
fffffLead
lengths 0.375"(9.5mm) (NOTE 2)
Peak forw ard surge current, 8.3ms single half
ffffSine-w
ave superimposed on rated load (JEDEC Method)
Thermal resistance junction to lead
junction to ambient lead = 10mm
Operating junction and storage temperature range
VALUE
Minimum 600
SEE TABLE 1
3.0
100.0
60
100
-55---+175
UNIT
W
A
W
A
P
PPM
I
PPM
P
M(AV)
I
FSM
R
θJL
R
θJA
T
J
, T
STG
℃
/W
℃
NOTES: (1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2
Rating is 500W betw een 40V and 188V types. For a surge greater than the maximum values, the diode w ill short circuit.
(2) Mounted on copper pad area of 1.6 x 1.6” (40 x 40mm) per Fig. 5
www.galaxycn.com
Document Number 0285008
BL
GALAXY ELECTRICAL
1.
RATINGS AND CHARACTERISTIC CURVES

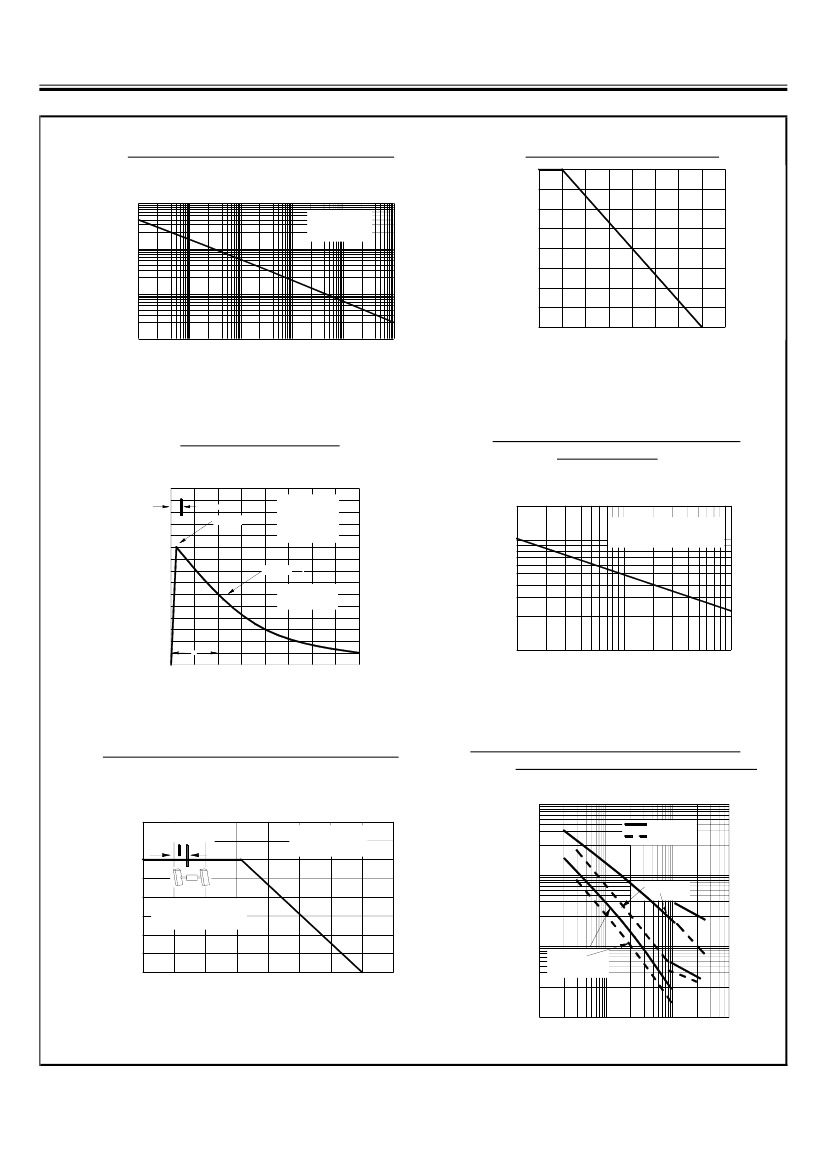

FIG.1 -- PEAK PULSE POWER RATING CURVE
PEAK PULSE POWER
PP
) OR CURRENT
(P
DERATING IN PERCENTAGE, %
100
BZW06 --- SERIES
FIG.2 -- PULSE DERATING CURVE
P
PPM
, PEAK PULSE POWER, KW
100
NON-REPETITIVE
PULSE WAVEFORM
SHOWN if FIG.3
T
A
=25
℃
10
75
50
1.0
25
0
0.1
0.1µs
0
25
50
75
100
125
150
175
200
1.0µs
10µs
100µs
0.1ms
10ms
tol, PULSE WIDTH, SEC.
T
A
, AMBIENT TEMPERATURE.
℃
FIG.3 -- PULSE WAVEFORM
FIG.4 -- TYPICAL JUNCTION CAPACITANCE
H HHHHHHHH HUNIDIRECTIONAL
C
J
, JUNCTION CAPACITANCE, pF
IPPM, PEAK PULSE CURRENT, %
150
tr=10¦
Μ
sec
PEAK VALUE
I
PPM
PULES WIDTH (td)
is DEFINDE as the
POINT WHERE the
PEAK CURRENT
DECAYS to 50% of
I
PPM
(I
PPM
)
50
T
J
=T
J
max.
8.3ms SINGLE HALF SINE-MAVE
(JEDEC METHOD)
100
HALF VALUE - I
PPM
2
40
30
50
10/1000¦
Μ
sec.
WAVEFORM as
DEFINDE by R.E.A.
20
10
td
0
0
1
10
100
0
1.0
2.0
3.0
4.0
t, TIME, ms
V
(BR)
, BREAKDOWN VOLTAGE, V
FIG.5 -- STEADY STATE POWER DERATING CURVE
FIG.6 -- MAXIMUN NON-REPETITIVE FORWARD
HHHH HSURGE
CURRENT UNIDIRECTIONAL ONLY
I
FSM
, PEAK FORWARD SURGE
10,000
Unidirectional
Bidirectional
PM(AV), STRADY STATE POWER
4
L=0.375"(9.5mm)
LEAD LENGTHS
3
DISSIPATION, W
CURRENT, A
60 H
Z
RESISTIVEOR
INDUCTIVE LOAD
1,000
V
R
=0
2
1
1.6 x 1.6 x .040"
(40 x 40 x 1mm.)
COPPER HEAT SINKS
100
0
0
25
50
75
100
125
150
175
200
V
R
=RATED
STAND-OFF
VOLTAGE
10
5
100
500
T
L
, LEAD TEMPERATURE,
℃
NUMBER OF CYCLES AT 60 Hz
www.galaxycn.com
Document Number 0285008
