74F675ASPC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74F675ASPC

74F675ASPC: DescriptionF/FAST SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP24; Categorylogic logic; File Size73KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74F675ASPC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74F675ASPC	-	-	View	Buy Now

74F675ASPC Overview

F/FAST SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP24

74F675ASPC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	DIP
package instruction	0.300 INCH, SLIM, PLASTIC, MS-001, DIP-24
Contacts	24
Reach Compliance Code	compli
Other features	PARALLEL OUTPUT IS REGISTERED; READ/WRITE CONTROL; HOLD MODE
Counting direction	RIGHT
series	F/FAST
JESD-30 code	R-PDIP-T24
JESD-609 code	e3
length	31.915 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Maximum Frequency@Nom-Su	85000000 Hz
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	5 V
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	85 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

74F675A 16-Bit Serial-In, Serial/Parallel-Out Shift Register

April 1988

Revised October 2000

74F675A

16-Bit Serial-In, Serial/Parallel-Out Shift Register

General Description

The 74F675A contains a 16-bit serial in/serial out shift reg-

ister and a 16-bit parallel out storage register. Separate

serial input and output pins are provided for expansion to

longer words. By means of a separate clock, the contents

of the shift register are transferred to the storage register.

The contents of the storage register can also be loaded

back into the shift register. A HIGH signal on the Chip

Select input prevents both shifting and parallel loading.

Features

Serial-to-parallel converter

16-Bit serial I/O shift register

16-Bit parallel out storage register

Recirculating parallel transfer

Expandable for longer words

Slim 24 lead package

74F675A version prevents false clocking through

CS or R/W inputs

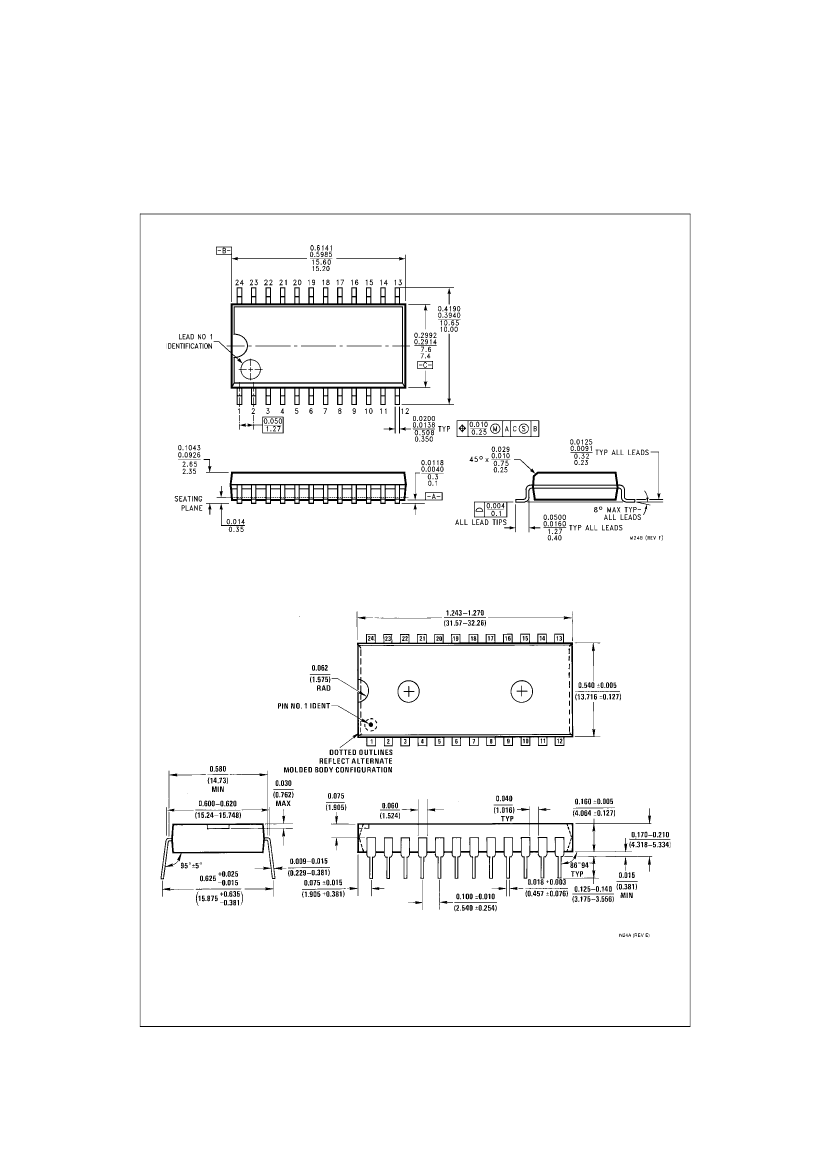

Ordering Code:

Order Number

74F675ASC

74F675APC

74F675ASPC

Package Number

M24B

N24A

N24C

Package Description

24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide

24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-011, 0.600 Wide

24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

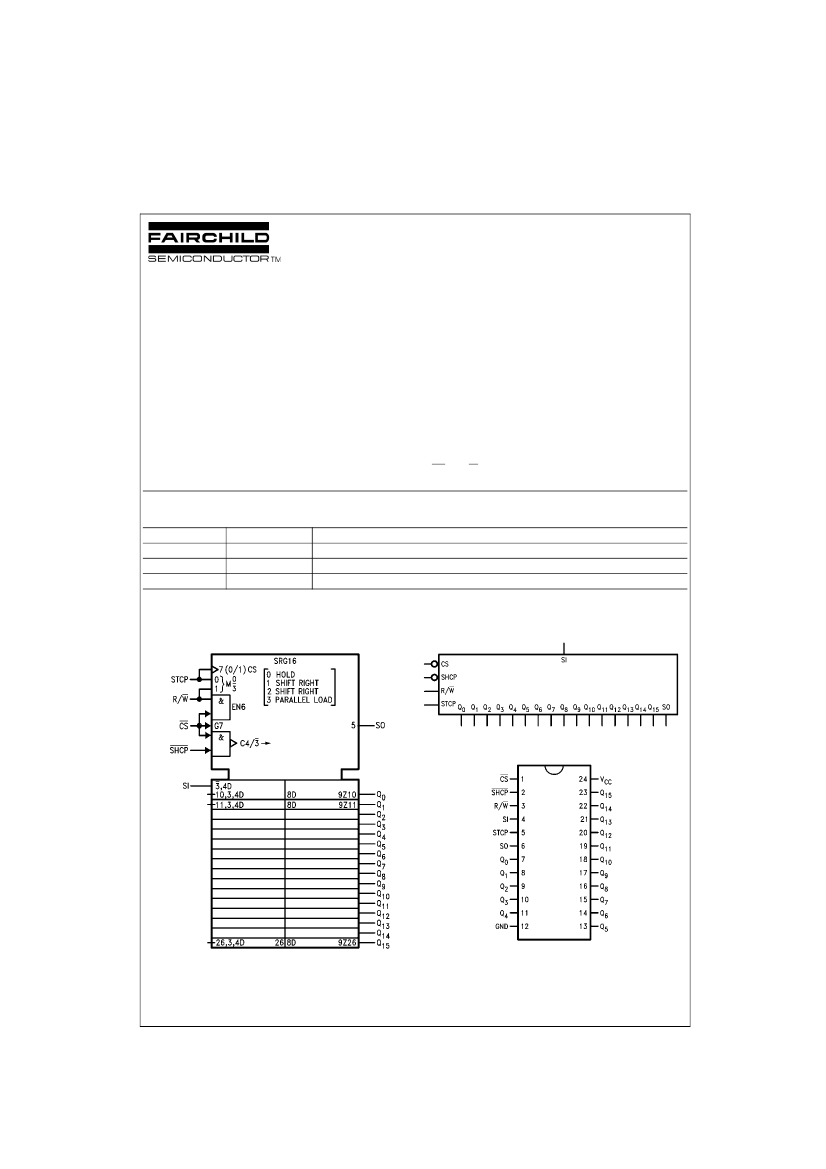

Logic Symbols

IEEE/IEC

Connection Diagram

DS009587

www.fairchildsemi.com

74F675ASPC Related Products

	74F675ASPC	74F675A	74F675A_00
Description	F/FAST SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP24	F/FAST SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP24	F/FAST SERIES, 16-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP24
series	F/FAST	F/FAST	F/FAST
Number of digits	16	16	16
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	70 °C	70 Cel	70 Cel
Minimum operating temperature	-	0.0 Cel	0.0 Cel
Output polarity	TRUE	TRUE	TRUE
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Maximum supply/operating voltage	-	5.5 V	5.5 V
Minimum supply/operating voltage	-	4.5 V	4.5 V
Rated supply voltage	-	5 V	5 V
Processing package description	-	0.600 INCH, SLIM, PLASTIC, MS-011, DIP-24	0.600 INCH, SLIM, PLASTIC, MS-011, DIP-24
Lead-free	-	Yes	Yes
state	-	ACTIVE	ACTIVE
Craftsmanship	-	TTL	TTL
packaging shape	-	RECTANGULAR	RECTANGULAR
Package Size	-	IN-LINE	IN-LINE
Terminal spacing	-	2.54 mm	2.54 mm
terminal coating	-	MATTE TIN	MATTE TIN
Packaging Materials	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Logic IC type	-	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
propagation delay TPD	-	12 ns	12 ns
Shift direction	-	RIGHT	RIGHT
Max-Min frequency	-	85 MHz	85 MHz
