PGSB-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> PGSB-15

PGSB-15: DescriptionBUSHING 0.391" NYLON BLACK; CategoryWire/cable; File Size128KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric View All

PGSB-15 Overview

BUSHING 0.391" NYLON BLACK

PGSB-15 Parametric

Parameter Name	Attribute value
Bushing, grommet style	casing
Supporting products/related products	cable, conductor
Panel thickness	0.031" ~ 0.125"（0.79mm ~ 3.18mm）
Panel opening size	Round - 0.562" (14.27mm)
Diameter - Internal	0.391"（9.93mm）
characteristic	Snap-in installation
Material	Polyamide (PS66), Nylon 6/6
color	black
Material flammability rating	UL94 V-2

Preview

Download Datasheet

View All

PART NO.

PGSB-0305

PGSB-1

PGSB-2

PGSB-3

PGSB-4

PGSB-5

PGSB-0710

PGSB-6

PGSB-7

PGSB-8

PGSB-9

PGSB-10

PGSB-11

PGSB-12

PGSB-1013

PGSB-13

PGSB-14

PGSB-15

PGSB-16

PGSB-17

PGSB-18

PGSB-19

PGSB-1316

PGSB-20

PGSB-21

PGSB-1519

PGSB-22

PGSB-23

PGSB-24

PGSB-25

PGSB-1822

PGSB-26

PGSB-27

PGSB-28

PGSB-29

PGSB-30

PGSB-31

PGSB-32

PGSB-33

PGSB-34

PGSB-2428

PGSB-2530

PGSB-2634

PGSB-35

PGSB-36

PGSB-37

PGSB-38

PGSB-39

PGSB-40

PGSB-41

PGSB-42

PGSB-43

HOLE DIAMETER

.189±.003 [4.8]

.250±.003 [6.35]

.312±.003 [7.9]

.375±.002 [9.5]

.394±.003 [10]

.437±.002 [11.1]

.468±.002 [11.9]

.500±.002 [12.7]

.512±.003 [13]

.531±.002 [13.5]

.562±.002 [14.3]

PANEL THICKNESS

.063-.067 [1.6-1.7]

.062 [1.57] MAX

.031-.125 [0.8-3.2]

.031-.063 [0.8-1.6]

.031-.125 [0.8-3.2]

.062 [1.57] MAX

.031-.125 [0.8-3.2]

.062 [1.57] MAX

.031-.118 [0.8-3]

.062 [1.57] MAX

.031-.125 [0.8-3.2]

.625±.002 [15.9]

.630±.003 [16]

.687±.002 [17.5]

.748±.003 [19]

.750±.002 [19.1]

.781±.002 [19.8]

.866±.003 [22]

.062 [1.57] MAX

.055-.139 [1.4-3.5]

.031-.125 [0.8-3.2]

.039-.130 [1-3.3]

.031-.125 [0.8-3.2]

.062 [1.57] MAX

.035-.091 [0.9-2.3]

.031-.125 [0.8-3.2]

.062 [1.57] MAX

1.000±.002 [25.4]

1.097±.004 [27.86]

1.102±.003 [28]

1.181±.003 [30]

1.347±.003 [34.2]

1.250±.002 [31.75]

1.375±.002 [34.9]

1.500±.002 [38.1]

1.750±.002 [44.45]

2.000±.002 [50.8]

2.250±.003 [57.2]

.250 [6.35] MAX

.031-.125 [0.8-3.2]

.039-.130 [1-3.3]

.039-.122 [1-3.1]

.039-.126 [1-3.2]

.875±.002 [22.2]

.031-.125 [0.8-3.2]

HEAD DIAMETER ACCOMMODA

TE BUNDLE

"A"±.020

DIA. "B" REF

.26 [6.5]

.125 [3.2]

.312 [7.9]

.187 [4.7]

.375 [9.5]

.240 [6.1]

.187 [4.7]

.468 [11.9]

.250 [6.35]

.472 [12]

.284 [7.2]

.270 [6.85]

.312 [7.9]

.531 [13.5]

.250 [6.35]

.343 [8.7]

.250 [6.35]

.578 [14.7]

.312 [7.9]

.562 [14.3]

.375 [9.5]

.591 [15]

.402 [10.2]

.593 [15.1]

.406 [10.3]

.312 [7.9]

.656 [16.7]

.391 [9.9]

.437 [11.1]

.250 [6.35]

.718 [18.2]

.437 [11.1]

.703 [17.85]

.500 [12.7]

.709 [18]

.504 [12.8]

.500 [12.7]

.781 [19.8]

.562 [14.3]

.854 [21.7]

.602 [15.3]

.500 [12.7]

.843 [21.4]

.562 [14.3]

.828 [21]

.625 [15.9]

.859 [21.8]

.976 [24.8]

.717 [18.2]

.500 [12.7]

.562 [14.3]

.953 [24.2]

.625 [15.9]

.687 [17.45]

.937 [23.8]

.750 [19.1]

1.125 [28.6]

.766 [19.45]

.812 [20.6]

1.218 [31]

.875 [22.2]

.937 [23.8]

1.240 [31.5]

.945 [24]

1.319 [33.5]

.984 [25]

1.496 [38]

1.031 [26.2]

1.312 [33.3]

.937 [23.8]

1.468 [37.3]

1.000 [25.4]

1.062 [27]

1.609 [40.9]

1.125 [28.6]

1.312 [33.3]

1.875 [47.6]

1.375 [34.9]

1.640 [41.7]

2.125 [54]

1.750 [44.5]

2.480 [63]

1.850 [47]

OVERALL

HEIGHT

"C"±.010

.24 [6]

.312 [7.9]

.237 [6]

.406 [10.3]

.260 [6.6]

.406 [10.3]

.250 [6.35]

.406 [10.3]

.250 [6.35]

.354 [9]

.250 [6.35]

"D"

.051 [1.3]

.063 [1.6]

.050 [1.27]

.055 [1.4]

.051 [1.3]

.055 [1.4]

.050 [1.27]

.063 [1.6]

.051 [1.3]

"B"

.406 [10.3]

.063 [1.6]

.250 [6.35]

.413 [10.5]

.406 [10.3]

.433 [11]

.406 [10.3]

.059 [1.5]

.063 [1.6]

.059 [1.5]

.063 [1.6]

"A"

"D"

"C"

.250 [6.35]

.059 [1.5]

.453 [11.5]

.250 [6.35]

.453 [11.5]

.441 [11.2]

.063 [1.6]

.059 [1.5]

.071 [1.8]

.059 [1.5]

.453 [11.5]

.063 [1.6]

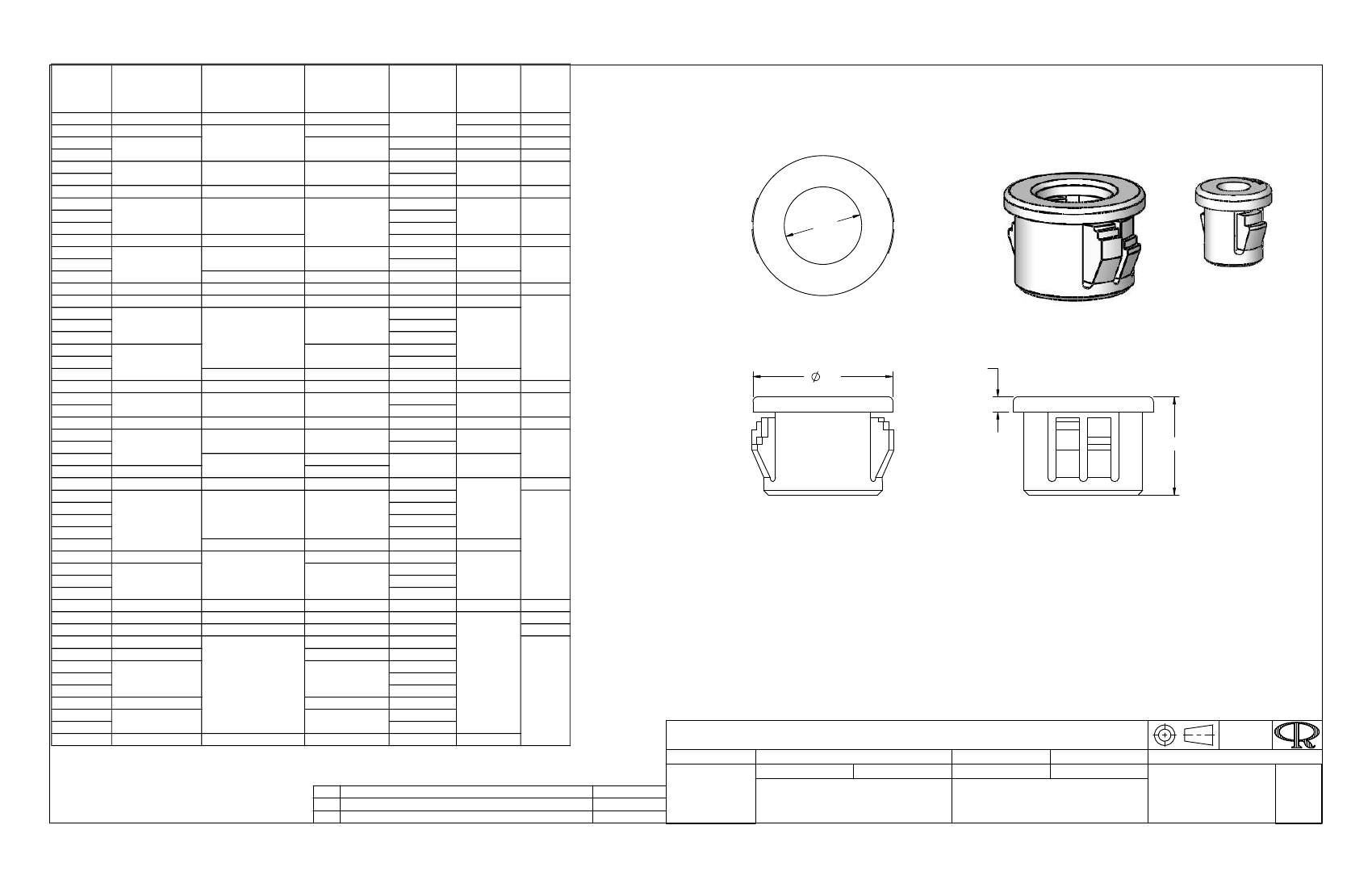

NOTES:

1. MATERIAL: NYLON 6/6 UL 94 V-2 (RMS-01)

-NYLON 6/6 UL 94 V-0 (RMS-19),

AVAILABLE BY SPECIAL ORDER ONLY. TO ORDER, ADD SUFFIX "-V0"

2. COLOR: BLACK.

COLOR WHITE AVAILABLE BY SPECIAL ORDER ONLY.

3. PARTS MAY APPEAR WITH ONE OR TWO LOCKING MECHANISMS PER SIDE.

-SOME PARTS MAY APPEAR WITH RICHCO LOGO.

TITLE:

.720 [18.2]

CREATED USING

SOLIDWORKS

SNAP BUSHINGS CLOSED

FILE #: PGSB

SHEET: 1 OF 1

RE:

SHEET SIZE: B

DWN: SK

DT: 11/17/08

SEE CO 200743 FOR CHANGES

SEE ENGINEERING FOR REVISIONS A TO H

DESCRIPTION

SK 02/09/2012

------

ENGR. DATE

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

RICHCO, INC.

ENG@RICHCO-INC.COM

APP: SK

CHKD: SJ

PART #

DWG IN

IN [MM]

FINAL

(773) 539-4060

SEE TABLE

TYPE
