F-345-C6050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> F-345-C6050

F-345-C6050: DescriptionF-345-C6050 BLACK FAN MOUNT; CategoryThermal management products; File Size55KB，1 Pages; ManufacturerAearo Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

F-345-C6050 Overview

F-345-C6050 BLACK FAN MOUNT

F-345-C6050 Parametric

Parameter Name	Attribute value
Fan accessory types	Buttonhole
Suitable for fan size	Flange thickness 3.3 ~ 4.3mm, hole diameter 3.3 ~ 4.5mm
length	1.06"（27.0mm）

Preview

Download Datasheet

View All

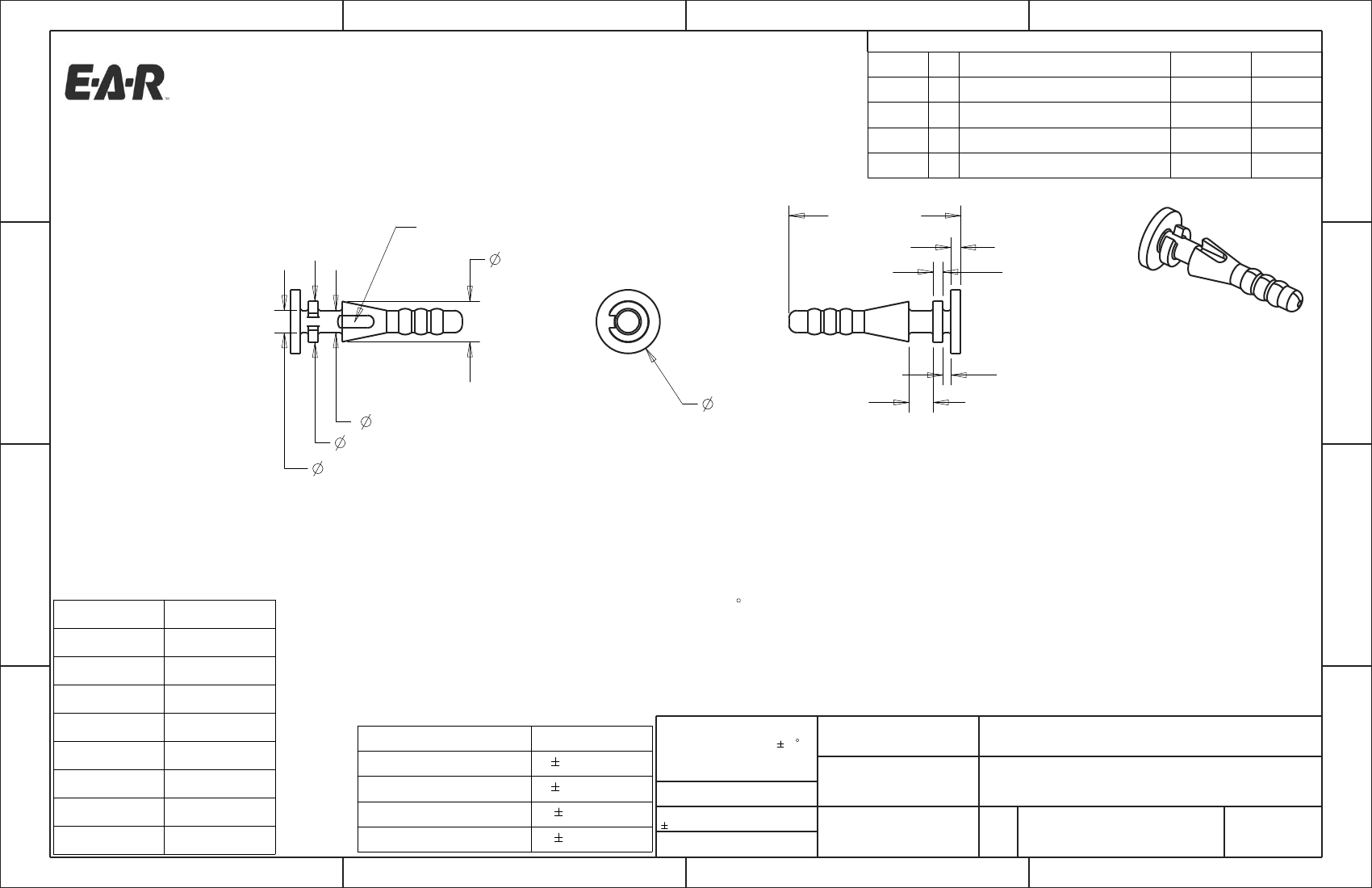

REVISIONS

DRAWN REV

DESCRIPTION

DATE

APPROVED

KP/TC

ORIGINAL

NEW FORMAT, IMPROVED DIMENSIONING

UPDATED FORMAT, NOTES, TOLERANCES, ADDED

WEIGHT, CAVITY LOCATION, MISSING DIMS AND

-X TO NAMING CONVENTION.

9-6-00

8-24-05

9-8-11

11-2-11

ADDED 6.5MM DIA CALLOUT

CAVITY #

6.35

[.25]

27[1.063]

1.5[.059]

1.3[.051]

10 [.394]

6.5

3.5

[.14]

[.256]

*3.8

[.150]

[.14]

F-345-V2375

F-345-V2325

F-345-C8012

F-345-C8002

F-345-C8001

V-2375

V-2325

C-8012

C-8002

C-8001

C-1100

C-1105

C-1002

MATERIAL

RANGE

0<DIM<=2 [0.078]

2 [0.078]<DIM<=25 [0.98]

25 [0.98]<DIM<=50 [1.969]

50 [1.969]<DIM

TOL

0.15 [.006]

0.25 [.010]

0.4 [.016]

0.6 [.024]

ALLOWABLE FLASH:

.12MM [.005]

GATE:

.25MM [.010]

3. MAX DRAFT: 2 .

2. CRITICAL DIMENSIONS SHALL HAVE Cpk VALUE >= 1.33 WITH ONGOING SPC DATA REQUIRED.

1. CRITICAL DIMENSIONS ARE MARKED WITH "*".

NOTES:

UNLESS OTHERWISE SPECIFIED

UNITS ARE: MM [IN]

TOLERANCE FOR ANGLES: 1.0

MATERIAL:

F-345-3

F-345-2

F-345-1

PART NUMBER

SEE TABLE ON LEFT

QUALITY CONTROL:

MUST COMPLY WITH E-A-R

SPECIALTY COMPOSITES

SUPPLIER QUALITY MANUAL

REQUIREMENTS

AEARO TECHNOLOGIES LLC * a 3M company

TITLE

F-345 FAN MOUNT

DRAWING NO.

PAGE NO.

1 OF 1

NOTES:

ANY FEATURE NOT DIMENSIONED

IN PRINT MUST BE VISIBLY PRESENT,

UTILIZE 3D CAD FOR CREATION

SIZE

0.59 GRAM REF

F-345-X

F-345-C6050 Related Products

	F-345-C6050	F-345-1	F-345-C8002	F-345-C8012
Description	F-345-C6050 BLACK FAN MOUNT	F-345-1 FAN MOUNT	F-345-8 FAN MOUNT	F-345-C8012 BLACK FAN MOUNT
Fan accessory types	Buttonhole	Buttonhole	Buttonhole	Buttonhole
Suitable for fan size	Flange thickness 3.3 ~ 4.3mm, hole diameter 3.3 ~ 4.5mm	Flange thickness 3.3 ~ 4.3mm, hole diameter 3.3 ~ 4.5mm	Flange thickness 3.3 ~ 4.3mm, hole diameter 3.3 ~ 4.5mm	Flange thickness 3.3 ~ 4.3mm, hole diameter 3.3 ~ 4.5mm
length	1.06"（27.0mm）	1.06"（27.0mm）	1.06"（27.0mm）	1.06"（27.0mm）
