AI-2429-TWT-R
24mm Indicator
3541 Stop Eight Road • Dayton, Ohio 45414
Product Overview
s
s
^
Z
t

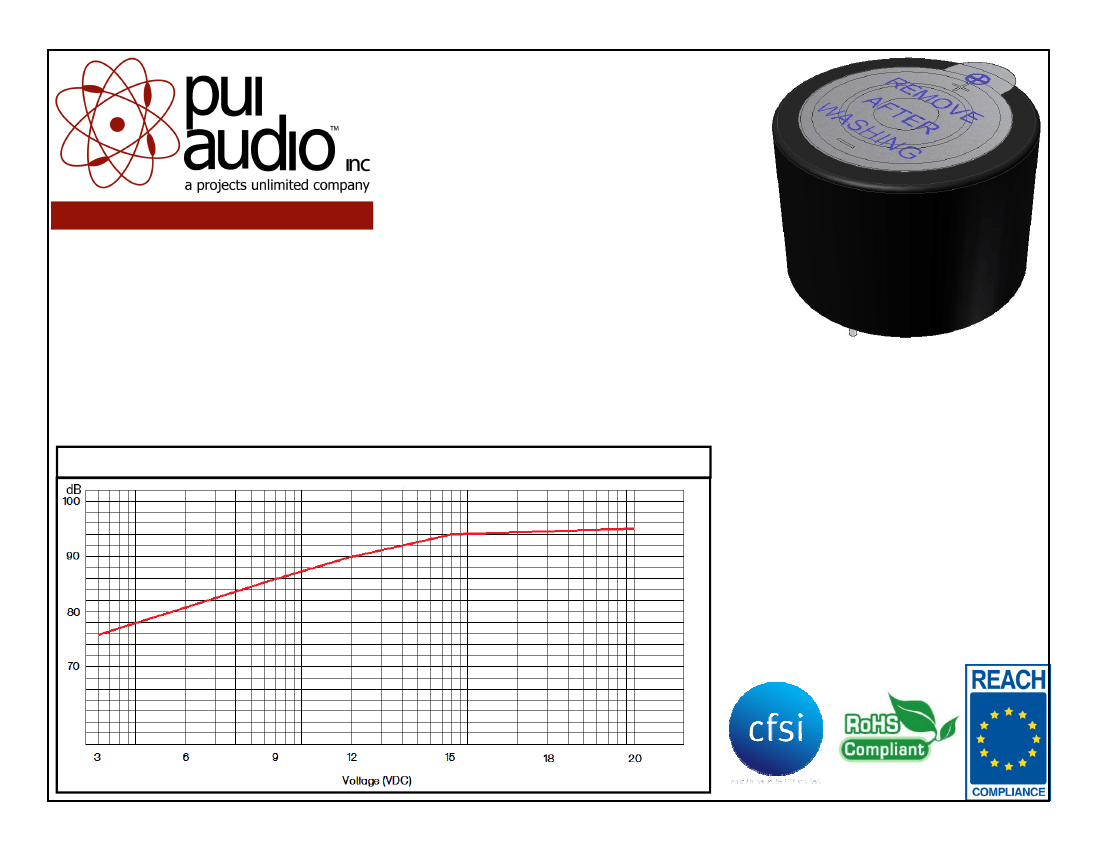

SPL vs Voltage (measured @ 30 cm)
PUI Audio Inc. engages in continuous product improvement. All specifications are subject to change without notice. www.puiaudio.com. Copyright © 2015. Last Revised 10/15.
AT-1438-TWT-R
AI-2429-TWT-R
40mm Speaker
24mm Indicator
Mechanical and Environment Testing
Test Description
High Temperature
Low Temperature
Humidity
Vibration
Drop Test
Temperature Cycle Test
Wave Solder Profile
Test Condition
80°C (±2°C) with random humidity for 96 hours
-40°C (±2°C) with random humidity for 96 hours
40°C (±2°C) with 90% to 95% relative humidity for
96 hours
0.75 mm movement modulated at 10-55 Hz for 3
hours
100 cm free fall onto wood board, 10 cycles
-30°C to 80°C, 100 cycles
After tests, part shall rest for 2 hours. Parts are then tested for clean, pure tones.

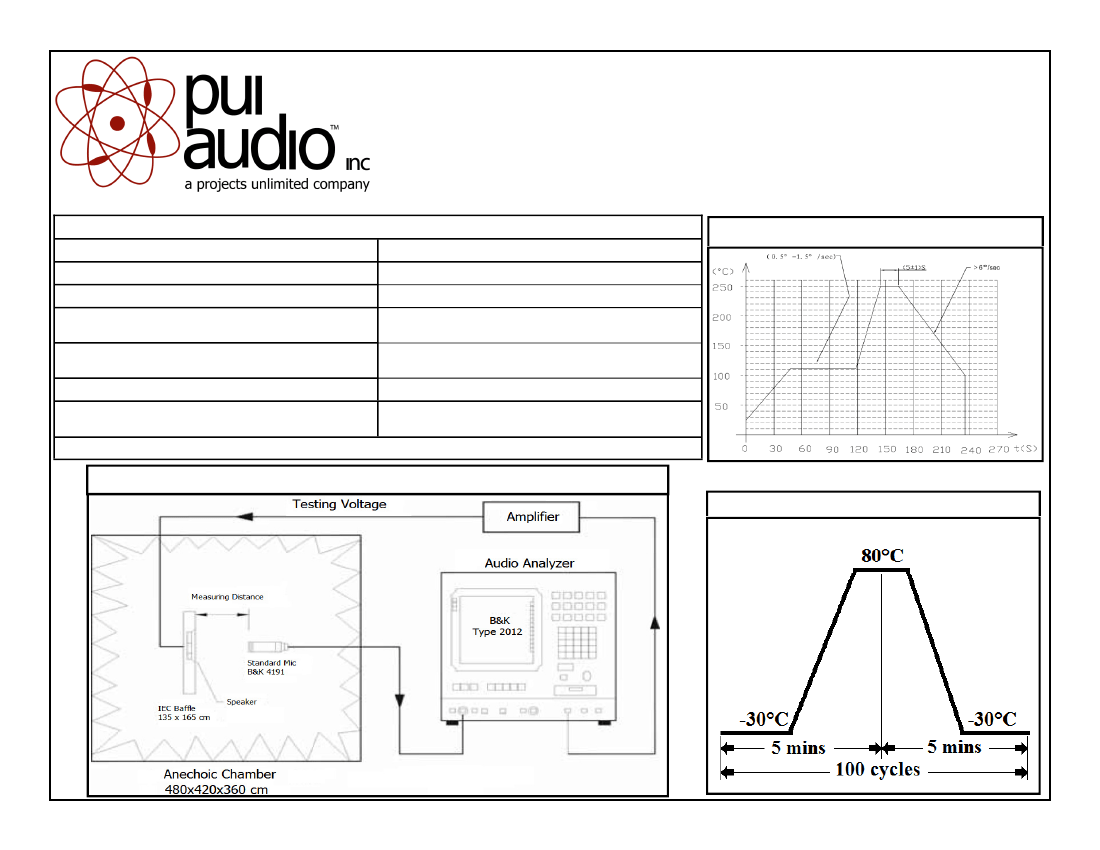

Frequency Response and SPL Measurement Setup
Temperature Cycle Test Graph
PUI Audio Inc. engages in continuous product improvement. All specifications are subject to change without notice. www.puiaudio.com. Copyright © 2015. Last Revised 10/15.
SPECIFICATIONS
PARAMETERS
RATED VOLTAGE
OPERATING VOLTAGE RANGE
RATED CURRENT (MAX)
MINIMUM SPL @ 10 CM
RESONANT FREQUENCY
TONE OR PULSE RATE
OPERATING TEMPERATURE
STORAGE TEMPERATURE
HOUSING MATERIAL
TERMINAL MATERIAL
WEIGHT
VALUES
12
3 ~ 20
8
100
2,900 ± 500
CONTINUOUS
-20 ~ +70
-40 ~ +80
ABS
Sn PLATED
RED COPPER
6
UNITS
Vdc
Vdc
mA
dBA
Hz
0 pulse/sec
°C
°C
-
-
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
LTR
-
A
B
C
DESCRIPTION
REVISION HISTORY
DATE
8/19/2004
8/10/2005
1/28/2008
2/7/2011
APPROVED
B.R.
M.L.
©2003, Projects Unlimited Inc.
RELEASED FROM ENGINEERING
REMOVED LEAD FREE ADDED RoHS
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
REVISED TERMINAL MATERIAL

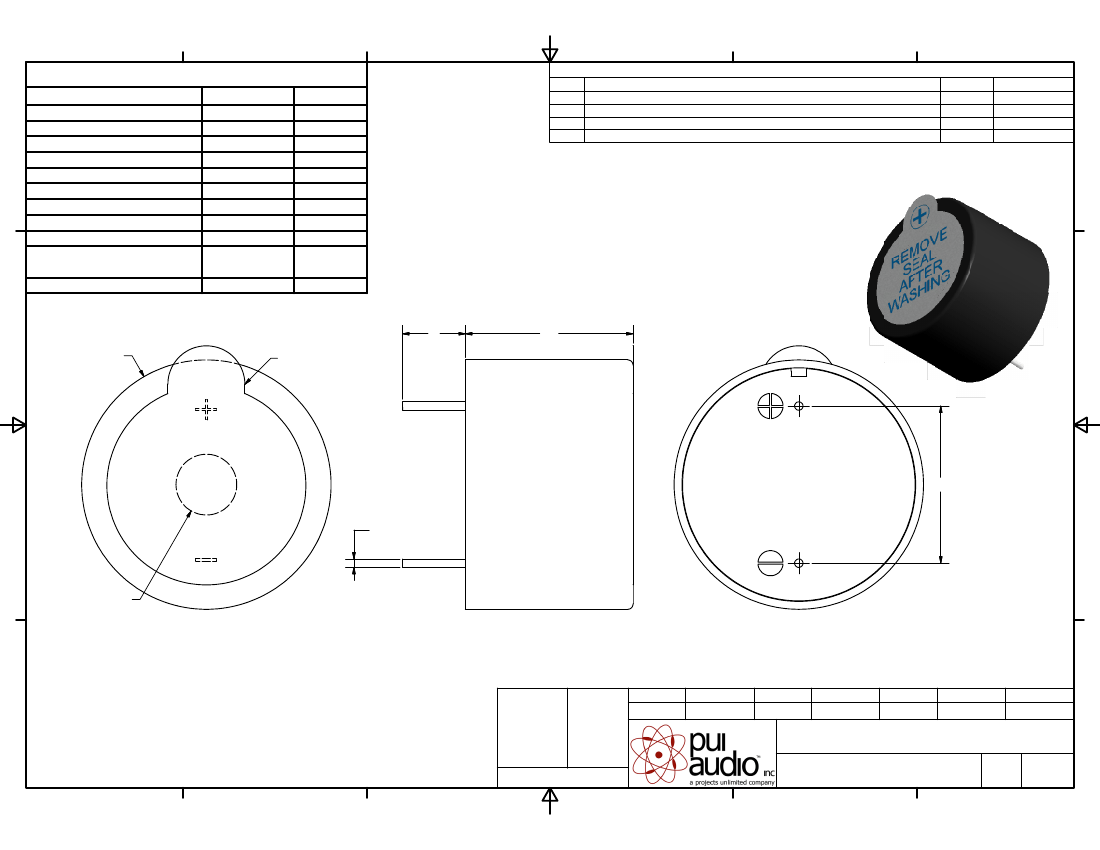

6
23.8
16
REMOVABLE
WASH TAB
15
0.8
0.1 (2)
EMISSION HOLE
5.8 SOUND
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
Designed by
Date
Checked by
Date
Approved by
Date
Drawn Date
SIZE
R.A.C.
8/19/2004
R.W.
8/19/2004 1/28/2008
A3
AI-2429-TWT-R
Indicator
Edition
Sheet
AI-2429-TWT-R.idw
-
1/1
