Surface Mount Aluminum Electrolytic Capacitors
EDK, +85°C
Overview
Applications
Typical applications include coupling, decoupling, bypass,
and filtering.

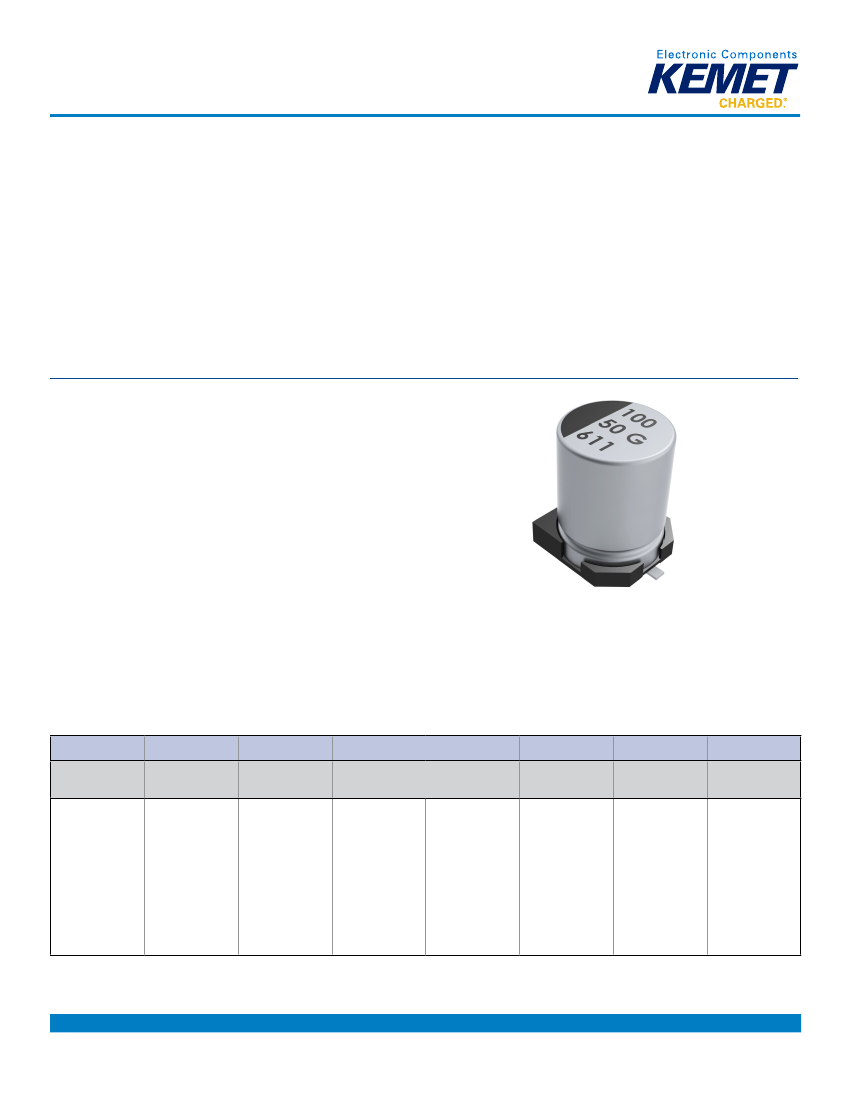

The KEMET EDK aluminum electrolytic surface mount
capacitors are designed for high density printed circuit
boards.
Benefits
• Surface mount lead terminals
• Low profile vertical chip
• General purpose
• 85°C/2,000 hours
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
EDK
Series
Surface Mount
Aluminum
Electrolytic
336
Capacitance
Code (pF)
First two digits
represent
significant
figures for
capacitance
values. Last
digit specifies
the number
of zeros to be
added.
M
Tolerance
M = ±20%
004 = 4
6R3 = 6.3
010 = 10
016 = 16
025 = 25
004
Rated Voltage
(VDC)
035 = 35
050 = 50
063 = 63
100 = 100
A
Electrical
Parameters
A = Standard
S = AEC-Q200
9B
Size Code
See Dimension
Table
AA
Packaging
AA = Tape &
Reel
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4001_EDK • 5/23/2018
1
Surface Mount Aluminum Electrolytic Capacitors – EDK, +85°C
Dimensions – Millimeters
D
C
B
G
P
L
A
W
F
E
D
Nominal
4
5
6.3
6.3
8
10
Tolerance
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
Nominal
5.4
5.4
5.4
7.7
10.2
10.2
E
E
Size Code
9B
9D
9G
9H
9M
9P
L
Tolerance
+0.25/−0.1
+0.25/−0.1
+0.25/−0.1
±0.3
±0.3
±0.3
Nominal
4.3
5.3
6.6
6.6
8.3
10.3
A/B
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Nominal
5.5
6.5
7.8
7.8
10
13
C
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
1.8
2.2
2.6
2.6
3.4
3.5
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Size Code
9B
9D
9G
9H
9M
9P
F
Nominal
0.3
0.3
0.3
0.3
0.3
0.3
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.35
0.35
0.35
0.35
0.70
0.70
G
Tolerance
+0.15/−0.2
+0.15/−0.2
+0.15/−0.2
+0.15/−0.2
±0.2
±0.2
Nominal
1.0
1.5
1.8
1.8
3.1
4.6
P
Tolerance
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
Nominal
0.65
0.65
0.65
0.65
0.9
0.9
W
Tolerance
±0.1
±0.1
±0.1
±0.1
±0.2
±0.2
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4001_EDK • 5/23/2018
2
Surface Mount Aluminum Electrolytic Capacitors – EDK, +85°C
Environmental Compliance
As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental
effects of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like
China, legislation has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic
equipment. All products in this catalog are produced to help our customers’ obligations to guarantee their products and fulfill
these legislative requirements. The only material of concern in our products has been lead (Pb), which has been removed
from all designs to fulfill the requirement of containing less than 0.1% of lead in any homogeneous material. KEMET will
closely follow any changes in legislation world wide and make any necessary changes in its products, whenever needed.
Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode
coatings. To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels
for RoHS compatible capacitors.
Due to customer requirements, there may appear additional markings such as lead free (LF) or lead-free wires (LFW) on the
label.
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Operating Temperature
Capacitance Tolerance
Life Test
Leakage Current
1 – 1,500 µF
4 – 100 VDC
−40°C to +85°C
±20% at 120 Hz/20°C
2,000 hours (see conditions in Test Method & Performance)
I ≤ 0.01 CV or 3 µA, whichever is greater
C = rated capacitance (µF), V = rated voltage (VDC). Voltage
applied for 2 minutes at 20°C.
Performance Characteristics
Impedance Z Characteristics at 120 Hz
Rated Voltage (VDC)
Z (−25°C)/Z (20°C)
Z (−40°C)/Z (20°C)
4
7
15
6.3
4
8
10
3
6
16
2
4
25
2
4
35
2
3
50
2
3
63
2
3
100
2
3
Compensation Factor of Ripple Current (RC) vs. Frequency
Rated Voltage (VDC)
Coefficient
60 Hz
0.80
120 Hz
1.00
1 kHz
1.15
10 kHz
1.25
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4001_EDK • 5/23/2018
3
Surface Mount Aluminum Electrolytic Capacitors – EDK, +85°C
Test Method & Performance
Conditions
Temperature
Test Duration
Ripple Current
Voltage
Load Life Test
85°C
2,000 hours
Maximum ripple current specified at 120 Hz 85°C
The sum of DC voltage and the peak AC voltage
must not exceed the rated voltage of the capacitor.
Within ±20% of the initial value
Does not exceed 200% of the specified value
Does not exceed specified value
Shelf Life Test
85°C
1,000 hours
No ripple current applied
No voltage applied
Performance
Capacitance Change
Dissipation Factor
Leakage Current
The following specifications will be satisfied when the capacitor is restored to 20°C:
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however,
the leakage current will very slowly increase.
The KEMET E aluminum electrolytic capacitors should not be stored in high temperatures or where there is a high level of
humidity. The suitable storage condition for KEMET's E aluminum electrolytic capacitors is +5 to +35°C and less than 75%
in relative humidity. KEMET's E aluminum electrolytic capacitors should not be stored in damp conditions such as water,
saltwater spray or oil spray. KEMET's E aluminum electrolytic capacitors should not be stored in an environment full of
hazardous gas (hydrogen sulphide, sulphurous acid gas, nitrous acid, chlorine gas, ammonium, etc.) KEMET's E aluminum
electrolytic capacitors should not be stored under exposure to ozone, ultraviolet rays or radiation.
If a capacitor has been stored for more than 18 months under these conditions and it shows increased leakage current,
then a treatment by voltage application is recommended.
Re-Age (Reforming) Procedure
Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen
to a steady value below the specified limit. During re-aging a maximum charging current of twice the specified leakage
current or 5 mA (whichever is greater) is suggested.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4001_EDK • 5/23/2018
4
Surface Mount Aluminum Electrolytic Capacitors – EDK, +85°C
Table 1 – Ratings & Part Number Reference
VDC
4
4
4
4
4
4
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
VDC Surge
Voltage
5
5
5
5
5
5
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
13
13
13
13
13
13
13
13
13
13
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Rated
Capacitance
120 Hz 20°C
(µF)
33
47
100
220
330
470
22
33
33
47
47
100
100
150
220
220
220
330
330
470
680
1000
1000
1500
22
33
33
47
100
220
330
470
470
1000
4.7
10
22
22
22
33
33
47
47
100
100
220
220
330
330
470
470
680
Case Size
D x L (mm)
4 x 5.4
4 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
4 x 5.4
"5 x 5.4
"
4 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
"8 x 6.2
"
6.3 x 5.4
6.3 x 7.7
"8 x 6.2
"
6.3 x 7.7
8 x 10.2
"10 x 10.2
"
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
10 x 10.2
4 x 5.4
4 x 5.4
5 x 5.4
4 x 5.4
5 x 5.4
5 x 5.4
6.3 x 5.4
5 x 5.4
6.3 x 5.4
6.3 x 5.4
6.3 x 7.7
6.3 x 7.7
8 x 10.2
8 x 10.2
10 x 10.2
8 x 10.2
10 x 10.2
"10 x 10.2
"
DF
120 Hz
20°C
(tan δ %)
35
35
35
35
35
35
26
26
26
26
26
26
26
26
35
35
35
35
35
35
35
35
35
35
30
30
20
30
26
26
26
26
26
26
16
16
16
26
16
26
16
16
16
20
20
20
20
20
20
20
20
20
RC
120 Hz
85°C
(mA)
26
34
61
82
80
200
20
22
22
36
46
47
71
71
250
74
235
300
280
380
458
500
700
750
28
29
43
43
70
250
330
390
400
580
20
28
39
28
39
45
66
45
70
70
85
162
280
320
380
350
420
430
LC
20°C
2 Minutes
(µA)
3.0
3.0
4.0
8.8
13.2
18.8
3.0
3.0
3.0
3.0
3.0
6.3
6.3
9.5
13.9
13.9
13.9
20.8
20.8
29.6
42.8
63.0
63.0
94.5
3.0
3.3
3.3
4.7
10.0
22.0
33.0
47.0
47.0
100.0
3.0
3.0
3.5
3.5
3.5
5.3
5.3
7.5
7.5
16.0
16.0
35.2
35.2
52.8
52.8
75.2
75.2
108.8
Part Number
EDK336M004(1)9BAA
EDK476M004(1)9BAA
EDK107M004(1)9DAA
EDK227M004(1)9GAA
EDK337M004(1)9GAA
EDK477M004(1)9HAA
EDK226M6R3(1)9BAA
EDK336M6R3A9DAA
EDK336M6R3(1)9BAA
EDK476M6R3(1)9BAA
EDK476M6R3(1)9DAA
EDK107M6R3(1)9DAA
EDK107M6R3(1)9GAA
EDK157M6R3A9GAA
EDK227M6R3A9LAA
EDK227M6R3(1)9GAA
EDK227M6R3(1)9HAA
EDK337M6R3A9LAA
EDK337M6R3(1)9HAA
EDK477M6R3(1)9MAA
EDK687M6R3A9PAA
EDK108M6R3(1)9MAA
EDK108M6R3(1)9PAA
EDK158M6R3(1)9PAA
EDK226M010(1)9BAA
EDK336M010(1)9BAA
EDK336M010(1)9DAA
EDK476M010(1)9DAA
EDK107M010(1)9GAA
EDK227M010(1)9HAA
EDK337M010(1)9MAA
EDK477M010(1)9MAA
EDK477M010(1)9PAA
EDK108M010(1)9PAA
EDK475M016(1)9BAA
EDK106M016(1)9BAA
EDK226M016Z9DAA
EDK226M016(1)9BAA
EDK226M016(1)9DAA
EDK336M016(1)9DAA
EDK336M016(1)9GAA
EDK476M016(1)9DAA
EDK476M016(1)9GAA
EDK107M016(1)9GAA
EDK107M016(1)9HAA
EDK227M016(1)9HAA
EDK227M016(1)9MAA
EDK337M016(1)9MAA
EDK337M016(1)9PAA
EDK477M016(1)9MAA
EDK477M016(1)9PAA
EDK687M016A9PAA
VDC
VDC Surge
Rated Capacitance
Case Size
DF
RC
LC
Part Number
(1) Insert Electrical Parameters code. See Part Number System for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4001_EDK • 5/23/2018
5
