336ULR020MEF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 336ULR020MEF

336ULR020MEF: DescriptionCAP ALUM POLY 33UF 20% 20V T/H; CategoryPassive components; File Size330KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336ULR020MEF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336ULR020MEF	-	-	View	Buy Now

336ULR020MEF Overview

CAP ALUM POLY 33UF 20% 20V T/H

336ULR020MEF Parametric

Parameter Name	Attribute value
type	polymer
capacitance	33µF
Tolerance	±20%
Voltage - Rated	20V
ESR (equivalent series resistance)	5.02 ohms
Service life at different temperatures	2000 hours at 105°C
Operating temperature	-55°C ~ 105°C
grade	-
application	decoupling
Ripple current @ low frequency	100mA @ 120Hz
Ripple current @ high frequency	2A @ 100kHz
lead spacing	0.098"（2.50mm）
size/dimensions	0.248" diameter (6.30mm)
Height - Installation (maximum)	0.354"（9.00mm）
Surface mount pad dimensions	-
Installation type	Through hole
Package/casing	Radial, Can

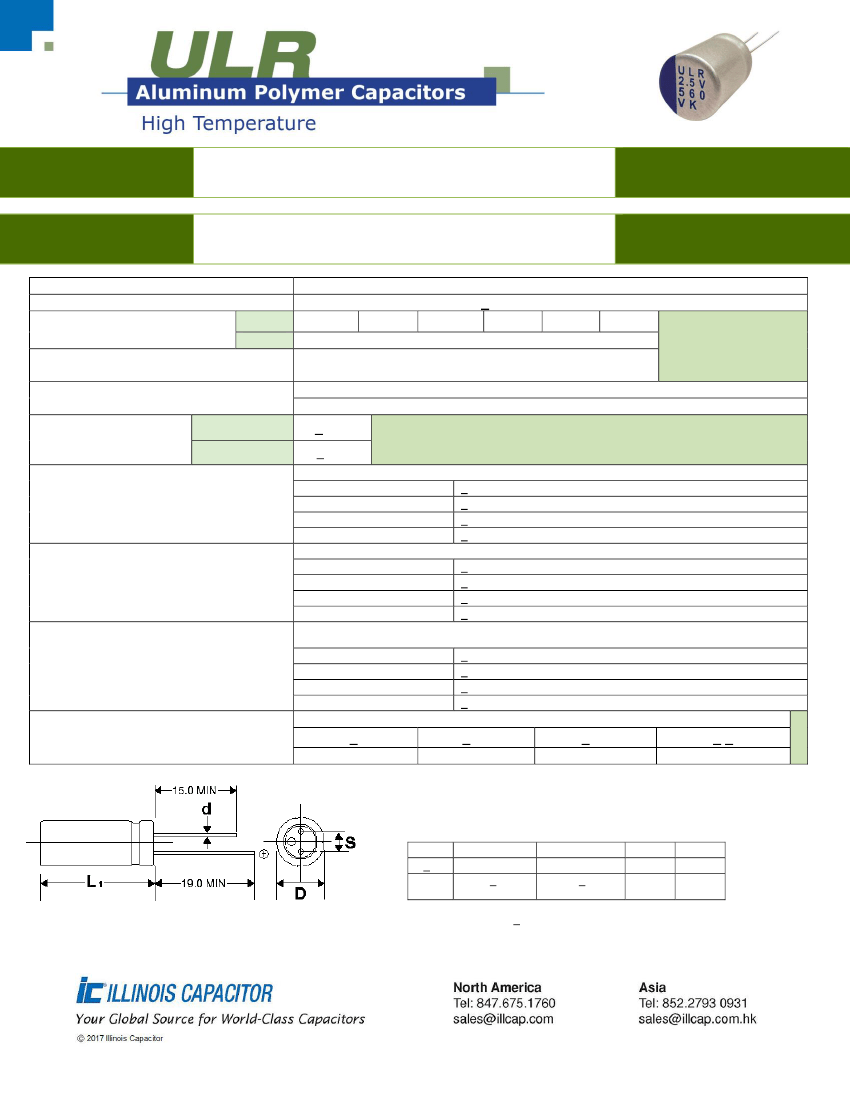

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

High Temperature

–

Very Low ESR – High Ripple Current –

Stable with Temperature – High Frequency

DC-DC Converters

–

Voltage Regulators

–

Decoupling

-55°C to +105°C

+20% at 120 Hz, 20°C

1.15 x rated WVDC

10% MAX

2 Minutes

0.2CV or 280uA, whichever is greater

<1.25

2000 hours at 105°C with rated WVDC applied

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 hours at 60°C with rated voltage applied at 90-95% R.H.

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 cycles at 105°C with rated surge voltage applied for 30 seconds through a 1kΩ resistor

and discharged for 5 minutes and 30 seconds

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

Operating Temperature Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

Dissipation Factor

120 Hz, 20°C

Leakage Current

Low Temperature Stability

Impedance Ratio

(100 kHz)

2.5

-55°C/ +20°C

+105°C/ +20°C

Load Life

Damp Heat test

Surge Voltage test

Ripple Current Multipliers

120Hz<f<1kHz

0.05

Frequency (Hz)

1kHz<f<10kHz 10kHz<f<100kHz

0.3

0.7

100kHz<f<500kHz

1.0

6.3

2.5

0.5 L<7mm)

0.45 L<6mm)

0.6( L>7mm)

0.6( L>6mm)

=L+1.0 mm MAX L<11mm

=L+1.5 mm MAX, L>11 mm

D+0.5

S+0.5

3.5

0.6

5.0

0.6

Feb-17

336ULR020MEF Related Products

	336ULR020MEF	227ULR016MFF	337ULR6R3MFF	567ULR6R3MEF	687ULR4R0MFF	567ULR6R3MFF	277ULR010MFF	827ULR2R5MEF
Description	CAP ALUM POLY 33UF 20% 20V T/H	CAP ALUM POLY 220UF 20% 16V T/H	CAP ALUM POLY 330UF 20% 6.3V T/H	CAP ALUM POLY 560UF 20% 6.3V T/H	CAP ALUM POLY 680UF 20% 4V T/H	CAP ALUM POLY 560UF 20% 6.3V T/H	CAP ALUM POLY 270UF 20% 10V T/H	CAP ALUM POLY 820UF 20% 2.5V T/H
type	polymer	polymer	polymer	polymer	polymer	polymer	polymer	polymer
capacitance	33µF	220µF	330µF	560µF	680µF	560µF	270µF	820µF
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%	±20%	±20%
Voltage - Rated	20V	16V	6.3V	6.3V	4V	6.3V	10V	2.5V
ESR (equivalent series resistance)	5.02 ohms	750 milliohms	500 milliohms	300 milliohms	240 milliohms	300 milliohms	610 milliohms	200 milliohms
Service life at different temperatures	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C	2000 hours at 105°C
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
application	decoupling	decoupling	decoupling	decoupling	decoupling	decoupling	decoupling	decoupling
Ripple current @ low frequency	100mA @ 120Hz	215mA @ 120Hz	285mA @ 120Hz	235mA @ 120Hz	305mA @ 120Hz	285mA @ 120Hz	221mA @ 120Hz	280mA @ 120Hz
Ripple current @ high frequency	2A @ 100kHz	4.3A @ 100kHz	5.7A @ 100kHz	4.7A @ 100kHz	6.1A @ 100kHz	5.7A @ 100kHz	4.42A @ 100kHz	5.6A @ 100kHz
lead spacing	0.098"（2.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.098"（2.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.098"（2.50mm）
size/dimensions	0.248" diameter (6.30mm)	0.315" diameter (8.00mm)	0.315" diameter (8.00mm)	0.248" diameter (6.30mm)	0.315" diameter (8.00mm)	0.315" diameter (8.00mm)	0.315" diameter (8.00mm)	0.248" diameter (6.30mm)
Height - Installation (maximum)	0.354"（9.00mm）	0.354"（9.00mm）	0.354"（9.00mm）	0.354"（9.00mm）	0.354"（9.00mm）	0.354"（9.00mm）	0.354"（9.00mm）	0.354"（9.00mm）
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Package/casing	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can	Radial, Can
