2112AX5 Overview

INDICATOR 105-125 VAC NEON GREEN

2112AX5 Parametric

Parameter Name	Attribute value
type	neon
lamp color	green
Lens color	-
Lens transparency	transparent
grade	AC
Voltage	105 V ~ 125 V
current	-
Panel opening shape	round
Panel opening size	0.31"（7.87mm）
Lens style/size	Round, with flat top
millicandela level	-
Wavelength - Peak	-
perspective	-
Terminal type	Lead - 4.6" (116.84mm)
Intrusion protection	-
characteristic	-

Preview

Download Datasheet

View All

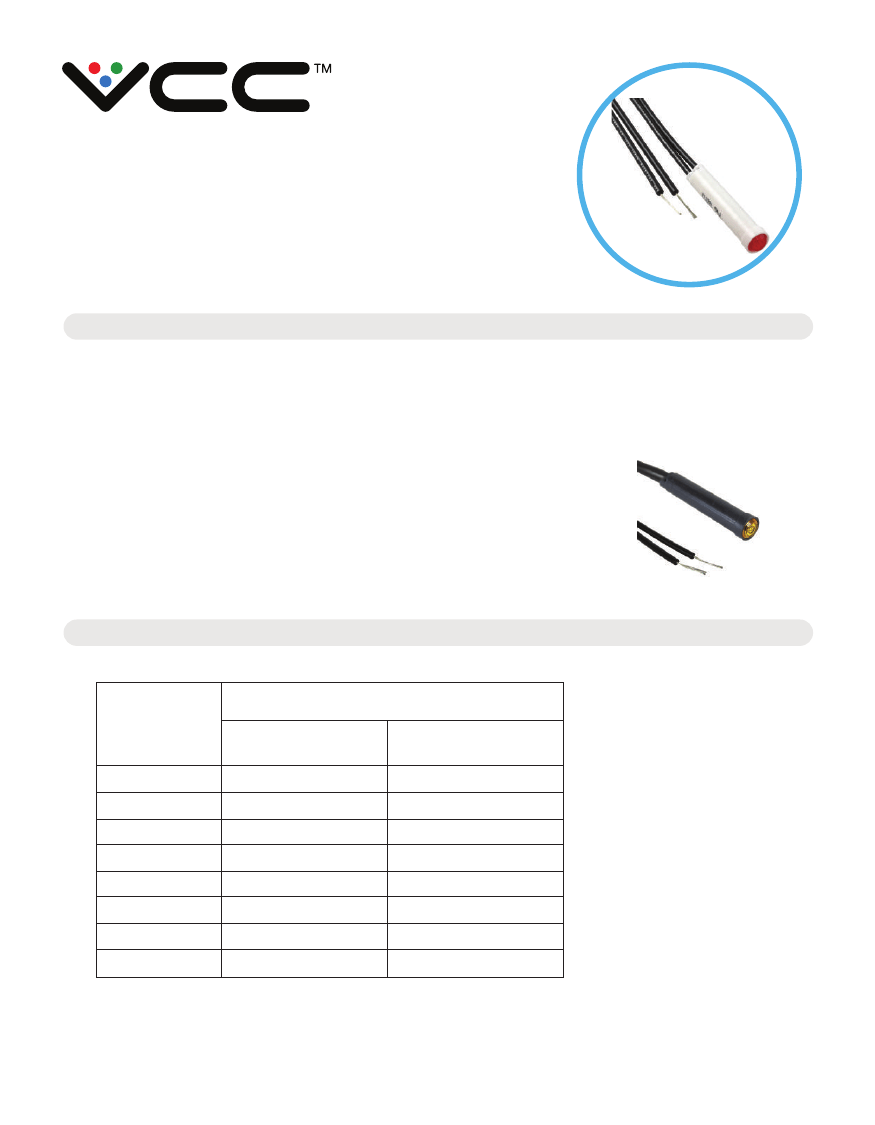

2110A, 2111A, 2112A, 2113A

Series Non-Relampable

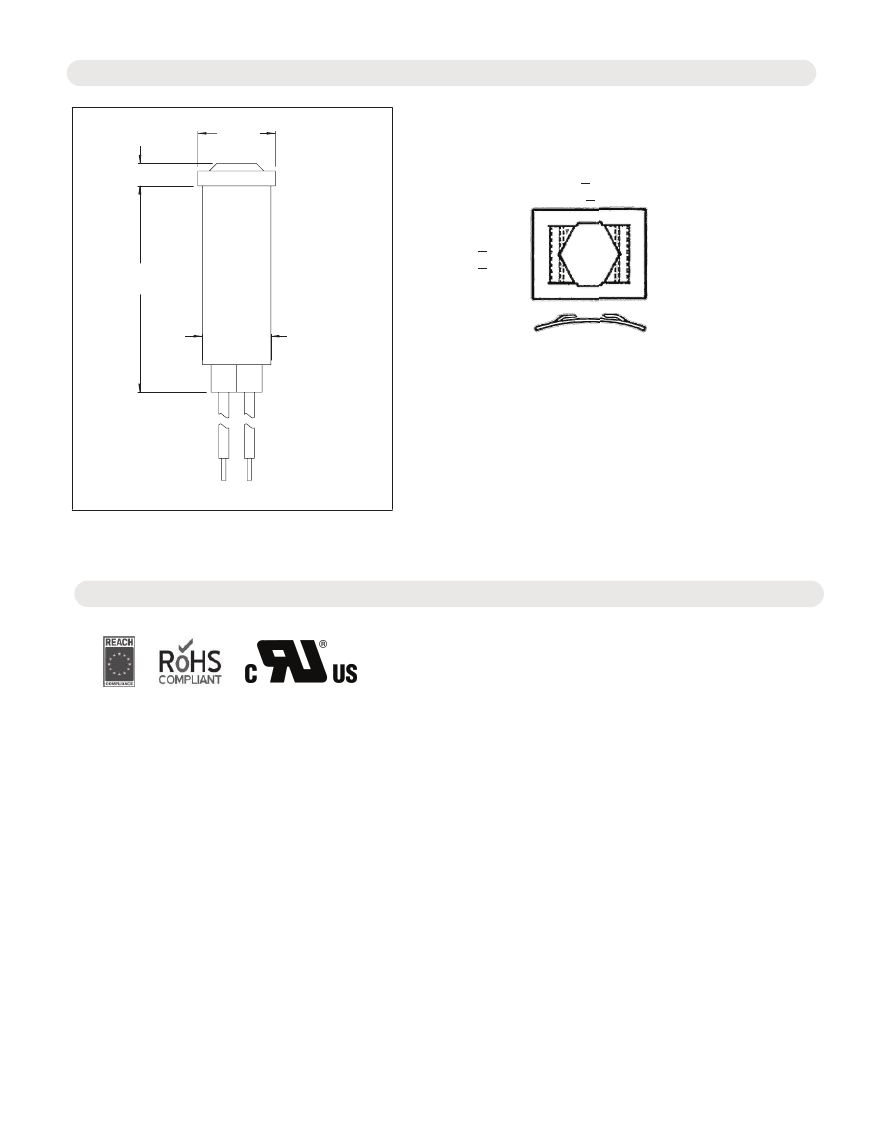

Ø.310”

Panel Mount Indicator

Description and Features

Mounting:

Ø.310” MIN., supplied with push-on speednut SN1287-C

Wire Leads:

No. 22 AWG (105°C) 4.40”/4.80” long, stripped .430”/.570”

Lens:

Polycarbonate-neon transparent, incandescent-translucent

Housing:

White Nylon. For Black Nylon, add “X” after A, for example:

2110AX3

Underwriters Laboratories (UL) File No.E20356

Ordering Data

Neon

Lens Color

Red

Clear

Amber

White

Green

Blue

Model No.

(105-125VAC)

2110A1

2110A2

2110A3

2110A4

Model No.

(208-250VAC)

2111A1

2111A2

2111A3

-

2112A5*

Lamp Used

Lead Color

2112A6**

Black

2113A5*

C2A+Resistor

2113A6**

C2A+Resistor

Black/Red

* Incorporates G2B lamp and resistor.

** Incorporates T2B lamp and resistor.

your first call for illuminated components

www.vcclite.com

1.800.522.5546

08/17 Rev 2

1
