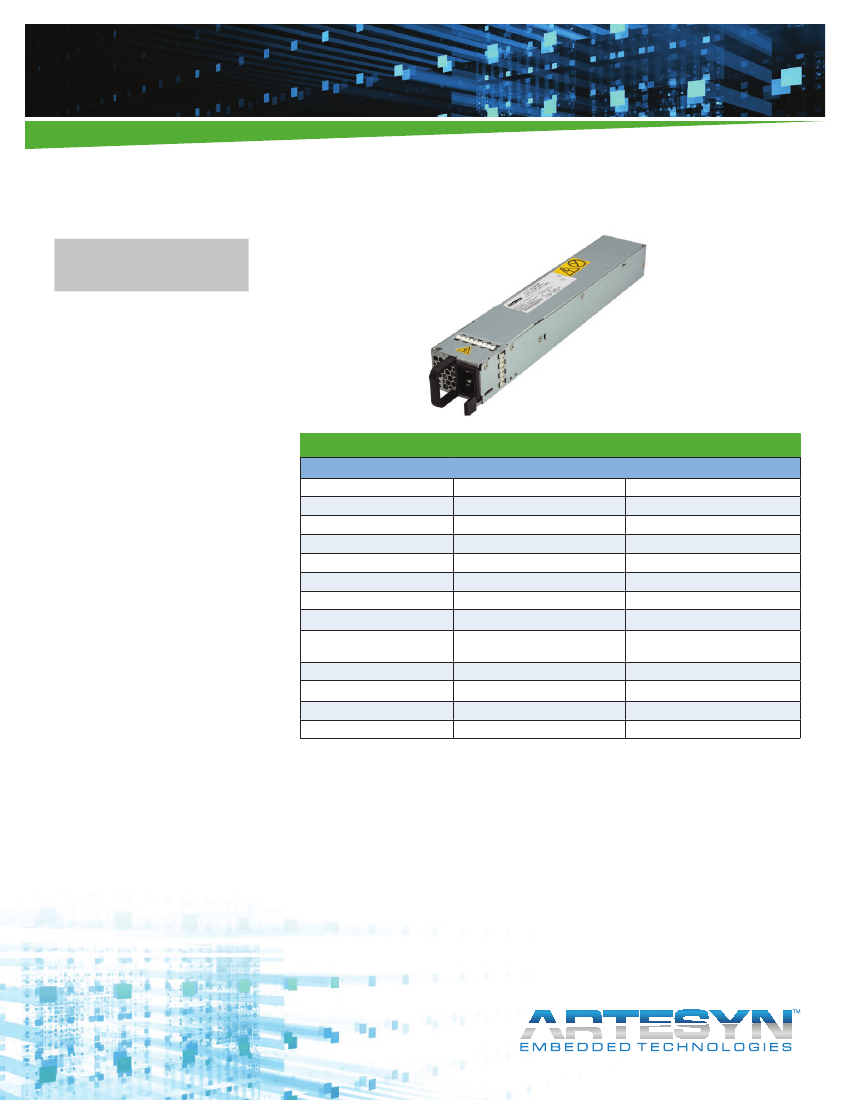

POWER
Data Sheet
Total Output Power:
800 Watts +5.0 Vdc Standby
SPECIAL FEATURES
800 W output power
19.05 W/cu-in
1U X 54.5 mm form factor (slimline)
N + 1 redundant
Hot-swap
Internal OR’ing
5.0 V housekeeping
High efficiency 92% @ 200 Vac,
50% load (Climate Savers Gold)
Variable speed “smart fans”
EMI Class B
Available in two airflow directions
DS800SL Series
800 Watts Bulk Front End
Electrical Specifications
Input
Input range (operating)
Input range (nominal)
Frequency
Inrush current
Power factor
Harmonics
Input current
Holdup time
Undervoltage lockout
Overvoltage lockout
Leakage current
On/Off power switch
Power line transient
90 - 264 Vac
115 / 230 Vac
47 - 63 Hz
≤ 40 A peak
0.99 typical
Meets IEC 1000-3-2 requirements
10.0 A RMS max input current
10 ms minimum for main O/P
85 ± 3.0 Vac
80 ± 3.0 Vac
N/A
< 1.0 mA
N/A
MOV directly after the fuse
At 264 Vac
At 100 Vac
At full rated load
Turn-on voltage
Turn-off voltage
Either hot or cold start
Meets EN61000-3-2
SAFETY
UL/cUL 60950 -1
CSA
60950-1
VDE
60950-1
China
CCC
CB Scheme Report/Cert
DS800SL Series Data Sheet

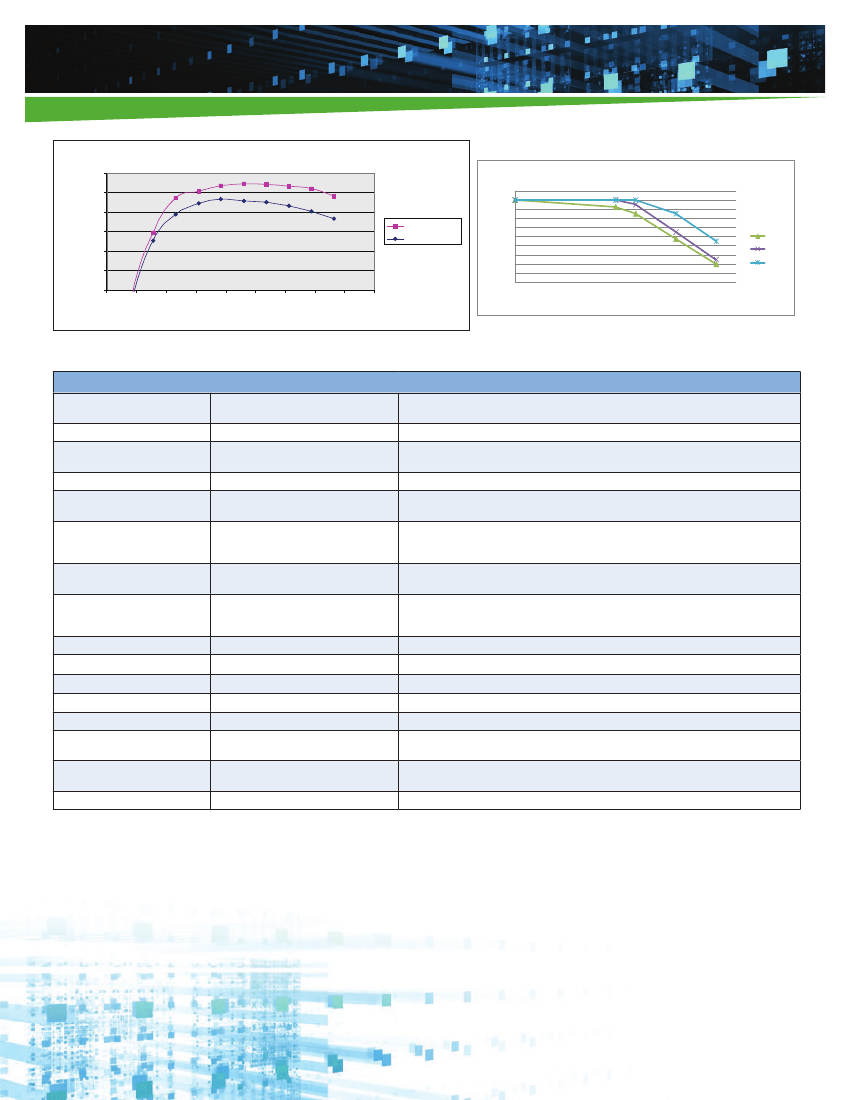

Ef ciency Curve 800 W DS Slim
92.0%
90.0%
Ef ciency
Power Rating
DS800SL-3-001 Power Derating
820
800
780
760
740
720
700
680
660
640
620
0
10
20
30
40
50
Ambient Temperature (degC)
88.0%
86.0%
84.0%
82.0%
80.0%
0.0
230 Vac, 50 Hz
115 Vac, 60 Hz
100Vac
110Vac
230Vac
100.0 200.0 300.0 400.0 500.0 600.0 700.0 800.0 900.0
Output Power [W]
Output
Output rating
Setpoint
Total regulation range
Rated load
Minimum load
Output noise (PARD)
12 V @ 66.7 A; 800 W
5.0 Vsb @ 4 A; 20 W
12.0 V
12 V ± 1%
5.0 Vsb ± 3%
800 W maximum
12 V @ 0.5 A
5.0 Vsb @ 0.0 A
120 mV Max P-P
100 mV Max P-P
600 mV; 12 V main
250 mV; 5.0 standby
+/-5% of regulation range
Line/load/transient when measured at output
connector
No derating over operating temp range for forward air
No load operation shall not damage the power supply
12.0 V output
5.0 Vsb output
Measured with a 0.1 uF ceramic and 10 uF tantalum capacitor on any output; 20 Mhz
1 A/uSec slew rate
50% load step @ 1 A/us
Step load valid between 10% to 100% of output rating
Recovery time to within 1% of set point at onset of transient
Output to return
90 - 264 Vac
Output voltage overshoot
Transient response
Max units in parallel
Short circuit protection
Remote sense
Output isolation
Forced load sharing
Overload protection (OCP)
Overvoltage protection (OVP)
Overtemperature protection
Up to 6
>130% of rated output
Compensation up to 100 mV
Standard per Safety Requirements
To within 10% of all shared outputs
120% to 130%
120% to 170%
110% to 120%
110% to 125%
10 - 15 ˚C above safe operating area
Digital sharing control
12 V output
5.0 Vsb output
12 V output
5.0 Vsb output
Both PFC and output converter monitored
DS800SL Series Data Sheet
Outputs - All Models

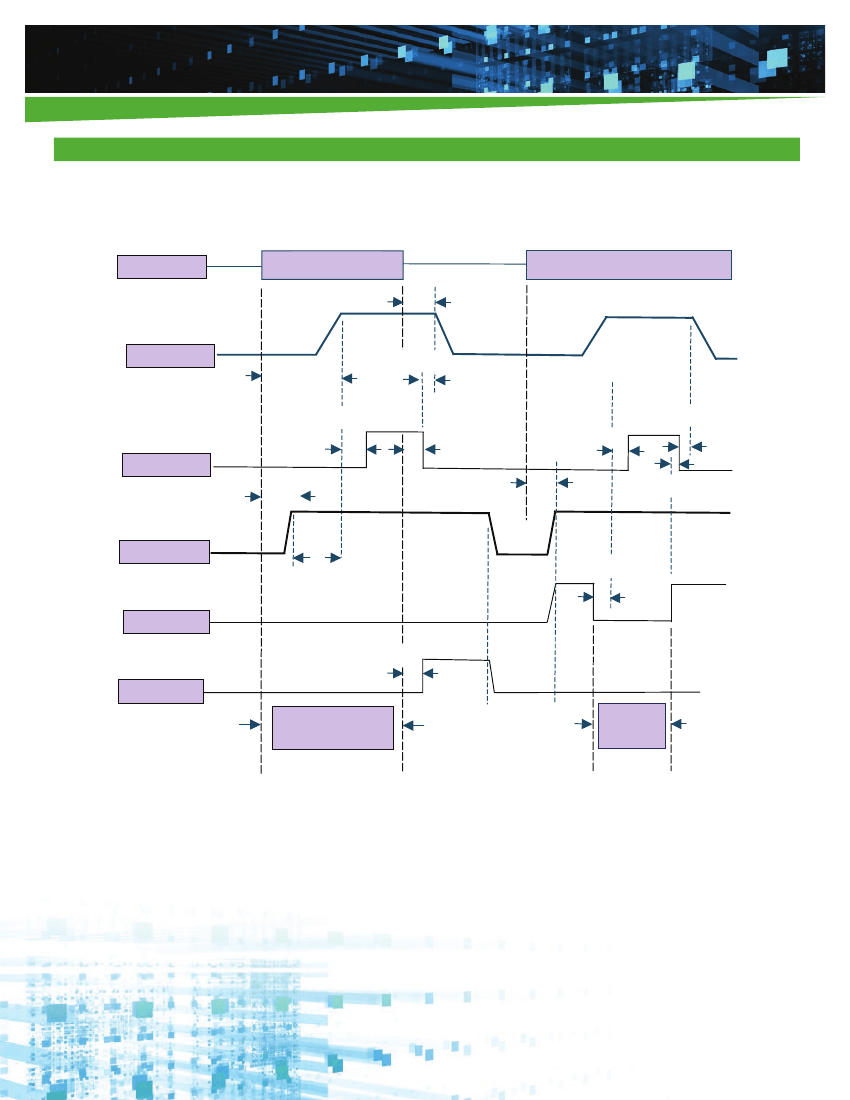

Timing Diagram
AC Input
AC On
T
Vout_Holdup
AC On
T
PWOK_Off_
Main Vout
T
AC_On_Delay
T
PWOK_Off_
T
PWOK_On
T
PWOK_Holdup
T
PWOK_On
T
PSON_PWOK
T
PWOK_Off
PWOK
T
sb_on_delay
T
sb_On
5.0 Vsb Vout
T
SB_Vout
T
PSON_On_Delay
PS_ON
T
ACOK_Delay
AC_OK
AC I put
n
ON / OFF Cycle
PSON
ON / OFF
Cycle
DS800SL Series Data Sheet
Outputs - All Models
Turn On/Off Timing
Item
Tvout_rise
Tvout_rise
Tsb_on_delay
Tac_on_delay
Tvout_holdup
Tpwok_holdup
Tpson_on_delay
Tpson_pwok
Tacok_delay
Tpwok_on
Tpwok_off
Tpwok_low
Tsb_vout
Description
+12 Output rise time
5.0 Vsb output rise time
Delay from AC being applied to 5.0 Vsb being within regulation.
Delay from AC being applied to all output voltages being within regulation.
Time all output voltages, including 5.0 Vsb, stay within regulation after loss of AC.
Delay from loss of AC to de-assertion of PWOK.
Delay from PSON# active to output voltages within regulation limits.
Delay from PSON# de-active to PWOK being de-asserted.
Delay from loss of AC input to de-assertion of ACOK#.
Delay from output voltages within regulation limits to PWOK asserted at turn on.
Delay from PWOK de-asserted to 12 Vdc or 5.0 Vsb dropping out of regulation limits.
Duration of PWOK being in the de-asserted state during an off/on cycle using AC or the PSON# signal.
Delay from 5.0 Vsb being in regulation to 12 Vdc being in regulation at AC turn on.
5
100
1
100
50
1000
12
5
5
200
50
12
1000
1000
Min
5
1
Max
300
50
2000
4000
Units
mSec
mSec
mSec
mSec
mSec
mSec
mSec
mSec
mSec
mSec
mSec
mSec
mSec
PSON #
The PSON# signal is required to remotely turn on/off the power
supply. PSON# is an active low signal that turns on the +12 Vdc
power rail. When this signal is not pulled low by the system, or left
open, the +12 Vdc output turns off. The Vsb output remains on.
This signal is pulled to a standby voltage by a pull-up resistor
internal to the power supply. The power supply fan(s) shall operate
at the lowest speed.
PWOK# (POWER GOOD)
PWOK is a power good signal and will assert HIGH when the
outputs are within the regulation limits. PWOK will be pulled LOW
by the power supply to indicate when either output falls below
regulation limits or when AC power has been removed for a time
sufficiently long so that power supply operation is no longer
guaranteed. The start of the PWOK# delay time shall be inhibited
as long as the +12 Vdc output is in current limit or the 5.0 Vsb
output is below the regulation limit.
PWOK Signal Characteristics
PSON Signal Characteristics
Signal Type
Accepts an open collector/drain input
from the system. Pulled-up to the 5.0
Vsb located in power supply.
ON
OFF
MIN
Logic level low (power supply ON)
Logic level high (power supply OFF)
Source current, Vpson = low
Power up delay: Tpson_on_delay
5 msec
0V
2.0 V
MAX
0.8 V
5.2 V
4 mA
200 msec
Signal Type
PSON# = Low
PSON# = Open
Open collector/drain output
from power supply. Pullup to
5.0 Vsb external to the power
supply.
Power Good
Power Not Good
MIN
MAX
0.8 V
5 .2V
4 mA
2 mA
100 ms
1 msec
1000 ms
100 µsec
1000 msec
0V
2.0 V
PWOK = High
PWOK = Low
To tLogic level low voltage, Ising = 4 mA
Logic level high voltage, Isource = 200 µA
Sink current, PWOK = low
Source current, PWOK = high
PWOK delay: T
pwok_on
PWOK rise and fall time
Power down delay: T
pson_off
DS800SL Series Data Sheet
PSKILL
The +12 Vdc output only from the power supply shall be disabled
if the PSKILL input is high and V Standby will continue to be
provided, outputs may be enabled if this signal is low. The power
supply includes a pull up to disable all outputs if this signal is open.
PSKILL whall not be connected during a hot insertion before all of
the other pins are connected.
ACOK
#
Signal Characteristics
Signal Type
Present = High
Present = Low
MIN
Logic level low voltage, Isink = 4 mA
Logic level high voltage, Isink = 50 µA
0V
2.0 V
Pull up to 5.0 Vsb through a
resistor in the host system.
Present
Not Present
MAX
0.8 V
5.2 V
4 mA
50 µsec
AC INPUT PRESENT INDICATOR (ACOK/L)
The ACOK signal is used to indicate presence of AC input to the
power supply. This signal shall be connected to Vsb through a
resistor on the host system side. A logic “Low” level on this signal
shall indicate AC input to the power supply is present. A Logic
“High” on this signal shall indicate a loss of AC input to the power
supply.
Sink current, PRESENT
#
= low
Sink current, PRESENT = high
#
