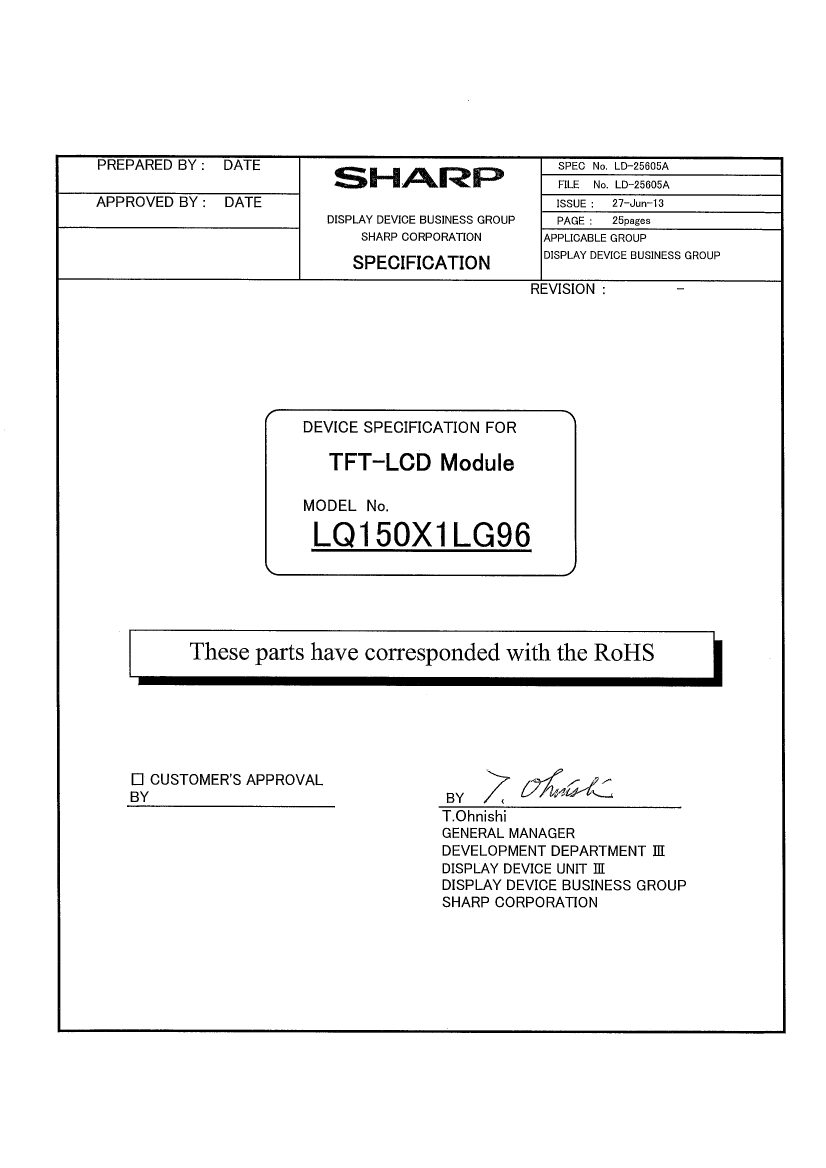

RECORDS OF REVISION
LQ150X1LG96
SPEC No.
DATE
2013/6/27
REVI
SED
No
PAGE
SUMMARY
-
NOTE
LD-25605A
- Contents -
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Fig.1
Fig.3
Application
Overview
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
page
1
2
2
3
9
10
12
13
15
17
18
18
19
20
21
22
Mechanical Specifications ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
Input Terminals
Absolute Maximum Ratings
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
Electrical Characteristics ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
Timing characteristics of input signals
・・・・・・・・・・・・・・・・・・・・・・
・・
Input Signals, Basic Display Colors and Gray Scale of Each Color
Optical Characteristics
Handling Precautions
Packing form
Reliability test items
Others
Storage conditions
OUTLINE DIMENSIONS
PACKING FORM
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
LD-25605A- 1
1．Application
This specification applies to the color TFT-LCD module LQ150X1LG96.
This specification is the proprietary product of SHARP CORPORATION (SHARP) and include
materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in
any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express
written permission of SHARP.
The device listed in this specification was designed and manufactured for use in general electronic
equipment.
In case of using the device for applications such as control and safety equipment for transportation (controls of
aircraft, trains, automobiles, etc.), rescue and security equipment and various safety related equipment which
require higher reliability and safety, take into consideration that appropriate measures such as fail-safe
functions and redundant system design should be taken.
Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment
for life support.
SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
with the instructions and the precautions specified in this specification .
Contact and consult with a SHARP sales representative for any questions about this device.
LD-25605A- 2
2．Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (
Thin Film Transistor).
It is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a White-LED
Backlight unit. Graphics and texts can be displayed on a 1024×RGB×768dots panel with about 16 million
colors by using LVDS (Low Voltage Differential Signaling) and supplying +3.3V DC supply voltages for
TFT-LCD panel driving and supply voltage for backlight.
The maximum viewing angle is in the 6o'clock direction.
The 12o'clock direction is difficult to reverse the grayscale.
The LED driver circuit and the PWM circuit to drive the backlight are built into the module.
3．Mechanical technical literatures
Parameter
Display size
Active area
Pixel format
Aspect ratio
Pixel pitch
Pixel configuration
Display mode
Unit outline dimensions
Mass
Surface treatment
technical literatures
38（15inch）Diagonal
304.1（H)×228.1（V)
1024（H)×768（V)
(1pixel＝R＋G＋B dot)
4：3
0.297（H)×0.297（V)
R,G,B vertical stripe
Normally white
326.5（W)×253.5（H)×9.6(D)
950 （Max.）
Anti-glare and hard-coating 3H
mm
g
mm
Unit
cm
mm
pixel
Outline dimensions are shown in Fig.1.
