D4JL-2PFA-C7-01 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> D4JL-2PFA-C7-01

D4JL-2PFA-C7-01: DescriptionSWITCH SAFETY 3PST 3A 240V; CategoryMechanical and electronic products switch; File Size6MB，31 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

D4JL-2PFA-C7-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D4JL-2PFA-C7-01	-	-	View	Buy Now

D4JL-2PFA-C7-01 Overview

SWITCH SAFETY 3PST 3A 240V

D4JL-2PFA-C7-01 Parametric

Parameter Name	Attribute value
Maker	OMRON
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	14 weeks
body width	36.5 mm
body height	132.9 mm
Body length or diameter	114 mm
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	240 V
Electrical life	500000 Cycle(s)
Manufacturer's serial number	D4JL
Installation features	PANEL MOUNT
Maximum operating temperature	55 °C
Minimum operating temperature	-10 °C
Maximum pre-travel	14 mm
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	5PST
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	SCREW

Preview

Download Datasheet

View All

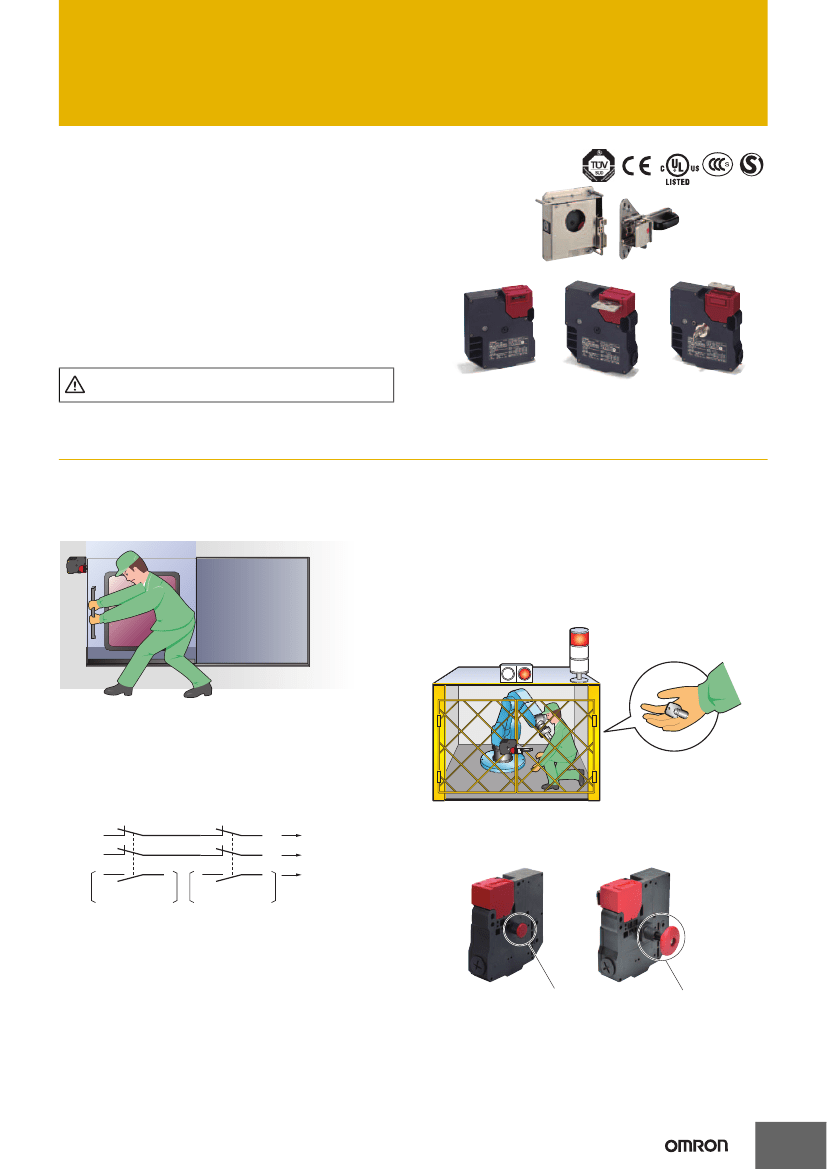

Guard Lock Safety-door Switch/Slide key

D4JL/D4JL-SK40

C38I-E-02

Holding Force of 3,000 N

• Two safety circuits and two monitor contacts provide an

array of monitoring patterns.

• Standard gold-clad contacts enable use with ordinary loads

and microloads.

• Models with trapped keys prevent workers from being locked

in hazardous work areas.

• Models with rear release buttons allow people to unlock the

Switch and escape if they are locked into hazardous areas.

• IP67 degree of protection.

•

Conforms to ISO 14119.

Be sure to read the

“Safety Precautions”

on page 24.

Slide keys

Guard Lock Safety-door Switch

For the most recent information on models that have been certified for

safety standards, refer to your OMRON website.

Features

Plastic Guard Lock Safety-door Switches

Rank Among the Strongest in the World

A holding force of 3,000 N makes these Switches suitable for large,

heavy doors.

Wide variations to protect workers who

enter hazardous areas.

•

Models with Trapped Keys (mechanical lock models only)

As long as a person has the trapped key when he enters a

hazardous area, he does not have to worry about somebody

locking the door and trapping him inside.

The door can be opened only by supplying power to the solenoid

and then turning the trapped key to unlock the D4JL.

There are thirty different types of trapped keys available for use in

applications with adjacent hazardous areas.

Two Safety Circuits and Two Monitor

Contacts

The D4JL has two safety circuits. It also has two contacts to

separately monitor the open/closed status of the door and the status

of the lock.

Lock Monitor Switch

Door Open/Closed

Detection Switch

To safety circuit

To control circuit

•

Models with Rear Release Buttons

A rear release button allows the door to be unlocked from inside a

hazardous area in an emergency.

Monitoring

the door lock

Monitoring the open/

closed status of the door

Rear release

button

D4JL-@@@A-06

Rear release

button

D4JL-@@@A-@8-01-SJ

•

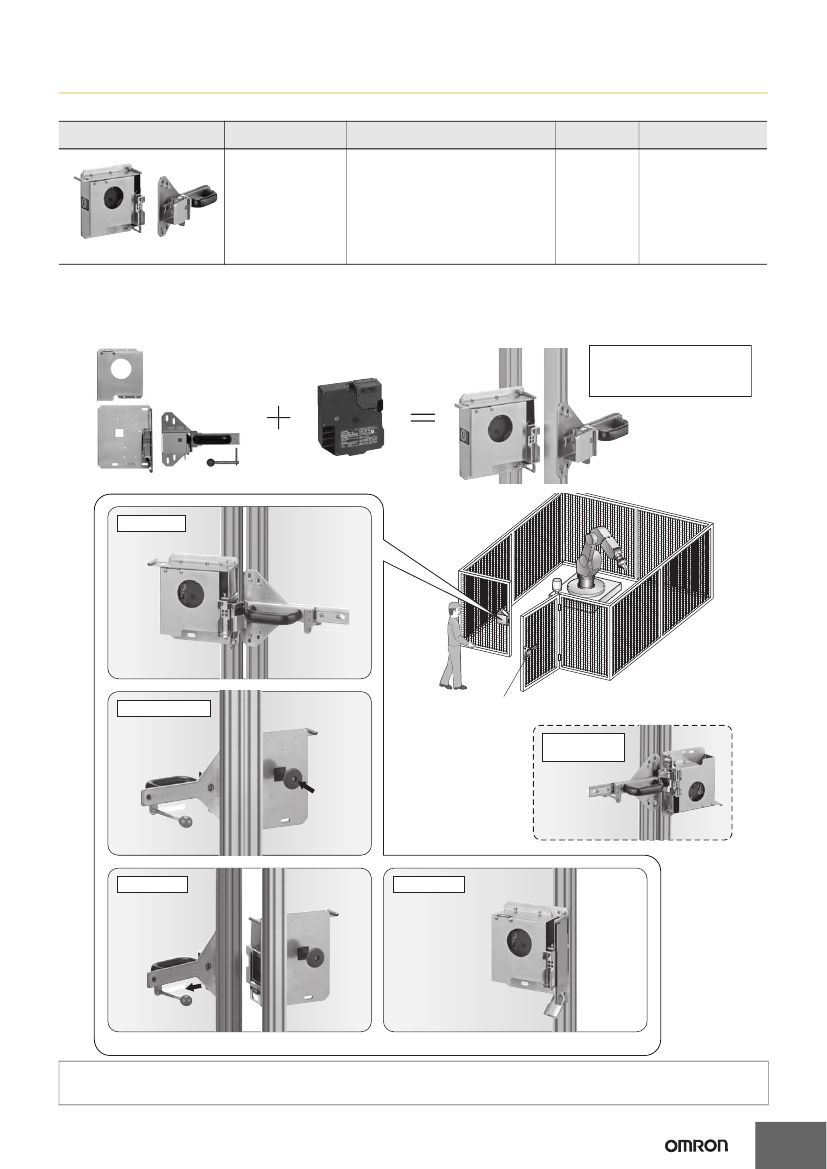

Special Slide Key

A special Slide Key shortens the lead time for mounting design.

The padlock that can be attached to the disable-prevention cover

prevents other workers from restarting machines.

(See page 5 for details.)
