QorIQ Qonverge Platform
QorIQ Qonverge BSC9131 for
Femtocell Base Station Solutions
A new dimension in wireless processing
Target Applications
Femtocell: Home or small office cellular
base stations supporting the following
standards:
• LTE-FDD/TDD
• WCDMA (HSPA+)
• CDMA2K
• TD-SCDMA
QorIQ Qonverge BSC9130 and BSC9131 Processors

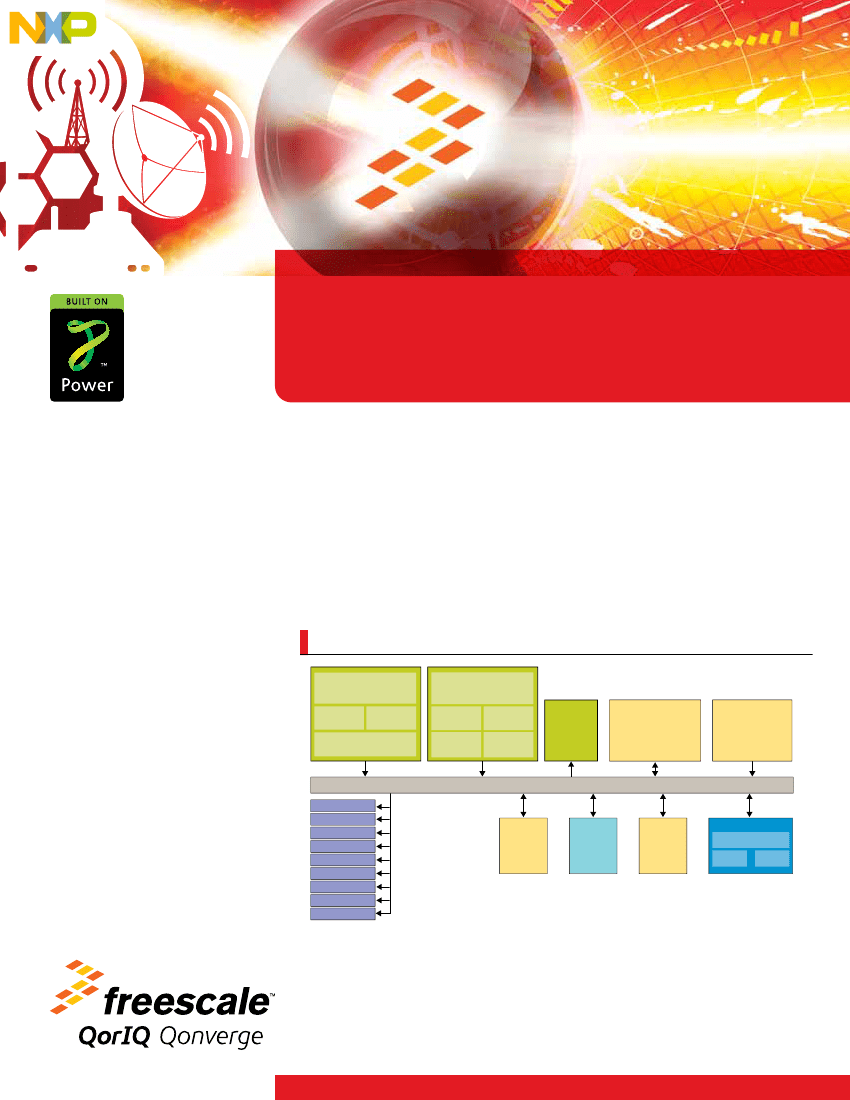

QorIQ Qonverge BSC9131 Processor
StarCore SC3850
DSP Core
32 KB L1
I-Cache
32 KB L1
D-Cache
e500 Core
Built on
Power Architecture
®
32 KB
I-Cache
Coherency
Module
32 KB
D-Cache
256 KB
L2 Cache
32-bit
DDR3/3L
Memory
Controller
MAPLE-B2F
Baseband
Accelerator
LTE/UMTS/CDMA2K
RF Interface
(JESD207/ADI)
and MaxPHY
Overview
The QorIQ Qonverge BSC9131 processor is
a highly integrated device that targets evolving
femto and enterprise femto applications. The
BSC9131 combines Power Architecture e500
®
cost-effective, integrated solution that handles
all the digital baseband processing required for
femtocells.
The programmable BSC9131 device, targeted at
LTE/FDD/TDD, WCDMA (HSPA+) and CDMA2K,
supports multiple air interface standards and can
support two concurrent standards.
and StarCore SC3850 core technologies with
MAPLE-B2F baseband acceleration processing,
addressing the need for a high-performance,
512 KB
L2 Cache
Multicore Fabric
4x eSPI
2x DUART
2x I
2
C
GPIO
USIM
IFC
eSDHC
2x PWM
Clocks/Reset
DMA
Security
Engine
V4.4
USB
2.0
Ethernet
IEEE
®
1588
1x GE
1x GE
QorIQ Qonverge Features
The BSC9131 is a highly integrated device combining Power, StarCore
and MAPLE architectures. The device includes the following features:
Core
DSP
Baseband
Acceleration
Memory
• Power Architecture
®
subsystem including one e500 processor and 256 KB shared
L2 cache
• StarCore SC3850 DSP subsystem including 512 KB private L2 cache
• MAPLE-B2F multi-accelerator platform engine supports functions that enable
LTE-FDD/TDD, WCDMA (HSPA+) and CDMA2K wireless standards
• DDR3 memory interface with 32-bit data width (40 bits including ECC), up to
800 MHz data rate
• Integrated flash controller for NOR, NAND and FPGA support
• Dedicated security engine featuring trusted boot
• Antenna interface controller supporting three industry standard JESD207/three
custom ADI RF interfaces (two dual port and one single port)
• Two pulse width modulators (PWM) for control of external components
• Three MAXIMs MaxPhy serial interfaces
Security
RF Interface
Connectivity
• Two triple-speed Gigabit-Ethernet controllers featuring network acceleration including
IEEE
®
Std 1588v2™ hardware support
• USB 2.0 host and device controller
• DMA controller with four bidirectional channels that serves both Power Architecture
cores and DSP domains
• UART, SPI, eSDHC, USIM and I
2
C controllers
• GPIO, 16 32-bit timers
Freescale will provide commercial L1 and
transport software. L2, L3 will be provided
through our partner stack vendors:
• LTE-FDD/TDD and WCDMA (HSPA+) L1
software–licensed by Freescale
• L2/L3 software for LTE-FDD/TDD and
WCDMA (HSPA+)–via partners
• Development tools and operating system
software through Freescale and its
ecosystem partners

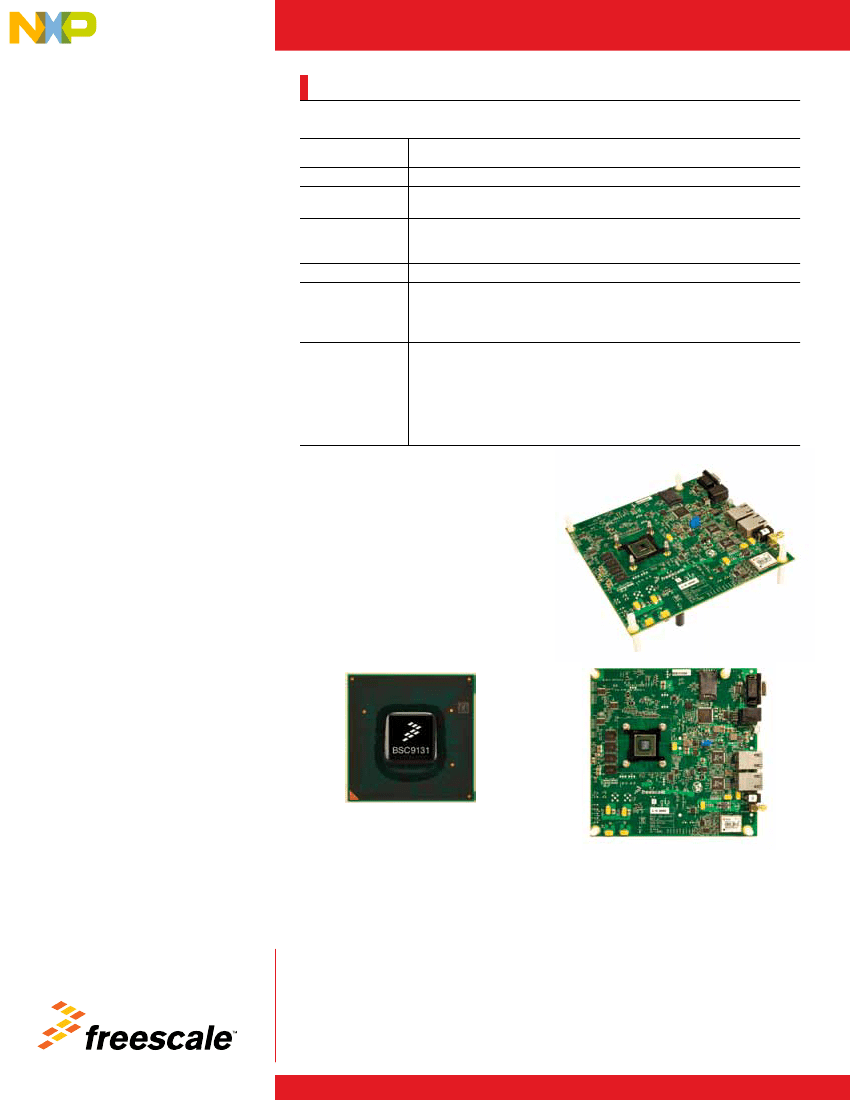

BSC9131 Reference Design Board
For more information about the QorIQ Qonverge BSC913x family,
visit
freescale.com/QorIQQonverge
