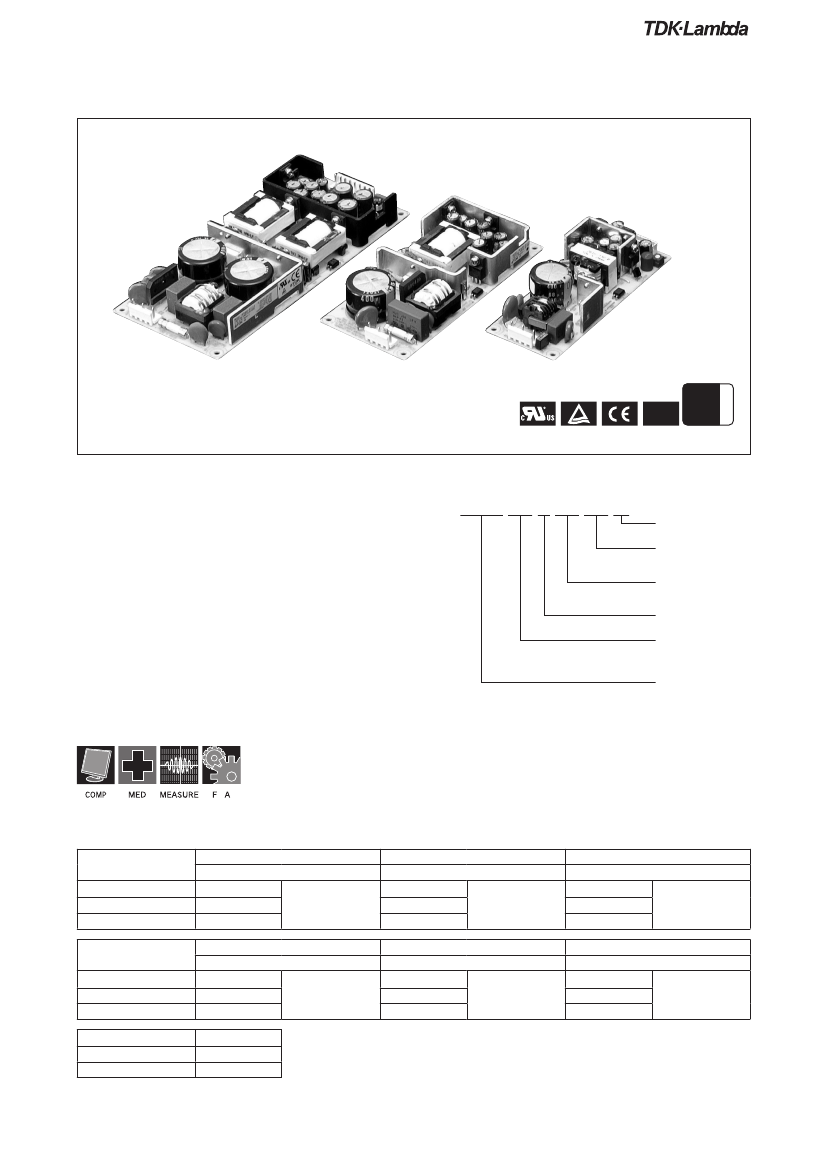

MTW
SERIES
Multiple outputs/for general use 15-60W
DENAN
Built to meet
UL60950-1/
CSA C22.2 No.60950-1
EN60950-1/
EN50178
Low Voltage Directive Electrical Appliance
and Material Safety Law
(Input Voltage 100VAC)
3
warranty
Y
E
A
R
S
■ Features
● Worldwide-applicable input, triple-output type
● Compact, slim and lightweight contributing to
energy-saving and environmental protection
● Approved by safety standards (UL, C-UL, TÜV),
complying with Electrical Appliance and Material
Safety Law, CE marking applicable
● EMI: Complying with FCC Class B, VCCI-B,
EN55011-B, -B
● Immunity : Complying with EN61000-4-2,-3,-4,-5,
-6,-8,-11
● Peak load accommodatable
■ Model naming logic
MTW 15-5 12 12 □
Variation
-V: With output voltage trim-mer
Nominal output voltage(output 3)
12: 12V
15: 15V
Nominal output voltage(output 2)
12: 12V
15: 15V
Nominal output voltage(output 1)
5: 5V
Rated capacity
15: 15W
30: 30W
60: 60W
Series name
■ Applications
■ Conformity to RoHS Directive
This means that, in conformity with EU Directive 2002/95/
EC, lead, cadmium, mercury, hexavalent chromium, and
specific bromine-based flame retardants, PBB and PBDE,
have not been used, except for exempted applications.
■ Product line up
Output voltage
+5V
+12V
-12V
Output voltage
+5V
+15V
-15V
Variation symbol
None
-V
15W
Output current (Peak current)/Model
2.0A
（3.0A）
0.3A
（0.6A）
0.2A
（0.3A）
15W
Output current (Peak current)/Model
2.0A
（3.0A）
0.3A
（0.6A）
0.2A
（0.3A）
Function
Fixed output voltage type
Output voltage adjustable type
MTW15-51515
3.0A
（4.5A）
0.8A
（2.0A）
0.3A
（0.45A）
MTW30-51515
MTW15-51212
3.0A
（4.5A）
1.2A
（2.0A）
0.3A
（0.45A）
30W
Output current (Peak current)/Model
5.0A
（7.0A）
2.0A
（3.5A）
0.5A
（0.7A）
MTW60-51515
MTW30-51212
30W
Output current (Peak current)/Model
5.0A
（7.0A）
2.5A
（3.5A）
0.5A
（0.7A）
60W
Output current (Peak current)/Model
MTW60-51212
60W
Output current (Peak current)/Model
＊Output voltage adjustable type: Indicated by "-V" added at the end of model
・All specifications are subject to change without notice.
00-0/20080522/etl_mtw
MTW
15W
2
MTW15W
ITEMS/UNITS
Voltage Range (Nominal: 100-240VAC)
Frequency
(Nominal: 50-60 single phase)
Power Factor (100/240VAC)(typ)
Input
Efficiency (100/240VAC)(typ)
Current (100/240VAC)(typ)
Inrush Current (100/240VAC)(typ) (*1)
Leakage Current(max)
Nominal Voltage
(*2)
Maximum Current
(*3)
Maximum Peak Current
(*4)
Maximum Power
(P0[V1]+P0[V2]+P0[V3])
Voltage Setting Accuracy
(100/240VAC,100% load)
Maximum Line Regulation
(Within input voltage range)(max)
Maximum Load Regulation
Output
(10-100% load)(max)
Temperature Coefficient
(Ambient temperature -10° C to +50° C)(max)
Warm Up Drift (max)
(*5)
Max Power Total Regulation (max) (*2)
Maximum Ripple Voltage (max) (*6)
Maximum Ripple & Noise (max) (*6)
Start Up Time (100VAC)(max)
Hold-up Time (100/240VAC)(typ)
Voltage Adjustable Range
(*7)
Over Current Protection (min) (*8)
Over Voltage Protection (min) (*9)
Over Temperature Protection
Remote Sensing
Function Remote ON/OFF Control
Parallel Operation
Series Operation
Operation Indicator
Monitoring Signal
Operating Temperature
Storage Temperature
Operating Humidity
Environment Storage Humidity
Vibration
Shock
Withstand Voltage
Isolation
Isolation Resistance
MTW15W Specifications
MODEL
CH
V
Hz
％
A
A
mA
VDC
A
A
W
％
+5
∓
0.25
71/70
1
MTW15-51212
2
3
AC85-265
47-440
0.55/0.45
1
MTW15-51515
2
3
68/70
0.42/0.25
25/50
0.75 (100VAC (Electrical Appliance and Material Safety Law) / 240VAC (UL, IEC))
+5 [V1]
+12 [V2]
-12 [V3]
+5 [V1]
+15 [V2]
-15 [V3]
2
0.3
0.2
2
0.3
0.2
3
0.6
0.3
3
0.6
0.3
16
+12
∓
0.6
-12
∓
0.6
0.4%
2.0%
1.0%
1.0
2.0
100
120
1.0
∓
2.0
120
150
100
120
120
150
2.0
1.0
2.0
2.0%
1.0%
+5
∓
0.25
17.5
+15
∓
0.6
-15
∓
0.6
％
％
％
mVp-p
mVp-p
ms
ms
VDC
A
VDC
Safety Standards
Standards
EMI
Immunity
Weight (max)
Mechanical
Size (W x H x D)
100
20/150
Fixed/Variable (CH1)
3.15
0.63
0.32
3.15
0.63
0.32
5.7
Not available
5.7
Not available
Not available
Not available
Not available
Not available
Not available
Not available
Not available
℃
-10 to +60
℃
-30 to +75
％
RH 10-90 (the conditions of maximum 35° in wet bulb temperature and non-condensation should be ensured.)
C
％
RH 10-90 (the conditions of maximum 35° in wet bulb temperature and non-condensation should be ensured.)
C
5-10Hz, 10 minutes sweep, 10mmp-p total amplitude, 3 directions, 1h for each, in non-operation
10-200Hz, 10 minutes sweep, 19.6m/s² (2G) acceleration, 3 directions, 1h for each, in non-operation
588m/s² (60G), 11
∓
5ms, 3 directions, 3 times for each, in non-operation
For 1 minute at ordinary temperature and humidity
Between input terminal and ground terminal: 2.0kVAC, 10mA cutout current
Between input terminal and output terminal: 3.0kVAC, 10mA cutout current
Between output terminal and ground (G): 500VAC, 20mA cutout current
In 500VDC and 100MΩ or over at ordinary temperature and humidity
Between input terminal and ground terminal, between input terminal and output terminal,
and between output terminal and ground terminal
Approved by UL60950-1, CSA C22.2 No.60950-1 (C-UL), EN60950-1 (TÜV),
complying with Electrical Appliance and Material Safety Law
(meeting the regulations of creepage surface and spacial distance in item 8 of the appendix table)
Complying with FCC-Class B / VCCI-Class B / EN55011-B / EN55022-B
Complying with EN61000-4-2 Level 4, -3 Level 3, -4 Level 3, -5 Level 4, -6 Level 3, -8 Level 4, -11
g
150
mm
26 x 50 x 127
With nominal input/output voltage, maximum output current, and Ta=25° if not specified separately.
C,
(*1) In primary surge current, 25° and cold starting.
C,
(*2) Overshoot in starting input is 4%typ. Floating system is used for V1-V2 and V1-V3.
(*3) The maximum output current value is between -10° and +50° For use in outside this temperature range, derating is needed.
C
C.
(*4) Flowing time should be within 10 seconds and the effective current/power should be the same as or less than the maximum
current/power.
(*5) 30min to 8h after the start of input voltage application.
(*6) In 100MHz, -10°
C-0° Ripple: V1-140mVp-p max, V2, V3-160mVp-p max. Ripple noise : V1-160mVp-p max, V2/V3-180mVp-p max.
C.
(*7) For output voltage adjustable types (variation), output voltage can be varied in the range of +5V through +5.25V for CH1 (+5V)
only, by the output voltage trimmer.
(*8) When the other channels are in 0A. Fold-back type drooping system and automatically resumes when the causes are removed.
(*9) For V1 only: Zener clamp system
●Recommended EMC Filter
RSEL-2001W
Please refer to "TDK-Lambda
EMC Filters" catalog.
・All specifications are subject to change without notice.
MTW
15W

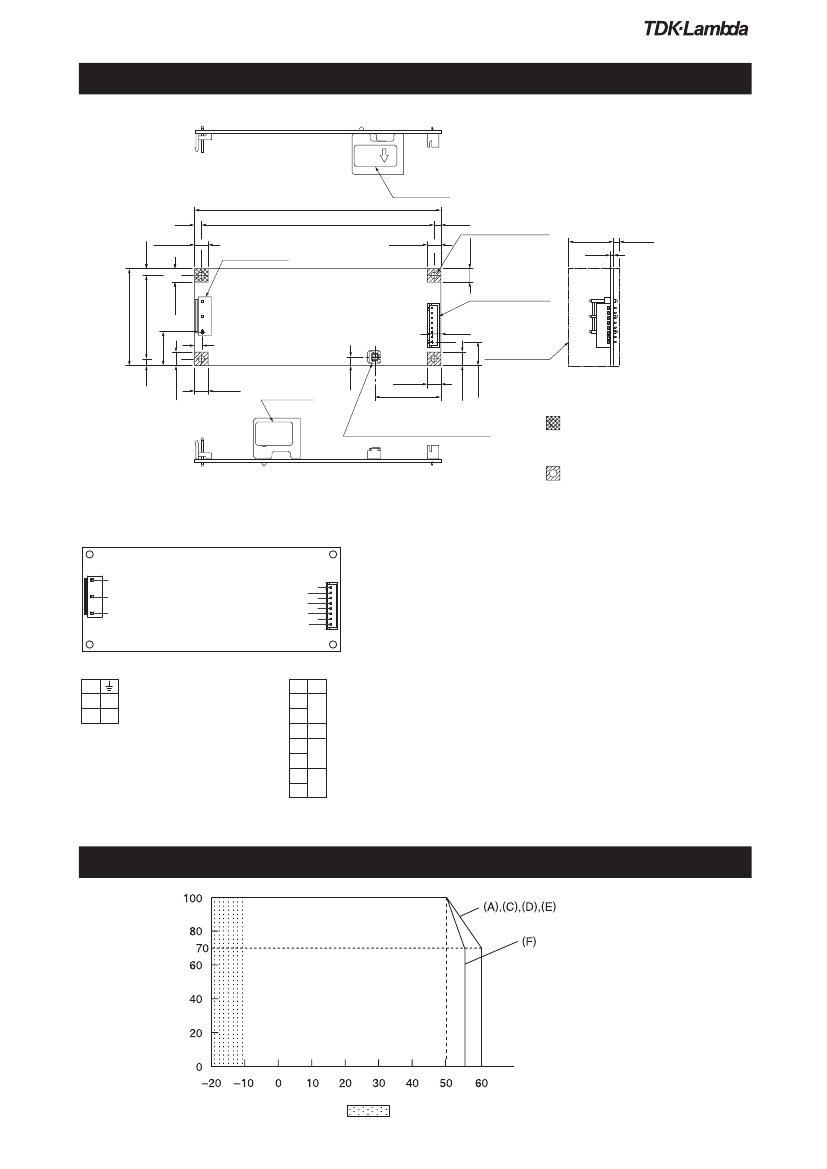

Outline Drawing
MTW15W
タイプ
3.5
（3.5）
127
120±0.5
3.5
(3.5)
A
7MAX.
Input connector
120±0.5
127
B
7MAX.
外観図
7MAX.
43±0.5
50
CN1 3
5
3
1
INPUT CONNECTOR
5
（17.6）
7MAX.
1
（4）
（4.5）
B
7MAX.
Name plate
43±0.5
7MAX.
（34.1）
7MAX.
3.5
50
CN1
（12.2）
(17.6)
(4)
UP
7max.
3
(12.2)
Output voltage trimmer (option)
7max.
3.5
ø6max.
Specifications of terminals
5
3
CN1
1
8
7
6
5
4
CN51
3
2
1
CN1：Input side
P5
P1
Ground
Neutral
Live
L
P3 N
CN51：Output side
P8 V3
Output 3
P7
P6
P4
P3
P2
P1
G2
Ground 2
- VH series B3P5-VH-B
by J.S.T. Mfg. Co., Ltd.
P5 V2
Output 2
G1
Ground 1
V1
Output 1
- XH series B8B-XH-2
by J.S.T. Mfg. Co., Ltd.
Output Power - Ambient Temperature (Derating Curve)
Maximum output power (%)
Ambient temperature (°
C)
In the range indicated by
, operation is
possible but the characteristics are not guaranteed.
・All specifications are subject to change without notice.
UP
Name plate
（3.5）
7MAX.
4-φ3.5
Mounting hole
23
（1.6）
3MAX.
23
(1.6)
3max.
( )
※1
3.5
8
1
B
4-ø3.5
Output connector
CN51
（4.5）
OUTPUT
Area for mounting
components
CONNECTOR
8
CN51
1
※1
A
Ground pattern/Spacer area
Solder side (1 location point)
Area for mounting screw
Side with components (1 location point)
Spacer area
Solder side (3 location points)
Area for mounting screw
Side with components (3 location points)
1
ø6max.
(4.5)
B
Unit: mm
Allowable difference is ±1mm if not specified separately.
＊Shows derating for products without
covers.
＊For (A)-(F), refer to the item regarding
MTW
30W
MTW30W
ITEMS/UNITS
Voltage Range (Nominal: 100-240VAC)
Frequency
(Nominal: 50-60 single phase)
Power Factor (100/240VAC)(typ)
Input
Efficiency (100/240VAC)(typ)
Current (100/240VAC)(typ)
Inrush Current (100/240VAC)(typ) (*1)
Leakage Current (max)
Nominal Voltage
(*2)
Maximum Current
(*3)
Maximum Peak Current
(*4)
Maximum Power
(P0[V1]+P0[V2]+P0[V3])
Voltage Setting Accuracy
(100/240VAC,100% load)
Maximum Line Regulation
(Within input voltage range)(max)
Maximum Load Regulation
Output
(10-100% load)(max)
Temperature Coefficient
(Ambient temperature -10°C to +50°C) (max)
Warm Up Drift (max)
(*5)
Max Power Total Regulation (max) (*2)
Maximum Ripple Voltage (max) (*6)
Maximum Ripple & Noise (max) (*6)
Start Up Time (100VAC)(max)
Hold-up Time (100/240VAC)(typ)
Voltage Adjustable Range
(*7)
Over Current Protection (min) (*8)
Over Voltage Protection (min) (*9)
Over Temperature Protection
Remote Sensing
Function Remote ON/OFF Control
Parallel Operation
Series Operation
Operation Indicator
Monitoring Signal
Operating Temperature
Storage Temperature
Operating Humidity
Environment Storage Humidity
Vibration
Shock
Withstand Voltage
Isolation
Isolation Resistance
MTW30W Specifications
MODEL
CH
V
Hz
％
A
A
mA
VDC
A
A
W
％
+5+0.3, -0.1
1.0%
2.0%
％
％
％
mVp-p
mVp-p
ms
ms
VDC
A
VDC
2.0
∓
3.0
80
120
1
MTW30-51212
2
3
AC85-265
47-440
1
MTW30-51515
2
3
0.55/0.45
76/77
0.8/0.4
20/40
0.55/0.75 (100VAC (Electrical Appliance and Material Safety Law) / 240VAC (UL, IEC))
+5 [V1]
12 [V2]
-12 [V3]
+5 [V1]
+15 [V2]
-15 [V3]
3
1.2
0.3
3
0.8
0.3
4.5
2
0.45
4.5
2
0.45
30
+12
∓
0.6
0.4%
1.0%
1.0
1.0
∓
2.0
100
150
∓
3.0
80
120
∓
2.0
100
150
-12
∓
0.6
+5+0.3, -0.1
1.0%
2.0%
2.0
33
+15
∓
0.75
0.4%
1.0%
1.0
-15
∓
0.75
Safety Standards
Standards
EMI
Immunity
Weight max
Mechanical
Size (WxHxD)
300
20/140
Fixed/Variable (CH1)
4.7
2.1
0.48
4.7
2.1
0.48
5.8
Not available
5.8
Not available
Not available
Not available
Not available
Not available
Not available
Not available
Not available
℃
-10 to +60
℃
-30 to +75
％
RH 10-90 (the conditions of maximum 35° in wet bulb temperature and non-condensation should be ensured.)
C
％
RH 10-90 (the conditions of maximum 35° in wet bulb temperature and non-condensation should be ensured.)
C
5-10Hz, 10 minutes sweep, 10mmp-p total amplitude, 3 directions, 1h for each, in non-operation
10-200Hz, 10 minutes sweep, 19.6m/s² (2G) acceleration, 3 directions, 1h for each, in non-operation
588m/s² (60G), 11
∓
5ms, 3 directions, 3 times for each, in non-operation
For 1 minute at ordinary temperature and humidity
Between input terminal and ground terminal: 2.0kVAC, 10mA cutout current
Between input terminal and output terminal: 3.0kVAC, 10mA cutout current
Between output terminal and ground (G): 500VAC, 20mA cutout current
In 500VDC and 100MΩ or over at ordinary temperature and humidity
Between input terminal and ground terminal, between input terminal and output terminal,
and between output terminal and ground terminal
Approved by UL60950-1, CSA C22.2 No.60950-1 (C-UL), EN60950-1 (TÜV),
complying with Electrical Appliance and Material Safety Law
(meeting the regulations of creepage surface and spacial distance in item 8 of the appendix table)
Complying with FCC-Class B / VCCI-Class B / EN55011-B / EN55022-B
Complying with EN61000-4-2 Level 4, -3 Level 3, -4 Level 3, -5 Level 4, -6 Level 3, -8 Level 4, -11
g
210
mm
26 x 65 x 140
With nominal input/output voltage, maximum output current, and Ta=25° if not specified separately.
C,
(*1) In primary surge current, 25° and cold starting.
C,
(*2) Overshoot in starting input is 4%typ. Floating system is used for V1-V2 and V1-V3.
(*3) The maximum output current value is between -10°C and +50°C. For use in outside this temperature range, Derating is needed.
(*4) Flowing time should be within 10 seconds and the effective current/power should be the same as or less than the maximum
current/power.
(*5) 30min to 8h after the start of input voltage application.
(*6) In 100MHz, -10°
C-0° Ripple: V1-140mVp-p max, V2, V3-160mVp-p max. Ripple noise: V1-160mVp-p, V2/V3-180mVp-p max.
C.
(*7) For output voltage adjustable types (variation V), output voltage can be varied in the range of +5V through +5.2V for CH1 (+5V)
only, by the output voltage trimmer.
(*8) When the other channels are in 0A. Fold-back type drooping system and automatically resumes when the causes are removed.
(*9) For V1 only: Zener clamp system
●Recommended EMC Filter
RSEL-2001E
Please refer to "TDK-Lambda
EMC Filters" catalog.
・All specifications are subject to change without notice.
MTW
30W

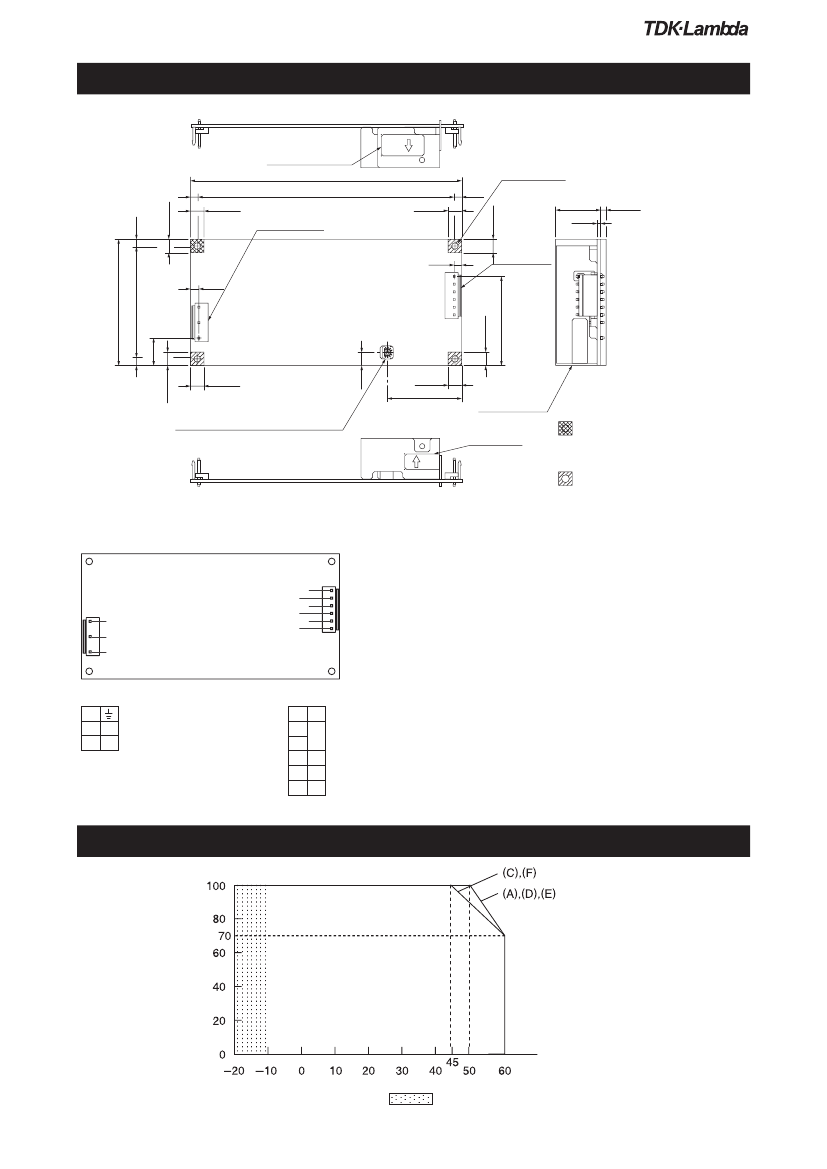

Outline Drawing
UP
5
Name plate
4
MTW30W
タイプ
7MAX.
（4）
140
132
±0.5
7MAX.
Input connector
4-φ3.5
Mounting hole
（4）
7MAX.
7MAX.
23
（1.6）
※1
Output connector
)
(4
4-ø3.5
CN2
7MAX.
6
（45.9）
3MAX.
外観図
A
(4)
4
（4.5）
57
±0.5
132±0.5
140
B
（4）
1
23
(1.6)
3max.
5
CN1
（14.1）
3
1
(4)
1
OUTPUT
CONNECTOR
65
57±0.5
(4.5)
7MAX.
5
3
（6.7）
(14.1)
CN1
1
Output voltage trimmer (option)
Name plate
(45.9)
A
Ground pattern/Spacer area
Solder side (1 location point)
Area for mounting screw
Side with components (1 location point)
Spacer area
Solder side (3 location points)
Area for mounting screw
Side with components (3 location points)
B
7MAX.
INPUT
CONNECTOR
B
65
7MAX.
（38.5）
B
CN2
6
Area for mounting
components
4
7max.
7max.
3
UP
4
ø6max.
1
ø6max.
Specifications of terminals
Unit: mm
Allowable difference is ±1mm if not specified separately.
5
3
1
CN1
CN2 4 3
5
6
2
1
CN1：Input side
P5
P1
Ground
L
Live
P3 N
Neutral
- VH series B3P5-VH-B
by J.S.T. Mfg. Co., Ltd.
CN2：Output side
P1 V3
Output 3
P2
P3
G2
Ground 2
P4 V2
Output 2
P6 V1
Output 1
P5 G1
Ground 1
- VH series B6P-VH-B
by J.S.T. Mfg. Co., Ltd.
Output Power - Ambient Temperature (Derating Curve)
Maximum output power (%)
＊Shows derating for products without
covers.
＊For (A)-(F), refer to the item regarding
Ambient temperature (°
C)
In the range indicated by
, operation is
possible but the characteristics are not guaranteed.
・All specifications are subject to change without notice.
京公网安备 11010802033920号
EEWORLD
