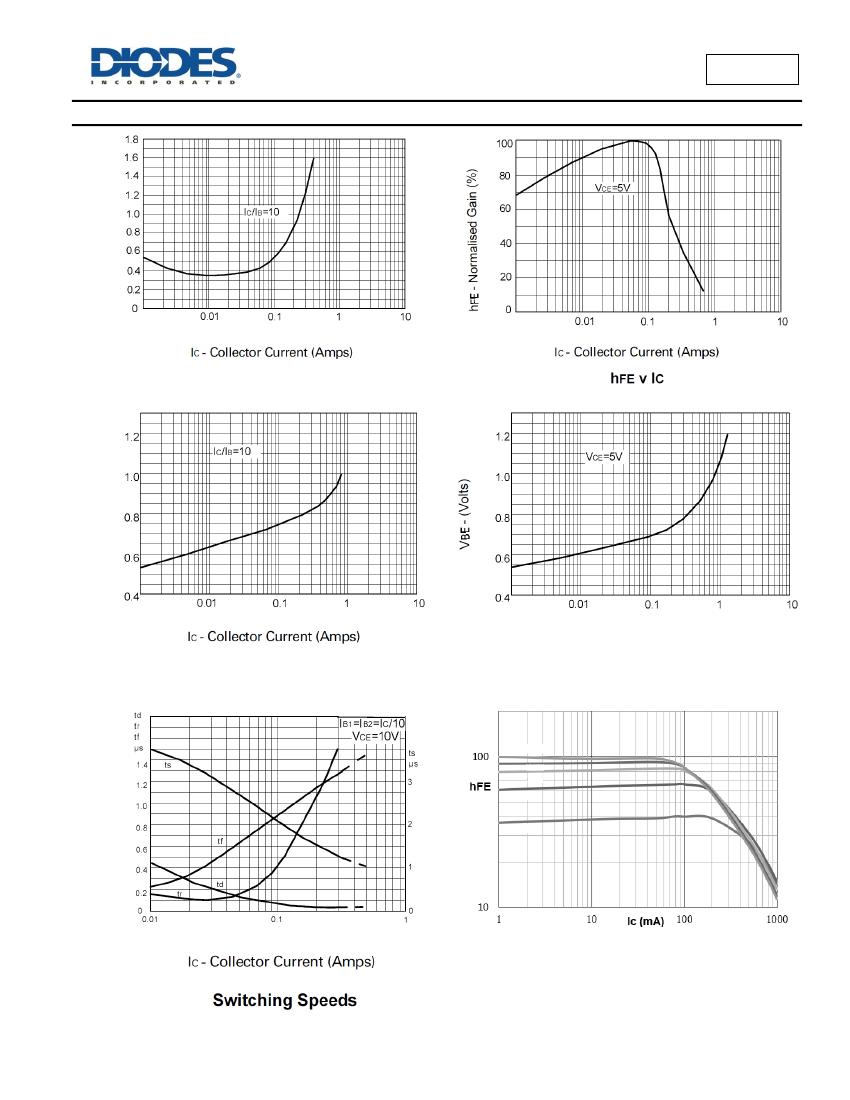

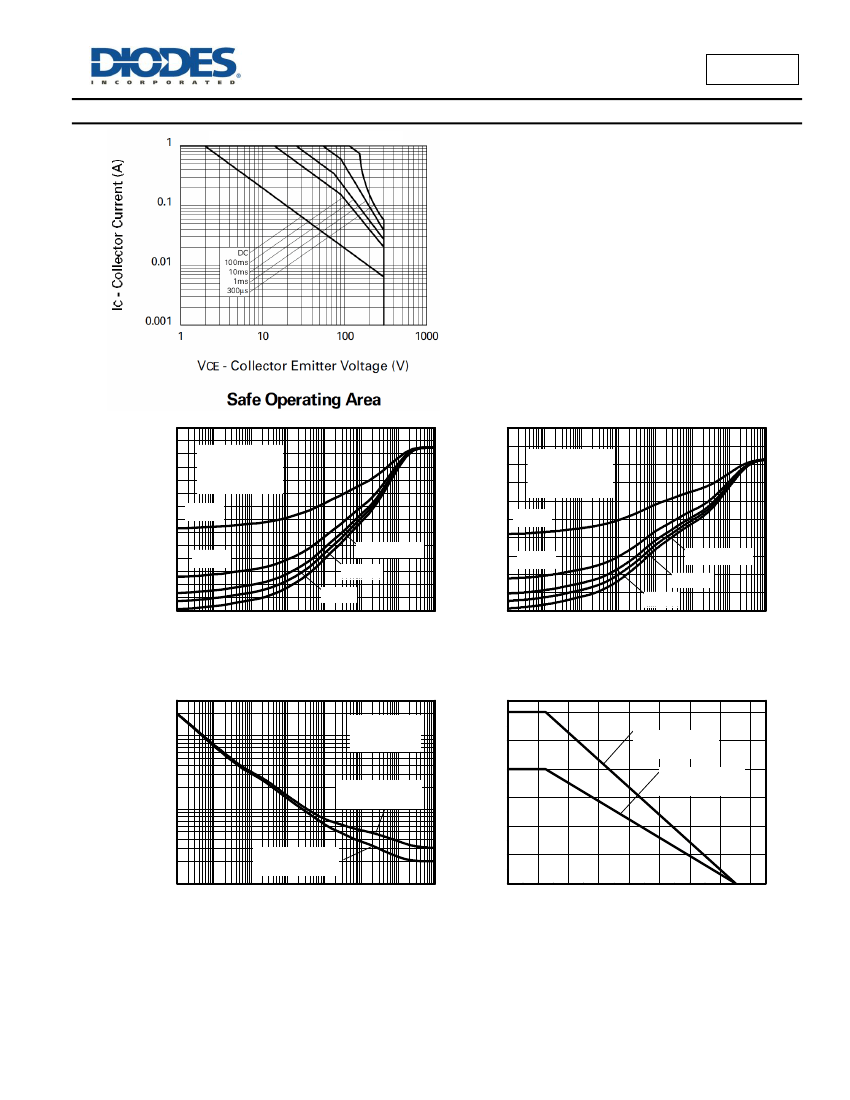

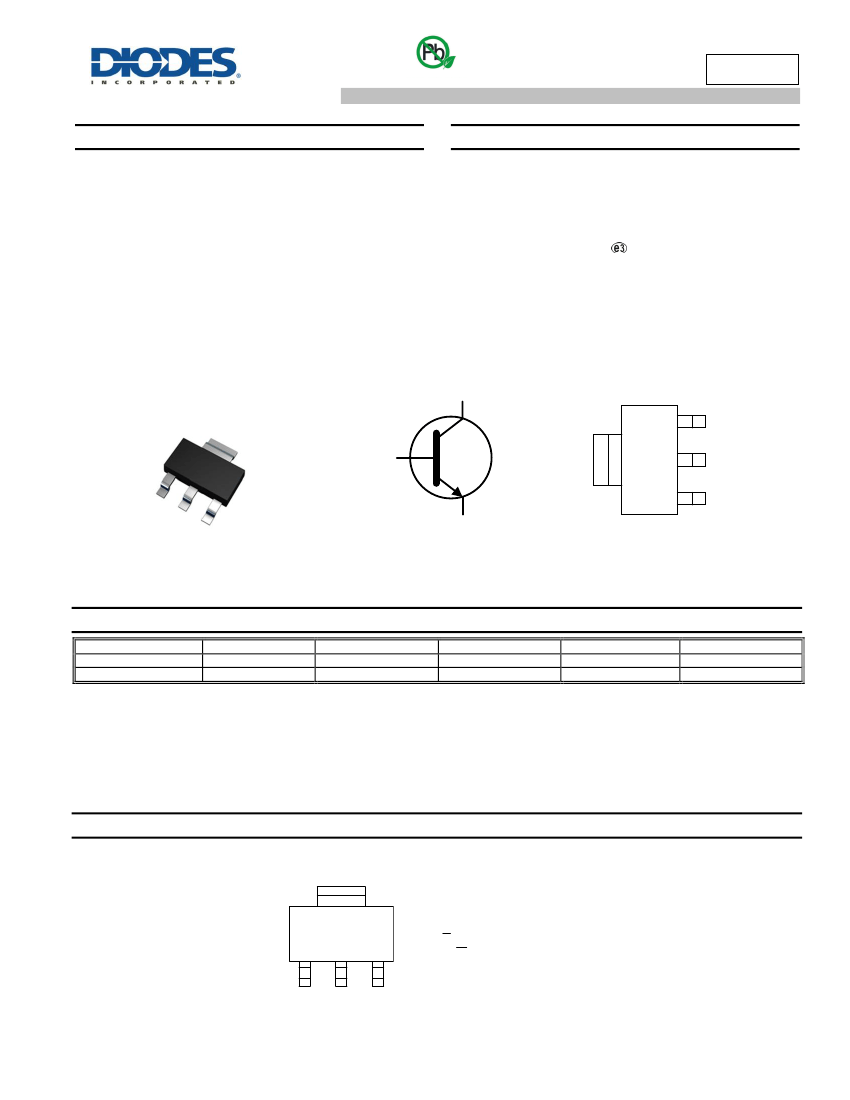

300V NPN MEDIUM POWER HIGH VOLTAGE TRANSISTOR IN SOT223
Features
BV
CEO
> 300V
BV
CBO
> 300V
I
C
= 0.5A High Continuous Current
I
CM
= 1A Peak Pulse Current
Complementary PNP Type: FZT757
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
C
SOT223
E
B
C
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 5)
Part Number
FZT657TA
FZT657QTA
Notes:
Compliance
AEC-Q101
Automotive
Marking
FZT657
FZT657
Reel Size (inches)
7
7
Tape Width (mm)
12
12
Quantity Per Reel
1,000
1,000
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
