5022R-911H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 5022R-911H

5022R-911H: DescriptionFIXED IND 910NH 1.24A 240 MOHM; CategoryPassive components inductor; File Size1MB，2 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5022R-911H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5022R-911H	-	-	View	Buy Now

5022R-911H Overview

FIXED IND 910NH 1.24A 240 MOHM

5022R-911H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	API Delevan
package instruction	5024
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	5024
structure	Epoxy Molded
core material	PHENOLIC
DC Resistance	0.24 Ω
Nominal inductance(L)	0.91 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	5022R
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.585 mm
Package length	12.825 mm
Package form	SMT
Package width	6.095 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	50
Maximum rated current	1.24 A
self resonant frequency	210 MHz
series	5022
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	25 MHz
Tolerance	3%

Preview

Download Datasheet

View All

±5

(µ

SERIES

5022R

5022

TI )

RA A

T (m

EN UM

RR IM

CU X

AN )

ST S

SI HM

RE M (O

DC MU

)

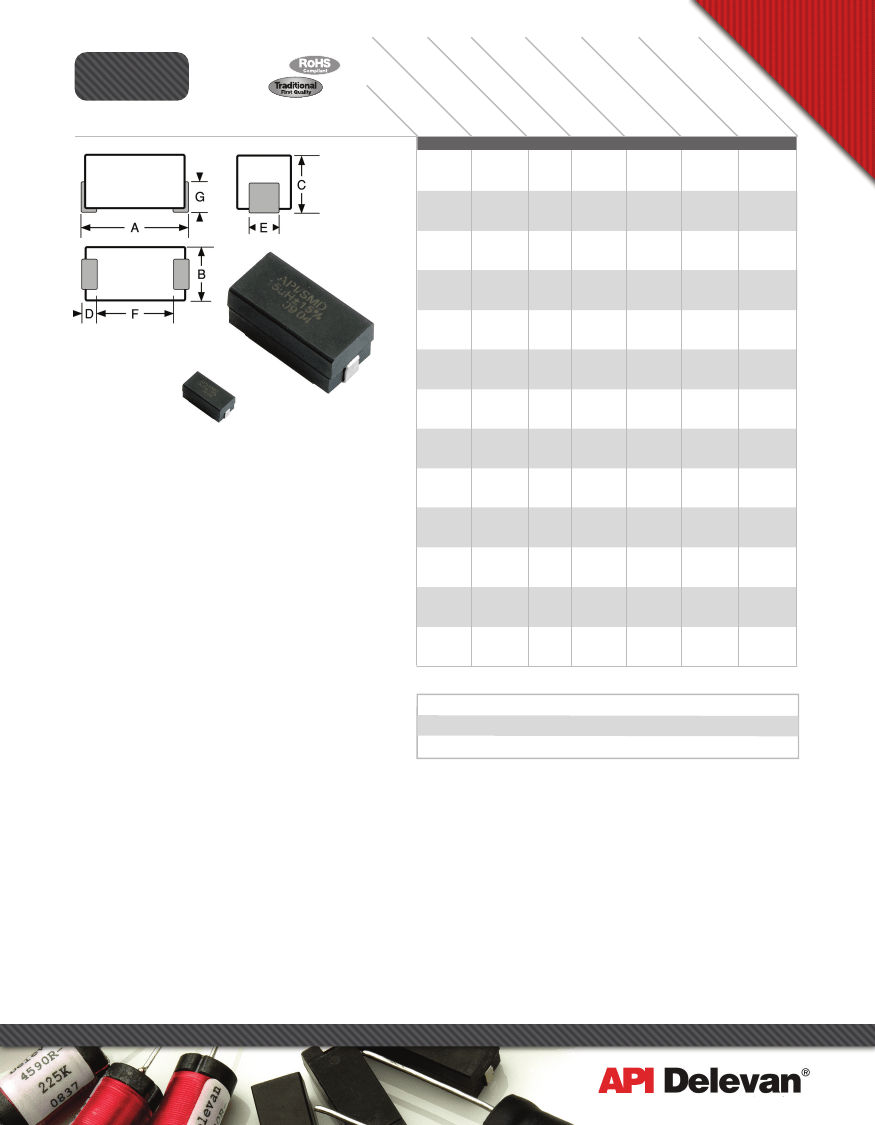

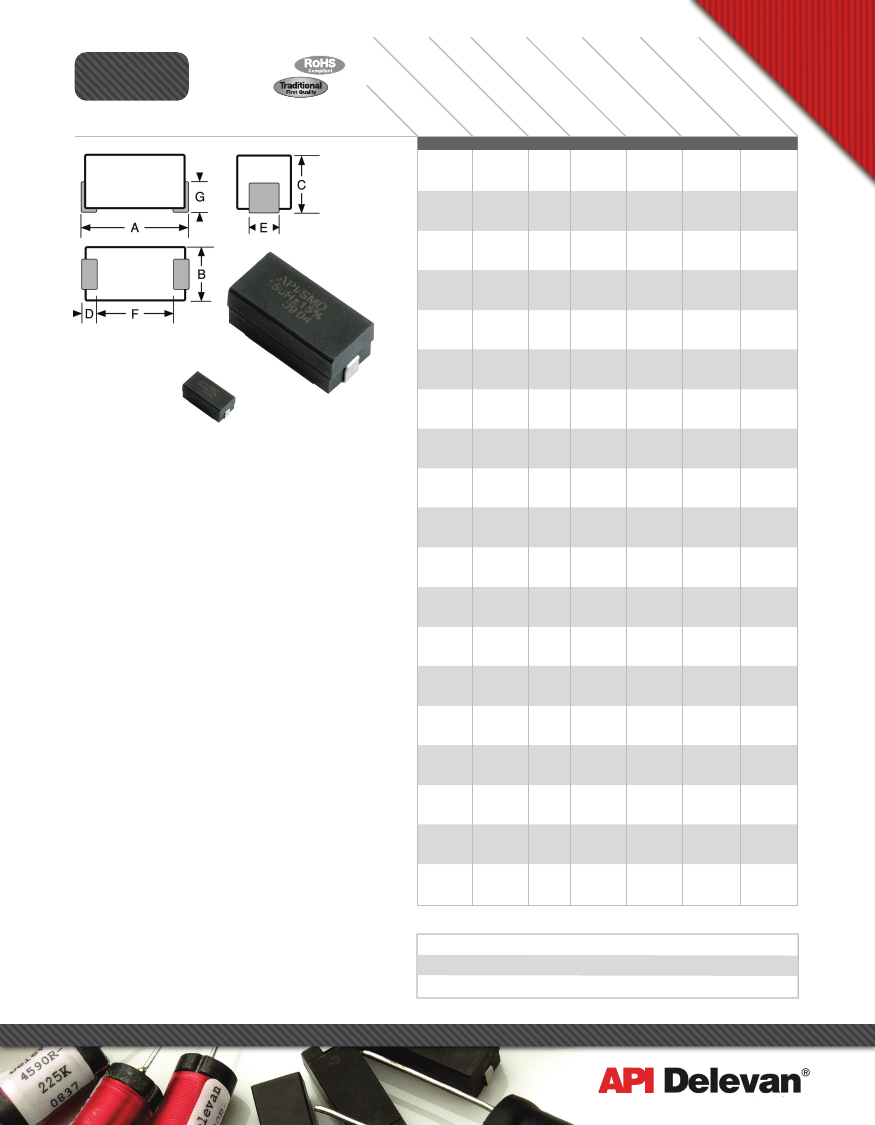

Surface Mountable Inductors

Actual Size

Physical Parameters

Inches

0.490 to 0.520

0.230 to 0.250

0.210 to 0.230

0.050 Min.

0.055 to 0.095

0.330 (Ref. only)

0.120 (Ref. only)

Weight Max.

(Grams) 1.5

Millimeters

12.44 to 13.21

5.84 to 6.35

5.33 to 5.84

1.27 Min.

1.397 to 2.413

8.38 (Ref. only)

3.04 (Ref. only)

Mechanical Conﬁguration

Units are encapsulated in an

epoxy molded surface mount package.

Operating Temperature Range

–55°C to +125°C

Current Rating at 90°C Ambient

35°C Rise

Maximum Power Dissipation at 90°C

0.405 W

Marking

API/SMD; 5022; inductance with units and

tolerance; date code (YYWWL). Note: An R after 5022

indicates a RoHS component.

Example: 5022R-102G

API/SMD

5022R

1.0uH±2%

0542A

Packaging

Tape & reel (24mm): 13" reel, 800 pieces

max.; 7" reel not available

Made In the U.S.A.

-151J

-161J

-181J

-201J

-221J

-241J

-271J

-301J

-331J

-361J

-391J

-431J

-471J

-511J

-561J

-621J

-681J

-751J

-821J

-911J

-102J

-112J

-122J

-132J

-152J

-162J

-182J

-202J

-222J

-242J

-272J

-302J

-332J

-362J

-392J

-432J

-472J

0.15

0.16

0.18

0.20

0.22

0.24

0.27

0.30

0.33

0.36

0.39

0.43

0.47

0.51

0.56

0.62

0.68

0.75

0.82

0.91

1.00

1.10

1.20

1.30

1.50

1.60

1.80

2.00

2.20

2.40

2.70

3.00

3.30

3.60

3.90

4.30

4.70

SERIES 5022 PHENOLIC CORE

25.0

525

25.0

525

25.0

500

25.0

475

25.0

450

25.0

415

25.0

400

25.0

380

25.0

360

25.0

345

25.0

330

25.0

315

25.0

310

25.0

300

25.0

280

25.0

260

25.0

250

25.0

230

25.0

220

25.0

210

25.0

200

7.9

190

7.9

180

7.9

170

7.9

160

7.9

155

7.9

150

7.9

140

7.9

135

7.9

130

7.9

120

7.9

115

7.9

110

7.9

105

7.9

100

7.9

0.030

0.040

0.043

0.047

0.055

0.060

0.070

0.080

0.090

0.098

0.100

0.110

0.120

0.130

0.135

0.140

0.150

0.180

0.220

0.240

0.290

0.420

0.480

0.500

0.600

0.650

0.800

0.950

1.100

1.200

1.800

2.000

2.150

2.300

2.400

2.600

3500

3025

2915

2790

2580

2470

2285

2140

2015

1935

1915

1825

1750

1680

1645

1615

1555

1425

1300

1240

1125

930

875

855

780

755

675

620

575

550

455

430

415

395

390

375

Optional Tolerances: H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

5/2010

5022R-911H Related Products

	5022R-911H	5022R	5022R-752H	5022-113G	5022R-754G
Description	FIXED IND 910NH 1.24A 240 MOHM	1 ELEMENT, 1 uH, PHENOLIC-CORE, GENERAL PURPOSE INDUCTOR, SMD	FIXED IND 7.5UH 765MA 550 MOHM	FIXED IND 11UH 565MA 1.05 OHM	FIXED IND 750UH 112MA 28.6 OHM
core material	PHENOLIC	Phenolic Resin	IRON	IRON	IRON
DC Resistance	0.24 Ω	0.2900 ohm	0.55 Ω	1.05 Ω	28.6 Ω
Inductor type	GENERAL PURPOSE INDUCTOR	Universal inductor	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 Cel	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 Cel	-55 °C	-55 °C	-55 °C
Maximum rated current	1.24 A	1.12 A	0.765 A	0.565 A	0.112 A
self resonant frequency	210 MHz	200 MHz	55 MHz	44 MHz	2.9 MHz
surface mount	YES	Yes	YES	YES	YES
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Is it lead-free?	Lead free	-	Lead free	Contains lead	Lead free
Is it Rohs certified?	conform to	-	conform to	incompatible	conform to
Maker	API Delevan	-	API Delevan	API Delevan	API Delevan
package instruction	5024	-	5024	5024	5024
Reach Compliance Code	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99
uppercase and lowercase codes	5024	-	5024	5024	5024
structure	Epoxy Molded	-	Epoxy Molded	Epoxy Molded	Epoxy Molded
Nominal inductance(L)	0.91 µH	-	7.5 µH	11 µH	750 µH
Inductor Applications	RF INDUCTOR	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
JESD-609 code	e1	-	e1	e0	e1
Manufacturer's serial number	5022R	-	5022	-	5022
Package height	5.585 mm	-	5.585 mm	5.585 mm	5.585 mm
Package length	12.825 mm	-	12.825 mm	12.825 mm	12.825 mm
Package form	SMT	-	SMT	SMT	SMT
Package width	6.095 mm	-	6.095 mm	6.095 mm	6.095 mm
method of packing	TR	-	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch
Minimum quality factor (at nominal inductance)	50	-	50	60	65
series	5022	-	5022(HJ TOL)	-	5022(FG TOL)
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	-	NO	NO	NO
Terminal surface	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	-	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)	Tin/Lead (Sn63Pb37)	Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED
Test frequency	25 MHz	-	7.9 MHz	2.5 MHz	0.79 MHz
Tolerance	3%	-	3%	2%	2%
Base Number Matches	-	-	1	1	1
