0440680048 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0440680048

0440680048: DescriptionMF SMC VERT HDR W/CLIP TIN 10CKT; CategoryThe connector; File Size365KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0440680048 Overview

MF SMC VERT HDR W/CLIP TIN 10CKT

0440680048 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.165"（4.20mm）
Number of pins	10
Number of rows	2
Line spacing - patching	0.165"（4.20mm）
Number of pins loaded	all
style	Board to Board or Cable
shield	Covered - 4 walls
Installation type	Through hole
Termination	welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	0.177"（4.50mm）
Overall contact length	-
Insulation height	0.587"（14.91mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polyamide (PA46), Nylon 46
characteristic	plate lock
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	General, industrial, medical, telecommunications

Preview

Download Datasheet

View All

0.50

.020

SEE NOTE 8

REF.

+0.20

2.40 -0.10

.094 +.008

-.004

SEE NOTE 8

C OF CLIP

SEE NOTE 8

1) MATERIALS:

HOUSING: PA46 FILLED, UL94V-0, COLOR: BLACK

TERMINAL: BRASS

BOARD RETENTION CLIP: BRASS

2) FINISHES:

TERMINAL:

1 = (0.00254)/.000100 MIN. BRIGHT TIN OVER

(0.00127)/.000050 MIN. NICKEL

2 = (0.00076)/.000030 MIN. SELECT GOLD AND

(0.00254)/.000100 MIN. SELECT MATTE TIN

OVER (0.00127)/.000050 MIN. NICKEL OVERALL

MOUNTING CLIP:

(0.00254)/.000100 MIN. MATTE TIN OVER

(0.00127)/.000050 MIN. NICKEL

3) PRODUCT SPECIFICATIONS: PS-43810-001

4) PACKAGING SPECIFICATIONS: PK-43879-001

5) PART MATES WITH MOLEX RECEPTACLE SERIES 5557,

42474 AND 44516 AND HEADER SERIES 42385.

6) PART ALLOWS FOR 1.27/.050 MAX. MISALIGNMENT WITH

MATING HOUSINGS IN ANY DIRECTION.

7) CONNECTOR ASSEMBLIES ARE NOT TO BE MATED AND

UNMATED WHILE CIRCUITS ARE LIVE.

THIS DIMENSION DOES NOT APPLY TO PARTS WITHOUT

P.C. BOARD RETENTION CLIPS.

9) PARTS CONFORM TO CLASS 'B' REQUIREMENTS OF COSMETIC

SPECIFICATION PS-45499-002

10) DISCOLORATION IN THE BANDOLIER CARRIER AREA OF THE PIN IS

INHERENT TO THE PLATING PROCESS AND IS DUE TO THE MASKING

EFFECT OF THE CARRIER. THIS DISCOLORATION IS IN A

NON-FUNCTIONAL AREA OF THE PIN AND WILL NOT AFFECT THE

PERFORMANCE OF THE HEADER ASSEMBLY.

11) PARTS ARE NOT DESIGNED FOR CURRENT SHARING.

12) TEXT ON PART IS FOR REFERENCE ONLY. TEXT AND

TEXT LOCATION MAY VARY DEPENDING ON PART

NUMBER AND/OR TOOL.

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

2017/04/28

2017/05/03

2017/05/05

RELEASE 8CKT

GENERAL TOLERANCES

(UNLESS SPECIFIED)

MM/IN

DRWN BY

DATE

4:1

1997/12/04

DATE

INCH

0.01

0.014

4 PLACES

3 PLACES

0.25

0.35

MANLAPAZ

CHK'D BY

116383

BAPPELDORN

JBELL

FSMITH

2 PLACES

1 PLACES

0 PLACES

BANDURA

APPR BY

DATE

1997/12/06

2012/02/02

THIRD ANGLE PROJECTION

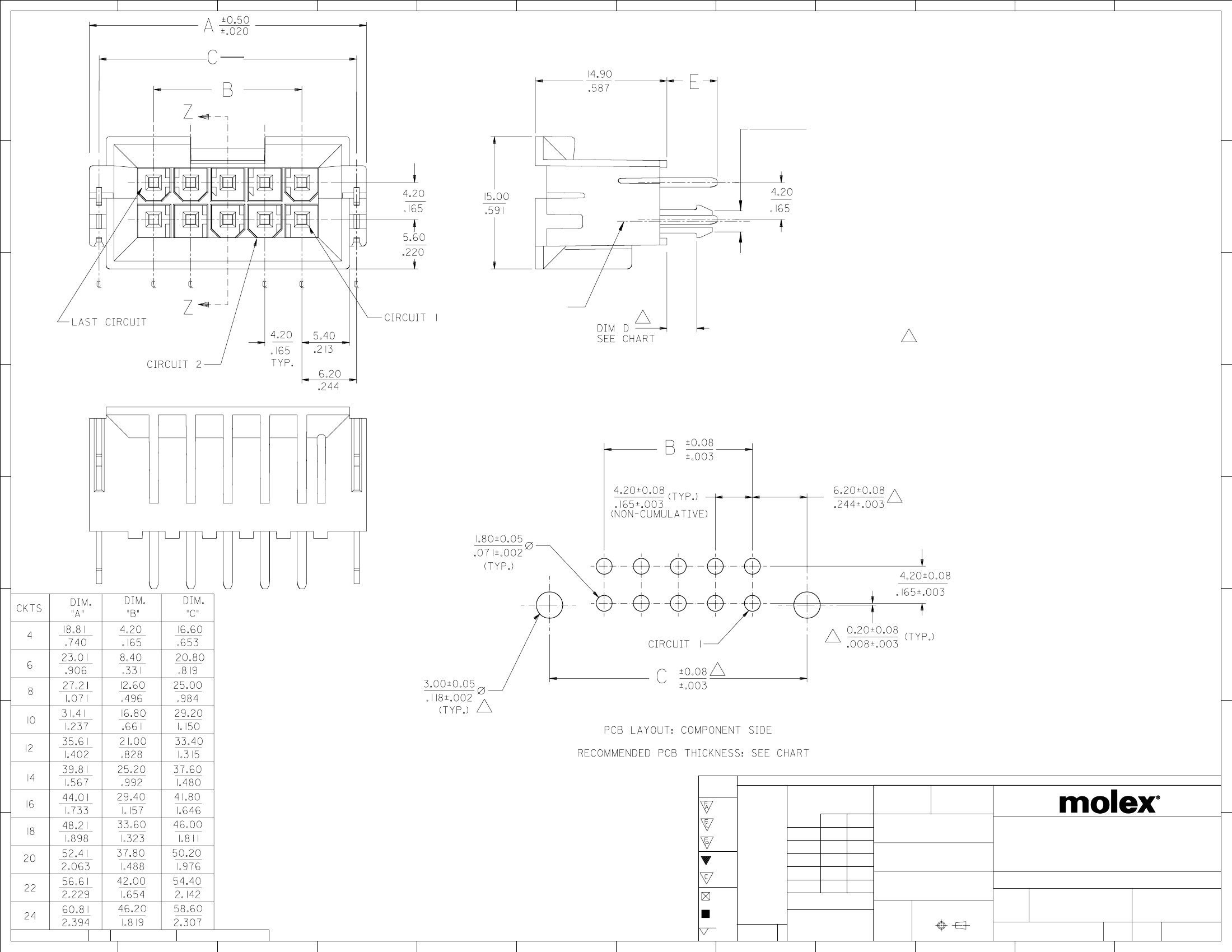

MINI-FIT JR BMI SMC

VERTICAL HEADER ASM VARIOUS BOARD

THICKNESS

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

FSMITH

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

ANGULAR TOL

0.5

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

44068

DOCUMENT NUMBER

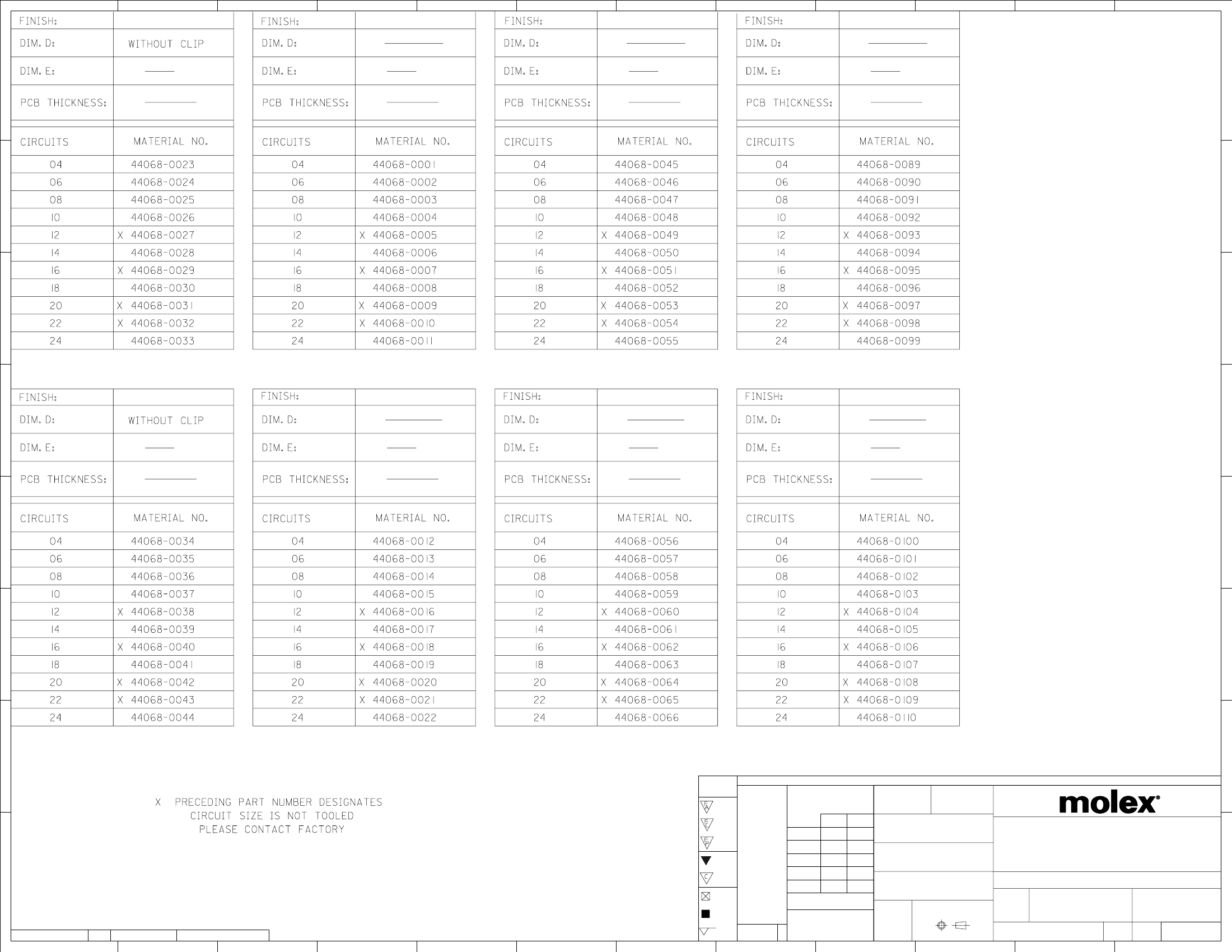

SEE SHEET 2

GENERAL MARKET

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-C

REVISION: C

DATE: 2016/02/04

RELEASE DATE

REV

DOC TYPE

DOC PART

SHEET NUMBER

SD-44068-031

PSD

000

1 OF 2
