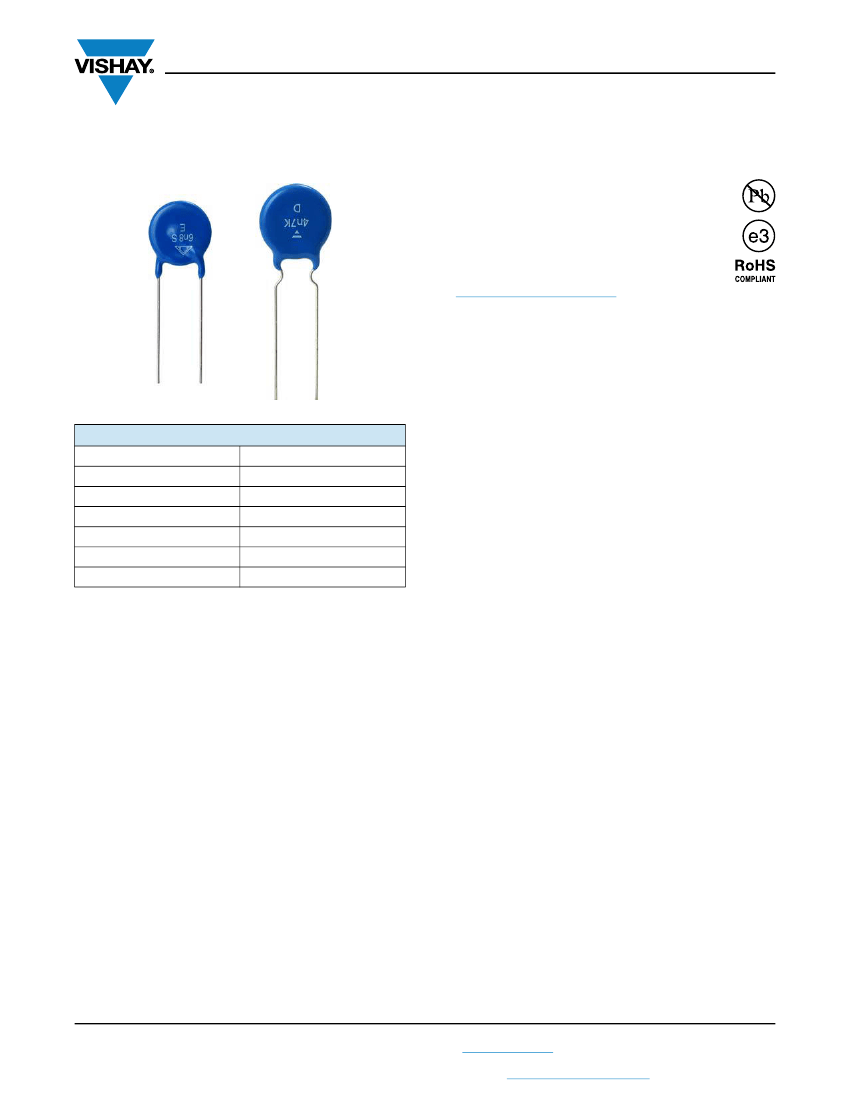

HSE, HSZ Series
www.vishay.com
Vishay Draloric
Ceramic Singlelayer DC Disc Capacitors,
500 V
DC
General Purpose
FEATURES
• High capacitance in small sizes
• Low losses
• Wide range of different lead styles
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• Bypassing
• Resonant circuits
• Coupling
DESIGN
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
VALUE
2
Y5T, Y5U
500
10
10 000
Radial
The capacitors consist of a ceramic disc which is silver
plated on both sides. Connection leads are made of tinned
copper having diameters of 0.6 mm.
The capacitors may be supplied with straight or kinked
leads having a lead spacing of 5.0 mm or 7.5 mm.
Coating is made of blue colored flame retardant epoxy resin
in accordance with UL 94 V-0.
CAPACITANCE RANGE
10 pF to 10 nF
MARKING
Marking indicates, capacitance, tolerance code, and rated
voltage.
RATED VOLTAGE
500 V
DC
DIELECTRIC STRENGTH
OPERATING TEMPERATURE RANGE
-40 °C to +85 °C
1250 V
DC
, 2 s
Component test
INSULATION RESISTANCE AT 500 V
DC
TEMPERATURE CHARACTERISTICS
Y5T, Y5U
5000
M (60 s)
TOLERANCE ON CAPACITANCE
SECTIONAL SPECIFICATIONS
Climatic category (according to EN 60068-1):
40/085/21
± 10 %, ± 20 %, - 20 % / + 50 %
DISSIPATION FACTOR
C < 100 pF: max. 3.0 % (1 MHz)
C
100 pF: max. 3.0 % (1 kHz)
Revision: 19-Sep-14
Document Number: 22112
1
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HSE, HSZ Series
www.vishay.com
Vishay Draloric
LEAD
SPACING
(1)
F (mm)
± 1 mm
LEAD
DIAMETER
(1)
d (mm)
± 0.05 mm
ORDERING CODE
MISSING DIGITS
SEE ORDERING
CODE BELOW
HSE471#AQ###KR
HSE681#AQ###KR
HSE102#AQ###KR
HSE152#AQ###KR
HSE222#AQ###KR
HSE332#AQ###KR
1.1
7.5
1.4
1.2
HSE472#AQ###KR
HSE682#AQ###KR
HSE822#AQ###KR
HSE103#AQ###KR
ORDERING INFORMATION
CAPACITANCE
(pF)
Y5U (2E3)
470
680
1000
1500
2200
3300
4700
6800
8200
10 000
- 20 / + 50
(2)
11.0
13.0
15.0
7.0
4.0
0.6
6.0
5.0
1.1
1.2
1.4
1.2
TOLERANCE
(%)
BODY
DIAMETER
D
max.
(mm)
BODY
THICKNESS
S
max.
(mm)
WIDTH
(1)
V (mm)
± 0.5 mm
Notes
(1)
Standard lead configuration, other lead spacing and diameter available on request
(2)
± 20 % available on request
ORDERING CODE
#
###
Example
7
th
digit
10
th
to 12
th
digit
HSE
Series
Capacitance tolerance
Lead configuration
103
Capacitance
value
S
Tolerance code
± 10 % = K, ± 20 % = M, - 20 % / + 50 % = S
see “General Information”
AQ
Voltage code
CRY
Lead
configuration
K
Internal code
R
RoHS
compliant
MARKING
2n2 M
E
HSE 470 pF to 4.7 nF
6n8 M
HSE 6.8 nF to 10 nF
n22 K
D
HSZ 10 pF to 3.9 nF
4n7 K
HSZ 4.7 nF
