AT-0927-TT-6-R

Description
AUDIO MAGNETIC XDCR 2-4V TH
CategoryModule/solution
File Size255KB,1 Pages
ManufacturerPUI Audio
Environmental Compliance
Download Datasheet Parametric View All

AT-0927-TT-6-R Online Shopping

Suppliers Part Number Price MOQ In stock
AT-0927-TT-6-R - - View Buy Now

AT-0927-TT-6-R Overview

AUDIO MAGNETIC XDCR 2-4V TH

AT-0927-TT-6-R Parametric

Parameter NameAttribute value
driver circuitsensor, external driver
input typePeak-to-peak signal
Voltage - Rated3V
voltage range2 ~ 4V
frequency2.73kHz
technologymagnetic
Operating modesingle tone
duration-
Sound pressure level (SPL)85dB @ 3V,10cm
Current - Power80mA
port locationtop
Operating temperature-20°C ~ 70°C
Approval-
grade-
Installation typeThrough hole
TerminationPC pin
size/dimensions0.354" diameter (9.00mm)
Height - Installation (maximum)0.189"(4.80mm)

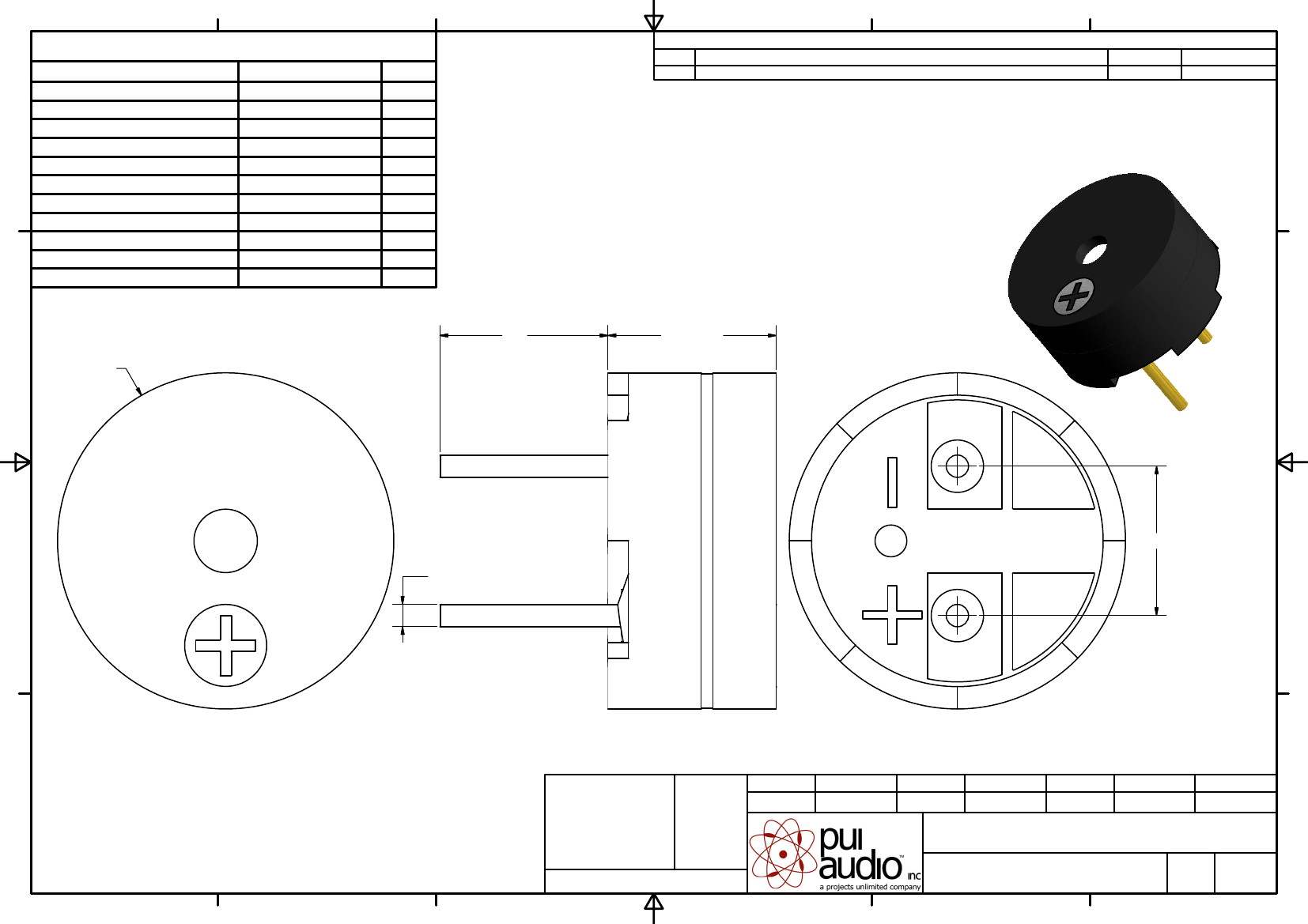

SPECIFICATIONS
PARAMETERS
RATED VOLTAGE
OPERATING VOLTAGE RANGE
RATED CURRENT (MAX)
COIL RESISTANCE
MINIMUM SPL @ 10 CM
RESONANT FREQUENCY
OPERATING TEMPERATURE
STORAGE TEMPERATURE
HOUSING MATERIAL
TERMINAL MATERIAL
WEIGHT
VALUES
3
2~4
80
15 3
85
2,730 500
-20 ~ +70
-30 ~ +80
Noryl
Au PLATED BRASS
1
UNIT
Vp-p
Vp-p
mA
OHM
dBA
Hz
C
C
-
-
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
2003, Projects Unlimited Inc.
REVISION HISTORY
LTR
-
DESCRIPTION
RELEASED FROM ENGINEERING
DATE
2014/07/15
APPROVED
4.5
9
0.3
4.5
0.3
4
0.6
0.1 (2)
0.2
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2011/65/EU COMPLIANT.
UNLESS OTHERWISE SPECIFIED:
All PURCHASES ARE SUBJECT TO AND
INCORPORATE THE PUI AUDIO TERMS
AND CONDITIONS SALE FOUND AT
http://www.puiaudio.com
/pdf/terms_conditions.pdf
(paper copy available upon request).
DIMENSIONS ARE IN MILLIMETERS,
TOLERANCES ARE 0.5 AND
ANGLES ARE 3 .
Designed by
Date
Checked by
Date
Approved by
Date
Drawn Date
SIZE
J.D.
7/15/2014
C.W.
7/15/2014
B.R.
7/15/2014 7/15/2014
A3
AT-0927-TT-6-R
Transducer (Electro-Mech)
Edition
Sheet
AT-0927-TT-6-R.idw
-
1/1
