LD09S24A4GX00LF datasheet, PDF

LD09S24A4GX00LF: DescriptionCONN D-SUB RCPT 9POS VERT SOLDER; CategoryThe connector The connector; File Size165KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

LD09S24A4GX00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LD09S24A4GX00LF	-	-	View	Buy Now

CONN D-SUB RCPT 9POS VERT SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
body width	0.494 inch
subject depth	0.236 inch
body length	1.213 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.4478 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Housing size	1/E
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

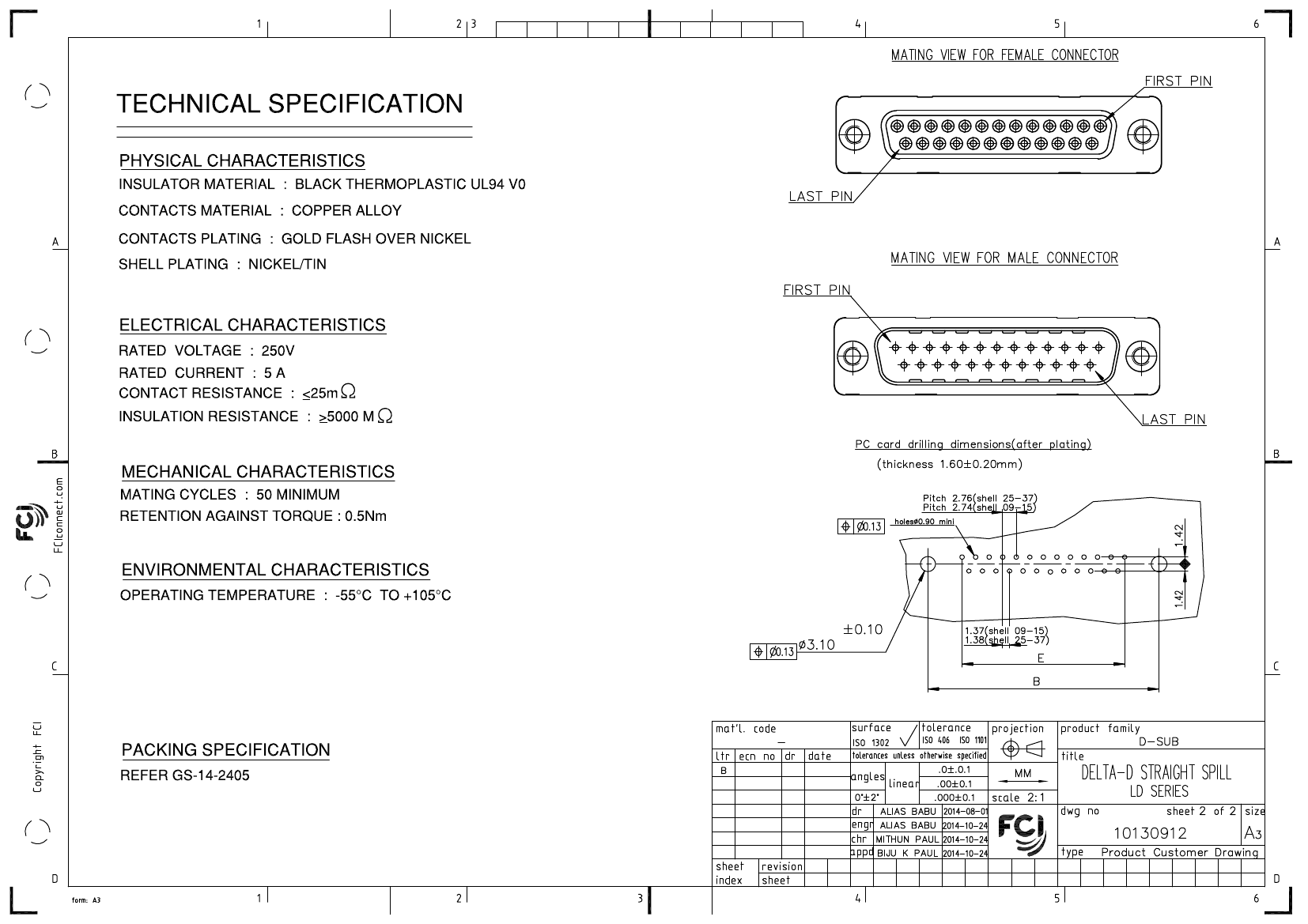

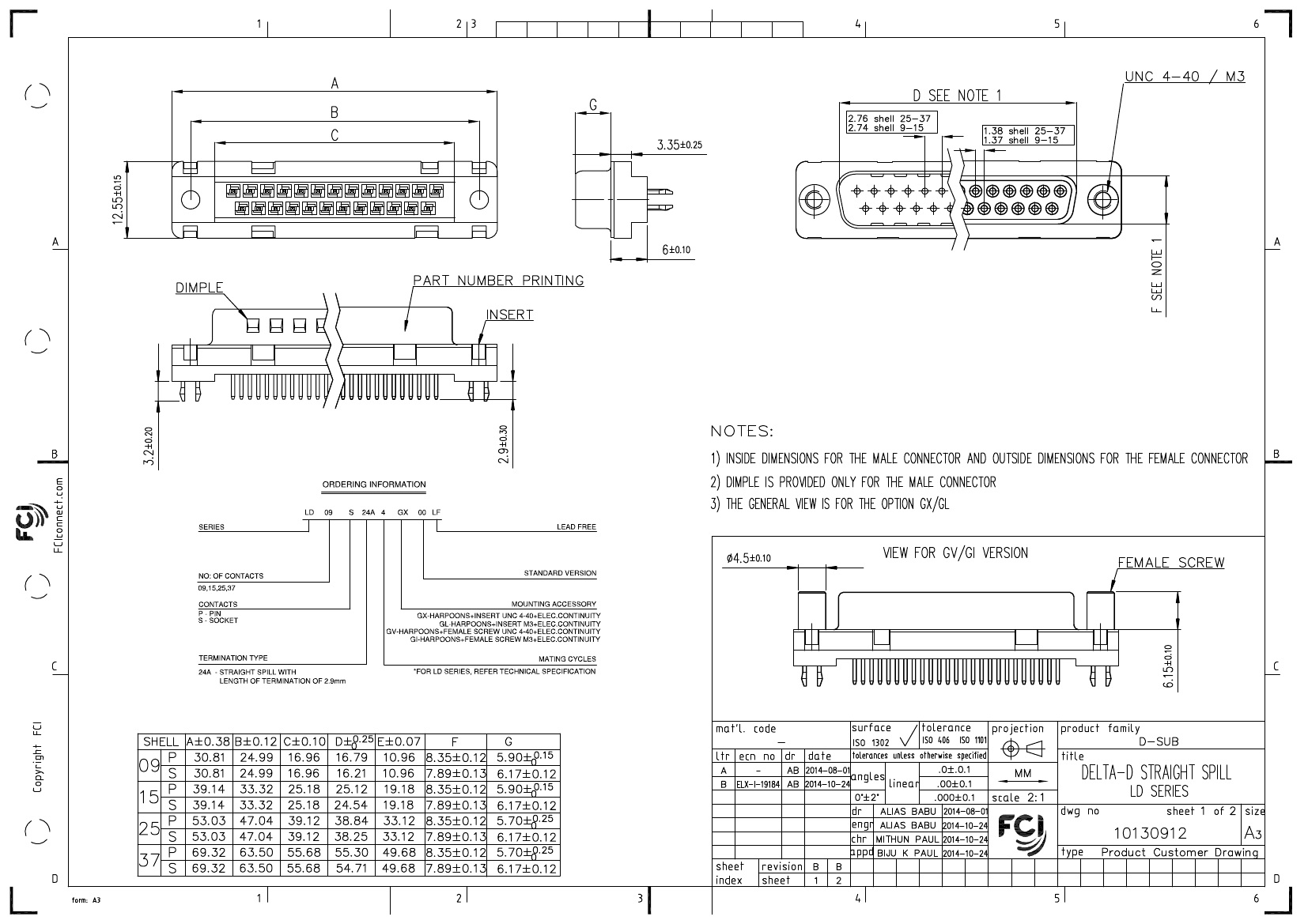

PDS: Rev :B

STATUS:Released

Printed: Oct 24, 2014
