AHDF15A-KG-TAXB datasheet, PDF

Datasheet> All Categories > The connector> AHDF15A-KG-TAXB

AHDF15A-KG-TAXB: DescriptionCONN DSUB HD RCPT 15POS R/A SLDR; CategoryThe connector; File Size71KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric Compare View All

AHDF15A-KG-TAXB Overview

CONN DSUB HD RCPT 15POS R/A SLDR

AHDF15A-KG-TAXB Parametric

Parameter Name	Attribute value
Connector style	D-Sub, high density
Connector type	socket, female socket
Number of pins	15
Number of rows	3
Housing size, connector layout	1 (DE, E) high density
Contact type	Signal
Installation type	Through hole, right angle
Flange characteristics	Body base/shell (4-40)
Termination	welding
characteristic	plate lock
Housing material, plating	Steel, nickel plated
Contact plating	gold
Contact plating thickness	flash
Intrusion protection	-
Material flammability rating	UL94 V-0
Rated current	3A
Operating temperature	-
Rated voltage	250V
color	-
Contact shape	-
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced
Wire gauge	-
Contact material	brass
Braking device interval	0.350"（8.89mm）

Preview

Download Datasheet

View All

Material:

• Insulator: Glass-Filled Thermoplastic

- PBT, UL94V-0 rated

• Contact: Brass

• Contact Plating: Gold flash full gold

• Shell: Steel, 100 ” min. Nickel plated

• Insulator color: Black

• Clinch Nut: Brass, 100 ” min. Nickel plated

• Boardlock: Brass, 100 ” min. Tin plated

- Grounding hook boardlock +2 prong

• Flange Mount: #4-40 threaded hole

• Screwlock: Brass, 100 ” min. Nickel plated

Electrical:

• Contact Resistance: 20m

- Max at 1A DC

• Insulation Resistance: 1,000M @500VDC

• Dielectric Withstanding Voltage: 1,000V AC/rms

60Hz for 1 minute

• Current Rating: 3A

• Voltage Rating: 250V AC/rms 60Hz

Date

Order Code:

AHDxxxA-KG-TAxB-R

Male(S) or Female(F)

Order pin number: 15,26,44,62

#4-40 UNC Hex stand offs (S) or without (X)

Name

Wilson

Groll

Scale

X.X

1:1

±0.38

±0.25

±0.13

±3°

±1.0°

TOL

Id.

Updated all information

Modification

11.03.13

Date

Wilson

Title

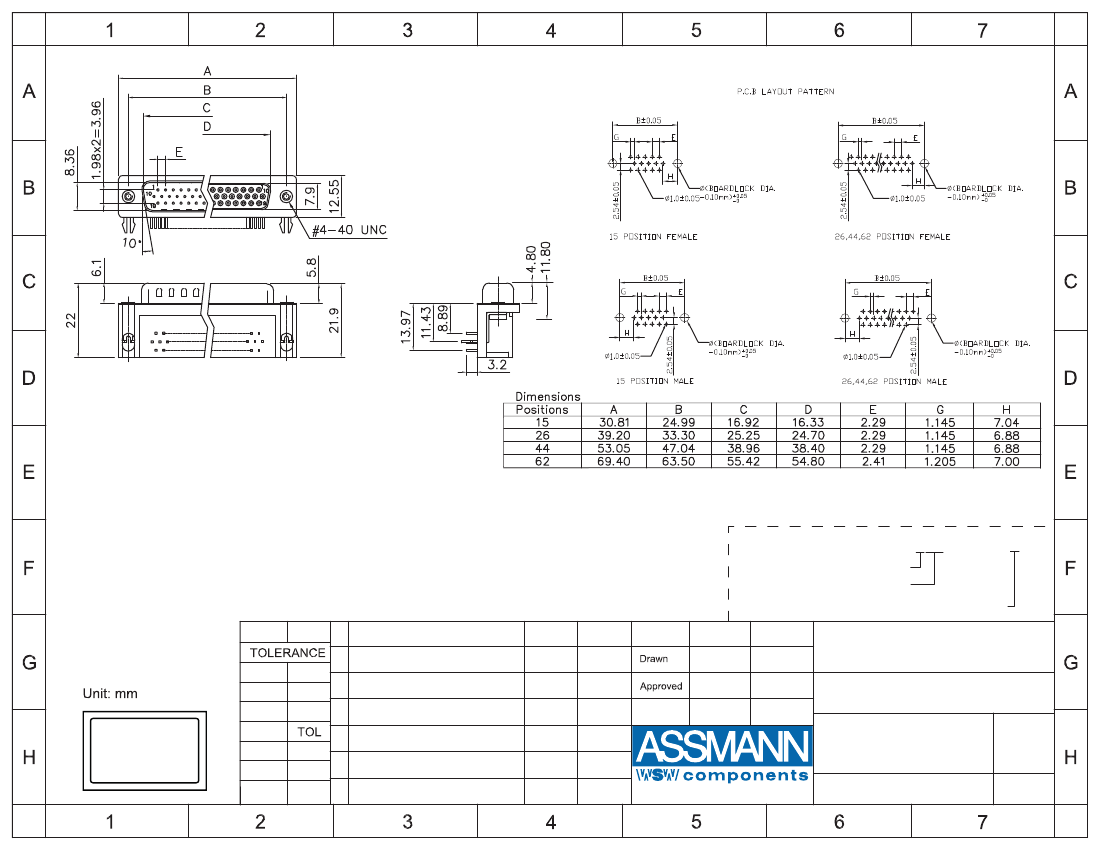

High Density DSub Connectors

Right Angle Shrouded, M/F, 15-62 pin

ASSMANN WSW-No.

11.03.13

AHDxxxA-KG-TAxB

Drawing-No.

RoHS

Compliant

X.XX

DIM

X.°

X.X°

Angle

rev01

Replace

Name

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@assmann.us

Sheet

1/1

AHDF15A-KG-TAXB Related Products

	AHDF15A-KG-TAXB	AHDF26A-KG-TAXB-R	AHDF44A-KG-TAXB-R	AHDF62A-KG-TAXB-R	AHDS26A-KG-TAXB-R	AHDS62A-KG-TAXB-R	AHDS15A-KG-TAXB
Description	CONN DSUB HD RCPT 15POS R/A SLDR	CONN DSUB HD RCPT 26POS R/A SLDR	CONN DSUB HD RCPT 44POS R/A SLDR	CONN DSUB HD RCPT 62POS R/A SLDR	CONN DSUB HD PLUG 26POS R/A SLDR	CONN DSUB HD PLUG 62POS R/A SLDR	CONN DSUB HD PLUG 15POS R/A SLDR
Connector style	D-Sub, high density	D-Sub, high density	D-Sub, high density	D-Sub, high density	D-Sub, high density	D-Sub, high density	D-Sub, high density
Connector type	socket, female socket	socket, female socket	socket, female socket	socket, female socket	Plug, male pin	Plug, male pin	Plug, male pin
Number of pins	15	26	44	62	26	62	15
Number of rows	3	3	3	3	3	3	3
Housing size, connector layout	1 (DE, E) high density	2 (DA, A) high density	3 (DB, B) high density	4 (DC, C) high density	2 (DA, A) high density	4 (DC, C) high density	1 (DE, E) high density
Contact type	Signal	Signal	Signal	Signal	Signal	Signal	Signal
Installation type	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle	Through hole, right angle
Flange characteristics	Body base/shell (4-40)	Body base/shell (4-40)	Body base/shell (4-40)	Body base/shell (4-40)	Body base/shell (4-40)	Body base/shell (4-40)	Body base/shell (4-40)
Termination	welding	welding	welding	welding	welding	welding	welding
characteristic	plate lock	plate lock	plate lock	plate lock	Plate lock, ground dent	Plate lock, ground dent	Plate lock, ground dent
Housing material, plating	Steel, nickel plated	Steel, nickel plated	Steel, nickel plated	Steel, nickel plated	Steel, nickel plated	Steel, nickel plated	Steel, nickel plated
Contact plating	gold	gold	gold	gold	gold	gold	gold
Contact plating thickness	flash	flash	flash	flash	flash	flash	flash
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	3A	3A	3A	3A	3A	3A	3A
Rated voltage	250V	250V	250V	250V	250V	250V	250V
Shell material	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced	Polybutylene terephthalate (PBT), glass fiber reinforced
Contact material	brass	brass	brass	brass	brass	brass	brass
Braking device interval	0.350"（8.89mm）	0.350"（8.89mm）	0.350"（8.89mm）	0.350"（8.89mm）	0.350"（8.89mm）	0.350"（8.89mm）	0.350"（8.89mm）
