804-22-018-10-004101 datasheet, PDF

Datasheet> All Categories > The connector> 804-22-018-10-004101

804-22-018-10-004101: DescriptionSPRING-LOADED HEADER,VERTICAL MO; CategoryThe connector; File Size520KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

804-22-018-10-004101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	804-22-018-10-004101	-	-	View	Buy Now

804-22-018-10-004101 Overview

SPRING-LOADED HEADER,VERTICAL MO

804-22-018-10-004101 Parametric

Parameter Name	Attribute value
Connector type	Piston type
Number of contacts	18
spacing	0.100"（2.54mm）
Number of rows	3
spacing	0.100"（2.54mm）
Installation type	Through hole
Material	copper alloy
Contact plating	gold
Contact plating thickness	10.0µin（0.25µm）

Preview

Download Datasheet

View All

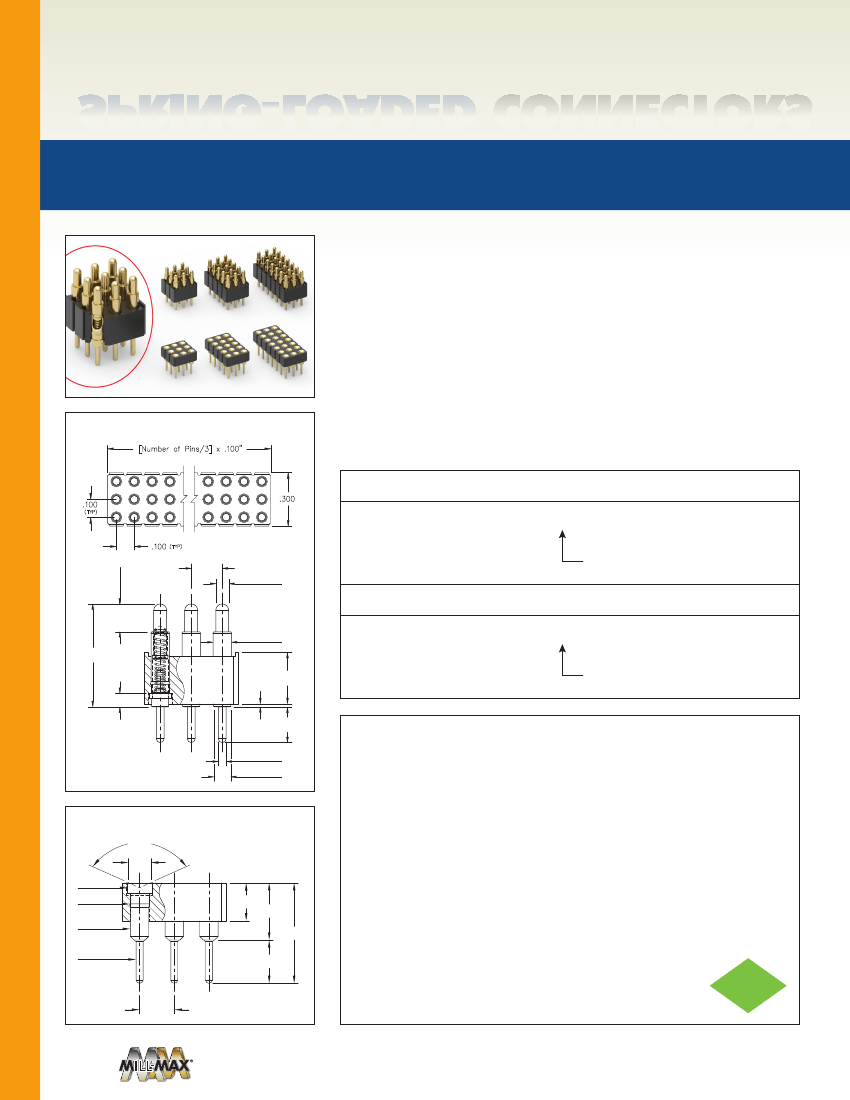

SPRING-LOADED

CONNECTORS

SERIES 804 & 805 • .100” GRID THROUGH-HOLE MOUNT • LONG STROKE

TRIPLE ROW STRIPS AND MATING TARGET CONNECTORS

• Modular contacts for use on .100” grid, supplied in triple row contact strips

• Precision-machined piston / base and gold-plated components assure up to 1,000,000

cycle life durability

• Spring pins have a .045” mid. stroke and a .090” max. stroke

• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

• 804 & 805 series High temperature thermoplastic insulators are suitable for wave and

reflow processes

• 804 series contact strips are designed for manual placement into Ø .030±.003” plated

through-holes in the circuit board prior to hand, wave or reflow soldering

• 805 series Target Connectors provide an excellent gold-plated conductive mating

surface for spring loaded connectors. This series is offered with a concave face for

making contact with our standard .042” dia. spring pin plungers

TRIPLE ROW Series 804

[Number of Pins/3] x .100"

ORDERING INFORMATION

Triple Row Series 804

.300

.100

(TYP)

804-22-0XX-10-004101

.100

(TYP)

Stroke

.100

Specify number of contacts

09-96

.042 DIA.

Triple Row Mating Target Series 805

.059 DIA.

.090

805-10-0XX-00-006000

Specify number of contacts

09-96

.332

.010

.044

.115

.025 DIA.

.165

PAGE 15.1 | SPRING-LOADED CONNECTORS

.055 DIA.

TRIPLE ROW Series 805

132°

.064

.070 DIA.

.058 DIA.

.053 DIA.

.020 DIA.

.110

.165

(.290)

.125

Materials:

Contact piston & base: Machined copper alloy plated 20μ” gold over

100μ” nickel

Spring: Beryllium copper-plated 10μ” gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (.045”): 60 grams

Durability: Up to 1,000,000 cycles

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

Technical Specifications for 804 Series

2011/65/EU

RoHS - 2

.100

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
