RAFIX 16 - Universal contact block, 1 NC, momentary, gold
contacts, without lamp socket
1.20.123.032/0000
Universal contact blocks have two separate contact chambers and two actuator plungers. This
makes it possible to switch two different polarities. The NC contacts are positive opening contacts
to IEC 60947-5-1.
Dimensions
Size not mounted
Mounting depth (with actuator / indicator)
Mechanical design
Mounting
Contact system
Contact materials
Contact arrangement
Contact function
Terminals
Terminal marking
Operating travel
Robustness
Mechanical characteristics
Robustness
Electrical characteristics
Rated voltage min.
Rated voltage AC/DC max.
Rated current min.
Rated current max.
Operating life switching element (momentary)
Contact resistance when new max.
Other specifications
Protection class
Shock resistance acc. to IEC 60068-2-27
Operation temperature min.
Ambient temp. operating max. without lamp /
LED
Ambient temp. operating max. with lamp /LED
Storage temperature min.
Storage temperature max.
Color code
Environmental restistance

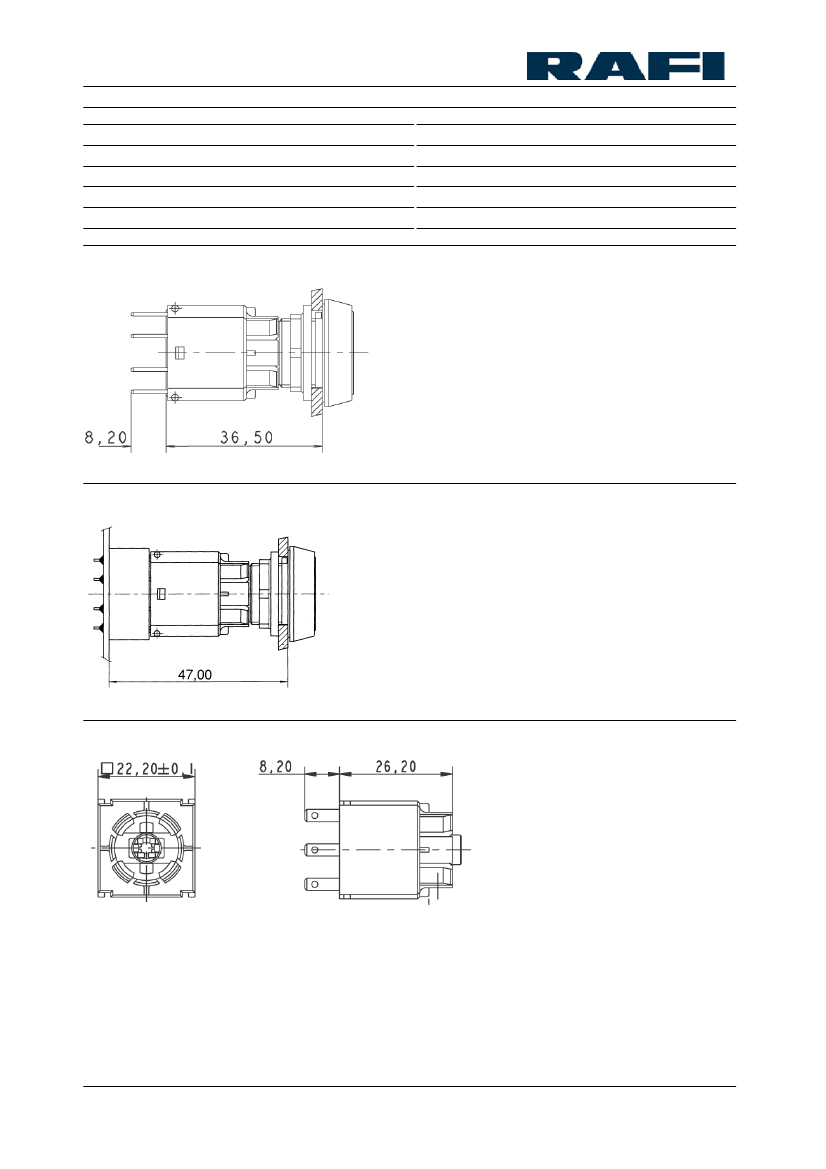

22.2 x 22.2 x 34.4 mm
44.7 mm
snap on actuator
bridge-contact self cleaning
Au
1 NC
momentary
quick connector 2.8 x 0.8 mm
according to DIN 50013, X1 = +, X2 = -
3 mm
100 N
acc. to IEC 60947-5-5
0.02 V
35 V
0.001 A
0.25 A
2,000,000
50 mΩ
II
amplitude < 50g, 11ms, half sinusoidal
-25 °C
+70 °C
+55 °C
-40 °C
+85 °C
white bottom
acc. to IEC 60068-2-14, -30, -33 and -78
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
10.10.2016
Mechanical operating life latching (operations)
Resistance to vibrations acc. to IEC 60068-2-6
Flame class acc. to UL 94
ROHS compliant
REACH compliant
with contact block / lamp socket
2,000,000
10 g at 20 ... 500 Hz
yes
yes
yes
yes
