BGA0023-S

Description
BGA-100 (0.4 MM PITCH, 10 X 10 G
CategoryTools and equipment
File Size79KB,1 Pages
ManufacturerChip Quik
Environmental Compliance
Download Datasheet Parametric View All

BGA0023-S Overview

BGA-100 (0.4 MM PITCH, 10 X 10 G

BGA0023-S Parametric

Parameter NameAttribute value
typeBGA
Number of pins100
spacing0.016"(0.40mm)
external dimensions1.350" long x 1.950" wide (34.29mm x 49.53mm)
Internal dimensions-
Thermal Center Pad-
MaterialStainless steel
thickness0.0040"(0.102mm)
BGA0023-S
Datasheet revision 1.0
www.Proto-Advantage.com

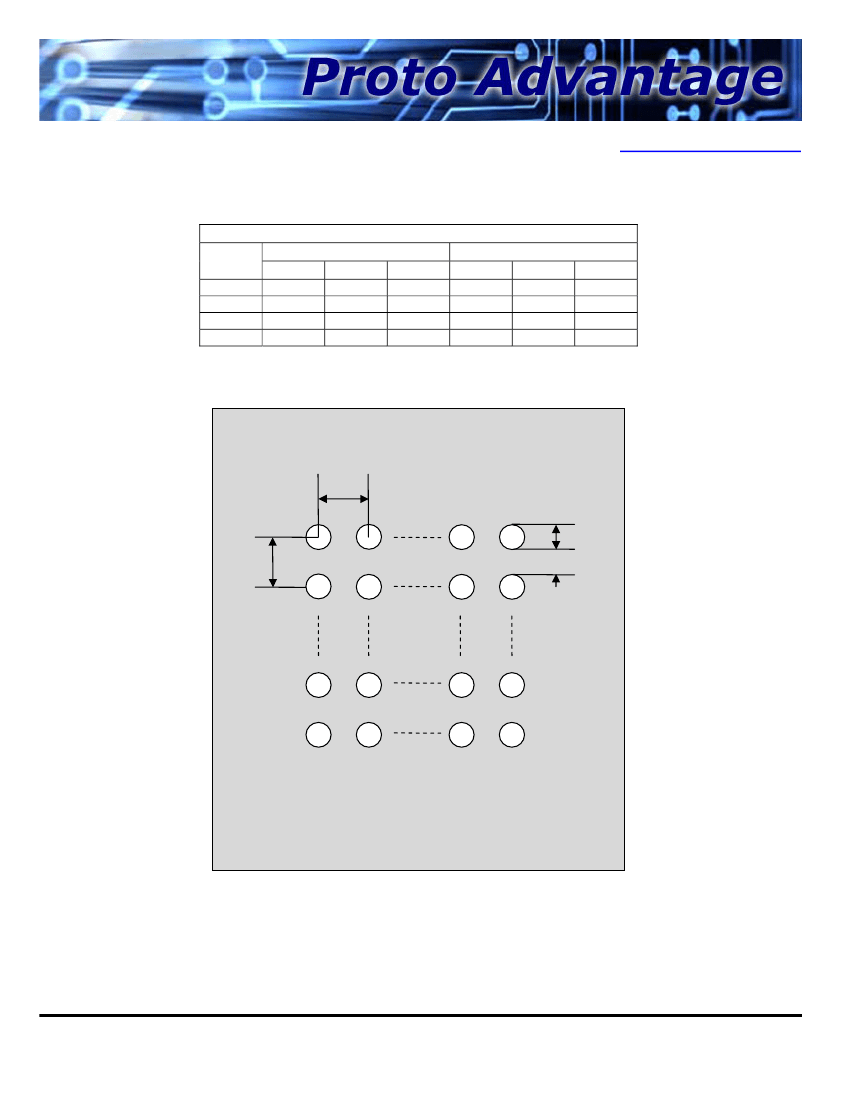

BGA-100 Stencil (0.4 mm pitch, 10 x 10 grid)
DIMENSIONS
REF.
C
D
E
E2
MIN.
mm
TYP.
0.254
0.146
0.400
0.400
MAX.
MIN.
inches
TYP.
MAX.
Top View (SMT Footprint)
E
E2
C
D
(Representative drawing only - not to scale)
