NOTES:
1. MATERIALS AND FINISHES:
BNC STR CRIMP PLUG- BRASS, NICKEL PLATING
CABLE - BELDEN 4855R
2. ELECTRICAL:
A. IMPEDANCE:
75 OHM
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
05-May-17
DATE
3682
ECO
APPR
BMG
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 95-850-187-XXX AND DATE CODE"
LENGTH 'L' (SEE TABLE)
SCALE
0.500
3.000 # 0.197
[76.20 # 5.00] MM
MARK:
"AMPHENOL RF
95-850-187-XXX WWYY"
HEAT SHRINK TUBE
TYP(2)
INTERFACE PER
MIL-STD-348
SERIES: BNC PLUG
TYP(2)
LENGTH 'X' (SEE TABLE)
TYP(2)
1.520 # 0.050
[38.61 # 1.27] MM
95-850-187-006
95-850-187-012
95-850-187-018
95-850-187-024
-
-
-
-
-
-
PART NUMBER
(IMPERIAL)
PART NUMBER
(METRIC)
-
-
-
-
-
-
LENGTH TABLE
LENGTH 'L' IN
INCHES [METERS]
6.00 [0.152]
9.84 [0.250]
LENGTH 'X' IN INCHES
[METERS] MIN
0.75 [0.019]
95-850-187M025
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
157.48 [4.000]
78.74 [2.000]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
95-850-187M050
95-850-187M075
95-850-187M100
95-850-187M200
95-850-187M400
DESIGN REQUIREMENTS:
X
FREQUENCY : DC TO 12 GHz
VSWR ____ : 1 MAX
INS. LOSS :____ dB MAX
95-850-187-036
X
CONTINUITY
X
HI-POT: 250 VRMS
OTHER
1.50 [0.038]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
95-850-187-048

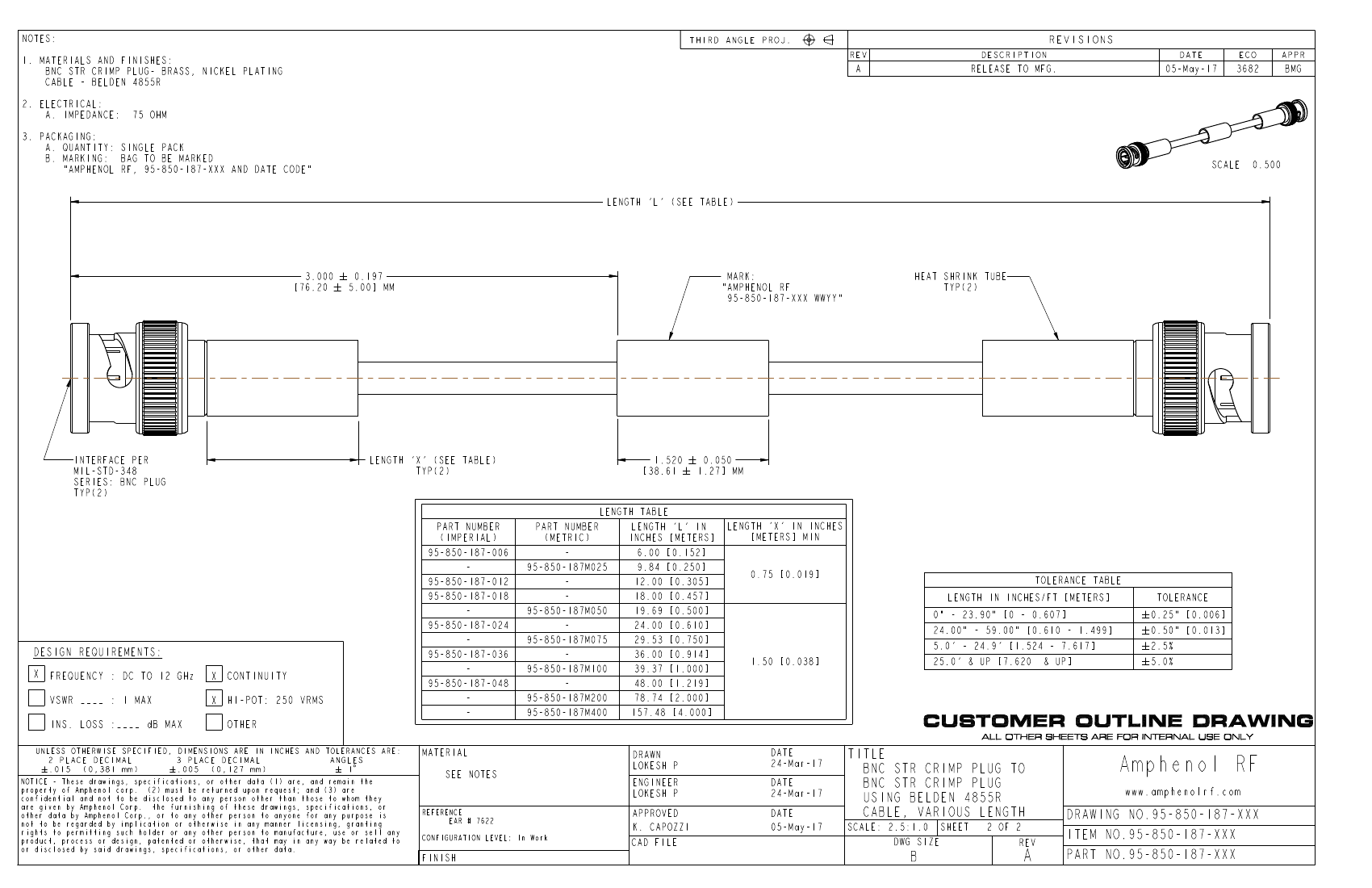

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DATE
24-Mar-17
DATE
24-Mar-17
DATE
05-May-17
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
SEE NOTES
REFERENCE
EAR # 7622
CONFIGURATION LEVEL: In Work
DRAWN
LOKESH P
ENGINEER
LOKESH P
APPROVED
K. CAPOZZI
TITLE
BNC STR CRIMP PLUG TO
BNC STR CRIMP PLUG
USING BELDEN 4855R
CABLE, VARIOUS LENGTH
SCALE: 2.5:1.0
DWG SIZE
SHEET
Amphenol RF
www.amphenolrf.com
FINISH
CAD FILE
2 OF 2
DRAWING NO. 95-850-187-XXX
B
REV
A
ITEM NO. 95-850-187-XXX
PART NO. 95-850-187-XXX
