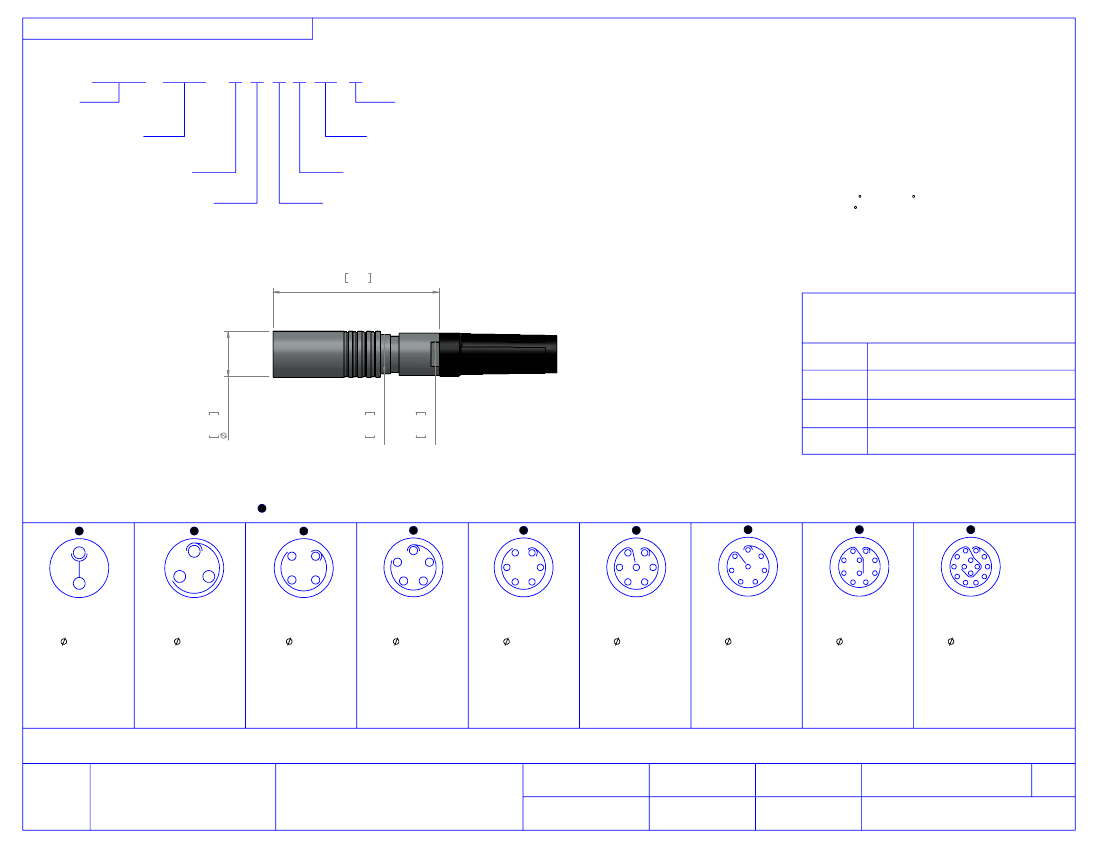

DESCRIPTION: QUIK-LOQ - FEMALE - CABLE MOUNT
UNITS = MM [INCHES]
CHARACTERISSTICS
MATERIALS
HOUSING : BRASS
HOUSING PLATING : 196µ" NICKEL MIN.
SHELL & COLLET NUT: BRASS, 196µ" CHROME PLATED MIN.
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
STRAIN RELIEF(BOOT) : THERMOPLASTIC POLYURETHANE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TOURQUE VALUE : 1.5 Nm [13.2 IN/LBS]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 50
821B YYY - 2 7 3 L YY 1
SERIES
12.00 [0.475]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
CABLE MOUNT
1 = GOLD FLASH
COLLET SIZE
**SEE CHART B**
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
1.575
40.00
CHART B
COLLET
SIZE
40
50
WIRE DIAMETER
3.30 [0.130] ~ 4.20 [0.165]
4.30 [0.169] ~ 5.20 [0.205]
5.30 [0.209] ~ 6.20 [0.244]
6.30 [0.248] ~ 7.20 [0.283]
0.492
12.50
0.394
10.00
0.354
9.00
60
70
CHART A
1
1
= KEY LOCATION
1
1
1
**VIEW FROM TERMINATION END**
1
1
1
1
2 POSITION
20 AWG MAX.
15 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1500V
WORKING VOLTAGE
= 500V
3 POSITION
20 AWG MAX.
12 AMP MAX.
PIN
= 1.30 [0.051]
CONTACT
RESISTANCE
= 5 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
4 POSITION
22 AWG MAX.
10 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
5 POSITION
22 AWG MAX.
9 AMP MAX.
PIN
= 0.90 [0.035]
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1250V
WORKING VOLTAGE
= 415V
6 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 1050V
WORKING VOLTAGE
= 350V
7 POSITION
24 AWG MAX.
7 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
8 POSITION
24 AWG MAX.
5 AMP MAX.
PIN
= 0.70 [0.028]
CONTACT
RESISTANCE
= 7.5 mΩ
TEST VOLTAGE
= 950V
WORKING VOLTAGE
= 315V
10 POSITION
28 AWG MAX.
2.5 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 900V
WORKING VOLTAGE
= 300V
14 POSITION
28 AWG MAX.
2 AMP MAX.
PIN
= 0.50 [0.020]
CONTACT
RESISTANCE
= 10 mΩ
TEST VOLTAGE
= 800V
WORKING VOLTAGE
= 260V
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
M. SIGMON
DATE:
02-03-16
SCALE:
N.T.S.
SHEET
1
OF
1
REV:
6
CHECKED:
DATE:
DWG NO.
821BYYY-273LYY1
