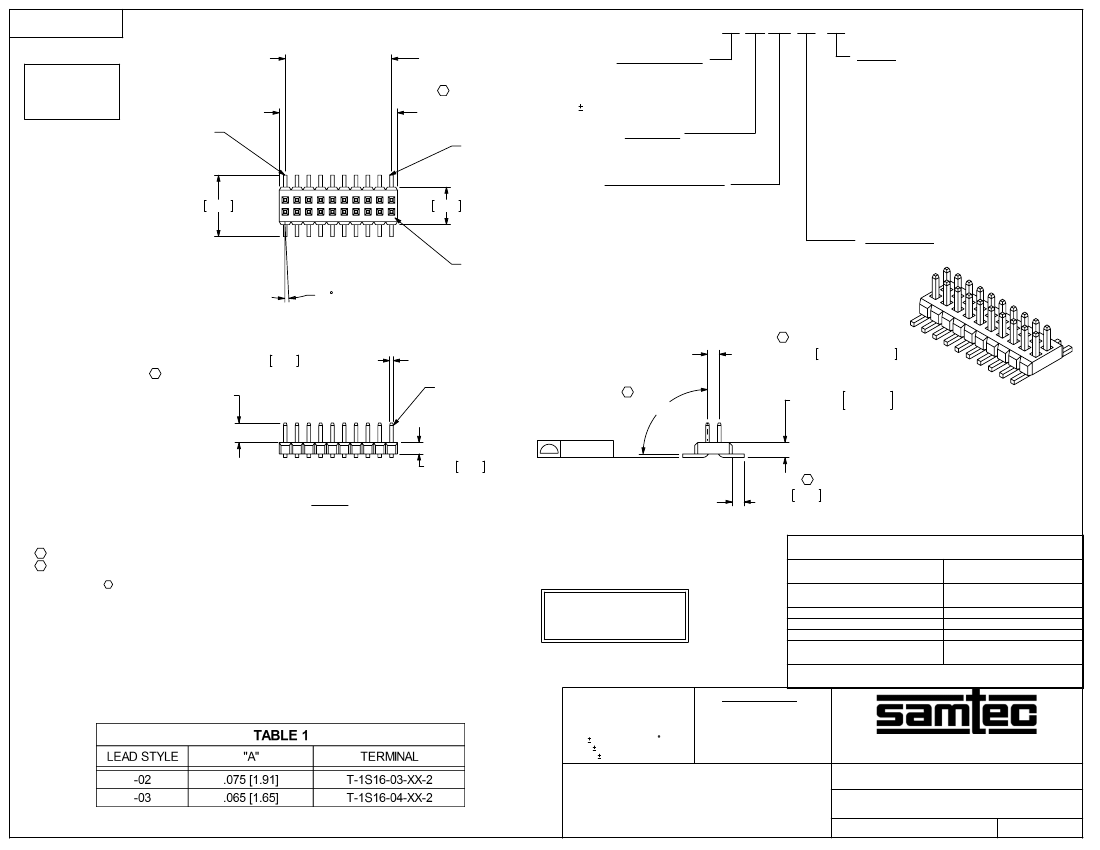

REVISION BU
DO NOT
SCALE FROM
THIS PRINT
2
FTM-1XX-XX-XX-DV-XX
NO. OF POS. x .03937[1.00]
- .03937[1.00] REF
C
No OF POSITIONS
(PER ROW)
-02 THRU -50 (UNSHROUDED)
-05 THRU -46 (SHROUDED)
(NO. OF POS. x .03937[1.00]) .010[.25]
(SEE NOTE 1)
LEAD STYLE
-02: .075 [1.91] POST HEIGHT
100
-03: .065 [1.65] POST HEIGHT
PLATING SPECIFICATION
-F: FLASH SELECTIVE (USE T-1S16-XX-F-2)
-L: LIGHT SELECTIVE (USE T-1S16-XX-L-2)
-H: HEAVY GOLD (USE T-1S16-XX-H-2)
-G: GOLD (USE T-1S16-XX-G-2)
-FM: FLASH GOLD W/ MATTE TIN TAILS
(USE T-1S16-XX-F-2)
-LM: LIGHT GOLD W/ MATTE TIN TAILS
(USE T-1S16-XX-L-2)
.205 5.21 REF
99
.125 3.18 REF
OPTION
-TR: TAPE & REEL PACKAGING
-P: PICK AND PLACE PAD (USE PPP-30)
(USE PPP-30-NT FOR TAPE & REEL)
(AVAILABLE ON POSITIONS -07 THRU -50)
(SEE FIG 4, SHT 3)
-S: END SHROUDS (05 POS. MINIMUM)
(SEE NOTE 8) (SEE NOTE 9)
PRESS FIT SHROUDS: SEE FIG 2
MOLDED SHROUDS: SEE FIG 6
-SA: END SHROUDS W/ ALIGNMENT PINS
(SEE FIG 3, SHT. 2) (SEE NOTE 9)
(05 POS PER ROW MINIMUM, 46 POS
PER ROW MAXIMUM)
(USE FTM-XX-D, USE FTMH-75-D-ES-XX-X
FOR MOLDED END SHROUDS)
ROW OPTION
-DV: DUAL VERTICAL
FTM-XX-D
1 MAX SWAY
(EITHER DIRECTION)
C
C
.012 0.30 SQ (TYP) REF
T-1S16-XX-XX-2
C
.03937±.00400 1.0000±0.1016
+.005
+0.13
0.00
"A"
(SEE TABLE 1)
90°±3°
.004[.10]
.038 0.97 REF
.050
- .000
1.27
C
FTM-1XX-02-X-DV SHOWN
NOTES:
C
C
FIG 1
.040 1.02
(SEE NOTE 2)
CRITICAL DIMENSION INSPECTION INSTRUCTION TABLE
ASSEMBLY OPERATION
IN PROCESS INSPECTION
C1, C3 C5, C6, C8
C2, C7
C9, C10, C16
C12
C13
1. PARTS MAY BE CUT TO POSITION; .010 MAX CUT FLASH
2. SHEAR TAILS TO DIMENSION SHOWN; .003 MAX BURR.
3. NOTE DELETED.
4.
C
REPRESENTS A CRITICAL DIMENSION
FOR STATISTICAL PROCESS CONTROL.
5. NOTE DELETED.
6. NOTE DELETED.
7. POSITIONS -02 THRU -04 TO BE LAYER PACKAGED, AND
POSITIONS -05 THRU -50 TO BE TUBE PACKAGED.
8. PARTS WITH -S OPTION ARE TO APPEAR AS SHOWN IN FIG 2
OR FIG 6 AT SAMTEC'S DISCRETION.
9. 4 POSITIONS MUST BE ADDED TO PART CALL OUT TO ALLOW FOR PUSH ON SHROUDS.
EX: FTM-125-02-L-DV-S REQUIRES A 29 POSITION STRIP.
10. MINIMUM PUSHOUT FORCE: .5 LB (8 OZ)
5655914 / 5785536
PATENT NUMBERS
AUTO FILL T-1S16-XX-XX-2
CUT TO POSITION
INSTALL FEM
INSTALL FEM-A
INSTALL PICK AND PLACE
PAD
CPC'S INTENTIALLY DELETED: C4, C11, C14, C15
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
3
.XXX: .005 [.13]
.XXXX: .0020 [.051]
MATERIAL:
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
BODY: VECTRA E130
COLOR: BLACK
TERMINAL:
PHOS BRONZE
1mm x 1mm LOW PROFILE SMT STRIP ASM
MAX FLASH ALLOWED:
.002 [.05]
MAX GATE VESTIGE
ALLOWED: .002 [.05]
FTM-1XX-XX-XX-DV-XX
SHEET
1
OF
3
F:\DWG\MISC\MKTG\FTM-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
B MENEAR 2/13/2006
REVISION BU

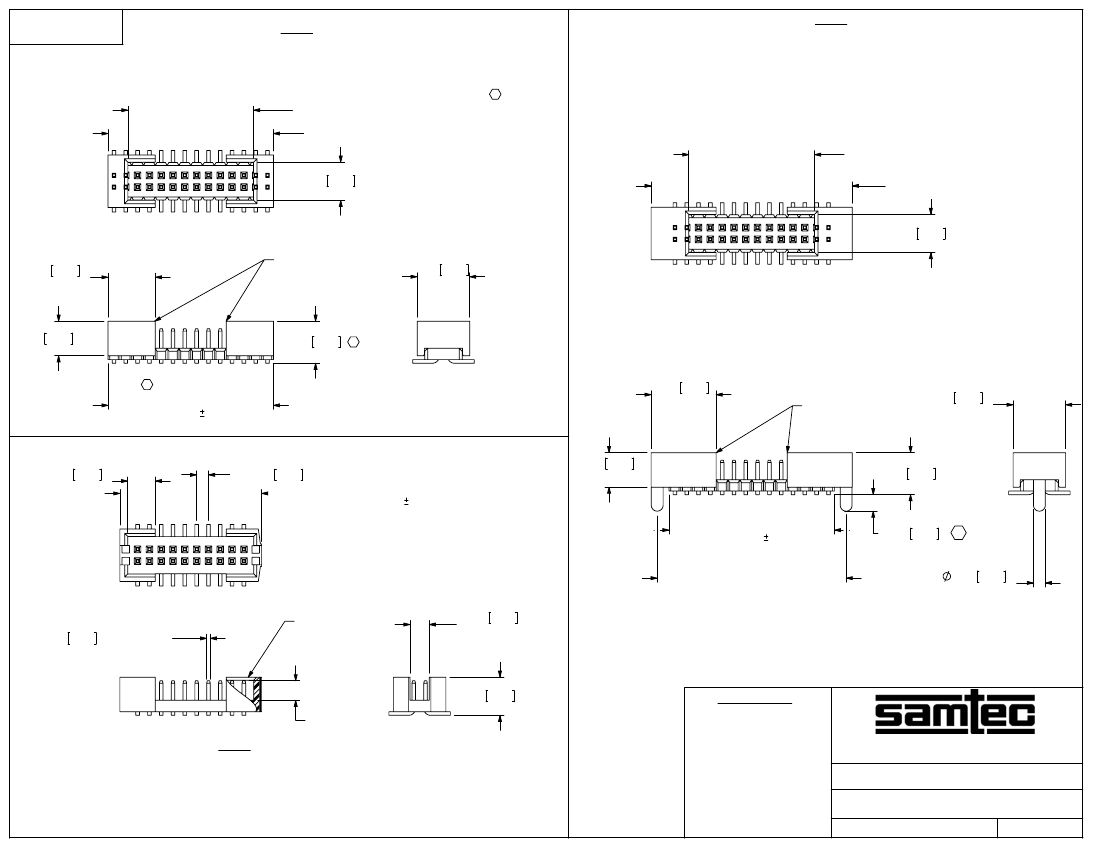

-S OPTION
FTM-1XX-02-X-DV-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1) (SEE NOTE 8) (SEE NOTE 9)
(PRESS FIT SHROUDS TO HAVE 8 UNUSED SOLDER TAILS AS SHOWN)
C
FIG 2
-SA SHOWN: PRESS FIT SHROUD
FTM-1XX-02-X-DV-SA
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
(SEE NOTE 9)
FIG 3
(NO OF POS. x .03937[1.0000] + .025[.65]
(NO OF POS. x .03937[1.0000]) + .1575[4.000] REF
(NO OF POS. x .03937[1.0000]) + .025[.65]
.127 3.23 REF
(NO OF POS. x .03937[1.0000]) +
.2756[7.000] REF
.127 3.23 REF
.158 4.00
REF
FEM
.175 4.45
REF
.115 2.92 REF
.140 3.56
C
C
(NO. OF POS. +4)
X .03937[1.00] .010[0.25]
.217 5.50
REF
FEM-A
.175 4.45
REF
.092 2.33
REF
.03937 1.00
({NO. OF POS. PER FINISHED ASSEMBLY +2}
x .03937[1.0000]) .010[.025]
.115 2.92
REF
.140 3.56
((NO OF POS. + 4)
x .03937[1.00]) .010[0.25]
(NO OF POS. x .03937[1.0000]
+ .236[6.00])
FTM-50-D-ES-XX
.055 1.40
C
.039 1.00
REF
.01200 0.30 SQ(TYP) REF
.064 1.63
REF
.127 3.23 REF
"A"
(SEE TABLE 1)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 6
-S OPTION: MOLDED SHROUD
FTM-1XX-02-X-DV-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)(SEE NOTE 8)
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
1mm x 1mm LOW PROFILE SMT STRIP ASM
FTM-1XX-XX-XX-DV-XX
SHEET
2
OF
3
F:\DWG\MISC\MKTG\FTM-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
B MENEAR 2/13/2006
REVISION BU

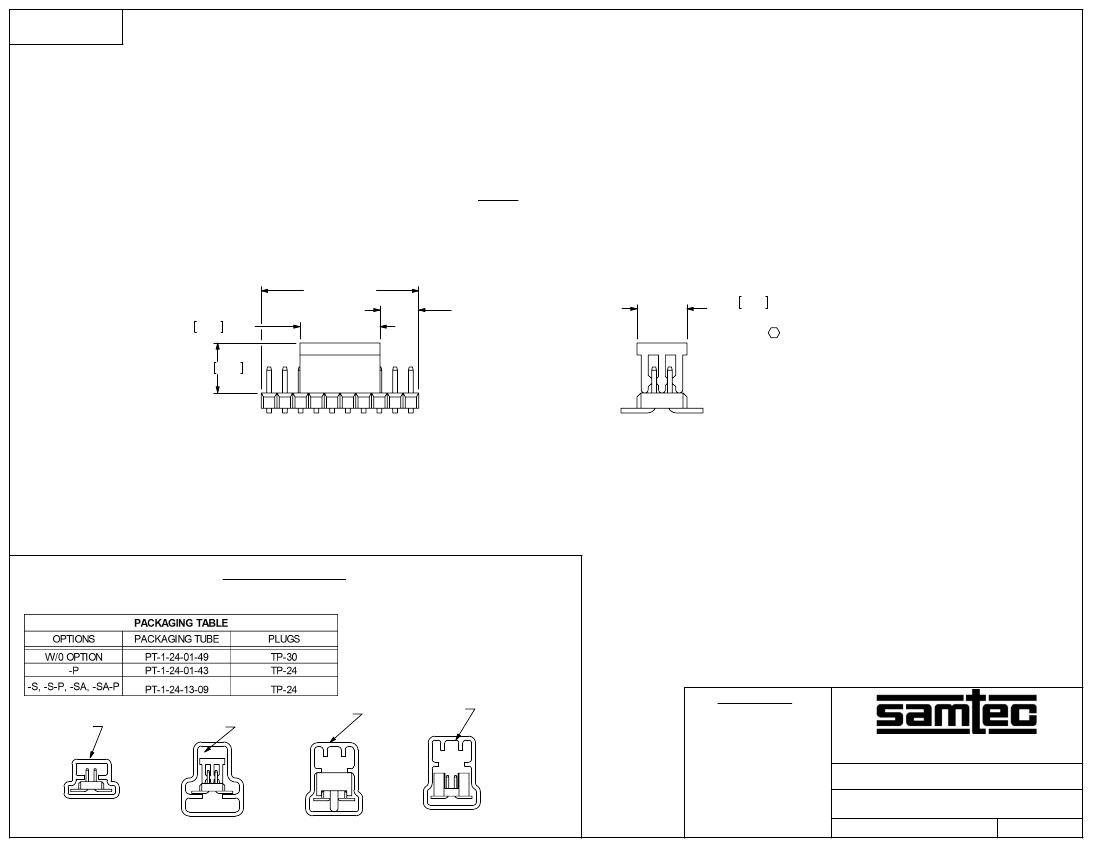

FIG 4
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"M"
(SEE NOTE)
.200 5.08 REF
.125 3.18
"P"
(SEE NOTE)
.125 3.18 REF FOR TUBED
.190 [4.83] REF FOR TAPE & REEL
C
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .200 [5.08]) / 2} +/-.020 [.51]
PACKAGING VIEW
(SEE NOTE 7)
NOTE:
ONLY POSITIONS -05 THRU -50 ARE TO BE
TUBED. POSITIONS -02 THRU -04 TO BE
LAYER PACKAGED ONLY. INSERT PLUG TP-30
AT AN ANGLE INTO PT-1-24-01-49, PLUG
MUST SUPPORT THE INSULATOR.
F:\DWG\MISC\MKTG\FTM-1XX-XX-XX-DV-XX-MKT.SLDDRW
PT-1-24-01-49
PT-1-24-01-43
PT-1-24-13-09
PT-1-24-13-09
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
1mm x 1mm LOW PROFILE SMT STRIP ASM
NO OPTION
-P
-SA, -SA-P, -SA
-S, -S-P
FTM-1XX-XX-XX-DV-XX
SHEET
3
OF
3
BY:
B MENEAR 2/13/2006
