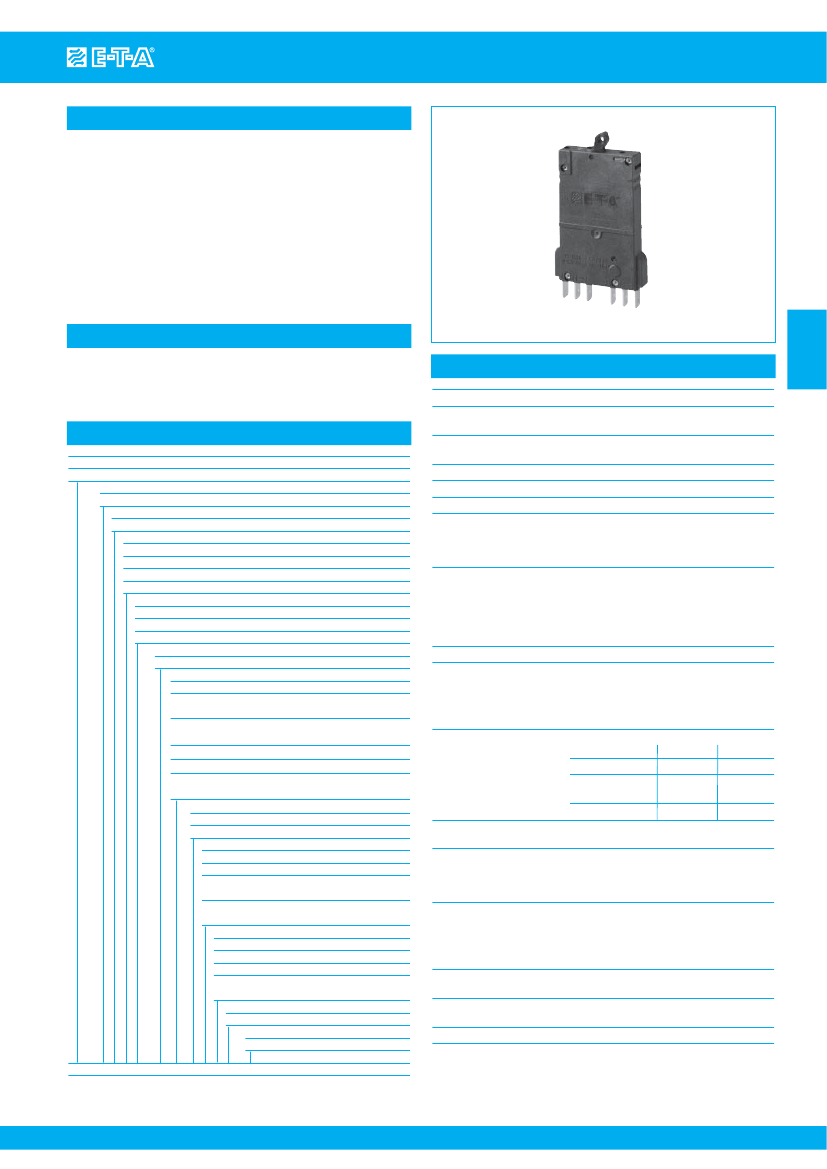

Thermal-Magnetic Circuit Breaker 2210-S2..
Description
One, two and three pole thermal-magnetic circuit breakers with tripfree
mechanism and toggle actuation (S-type TM CBE to EN 60934/IEC
934). Designed for panel or plug-in mounting. Available with auxiliary
contacts (1 x N/O, 1 x N/C) for status signalling. Two and three pole
models are internally linked to ensure that both/all poles trip in the
event of an overload on one pole, even if the actuator is held in the ON
position. A choice of characteristic curves further extends the range
of applications possibilities for these CBEs. Special auxiliary contact
versions for industrial atmosphere and low voltages (e. g. 5 V) available
on request.
Approved to CBE standard EN 60934 (IEC 60934).
Suitable for use in distribution rails – see section Power Distribution
Systems.
2210-S2..
Typical applications
Process control equipment, robotics, machine tool control, communications
systems, instrumentation, rail vehicles. Special versions, e.g. for aggressive
environmental conditions and low voltages (e. g. 5 V) on request.
Technical data
For further details please see chapter: Technical Information
Voltage rating
AC 250 V*; 3 AC 433 V (50-60Hz); DC 65 V
(*UL: AC 277/480 V; DC 65 V)
Current rating range
0.1...25 A for curves M1, T1, T2
0.1...16 A for curves F1, F2, M3
Auxiliary circuit
1 A, AC 240 V/DC 65 V, resistive
Typical life
10,000 operations at 1 x I
N
, inductive
Ambient temperature
-30...+60 °C (-22...+140 °F) T 60
Insulation co-ordination
rated impulse
pollution
(IEC 60664 and 60664A) withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
Dielectric strength
(IEC 60664 and 60664A) test voltage
operating area
AC 3,000 V
main/aux. circuit
AC 1,500 V
aux. circuit 11-12/23-24 AC 1,000 V
pole/pole
AC 1,500 V
Insulation resistance
> 100 MΩ (DC 500 V)
0.1...5 A
400 A
Interrupting capacity I
cn
6...25 A
800 A
curves F1, F2, M1, T1: 0.1...16 A
2,500A (at DC 32 V)
curve T2 :
0.1...25 A
15 x I
N
curve M3:
0.1...2 A AC 200 A
DC 400 A
Interrupting capacity
0.1...16 A 20...25 A
(UL 1077)
I
N
AC 277 V 1-pole 5,000 A
2,000 A
AC 277/480 V
2-/3-pole
5,000 A
2,000 A
DC 65 V
2,000 A
2,000 A
Degree of protection
operating area IP30
(IEC 60529/DIN 40050)
terminal area IP00
Vibration
curve F1: 3 g (57-500 Hz), ± 0.23 mm (10-57 Hz)
curves M1, M3, T1, T2: 5 g (57-500 Hz), ± 0.38 mm (10-57 Hz)
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
Shock
curve F1: 25 g (11 ms), directions 1, 2, 3, 4, 5
10 g (11 ms), direction 6
curves M1, M3, T1, T2: 25 g (11 ms), directions 1, 2, 3, 4, 5
20 g (11 ms), direction 6
to IEC 60068-2-27, test Ea
Corrosion
96 hours in 5 % salt mist
to IEC 60068-2-11, test Ka
Humidity
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
Mass
approx. 50 g per pole
2
Ordering information
Type No.
2210
single or multipole thermal-magnetic circuit breaker
Mounting
S
socket or panel mounting
Actuator design
2
toggle
Number of poles
1
1-pole protected
2
2-pole protected
3
3-pole protected
5
2-pole, protected on one pole only
Panel mounting
0
without hardware
1
with M3 thread
2
with 6/32 thread
Terminal design (main contacts)
P1
blade terminals 6.3-0.8 (QC .250)
Characteristic curve
F1
fast acting: therm.1.01-1.4xI
N
;magn.2-4xI
N
DC (DC only)
F2
fast acting: therm.1.01-1.4xI
N
;
magn.3.5-6.5xI
N
AC/ 4.5-8.5xI
N
DC
M1
standard delay: therm. 1.01-1.4xI
N
;
magn. 6-12xI
N
AC;7.8-15.6xI
N
DC
T1
delayed: therm. 1.01-1.4xI
N
; magn. 10-20xI
N
AC
T2
thermal only, 1.01-1.4xI
N
M3
standard delay, low resistance: therm.1.4-1.8xI
N
;
magn. 6-12xI
N
AC; 7.8-15.6xI
N
DC
Intermediate position
H
without intermediate position (standard)
Z
with intermediate position
Auxiliary contacts
0
without auxiliary contacts
1
with auxiliary contacts in all poles
2
with auxiliary contacts in pole 1
(only multipole devices)
3
with auxiliary contacts in poles 1 and 3
(≥ 3-pole devices)
Auxiliary contact function (see diagram)
1
one each N/C and N/O (standard)
2
one N/O contact (23/24)
3
one N/C contact (11/12)
4
one N/C contact, closed in the
intermediate and ON position (-Z only)
Auxiliary contact - terminal design
1
same as main terminals
Current ratings
0.1...25 A
2210 - S 2 1 0 - P1 F1 - H 1 1 1 - 10 A
ordering example
Remote trip coil available to special order.
Issue C
(260111)
www.e-t-a.com
2
- 11

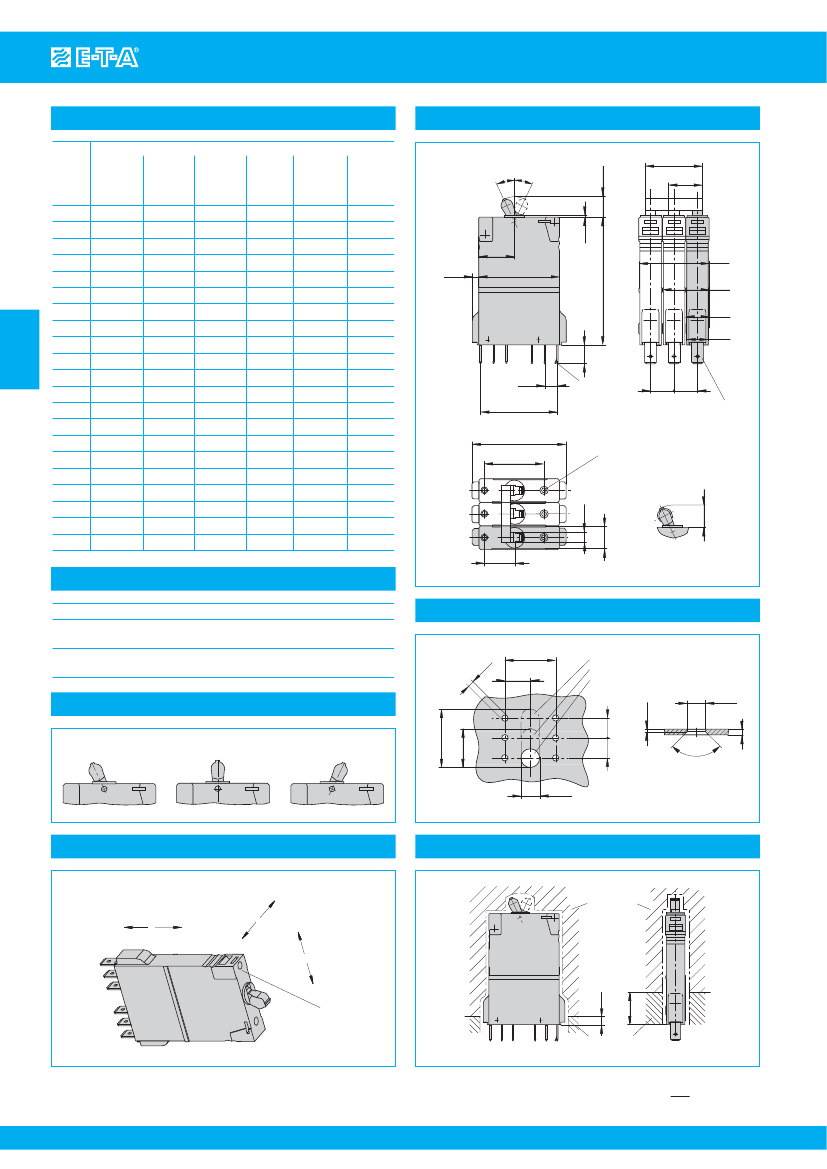

Thermal-Magnetic Circuit Breaker 2210-S2..

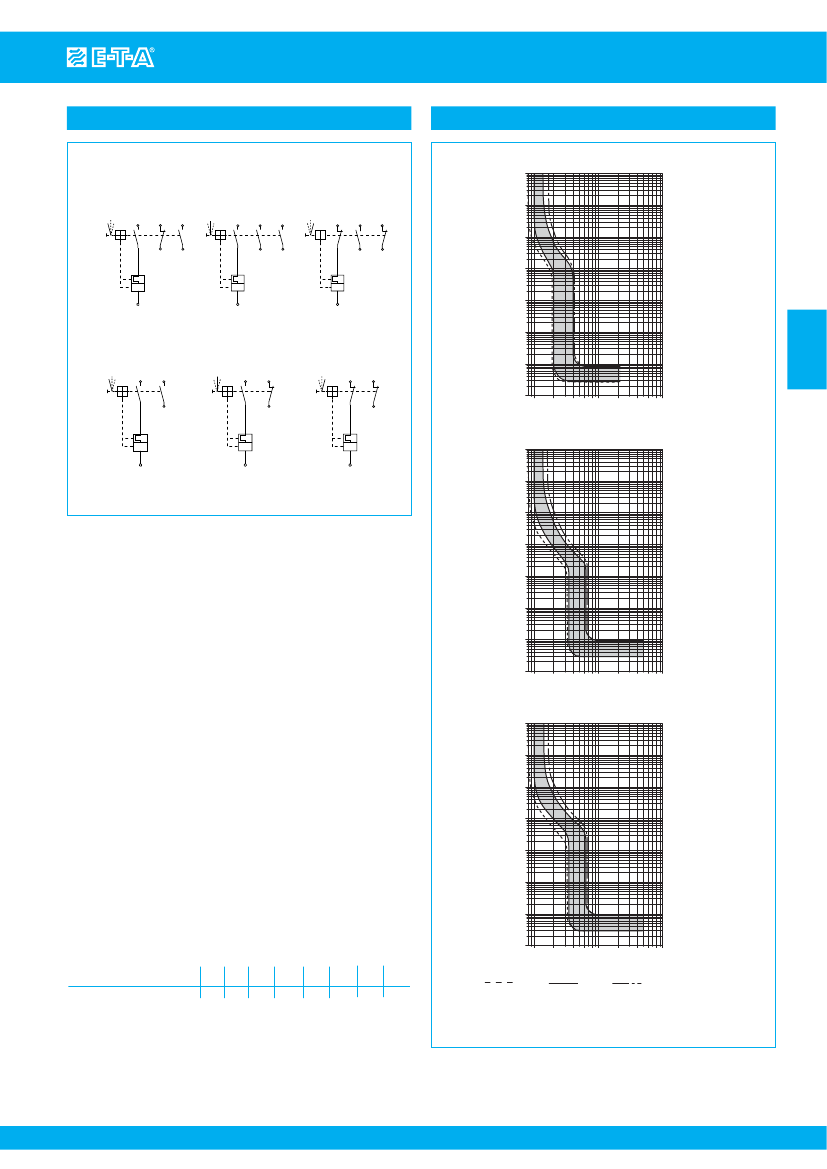

Internal connection diagrams
with auxiliary contact function 1
(one each N/O and N/C)
(...-H111-...) without intermediate position
(...-Z111-...) with intermediate position
0
(Z)
I
line
1
11
23
(Z)
0 I
line
1
11
23
(Z)
0 I
line
1
11
23
Trip time in seconds
100

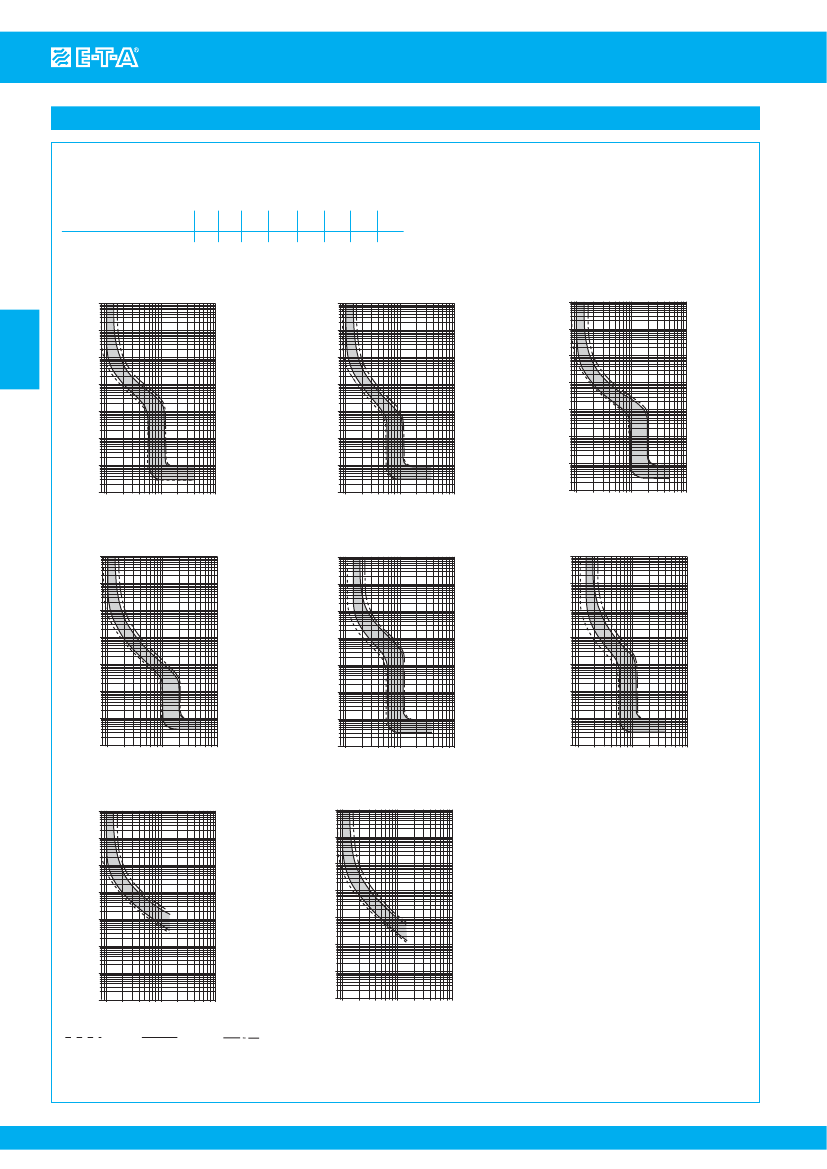

Typical time/current characteristics
-F1 0.1…16 A
10000
DC only
1000
12
24
12
24
12
24
10
I>
I>
I>
2
ON position
1
2
OFF position
2
Intermediate position
0.1
with auxiliary contact function 4
(1 N/O, leading)
0
(Z)
I
line
1
23
0
(Z)
I
line
1
23
(Z) line
0 I
1
0.01
23
0.001
1
24
24
24
2
4 6 8 10 20 406080100
… times rated current
2
-F2 0.1…7.5 A
I>
I>
I>
2
ON position
Trip time in seconds
AC/ DC
1)
10000
2
OFF position
2
Intermediate position
1000
100
10
1
0.1
0.01
0.001
1
2
4 6 8 10 20 406080100
… times rated current
-F2 8…16 A
10000
AC/ DC
1)
1000
Trip time in seconds
100
10
1
0.1
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, please multiply the circuit
breaker current ratings by the derating factor shown below. See also section
Technical information.
Ambient temperature °F -22 -4 +14 +32 +73.4 +86 +104 +122 +140
°C -30 -20 -10 0
+23 +30 +40 +50 +60
Derating factor
0.76 0.79 0.83 0.88 1
1.04 1.11 1.19 1.29
Multipole devices: all poles symmetrically loaded. With single pole overload,
thermal tripping will be at max. 1.7 x I
N
with curves F1, F2, M1 and T2, and at
max. 2.2 x I
N
with curve M3.
1)
0.01
0.001
1
2
4 6 8 10 20 40 6080100
… times rated current
+23 °C
+73.4 °F
-30 °C
-22 °F
+60 °C
+140 °F
Magnetic tripping currents are increased by 30% on DC supplies.
Issue C
(260111)
www.e-t-a.com
2
- 13
Thermal-Magnetic Circuit Breaker 2210-S2..

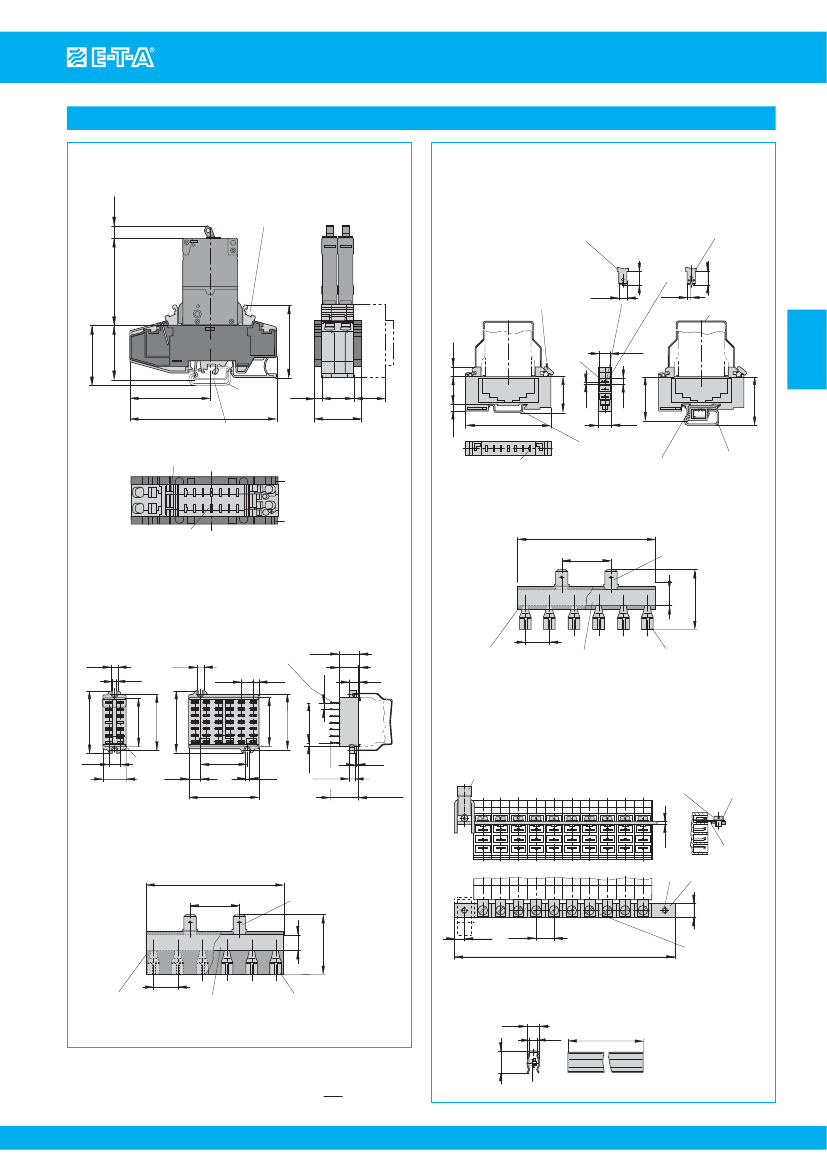

Accessories
Module 17plus
For technical data see section Power distribution systems
10.5
.413
slot for fitting labels from
Phoenix, Weidmüller, Wieland
Single mounting sockets
(with adapter)
(up to 16 A max. load)
17-P10-Si
17-P10-Si-20025
17-P70-Si
17-P70-Si-20025
(retaining clip Y 302 974 21 available on request)
polarized blade terminal
DIN 46244-A6.3-0.8 (QC .250)
-P10
blade terminal DIN 46244 part 2
C profile (2xA2.8-0.8) (QC 2x.110)
-P70
10
.394
10
.394
2.8
.110
retaining clip
68
2.64
slot for fitting labels from
Phoenix, Weidmüller
6.3
.248
8.5
.335
47
1.85
42.5
1.67
17 plus
depth
10 mm
(.394 in.)
1
11
23
2(k)
12
24
2(i)
57
2.24
10
.394
1
2(k)
12
24
2(i)
2
11
23
25.8
1.02
5
.197
41.3
1.63
1.4
.055
symmetrical rail
EN 50022-35x7.5
6.5
.256
115
4.53
80
3.15
12.5
.492
symmetrical rail
EN 50022-35x7.5
adapter X20040901
G-profile
EN 50035-G32
slot for busbar
polarization recess
11
1 Line 1 Line
14
right-side terminal block
2
12
left-side terminal block
Bus bar 50 A (6-way) for type 17-P10-Si socket
X 221 760 01
71 ± 1.5
2.79 ± .060
25
.984
blade terminal
DIN 46244 A6.3-0.8
(QC .250), max. 25 A
2
11
module
2-way
6-way mounting socket
mounting socket
23-P10-Si
63-P10-Si
(up to 16 A max. load)
(retaining clip Y 302 974 01 available on request)
22.2
polarized blade terminals
DIN 46244-A6.3-0.8 (QC .250) .874
7.4
.291
6.25
12.5
.246
.492
50
1.97
57.4
2.26
6 x 6.8 = 40.8
14
12
6 x .268 = 1.61 6.8
.268
7.4
.291
4.4
.173
21
.827
retaining
clip
10
.394
insulation to
DIN 4102-B2
translucent
12.5
.492
busbar
max. 50 A
Outer dimensions of female
connectors to
6.3-1 DIN 46247 Ms-gal Sn
max. 16 A
12.5
.492
25
.984
polarized
recess
12.5
.492
50
1.97
75
2.95
4.4
.173
6
.236
2
.079
max. 30
max. 1.18
3.5
.138
Bus bar (10-way)
(supplied as a complete package)
for type 17 socket
(for max. 100 A continuous load),
mor
e positions available on request
X 211 157 01 with terminal
X 211 157 02 without terminal
Phoenix terminal AKG 35
max.cross section 35 mm
2
(AWG 2)
cylinder head screw washer
M4x4 ISO1207
A 4.3 DIN 125
nickel plated
nickel plated
50
1.97
57.4
2.26
64
2.52
64
2.52
Bus bar 50 A, 6-way, for type 63-P10-Si socket
X 221 760 11
71 ± 1.5
2.79 ± .060
25
.984
blade terminal
DIN 46244 A6.3-0.8
(QC .250), max. 25 A
2
.079
.315
33.2
1.31
8
female
connector
M4 Cu rail, tin-plated
33.2
1.31
.315
7
.276
12.8
.504
8
154.8
6.09
12.5
.492
insulation to
DIN 4102-B2
translucent
busbar
max. 50 A
Outer dimensions of female
connectors to
6.3-1 DIN 46247 Ms-gal Sn
max. 16 A
Insulating sleeving for bus bar (10-way)
Y 303 824 01
9
.354
17
.669
5.4
.213
125
4.92
This is a metric design and millimeter dimensions take precedence ( mm )
inch
Issue C
(260111)
www.e-t-a.com
10
.394
pressure-relief joint
(1.1 mm (.043 in.)
thick constriction)
2
- 15
45.8
1.80
63
2.48
G-profile
EN 50035-G32
6
.236
25
.984
37
1.46
25
.984
33.3
1.31
