Preview

5-1415546-8: DescriptionRMD25012; CategoryTopical application Mechanical and electrical/engineering/automation; File Size268KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-1415546-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1415546-8	-	-	View	Buy Now

5-1415546-8 Overview

RMD25012

5-1415546-8 Parametric

Parameter Name	Attribute value
Power relay type	Industrial panel plug-in
Coil excitation system	Monostable, DC
Coil Power Rating Class (mW)	1000 – 1500
Coil Power Rating (DC) (mW)	1300
Coil resistance (Ω)	110
Coil characteristics	UL Coil Insulation Class B
Coil Voltage Rating (VDC)	12
Terminal switch load (minimum)	100mA @ 24V
Terminal switching voltage (max) (VAC)	440
Terminal Voltage Rating (VAC)	400
Insulation leakage between terminal and coil	14.9 mm [ .587 in ]
Initial dielectric between terminal and coil (Vrms)	2500
Terminal limit continuous current (A)	32
Insulation leakage type (mm)	10 – 20
Open terminal insulation initial dielectric (Vrms)	2000
Coil/terminal insulation initial dielectric type (V)	1500 – 2500, 2500 – 3000
product weight	81 g [ 2.857 oz ]
Insulating properties	6000 V initial surge withstand voltage between terminals and coil
Terminal arrangement	1 Form X (NO, bridged)
Terminal current type (A)	20 – 30, 30 – 50
Contact Current Rating (Max) (A)	32
Terminal material	AgNi90/10
Number of terminal poles	1
Terminal type	quick-connect, plug-in
Terminal characteristics	Bridge terminal
Relay installation type	Quick connect, flange mounting
Product height	73.5 mm [ 2.894 in ]
Product length	35.5 mm [ 1.398 in ]
Product width	38.5 mm [ 1.516 in ]
Width type (mechanical) (mm)	30 – 40
Insulation gap between terminal and coil	4 mm [ .157 in ]
Height type (mechanical) (mm)	70 – 80
Insulation gap type (mm)	2.5 – 4
Length type (mechanical) (mm)	30 – 40, 35 – 40
Working group temperature range	-40 – 60 °C [ -40 – 140 °F ]
Environmental Protection Category	RTI
Ambient temperature (maximum)	60 °C [ 140 °F ]
Encapsulation method	Box, Carton

Preview

Download Datasheet

View All

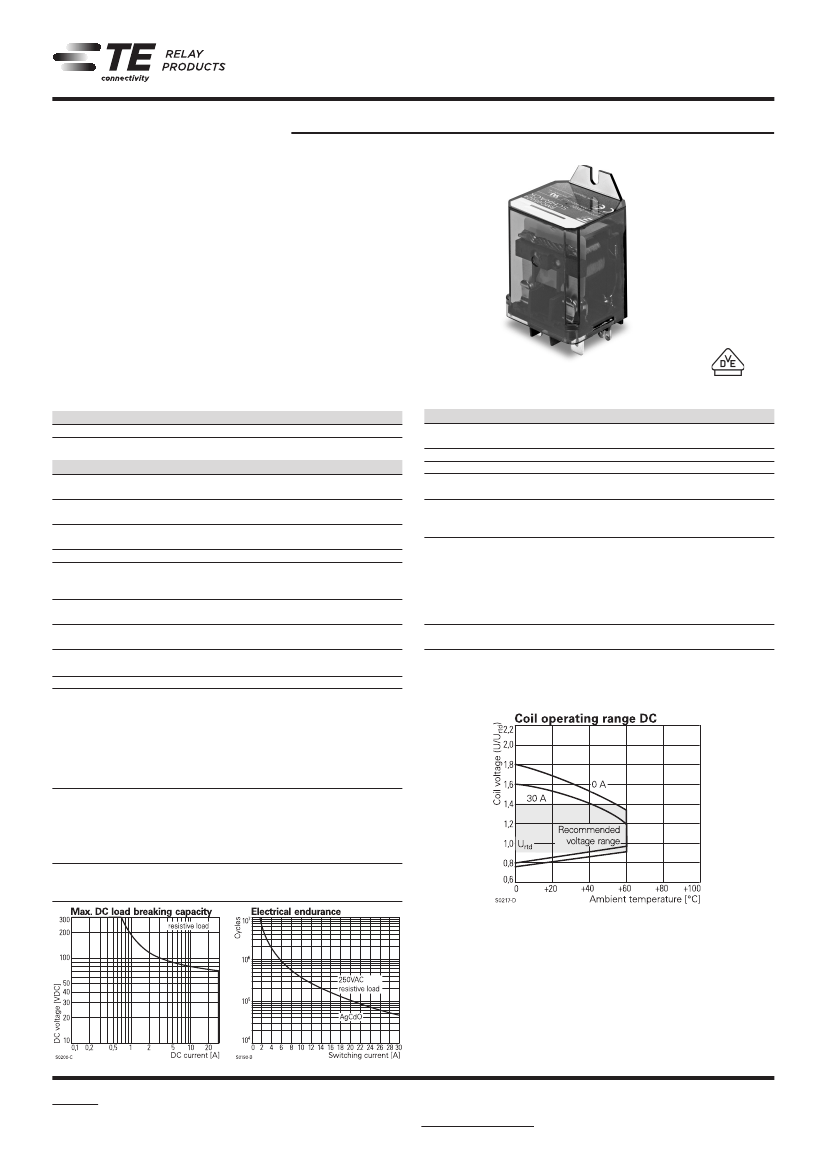

General Purpose

Panel/Plug-in Relays

Power Relay RM C/D

n

SCHRACK

1 pole 30/32 A, 1 form X, double make, NO or

1 form Z, double make + double break, NO + NC

Switching capacity up to 12800VA

DC or AC coil

Push-to-test button

Chassis mount

Typical applications

Battery chargers, heating control.

Z

Approvals

Coil Data

UL E214025, VDE Cert. No. 40003144 for AgNi-versions

Technical data of approved types on request.

Coil voltage range

Contact Data

Contact arrangement

Rated voltage

Max. switching voltage

Rated current

Limiting making current, max. 20ms

Switching power

Contact material

Contact style

Min. recommended contact load

Frequency of operation,

with/without load, DC coil

Operate/release time max., DC coil

Bounce time max., form A/form B, DC coil

Contact ratings

Type

Contact

EN 61810

RMC/D X of Z (NO)

AgNi DC coil

RMC

Y of Z (NC), AgNi

RMC/D X of Z (NO)

AgNi DC coil

RMC/D X of Z (NO)

AgNi AC coil

UL 508

RMC/D X/Y (NO/NC),

AgCdO,

RMC/D X/Y (NO/NC)

RMC/D X (of Z / NO), AgNi

RMC/D X/Y (NO/NC)

Mechanical endurance

DC coil

AC coil

Load

1 form Z,

1 form X,

1 NO + 1 NC

1 NO

400VAC

440VAC

30A/32A (VDE)

60A

7500VA

AgCdO, AgNi 90/10

single bridging contact

24VDC/100mA

960/6000h

-1

20/20ms

4/6ms

Cycles

20x10³

10x10³

RMC

RMD

Operative range, IEC 61810

Coil insulation system according UL

Coil versions, DC coil

Coil code

STD

LED

PD

3)

bipolar

006

L06

0A6

012

L12

0B2

024

L24

0C4

048

L48

0E8

060

L60

0G0

110

M10

1B0

221

N21

2C1

Operate voltage, DC coil

Release voltage, DC coil

6 to 220 VDC

6 to 400 VAC

2

class 130 (B)

Rated

Coil

Rated coil

voltage

resistance

power

VDC

Ω±10%

1)2)

W

6

32

1.1

12

110

1.3

24

475

1.2

48

2000

1.2

60

2850

1.3

110

10000

1)

1.2

220

40000

2)

1.2

75% of rated coil voltage

10% of rated coil voltage

LED+

PD

3)

LA6

LB2

LC4

LE8

LG0

MB0

NC1

1) Coil resistance ±12%, 2) Coil resistance ±15%.

3) Protection diode PD; standard polarity: +A1 / -A2.

All figures are given for coil without pre-energization, at ambient temperature +23°C.

32A, 400VAC res. 40°C

30A, 400VAC res. 50°C

30A, 400VAC res. 40°C

30 A, 277 VAC, general purpose 50°C 10x10

3

30 A, 415 VAC, resistive 50°C

10x10

3

120 VAC, 0,75 HP 50°C

10x10

3

240 VAC, 2 HP 50°C

6x10

3

10x10

6

operations

10x10

6

operations

03-2018, Rev. 0318

www.te.com

a TE Connectivity Ltd. company.

Catalog and product specification according

to IEC 61810-1 and to be used only together

with the ‘Definitions’ section.

Catalog and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,

application notes and all specifications are

subject to change.

1
