M80-8050205

Description
MALE CONNECTOR
CategoryThe connector    The connector
File Size97KB，1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric Compare View All

M80-8050205 Overview

MALE CONNECTOR

M80-8050205 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLATCHED
body width0.157 inch
subject depth0.219 inch
body length0.319 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Plug contact pitch0.079 inch
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness29u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts2
UL Flammability Code94V-0
Evacuation force-minimum value.1946 N

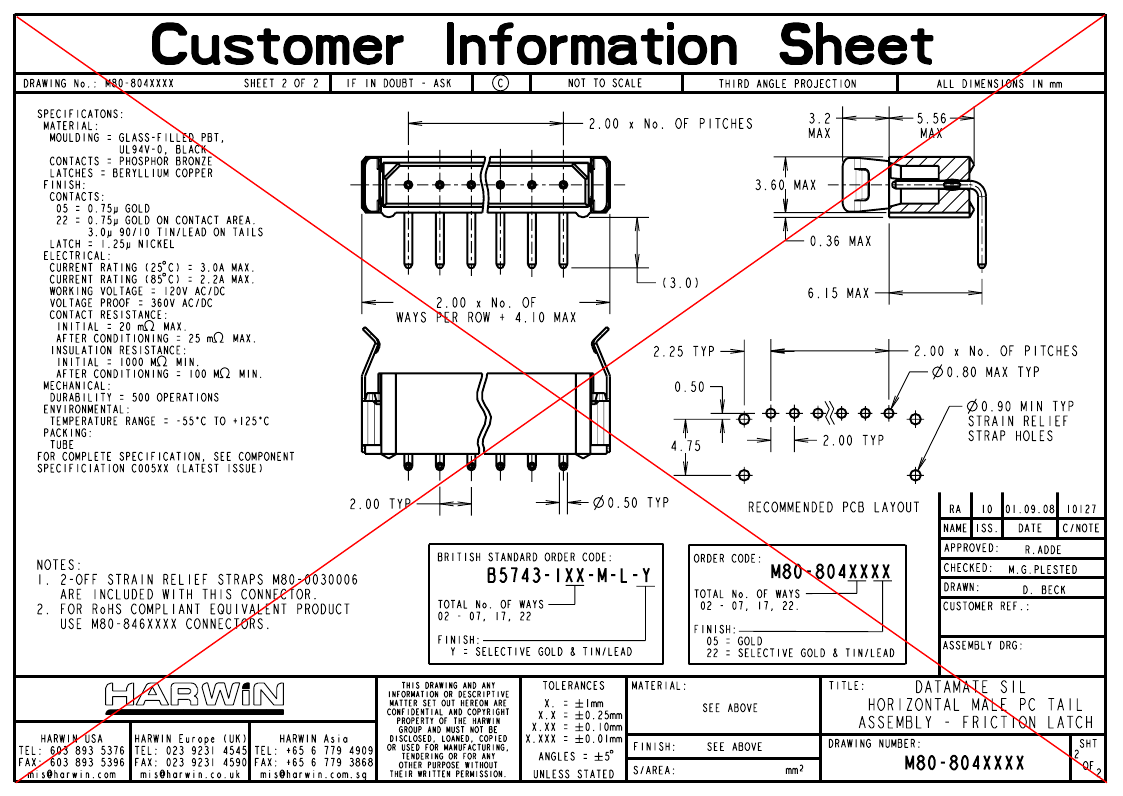

Preview

Download Datasheet
OBSOLETE
All B5743 versions - LTB date 09-03-2018
All M80-804 versions - LTB date 07-09-2018

M80-8050205 Related Products

M80-8050205 M80-8040205 M80-8040305 M80-8040405 M80-8040505 M80-8040605 M80-8040705 M80-8041705 M80-8042205
Description MALE CONNECTOR MALE CONNECTOR MALE CONNECTOR MALE CONNECTOR MALE CONNECTOR MALE CONNECTOR MALE CONNECTOR MALE CONNECTOR MALE CONNECTOR
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Harwin Harwin Harwin Harwin Harwin Harwin Harwin Harwin Harwin
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED
body width 0.157 inch 0.156 inch 0.156 inch 0.156 inch 0.156 inch 0.156 inch 0.156 inch 0.156 inch 0.156 inch
subject depth 0.219 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch 0.252 inch
body length 0.319 inch 0.319 inch 0.398 inch 0.476 inch 0.555 inch 0.634 inch 0.713 inch 1.5 inch 1.894 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO NO NO NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO
maximum insertion force 2.78 N 2.78 N 2.78 N 2.78 N 2.78 N 2.78 N 2.78 N 2.78 N 2.78 N
Insulation resistance 1000000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance NO NO NO NO NO NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO NO NO NO NO NO NO
Installation option 1 LATCH LATCH LATCH LATCH LATCH LATCH LATCH LATCH LATCH
Installation option 2 LOCKING FRICTION LOCK FRICTION LOCK FRICTION LOCK FRICTION LOCK FRICTION LOCK FRICTION LOCK FRICTION LOCK FRICTION LOCK
Installation method STRAIGHT RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 1 1 1 1 1 1 1 1 1
Number of rows loaded 1 1 1 1 1 1 1 1 1
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Plating thickness 29u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
Guideline UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch 0.118 inch
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 2 2 3 4 5 6 7 17 22
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Evacuation force-minimum value .1946 N .1946 N .1946 N .1946 N .1946 N .1946 N .1946 N .1946 N .1946 N
Plug information - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
polarization key - POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) - 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A
Contact completed and terminated - - - Gold (Au) - Gold (Au) Gold (Au) Gold (Au) Gold (Au)
JESD-609 code - - - e4 - e4 e4 e4 e4
