1-281518-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-281518-6

1-281518-6: DescriptionCONNECTOR, 16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-281518-6 Overview

CONNECTOR, 16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

1-281518-6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	AMP-LATCH, POLARIZED
body width	0.315 inch
subject depth	0.549 inch
body length	1.56 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

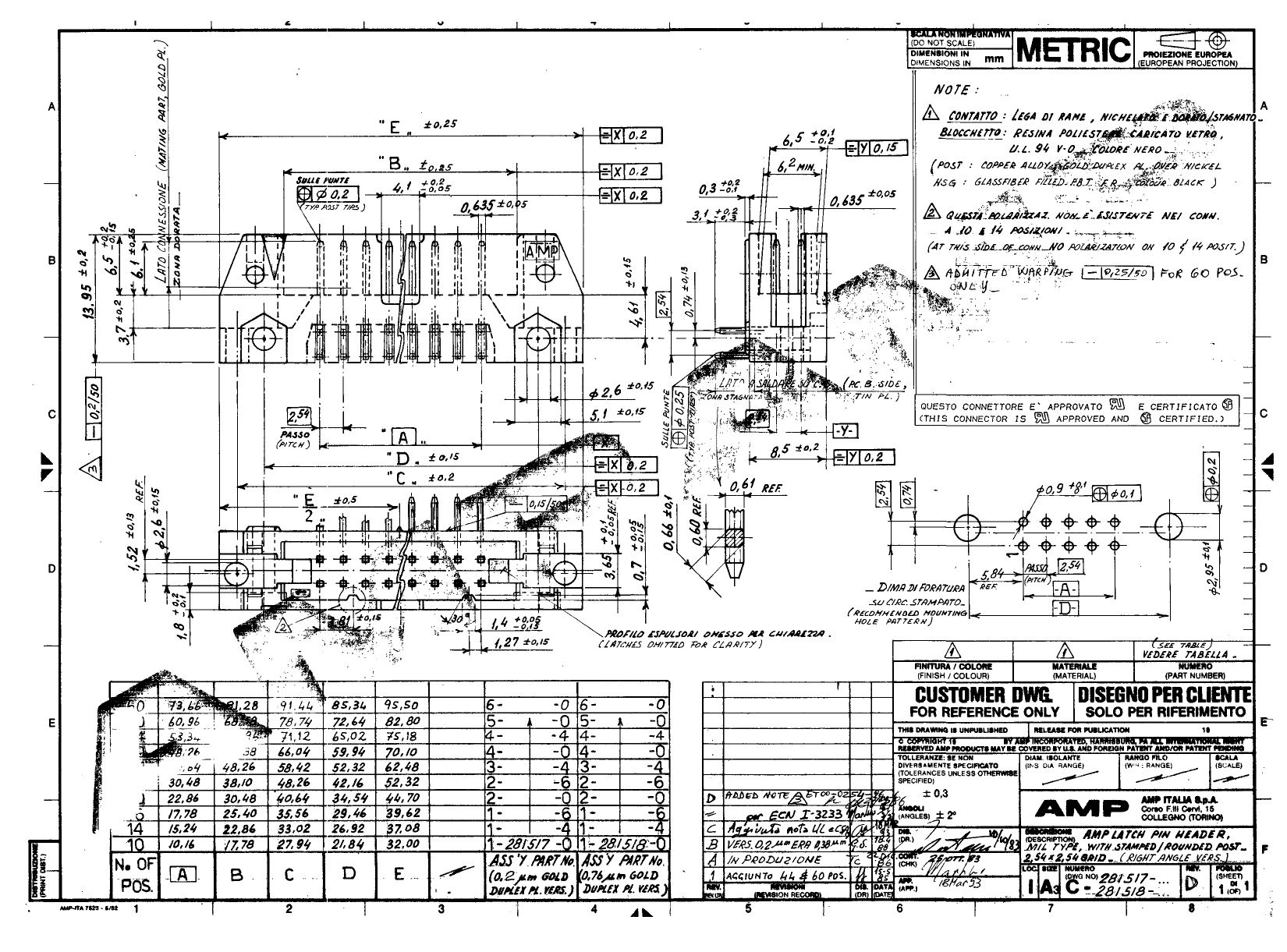

Preview

Download Datasheet

View All

1-281518-6 Related Products

	1-281518-6	1-281517-0	1-281517-6	3-281517-4	3-281518-4	4-281518-4	4-281517-4
Description	CONNECTOR, 16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 10 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,44 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK	CONNECTOR, 44 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	compliant	unknown
Other features	AMP-LATCH, POLARIZED	AMP-LATCH	AMP-LATCH, POLARIZED	AMP-LATCH, POLARIZED	AMP-LATCH, POLARIZED	WITHOUT EJECTION LATCHES	AMP-LATCH, POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	10	16	34	34	44	44
Base Number Matches	1	1	1	1	1	1	1
DIN compliance	NO	NO	NO	NO	NO	-	NO
Filter function	NO	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	NO	-	NO
MIL compliance	YES	YES	YES	YES	YES	-	YES
Mixed contacts	NO	NO	NO	NO	NO	-	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-	94V-0
Manufacturer's serial number	-	281517	281517	281517	-	281518	281517
