Preview

5325F: DescriptionT-1 SINGLE COLOR LED, GREEN, 3 mm; CategoryLED optoelectronic/LED; File Size74KB，1 Pages; ManufacturerCML; Websitehttp://www.chml.com/

Download Datasheet Parametric Compare View All

5325F Overview

T-1 SINGLE COLOR LED, GREEN, 3 mm

5325F Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Viewing angle	55 deg
Lead-free	Yes
EU RoHS regulations	Yes
state	TRANSFERRED
terminal coating	NOT SPECIFIED
structure	SINGLE
Optoelectronic device type	SINGLE COLOR LED
color	GREEN
Maximum continuous forward current	30 mA
light intensity	25.0
Installation features	RADIAL MOUNT
peak wavelength	563
shape	ROUND
size	3 mm
T code	T-1

Preview

Download Datasheet

View All

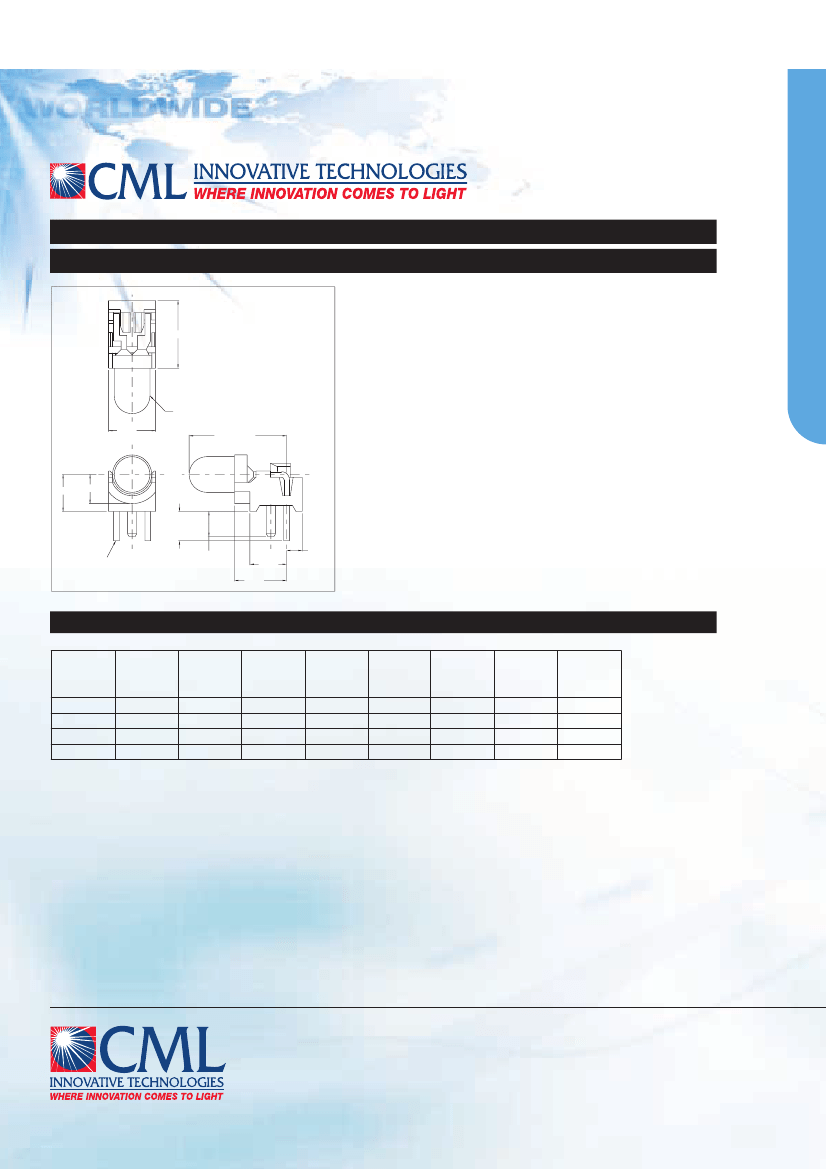

5325F Series Super Brite T-1 LED Assembly

DESCRIPTION AND FEATURES

All dimensions in inches.

.216

Features

World's smallest T-1 Right Angle LED Assembly

• Permits installation in tight spaces.

• Compatible with PCMCIA type III and IV cards.

• Leightweight

Precise Alignment

• Press-in mounting pin for perfect location.

• Side-stackable on .150" centers.

LED

.150

.305±.030

Solid State Reliability

• 100K+ hour MTBF

• UL94V-O rated housing

Alternate LEDs are also available in this package

as standard variations.

Mounting hole pattern on page 1-X7.

.118

.093

.100/.085

TYP2

.080

TYP2

.050

.117

.166

ANODE

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

Typ.

Intensity

(mcd)

10.0

4.0

8.5

10.0

Part

Number

5325F1

5325F3

5325F5

5325F7

Color

Red

Amber

Green

Yellow

Rated

Current

(mA)

10

Continuous

Forward

Voltage Typ. Voltage Max.

Current Max.

(V)

(mA)

25

2.2

3.0

30

25

20

2.2

2.3

2.2

3.0

Reverse

Break-down

Voltage Min.

(V)

5

Peak

Wavelength

(nm)

635

603

565

583

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5325F Series Super Brite T-1 LED Assembly

5325F Related Products

	5325F	5325F7	5325F5	5325F1	5325F3
Description	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Viewing angle	55 deg	55 deg	55 deg	55 deg	55 deg
Lead-free	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes
state	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED
terminal coating	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
structure	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Optoelectronic device type	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
color	GREEN	GREEN	GREEN	GREEN	GREEN
Maximum continuous forward current	30 mA	30 mA	30 mA	30 mA	30 mA
light intensity	25.0	25.0	25.0	25.0	25.0
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
peak wavelength	563	563	563	563	563
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm
T code	T-1	T-1	T-1	T-1	T-1
