5323F5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 5323F5

5323F5: DescriptionT-1 SINGLE COLOR LED, GREEN, 3 mm; CategoryLED optoelectronic/LED; File Size62KB，1 Pages; ManufacturerCML; Websitehttp://www.chml.com/

Download Datasheet Parametric Compare View All

5323F5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5323F5	-	-	View	Buy Now

5323F5 Overview

T-1 SINGLE COLOR LED, GREEN, 3 mm

5323F5 Parametric

Parameter Name	Attribute value
Maximum operating temperature	100 Cel
Minimum operating temperature	-20 Cel
Number of functions	1
Number of terminals	2
Viewing angle	55 deg
Lead-free	Yes
EU RoHS regulations	Yes
state	TRANSFERRED
terminal coating	NOT SPECIFIED
structure	SINGLE
Optoelectronic device type	SINGLE COLOR LED
color	GREEN
Maximum continuous forward current	30 mA
LED height	8.89 mm
lead gap	2.54 mm
Lens type	DIFFUSED
light intensity	16.0
Installation features	RADIAL MOUNT
peak wavelength	562
shape	ROUND
size	3 mm
T code	T-1

Preview

Download Datasheet

View All

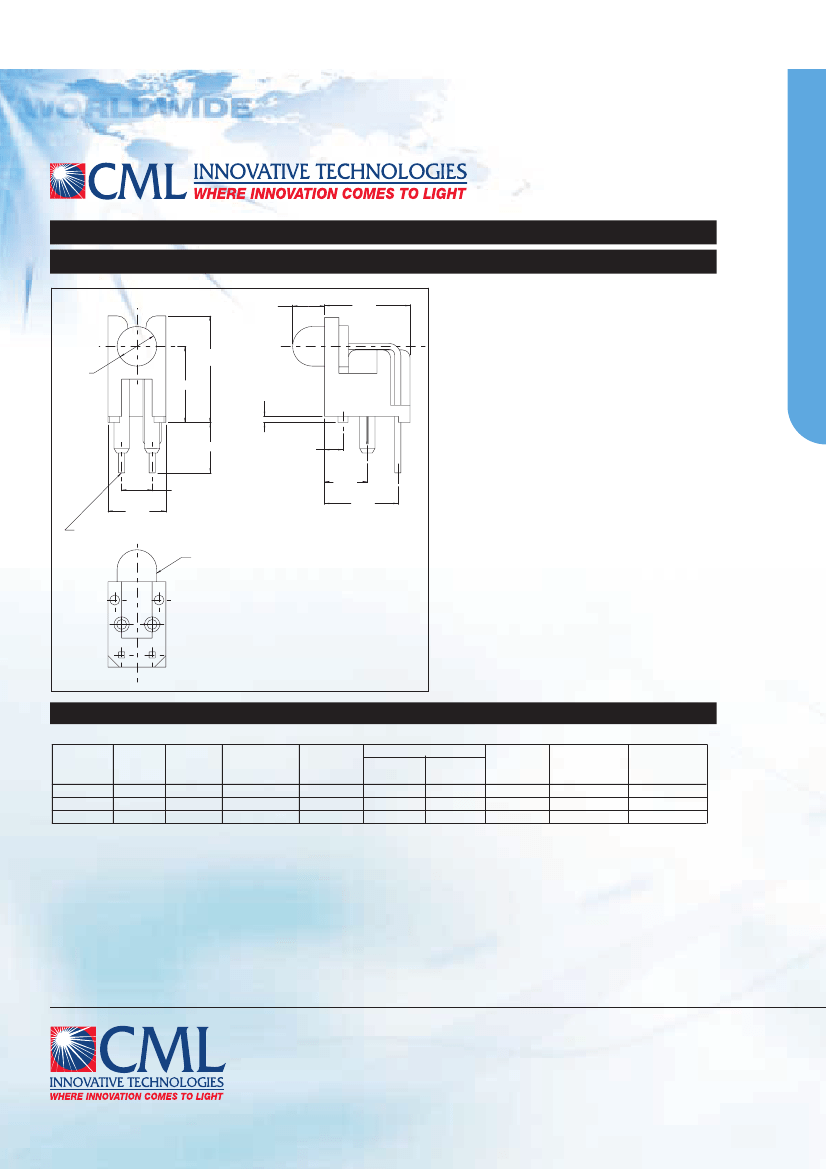

5323 Series T-1 Right Angle LED Assembly

DESCRIPTION AND FEATURES

.105

.075

.280

.350

MAX.

Ø. 130

MAX.

.240

.020 F LUX WAS H

S T AND OF F

Features

• T-1 LED lamp right angle mounted,

preassembled and tested.

• Black Nylon block, high contrast ratio,

height and spacing alignment - saves

assembly cost.

• High Brite and Super Brite LEDs-diffused.

• Mounting pins secure block to PC board

while soldering.

Note: Alternate LEDs are also available

in this package as a standard variation.

.165±.015

.060

Mounting hole pattern on page 1-X3.

.140

.100

.190

MAX.

ANODE (+)

G R E E N F OR B I-C OLOR LE D

T -1 LE D

.240

All dimens ions in inches .

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

T ypical

Intensity

(mcd)

6.3

R ated

C urrent

(mA)

C ontinuous

F orward

C urrent Max.

(mA)

P art Number

5323F 1

5323F 5

5323F 7

E mitted

C olor

R ed

G reen

Y ellow

F orward V oltage

T yp.

(V )

2.0

2.2

2.1

Max.

(V )

3.0

R everse

B reakdown

V oltage Min.

(V )

P eak

Wavelength

(nm)

650

562

583

P eak F orward

C urrent at

1MS -300 P P S

(A)

1.6

.09

1.0

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

5323 Series T-1 Right Angle LED Assembly

5323F5 Related Products

	5323F5	5323F1	5323	5323F7
Description	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm
Maximum operating temperature	100 Cel	100 Cel	100 Cel	100 Cel
Minimum operating temperature	-20 Cel	-20 Cel	-20 Cel	-20 Cel
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Viewing angle	55 deg	55 deg	55 deg	55 deg
Lead-free	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes
state	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED
terminal coating	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
structure	SINGLE	SINGLE	SINGLE	SINGLE
Optoelectronic device type	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
color	GREEN	GREEN	GREEN	GREEN
Maximum continuous forward current	30 mA	30 mA	30 mA	30 mA
LED height	8.89 mm	8.89 mm	8.89 mm	8.89 mm
lead gap	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
light intensity	16.0	16.0	16.0	16.0
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
peak wavelength	562	562	562	562
shape	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm
T code	T-1	T-1	T-1	T-1
