HM2P07PKA251GF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P07PKA251GF

HM2P07PKA251GF: DescriptionMPAC 5R ST PF HDR; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PKA251GF Overview

MPAC 5R ST PF HDR

HM2P07PKA251GF Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	154
UL Flammability Code	94V-0

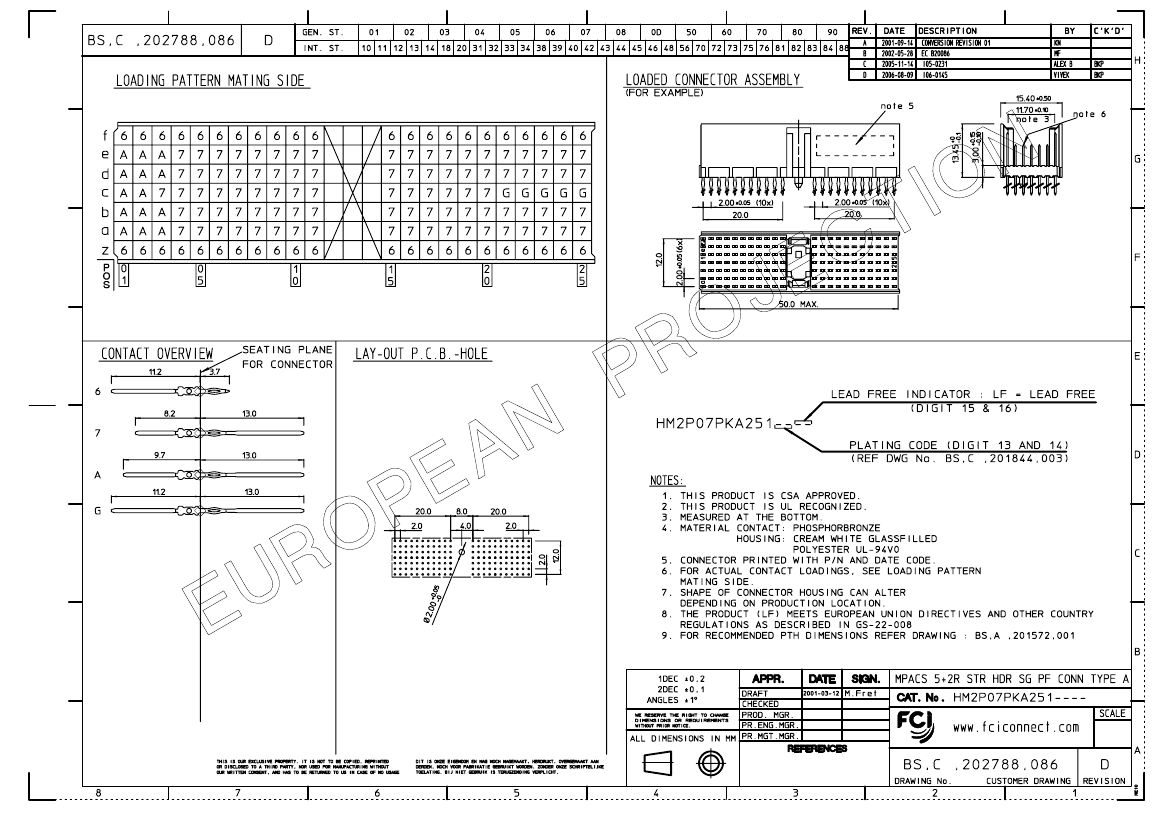

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 03, 2007

HM2P07PKA251GF Related Products

	HM2P07PKA251GF	HM2P07PKA251GFLF	HM2P07PKA251GCLF	HM2P07PKA251GC	HM2P07PKA251GLLF	HM2P07PKA251GL
Description	MPAC 5R ST PF HDR	MPAC 5R ST PF HDR	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	154	154	154	154	154	154
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	GOLD (31) OVER NICKEL	-	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL
JESD-609 code	e4	-	e4	e4	e4	e4
Manufacturer's serial number	HM2	-	HM2	HM2	HM2	HM2
