OPTICAL SOLUTIONS
CXP, 150Gb/s Active Optical Cable
DESCRIPTION

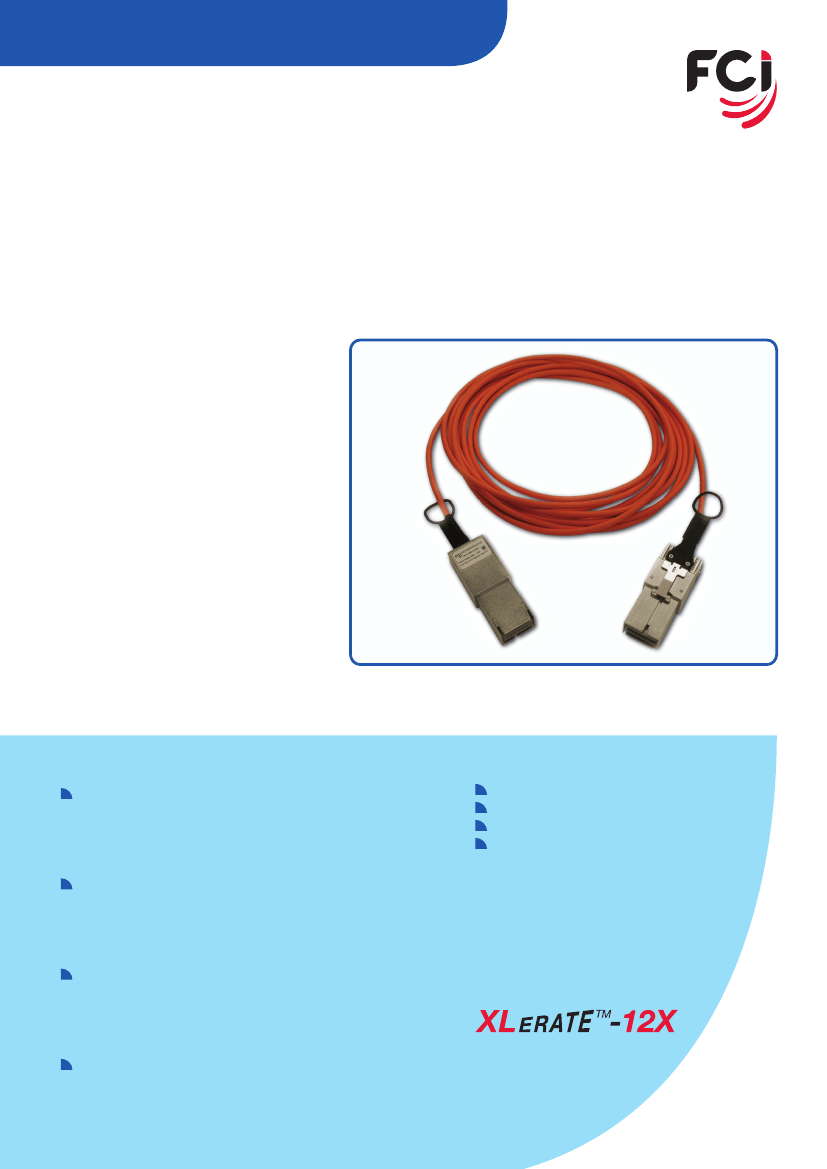

The 150Gb/s CXP - CXP Active Optical Cable
(AOC) is a natural building block in the range of
CXP cable assemblies. It provides a cost
effective, high performance, plug and play
solution.
Form factor CXP delivers the highest hardware
faceplace port density.
The AOC features optical engines inside both
cable connectors improving speed and distance
versus traditional copper assemblies.
The assembly is a full duplex, 12 channel con-
struction whereby each channel is capable of
transmitting data at rates up to 12.5Gb/s
Typical applications are serving transmission
distances between 5 and 100m
FEATURES & BENEFITS
Cost effective
• Simplified designs
• Limited number of discrete components in the link
• Elimination of on-site cleaning
Ease of installation
• Plug and Play
• No dust contamination
• Closed optical system providing 100% eye-safety
Interoperability
• SFF- 8642 compliant
• Supports Infiniband SDR, DDR and QDR data rates
• Same brand transceiver on each end
Reliability
• 100% final tested
• Assembled under clean room environment
• Optimum Signal Integrity
TARGET MARKETS / APPLICATIONS
Data Center
High Performance Computing
Switching
Industrial
OPTICAL SOLUTIONS
TECHNICAL INFORMATION
MATERIALS
Fiber cable:
• Multi-mode
• OFNP
Mates with:
• 84 pos CXP board connector
ENVIRONMENTAL
RoHS 6/6 compliant
Laser Class 1 / CDRH
Case temperature 0 – 70 degrees C
Halogene free (optional)
ELECTRICAL PERFORMANCE
Power supply voltage: 3.3V
Data rate per lane: 12.5 Gbps
Power consumption: 2.1 W (typ.)
Transmitter type: VCSEL
Receiver type: PIN-diode
SPECIFICATIONS
Module meets MSA –
Small Form Factor SFF-8642
Cable assembly supports Infiniband
SDR, DDR and QDR
Product Specification: GS-12-1073
PACKAGING
Blister reel up to 30 meter length
Box beyond 30 meter length
APPROVALS AND CERTIFICATIONS
TUV
UL
FDA
: DE2-015589
: E251142-A2
: 0820640-xxx rev 004
PART NUMBERS
ICD150GVP2410-XX
ICD150GVP2430-XX
Straight exit boot
90 degree exit boot
Suffix XX
01
03
05
10
15
20
30
50
C0
Cable Length (m)
1
3
5
10
15
20
30
50
100
Category
OM2
OM2
OM2
OM2
OM2
OM2
OM3
OM3
OM3
Colour
Orange
Orange
Orange
Orange
Orange
Orange
Aqua
Aqua
Aqua
ELXCXP1500612EA4
For more information please contact: elxcommunications@fci.com
www.fciconnect.com/fiberoptics
