86285-005: DescriptionCONN MOD JACK 6P6C R/A UNSHLD; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86285-005 Overview

CONN MOD JACK 6P6C R/A UNSHLD

86285-005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LOW PROFILE
Board mount options	SPLIT BOARD LOCK
body width	0.569 inch
subject depth	0.591 inch
body length	0.559 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact completed and terminated	NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	500000000 Ω
Insulator color	GRAY
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	86285
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE66
Terminal length	0.138 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

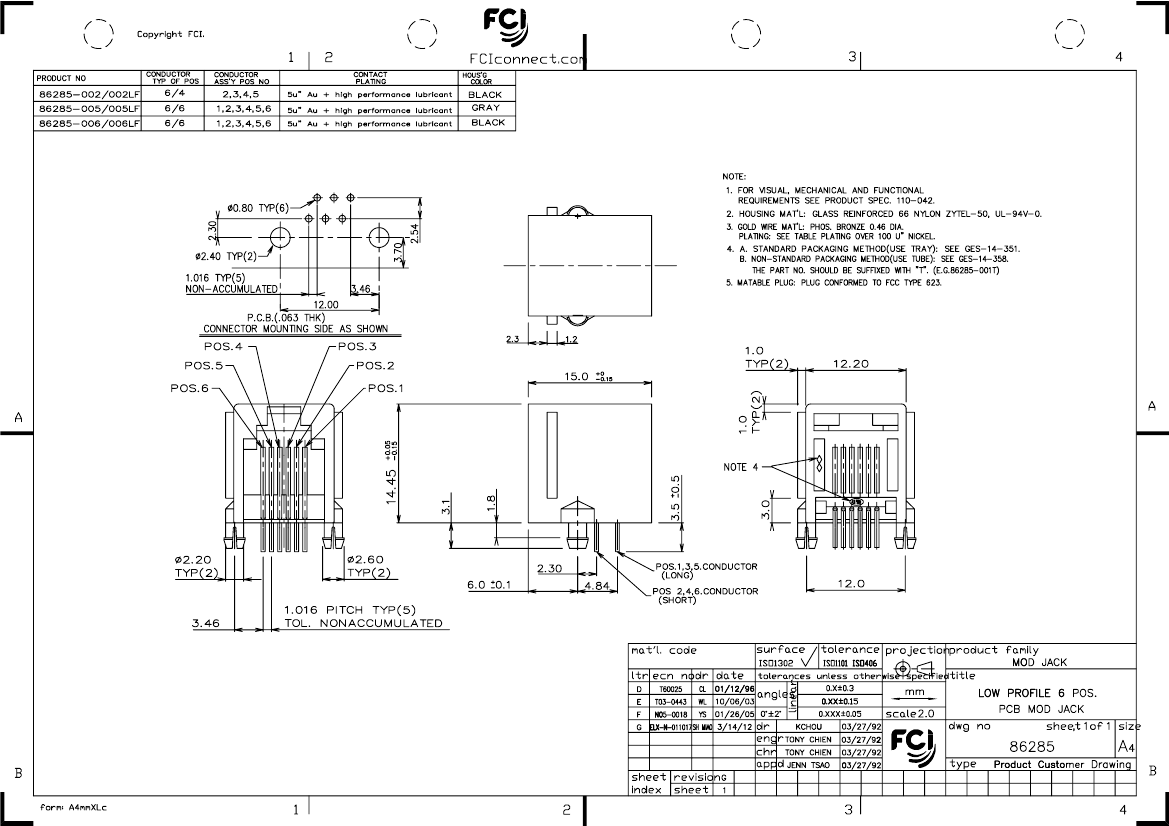

Preview

Download Datasheet

View All

PDS: Rev :G

STATUS:Released

Printed: Sep 12, 2013

86285-005 Related Products

	86285-005	86285-002LF	86285-002	86285-006	86285-005LF	86285-006LF
Description	CONN MOD JACK 6P6C R/A UNSHLD	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Jack, LEAD FREE	CONN MOD JACK 6P4C R/A UNSHLD	CONN MOD JACK 6P6C R/A UNSHLD	CONN MOD JACK 6P6C R/A UNSHLD	CONN MOD JACK 6P6C R/A UNSHLD
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	86285	86285	86285	86285	86285	86285
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	4	4	6	6	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	incompatible	-	incompatible	incompatible	conform to	-
Contact to complete cooperation	NICKEL PALLADIUM GOLD (30) OVER NICKEL	-	NICKEL PALLADIUM GOLD (30) OVER NICKEL	NICKEL PALLADIUM GOLD (30) OVER NICKEL	NOT SPECIFIED	-
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99
