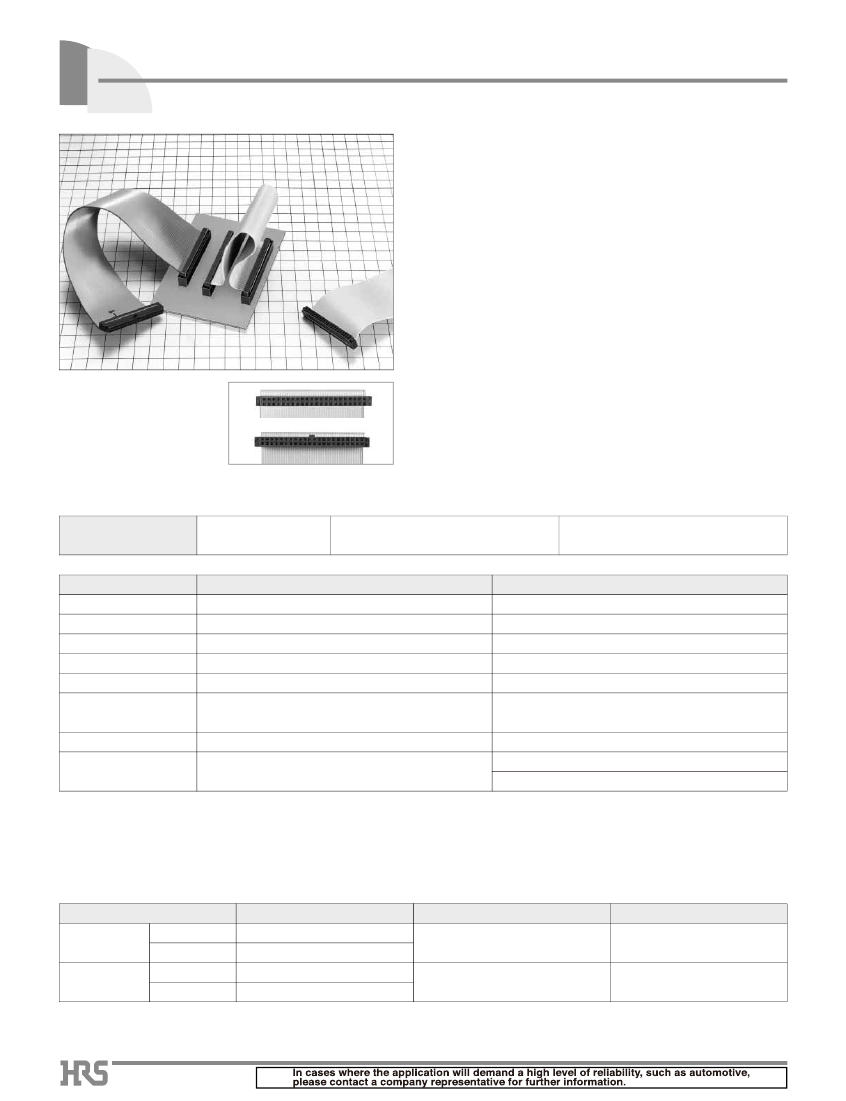

2mm Pitch Miniature Connector for HDD
A3E Series
■Features
1. Variation in Number of Contacts
This connector can be chosen according to applications, using
together with other series products as follows:
(1) Cable crimping type (A3B series)
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(2) Cable ID type (A3E series)
(3) FFC connection type (MA18 series, A3C series)
(However, the A3E series pin header corresponds to the A3E
series socket only.)
On the other hand, 44 contacts are available for AT bus
connection, and 55 contacts for SCSI connection.
2. Batch Insulation Displacement
1 mm pitch ribbon cable can be insulated and displaced.
type without polarizing guide
3. Mechanism to Prevent Mis-insertion
The connector on the socket side contains a mechanism to
prevent mis-insertion in the connector on the header side.
type with polarizing guide
■Product
Specifications
Rating
Current rating: 0.5A
Voltage rating: 125V AC
Operating Temperature Range:-55 to +85ç (Note 1) Storage Temperature Range:-10 to +60ç (Note 2)
Operating Moisture Range:40 to 80%
Storage Humidity Range:40 to 70% (Note 2)
Condition
250V DC
300V AC/1 minute
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes
→15
to 35ç: 5 minutes max.→
(+85ç:
30 minutes
→15
to 35ç: 5 minutes max.) 5 cycles
100 cycles
Solder bath: 260ç for 10 seconds
Manual soldering: 350ç for 3 seconds
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000M ohms min.
Specification
No flashover or insulation breakdown.
40m ohms max.
No electrical discontinuity of 1μs or more
5. Humidity (Steady state) Insulation resistance: 1000M ohms min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7.
Durability (Mating/un-mating)
Contact resistance: 50m ohms max.
8.
Resistance to Soldering heat
No deformation of components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
Part
Insulator
Contact
Pin header
Socket
Pin header
Socket
Material
Polyamid
PBT
Brass
Beryllium copper
Selective gold plated over nickel
underplated
–––––––
Finish
Black
Remarks
UL94V-0
C26
A3E Series●2mm Pitch Miniature Connector for HDD
■Ordering
Information

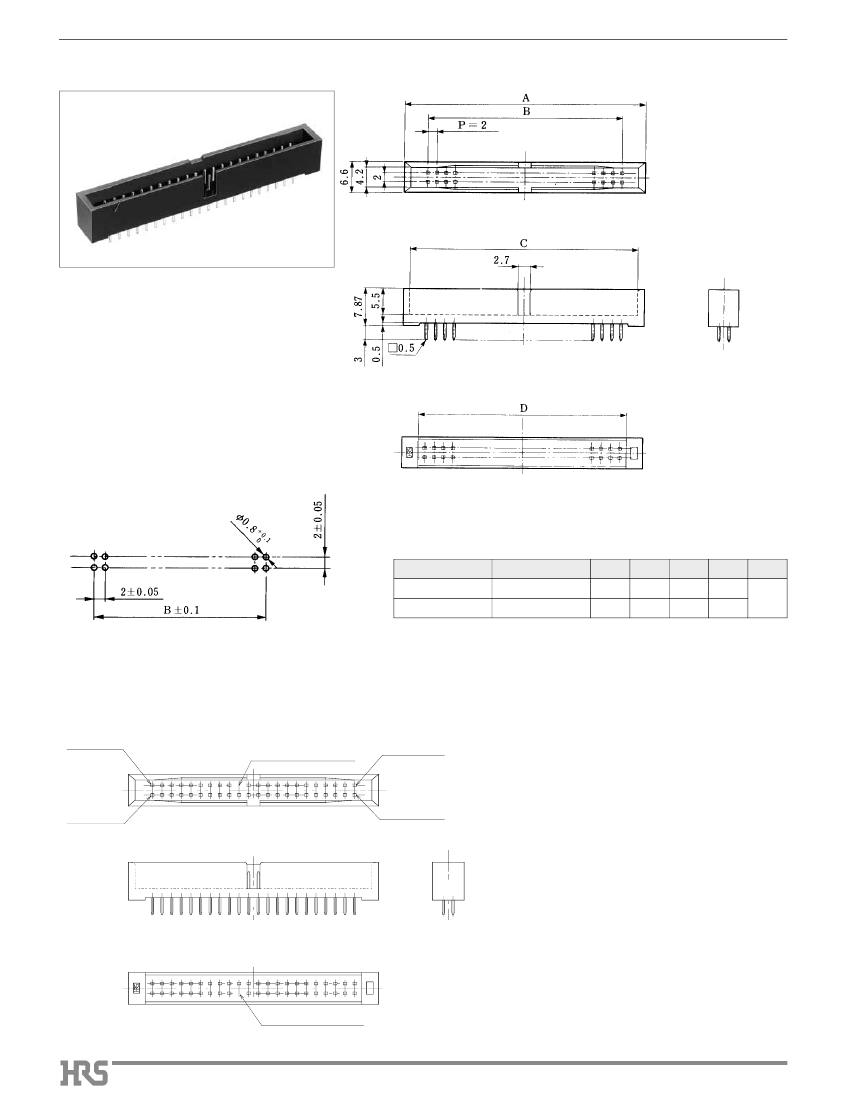

●Pin
Header
q
Series Name
e
P: Pin header
: A3E
A3E -
*
P A - 2 DSA
q
w
e
r
t
y
w
Number of contacts: 44, 50
r
A: Selective gold plated
t
Contact pitch : 2mm
y
Contact type: DSA : Straight dip type
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

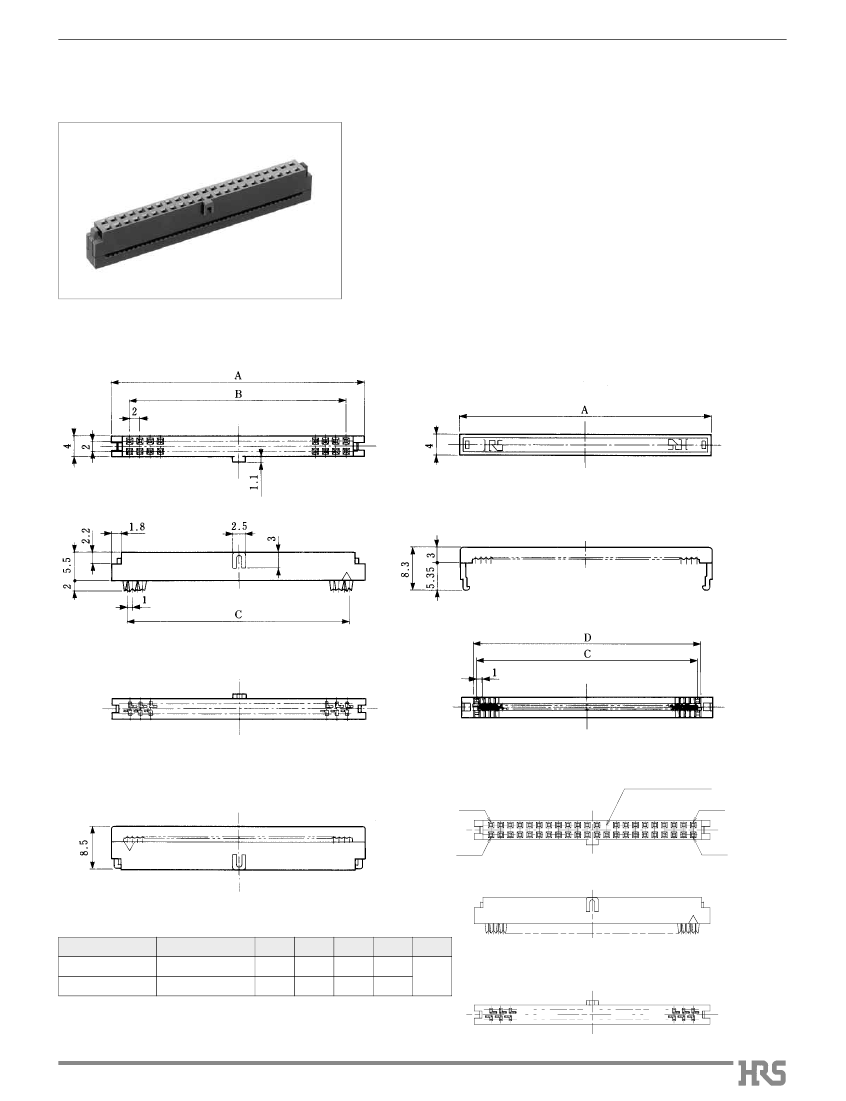

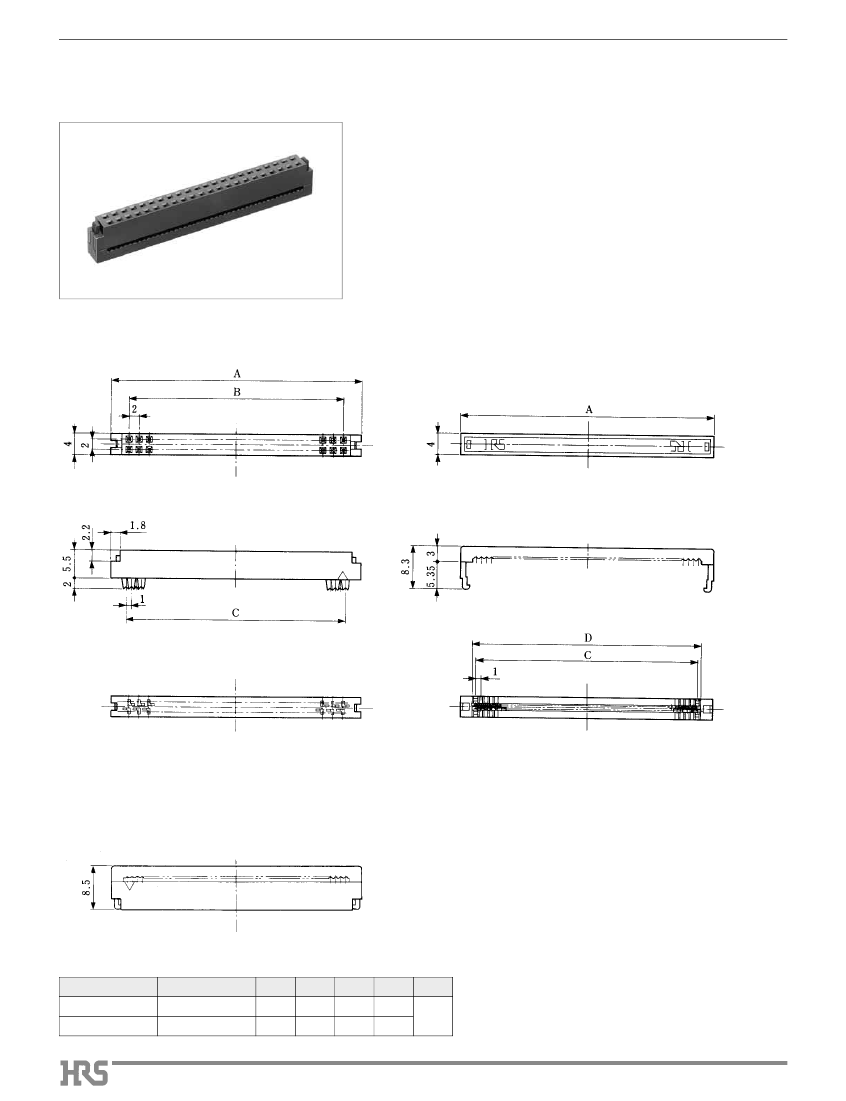

●Socket
q
Series Name
: A3E
: With polarizing guide
A3EA : Without polarizing guide
A3E -
*
D - 2 R
q
w
e
r
t
w
Number of contacts: 44, 50
e
D: Receptacle
r
Contact pitch: 2mm
t
Connection type: R : ID type
