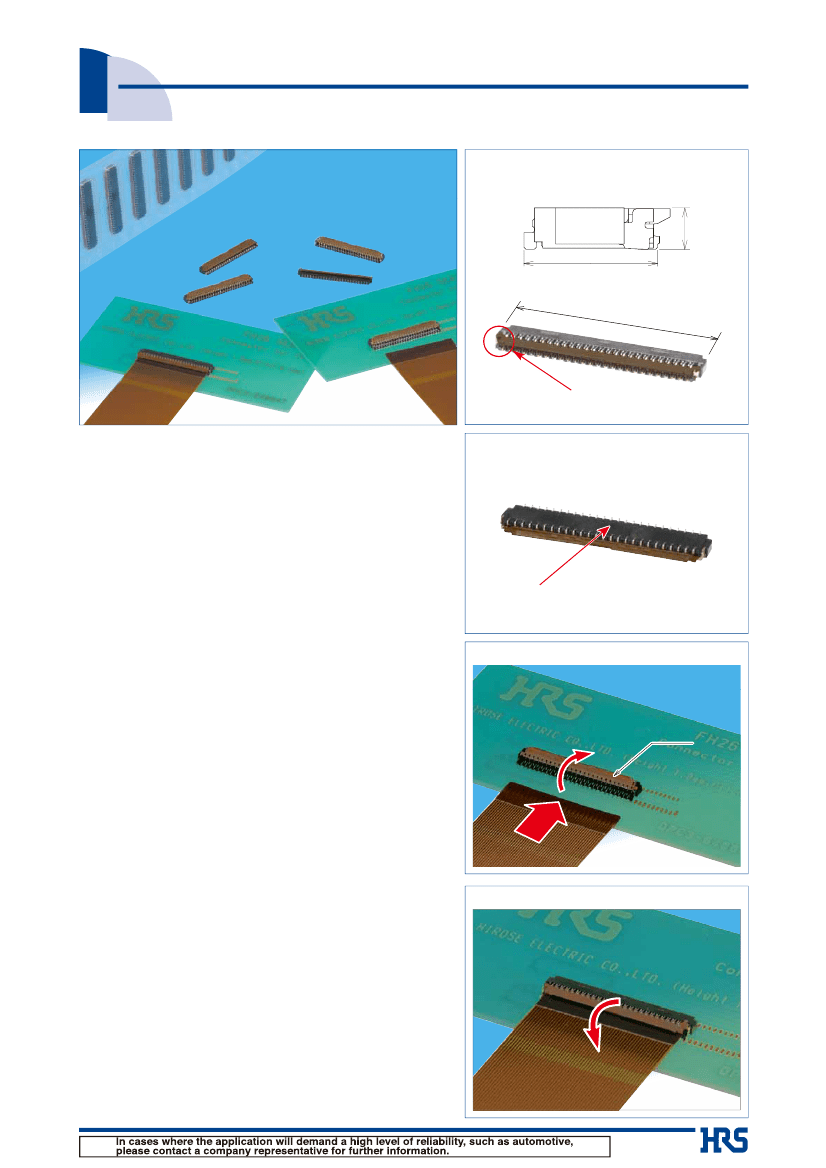

0.3mm Pitch, 1.0mm Height FPC Connector
FH26 Series
●
Space saving(51 pos. shown)
3.2mm
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
16.8mm
Metal fittings do no protrude
outside of the connector body
■Features
1. Low-profile 0.3mm pitch FPC connector
Ultra-thin design, 1.0mm height, 3.2mm width all add up
to a compact, space saving form factor.
*30% reduction in PCB footprint
*40% reduction in weight
(Compared to our 0.3mm pitch FH23 Series 51 position connector.)
●
Can be mounted over conductive traces.
2. Easy PCB Mounting
The leads are double sided and have a 0.6mm mounting
lead pitch to simplify mounting.
No exposed contacts on the bottom
of the connector
3. Fully molded structure aids PCB layout
The bottom of this connector is enclosed by a fully molded
structure that protects the contacts and removes any
restrictions from PCB patterning and design.
●
Operation
(1) Actuator open
(1) Actuator open
(2) Insert FPC
(2) Insert FPC
4. Rotating one-touch ZIF mechanism
The one-touch rotating ZIF mechanism is easier to operate and
works with a light force, and a clear tactile click is delivered upon
the successful completion of the mating process.
Actuator
q
5. Easy FPC insertion
The metal FPC insertion guides helps to make this the
FPC insertion process easier.
w
6. FPC. Accepts standard 0.2mm thick FPC
This connector accepts standard 0.2mm thick FPC. (The
proper FPC stiffener thickness will prevent FPC
deformation and ease insertion and mating.)
FPC
7. Supports automatic pick-n-place mounting
Offered in tape and reel packaging that is compatible with
automatic machine mounting. (5,000 pieces per reel)
(3) Close the actuator
(3) Close the actuator
(4) FPC connected
(4) FPC connected
8. Halogen-free
All materials and substances used to produce this product
comply with Halogen-free standards.
* Defined according to IEC61249-2-21
Br : 900ppm max, Cl : 900ppm max, Br+Cl : 1,500ppm max.
e
9. Multiple packing options
The standard packaging is 5,000 pieces per reel, but it is
also offered in a 500 piece reel. (The outer diameter of the
reel will be Ø180mm in this case.)
r
1.0mm
2017.5
③
1
FH26 Series●0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
■
Product Specifications
Rating
Current rating 0.2A DC (Note 1)
Voltage rating 30V AC
Operating temperature range -55
ç
to +85ç (Note 2)
Operating humidity range
Relative humidity 90% max.
(No condensation)
Storage temperature range -10ç to +50ç (Note 3)
Storage humidity range
Relative humidity 90%
max.
Recommended FPC :
Item
Thickness : = 0.2±0.03mm gold plated
Specification
50M
ø
min.
No flashover or insulation breakdown.
100m
ø
max.
* Including FPC conductor resistance
Contact resistance : 100m
ø
max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1
μ
s or more.
Contact resistance : 100m
ø
max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1μs. min.
Contact resistance : 100m
ø
max.
No damage, cracks, or parts dislocation.
Contact resistance : 100m
ø
max.
Insulation resistance : 50M
ø
min.
No affect on appearance or performance.
Contact resistance : 100m
ø
max.
Insulation resistance : 50M
ø
min.
No damage, cracks, or parts looseness.
No deformation of components affecting
performance.
100V DC
90V AC /1 minute
1mA
10 cycles
Frequency : 10 to 55 Hz, single amplitude of 0.75mm, 10 cycles,
3 directions.
Acceleration of 981 m/s
2
, 6 ms duration, sine half-wave waveform,
3 cycles in each of the 3 axis
Conditions
1.
Insulation resistance
2.
Withstanding voltage
3. Contact resistance
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4. Durability
(Insertion/ withdrawal)
5. Vibration
6. Shock
7. Humidity
(Steady state)
96 hours at temperature of 40±2ç and humidity of 90% to 95%.
Temperature : -55 ç/+15ç to +35ç/+85ç/+15ç to +35ç
Time : 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow : At the recommended temperature profile
Manual soldering: 350ç +/-10ç for 5±1 seconds
8. Temperature cycle
9. Resistance to soldering heat
Note 1 : When passing the current through all of the contacts, use 70% of the rated current.
Note 2 : Includes temperature rise caused by current flow.
Note 3 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating
Temperature Range and Humidity range covers non- conducting condition of installed connectors in storage,
shipment or during transportation.
■Materials
/ Finish
Part
Insulator
Contacts
Metalfittings
Material
LCP
PA
Phosphor bronze
Finish
Color : Black
FH26W series : Light brown
Gold plating
Pure tin reflow plating
Remarks
UL94V-0
UL94HB
---------------
---------------
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
FH 26W - 51S - 0.3 SHW (05)
1
1
Series name : FH
2
Series No. : 26W
3
Number of Contacts : 13 to 71
4
Contact pitch : 0.3mm
2
3
4
5
6
5
Termination type SHW : SMT horizontal staggered mounting type
6
Specifications
(60)…Gold plating with nickel barrier, 5,000pcs/reel
(97)…Gold plating with nickel barrier, 500pcs/reel
2
FH26 Series●0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
■Connector
Dimensions
0.3
0.6
A
B
(1.25)
(0.3)
3.2
(0.12)
0.6
Number of contacts indicator
(0.12)
C
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.5
3.2
(D : FPC insertion slot dimension)
E
1
0.1
1
0.1
0.3
Notes 1 The coplanarity of each terminal lead within specified dimension is 0.1mm Max.
2 Packaged on tape and reel only. Check packaging specification.
3 Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
4 After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions : mm
Part No.
FH26W-13S-0.3SHW(**)
FH26W-15S-0.3SHW(**)
FH26W-17S-0.3SHW(**)
FH26W-19S-0.3SHW(**)
FH26W-21S-0.3SHW(**)
FH26W-23S-0.3SHW(**)
FH26W-25S-0.3SHW(**)
FH26W-27S-0.3SHW(**)
FH26W-29S-0.3SHW(**)
FH26W-31S-0.3SHW(**)
FH26W-33S-0.3SHW(**)
FH26W-35S-0.3SHW(**)
FH26W-37S-0.3SHW(**)
FH26W-39S-0.3SHW(**)
FH26W-41S-0.3SHW(**)
FH26W-45S-0.3SHW(**)
FH26W-51S-0.3SHW(**)
FH26W-57S-0.3SHW(**)
FH26W-61S-0.3SHW(**)
FH26W-71S-0.3SHW(**)
HRS No.
580-2401-1 **
580-2402-4 **
580-2403-7 **
580-2437-9 **
580-2404-0 **
580-2405-2 **
580-2406-5 **
580-2400-9 **
580-2407-8 **
580-2408-0 **
580-2409-3 **
580-2410-2 **
580-2411-5 **
580-2412-8 **
580-2413-0 **
580-2414-3 **
580-2415-6 **
580-2417-1 **
580-2418-4 **
580-2419-7 **
No. of Contacts
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
45
51
57
61
71
A
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.2
13.8
15.0
16.8
18.6
19.8
22.8
B
3
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
16.2
17.4
20.4
C
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.8
18.0
21.0
D
4.23
4.83
5.43
6.03
6.63
7.23
7.83
8.43
9.03
9.63
10.23
10.83
11.43
12.03
12.63
13.83
15.63
17.43
18.63
21.63
1
E
4.9
5.5
6.1
6.7
7.3
7.9
8.5
9.1
9.7
10.3
10.9
11.5
12.1
12.7
13.3
14.5
16.3
18.1
19.3
22.3
Note 1 : Embossed tape reel packaging (5,000pcs/reel, 500pcs/reel). Order by number of reels.
3
FH26 Series●0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
(0.55 : Metal mask)
B
Recommended PCB mounting pattern and metal mask dimensions
Recommended metal mask thickness : t=0.1
B±0.05
(0.23 : Metal mask)
(0.45)
(0.2)
0.3±0.03
0.6±0.05
0.65±0.05
(0.7 : Metal mask)
2.15±0.05
(3.6)
0.3±0.05
Outline of
the connector
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.8±0.05
(0.65 : Metal mask)
0.3±0.03
(0.23 : Metal mask)
C±0.05
0.6±0.05
(0.3 : Metal mask)
0.4±0.05
0.5±0.05
B
Recommended FPC Dimensions
F±0.05
1.1±0.1
1±0.1
0.3±0.07
R0
.
0.2±0.05
0.95±0.05
Detail H
(Lead plated 0.1 MAX)
0.3±0.07
(0.15)
πRELATIVE
POSITIONS
OF POINT-A dnd B
C±0.03
0.6±0.02
1±0.1
2
M
AX
0.3±0.02
H
0.3
+0.04
-0.03
0.3±0.1
1.1±0.1
0.2±0.03
B
A
3.5 MIN.(Stiffener)
2.25±0.1
2.1±0.1
2.5±0.3
(0.5)
(2.5)
0.1±0.02
(0.07)
0.6±0.07
(0.2)
(0.2)
B±0.03
0.3
+0.04
-0.03
(0.05)
(0.15)
0.6±0.07
1
Dimention M must be 0.5mm minimum when the stiffener is shorter than 3.5 min.
All dimensions : mm
Part No.
FH26W-13S-0.3SHW(**)
FH26W-15S-0.3SHW(**)
FH26W-17S-0.3SHW(**)
FH26W-19S-0.3SHW(**)
FH26W-21S-0.3SHW(**)
FH26W-23S-0.3SHW(**)
FH26W-25S-0.3SHW(**)
FH26W-27S-0.3SHW(**)
FH26W-29S-0.3SHW(**)
FH26W-31S-0.3SHW(**)
FH26W-33S-0.3SHW(**)
FH26W-35S-0.3SHW(**)
FH26W-37S-0.3SHW(**)
FH26W-39S-0.3SHW(**)
FH26W-41S-0.3SHW(**)
FH26W-45S-0.3SHW(**)
FH26W-51S-0.3SHW(**)
FH26W-57S-0.3SHW(**)
FH26W-61S-0.3SHW(**)
FH26W-71S-0.3SHW(**)
HRS No.
580-2401-1 **
580-2402-4 **
580-2403-7 **
580-2437-9 **
580-2404-0 **
580-2405-2 **
580-2406-5 **
580-2400-9 **
580-2407-8 **
580-2408-0 **
580-2409-3 **
580-2410-2 **
580-2411-5 **
580-2412-8 **
580-2413-0 **
580-2414-3 **
580-2415-6 **
580-2417-1 **
580-2418-4 **
580-2419-7 **
No. of Contacts
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
45
51
57
61
71
B
3.0
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
16.2
17.4
20.4
C
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.8
18.0
21.0
1
M
F
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.8
15.6
17.4
18.6
21.6
4
0±0.03
FH26 Series●0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
B
Recommended FPC Construction
●
Contact FPC manufacturer for specific details.
1. Using Single-sided FPC
Connecting side
Material Name
Covering film layer.
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Material
Polyimide
1 mil thick.
Thickness (μm)
25
25
1μm to 5μm Nickel underplated
0.2μm Gold plated
Cu
1oz
3
35
25
25
40
75
203
Thermosetting adhesive
Polyimide
1 mil thick
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Base film
Reinforcement material adhesive
Stiffener
Thermosetting adhesive
Polyimide
Total
3 mil thick
Back side
2. Using Double-sided FPC
Connecting side
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering layer film
Material
Polyimide
1 mil thick
Thickness (μm)
25
25
1μm to 5μm Nickel underplated
0.2μm Gold plated
Cu
Cu
1/2oz
3
15
18
18
25
18
18
25
25
25
25
197
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Cu
1/2oz
Thermosetting adhesive
Polyimide
1 mil thick
Reinforcement material adhesive Thermosetting adhesive
Stiffener
Back side
Polyimide
Total
1 mil thick
●
To prevent release of the FPC due to it's bending, use of double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Precautions
1. This specification is a recommendation for the construction of the FH26 Series FPC (t=0.2 ± 0.03).
2. For details about the construction, please contact the FPC manufacturers.
5
京公网安备 11010802033920号
EEWORLD
