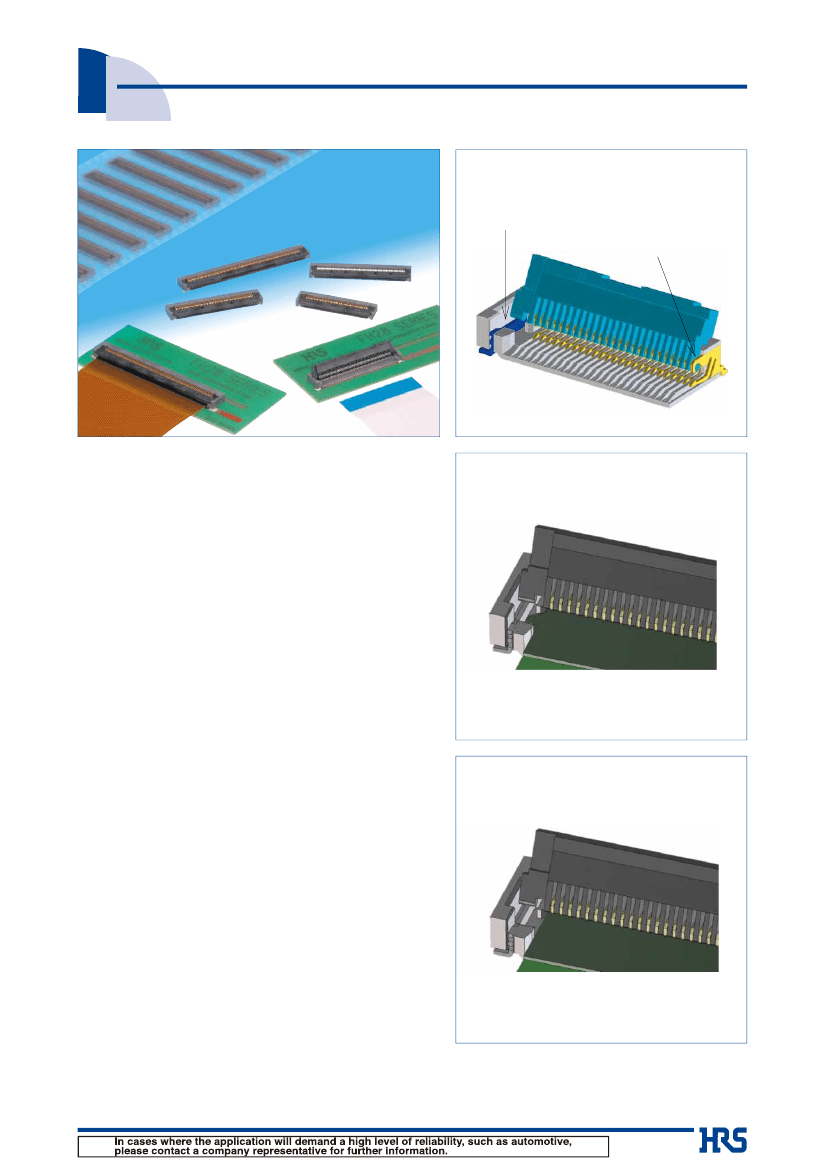

0.5mm and 1mm Pitch, 2.55mm Height FPC/FFC Connectors
FH28 Series
Robust locking structure
Reinforced fitting provide support and prevent
the actuator from disengaging from the connector.
Each terminal is attached to the actuator,
so the actuator is supported along its entire length.
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Fig.1
■
Features
1. Highly reliable connection and robust structure
Multi-polarized connectors, reinforced body structure and
high FPC retention produced by the following features:
Reliable connection created by its unique FPC/FFC
positioning mechanism
Prevents accidental disengagement with the design of its
proprietary structure
The FPC positioning mechanism and FPC tabs help to
guide and hold the FPC prior to engaging the actuator
2. Simplified operations
The flip lock structure makes it easier to engage/disengage
the actuator and reduces the required force needed to
operate. A clear tactile click is delivered upon the
successful completion of the mating process. (Fig.1)
3. Increased FPC/FFC retention force
Vertical retention force for the FPC/FFC is 2.5 times
stronger than our 0.5mm pitch connector the FH12 series.
Horizontal retention force for the FPC/FFC is 2 times
stronger than our 0.5mm pitch connector the FH12 series
*To realize the horizontal retention force values, the use
of the FPC positioning tabs are required. FPC without
the positioning tabs will comply with the specifications
rated on the FH12 series.
Fig.2
Can also be used with straight sided, non-tabbed
FPC/FFC
4. Accepts standard 0.3mm thick FPC/FFC
It accepts 0.3mm thick products that are easy to
manufacture and have superb insertion performance.
5. Fully molded structure aids PCB layout
The bottom of this connector is enclosed by a fully
molded structure that protects the contacts and
removes any restrictions from PCB patterning and
design.
6. Supports automatic pick-n-place mounting
Offered in tape and reel packaging that is compatible with
automatic machine mounting. (2,000pcs/reel)
7. Halogen-free
All materials and substances used to produce this product
comply with Halogen-free standards.*Defined according
to IEC61249-2-21. Br : 900ppm maximum, Cl : 900ppm
maximum, Br+Cl : 1,500ppm maximum
Fig.3
8. Multiple packing options
The standard packaging is 2,000pcs/reel, but it is
also offered in a 500pcs/reel. (The outer diameter of
the reel will be Ø330mm in this case.)
2016.3③
1
FH28 Series●0.5mm and 1mm Pitch, 2.55mm Height FPC/FFC Connectors
■Product
Specifications
Ratings
Rated Current 0.5A (Note 1)
Rated Voltage AC 50Vrms
Operating Temperature Range
-40 to +105
ç
(Note 2)
Operating Humidity Range
Relative humidity 90% or less (no condensation shouldbe present)
Storage Temperature Range
-10 to +50
ç
(Note 3)
Storage Humidity Range
Relative humidity 90% or less (no condensation should be present)
Adaptive FPC/FFC
contact specifications
t= 0.3 ±0.05 Gold plating
Item
1. Insulation Resistance
2. Withstanding Voltage
Specification
Minimum of 500Mø
No flashover or breakdown
Maximum of 50mø
*including FPC/FFC conductor resistance
Contact Resistance : Maximum of 50mø
No damaged, cracked or looseness of parts
No electrical discontinuity of 1
μs
or greater
Contact Resistance : Maximum of 50mø
No damages, cracks and looseness of parts
No electric discontinuity of 1
μs
or greater
Contact Resistance : Maximum of 50mø
No damaged, cracked or looseness of parts
Contact Resistance : Maximum of 50mø
Insulation Resistance : Minimum of 50Mø
No damaged, cracked or looseness of parts
Contact Resistance : Maximum of 50mø
Insulation Resistance : Minimum of 50Mø
No damaged, cracked or looseness of parts
Should not have external deformity or loose
parts
Conditions
Measured with DC 100V
AC 150Vrms is applied for 1 minute.
Measured at 1mA (DC or 1,000Hz)
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Contact Resistance
4. Durability
20 mating cycles
Frequency : 10 to 55Hz
Single amplitude of 0.75mm for 10 cycles in 3 axial
directions
Acceleration of 981m/s
2
, 6ms duaration, sine half-wave
waveform 3 cycles in each of the 3 axis
5. Vibration Resistance
6. Shock Resistance
7. Humidity Resistance
of Steady State
96 hours at temperature : 40
ç
and humidity : 90 to 95%
8. Temperature Cycles
Temperature : -40
/
+15 to +35
/
+105
/
+15 to +35
ç
Time : 30
/
2 to 3
/
30
/
2 to 3 minutes
5 cycles
Reflow : according to the Recommended Temperature Profile
Hand solder: 350 ±5
ç
for 5 seconds
9. Solder Heat
Resistance
Note 1 : When energizing rated current to all contacts, use 70% of rated current.
Note 2 : Includes temperature rise caused by current flow.
Note 3 : The term "storage" here refers to products stored for a long period prior to board mounting and use. The operating temperature
and humidity range covers the non-energized condition of connectors after board mounting and the temporary storage.
■Materials
/ Finish
Component
Insulator
Contact
Metal fitting
Materials
LCP
LCP
Phosphor bronze
Brass
Color/Finish
Gray
Black
Gold plating
Pure tin plating
Remarks
UL94V-0
---------------
---------------
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
FH 28 D - 50 (25) S B - 0.5 SH (05)
1
1
2
3
2
3
4
5
6
7
8
6
7
9
10
Series Name : FH
Series No. : 28
None, D : Standard type
E : Long reinforcing fitting type
H : Space-saving type
Standard type : The number of contacts
Eccentric type : Number of contacts in 0.5mm housing
Standard type : Blank
Eccentric type : Actual number of pins
Contact arrangement : Single (single row)
Eccentric direction : Blank…Standard type (without eccentricity)
B…Eccentric type (contacts on the opposite side of polarity mark)
Contact Pitch : 0.5mm, 1mm
Mounting direction , SH...SMT horizontal mounting type
Specification : (05) …Gold plating, 2,000 pcs/reel
(10) Specification:…Partial gold plating, 2,000 pcs/reel
(07)…Gold plating (for 40 contact only.), 2,000 pcs/reel
(98)…Gold plating, 500 pcs/reel
8
9
10
4
5
2
FH28 Series●0.5mm and 1mm Pitch, 2.55mm Height FPC/FFC Connectors
■Connector
Dimensions
[Standard type] 0.5mm pitch product
0.5
(0.2)
(1.9)
A
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact mark
B
No. of contacts
6.5
5.7
1
2
1
2
(5.4)
0
0.1MAX
C (FPC/FFC insertion dimensions)
D
2.55
0.05MAX
0.05MAX
0
(1.3) E
1.2
4.5
(2.85)
(3.65)
0.7 0.1MAX
Notes 1 The coplanarity of the metal fitting and contact is 0.1 MAX.
2 The contact lead position shows the dimension from the E surface of the case bottom.
3 This product is sold in embossed, tape and reel packaging. For details on this product please refer to the “Packaging
Specifications”located on page 9.
4 Recesses in part structure may be added to improve molding characteristics.
Black marks may appear in the mold resin, but they will not negatively affect the performance of these connectors.
5 The color of the plating may change after the reflow process, but it will not negatively affect the performance of these connectors.
■Connector
dimension table [Standard type]
Part No.
FH28-10S-0.5SH(**)
FH28-15S-0.5SH(**)
FH28D-20S-0.5SH(**)
FH28D-28S-0.5SH(**)
FH28D-30S-0.5SH(**)
FH28-40S-0.5SH(**)
FH28-45S-0.5SH(**)
FH28D-50S-0.5SH(**)
FH28D-55S-0.5SH(**)
FH28-60S-0.5SH(**)
FH28D-64S-0.5SH(**)
FH28D-68S-0.5SH(**)
FH28D-74S-0.5SH(**)
HRS No.
586-1861-4 **
586-1868-3 **
586-1823-5 **
586-1835-4 **
586-1827-6 **
586-1803-8 **
586-1848-6 **
586-1808-1 **
586-1821-0 **
586-1811-6 **
586-1813-1 **
586-1819-8 **
586-1828-9 **
No. of Contacts
10
15
20
28
30
40
45
50
55
60
64
68
74
A
4.5
7
9.5
13.5
14.5
19.5
22
24.5
27.0
29.5
31.5
33.5
36.5
B
9.9
12.4
14.9
18.9
19.9
24.9
27.4
29.9
32.4
34.9
36.9
38.9
41.9
C
5.57
8.07
10.57
14.57
15.57
20.57
23.07
25.57
28.07
30.57
32.57
34.57
37.57
Unit : mm
D
9.58
12.08
14.58
18.58
19.58
24.58
27.08
29.58
32.08
34.58
36.58
38.58
41.58
Note 1 : This product is sold in embossed, tape and reel packaging. This product is sold in full reel quantities of either 2,000 or
500 pcs/ reels. Please place orders by full reel quantities.
3
FH28 Series●0.5mm and 1mm Pitch, 2.55mm Height FPC/FFC Connectors
■Connector
Dimensions
[Standard type] 1mm pitch product
(2.7)
1
(0.2)
(1.9)
A
(3.2)
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact mark
B
No. of contacts
6.5
5.7
1
2
1
2
(5.4)
0
0.1MAX
C (FPC/FFC insertion dimensions)
D
2.55
0.05MAX
0.05MAX
0
(1.3) E
4.5
1.2
(2.85)
(3.65)
0.7 0.1MAX
Notes 1 The lead flatness of metal fitting and contact is 0.1 MAX.
2 The contact lead position shows the dimension from the E surface of the case bottom.
3 This product is sold in embossed, tape and reel packaging. For details on this product please refer to the “Packaging
Specifications” located on page 9.
4 Recesses in part structure may be added to improve molding characteristics
Black marks may appear in the mold resin, but they will not negatively affect the performance of these connectors.
5 The color of the plating may change after the reflow process, but it will not negatively affect the performance of these connectors.
■Connector
dimension table [Standard type]
Part No.
FH28D-20(10)SB-1SH(**)
FH28D-30(15)SB-1SH(**)
FH28-40(20)SB-1SH(**)
FH28D-50(25)SB-1SH(**)
FH28-60(30)SB-1SH(**)
FH28D-64(32)SB-1SH(**)
FH28D-68(34)SB-1SH(**)
HRS No.
586-1863-0 **
586-1860-1 **
586-1832-6 **
586-1817-2 **
586-1818-5 **
586-1852-3 **
586-1812-9 **
No. of Contacts
10
15
20
25
30
32
34
A
9
14
19
24
29
31
33
B
14.9
19.9
24.9
29.9
34.9
36.9
38.9
C
10.57
15.57
20.57
25.57
30.57
32.57
34.57
Unit : mm
D
14.58
19.58
24.58
29.58
34.58
36.58
38.58
Note 1 : This product is sold in embossed, tape and reel packaging. This product is sold in full reel quantities of either 2,000 or
500 pcs/ reels. Please place orders by full reel quantities.
4
FH28 Series●0.5mm and 1mm Pitch, 2.55mm Height FPC/FFC Connectors
■Connector
Dimensions
[Space-saving type]
0.5
(0.2)
(1.9)
A
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact mark
B
No. of contacts
6
5.7
1
(5)
0MAX
0
(1.3) E
4.5
1.2
(2.85)
(3.15)
0.7
0.15MAX
2
1
0MAX
0
0.15MAX
2
2.55
C (FPC/FFC insertion dimensions)
D
Notes 1 The lead flatness of metal fitting and contact is 0.1 MAX.
2 The contact lead position shows the dimension from the E surface of the case bottom.
3 This product is sold in embossed, tape and reel packaging. For details on this product please refer to the “Packaging
Specifications” located on page 9.
4 Recesses in part structure may be added to improve molding characteristics
Black marks may appear in the mold resin, but they will not negatively affect the performance of these connectors.
5 The color of the plating may change after the reflow process, but it will not negatively affect the performance of these connectors.
■Connector
dimension table [Space-saving type]
Part No.
FH28H-80S-0.5SH(**)
HRS No.
586-1805-3 **
No. of Contacts
80
A
39.5
B
44.9
C
40.57
Unit : mm
D
45.7
Note 1 : This product is sold in embossed, tape and reel packaging. This product is sold in full reel quantities of either 2,000 or
500 pcs/ reels. Please place orders by full reel quantities.
5
京公网安备 11010802033920号
EEWORLD
