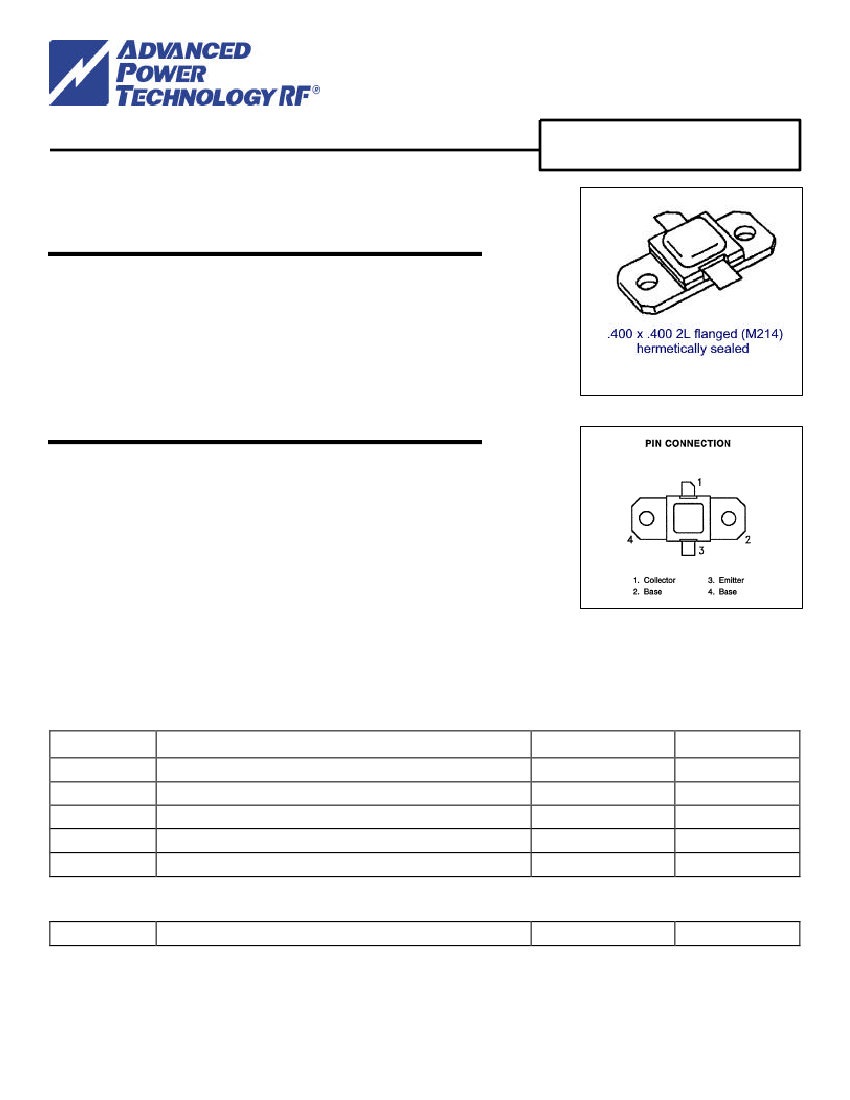

MS2267
RF & MICROWAVE TRANSISTORS
AVIONICS APPLICATIONS
Features
•
•
•
•
•
•
•
960 – 1215MHz
50 VOLTS
5:1 VSWR CAPABILITY @ RATED CONDITIONS
INPUT/OUTPUT MATCHING
P
OUT
= 250 WATTS
G
P
= 8.0 dB MINIMUM
COMMON BASE CONFIGURATION
DESCRIPTION:
The MS2267 is a high power Class C NPN transistor
specifically designed for TACAN/DME applications.
This device is capable of operation under moderate pulse
width and duty cycles. Low thermal resistance and
computerized automatic wire bonding techniques ensure
high reliability and product consistency.
The MS2267 utilizes an emitter ballasted die geometry
capable of operating into a 5:1 VSWR @ 1.0 dB overdrive.
ABSOLUTE MAXIMUM RATINGS
(Tcase = 25° C)
°
Symbol
P
DISS
I
C
Vcc
T
J
T
STG
Device Current*
Collector-Supply Voltage*
Junction Temperature (Pulsed RF Operation)
Storage Temperature
Parameter
Power Dissipation* (T
C
≤
90°C)
°
Value
575
20
50
250
-65 to +200
Unit
W
A
V
°
C
°
C
Thermal Data
R
TH(J-C)
Junction-case Thermal Resistance∗
∗
(1)
0.28
°
C/W
* Applies only to rated RF amplifier operation
(1)
Infra-red scan of hot spot junction temperature at rated RF operating conditions
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2267
STATIC
ELECTRICAL SPECIFICATIONS (Tcase = 25° C)
25
°
Symbol
BV
CBO
BV
EBO
BV
CES
I
CES
h
FE
I
C
= 35mA
I
E
= 15mA
I
C
= 25mA
V
BE
= 0 V
V
CE
= 5V
Test Conditions
I
E
= 0 mA
I
C
= 0 mA
I
B
= 0 mA
V
CE
= 50V
I
C
= 1A
Value
Min.
65
4.0
60
---
10
Typ.
---
---
---
---
---
Max.
---
---
---
20
---
Unit
V
V
V
mA
---
DYNAMIC
Symbol
P
OUT
η
c
G
P
Conditions:
Test Conditions
f = 960 - 1215MHz
f = 960 - 1215MHz
f = 960 - 1215MHz
P
IN
= 40W
P
IN
= 40W
P
IN
= 40W
V
CC
= 50V
V
CC
= 50V
V
CC
= 50V
Value
Min.
250
38
8.0
T
C
= 25°C
°
Typ.
295
44
8.7
Max.
---
---
---
Unit
W
%
dB
Pulse width = 20
µ
S
Duty Cycle = 5%
IMPEDANCE DATA
FREQ
960 MHz
1090MHz
1215MHz
P
IN
= 40W
V
CC
= 50V
Z
IN
(
Ω)
1.0 + j3.5
4.0 + j3.5
2.2 + j2.2
Z
CL
(
Ω)
1.9 – j1.8
1.6 – j0.9
1.4 – j1.1
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2267

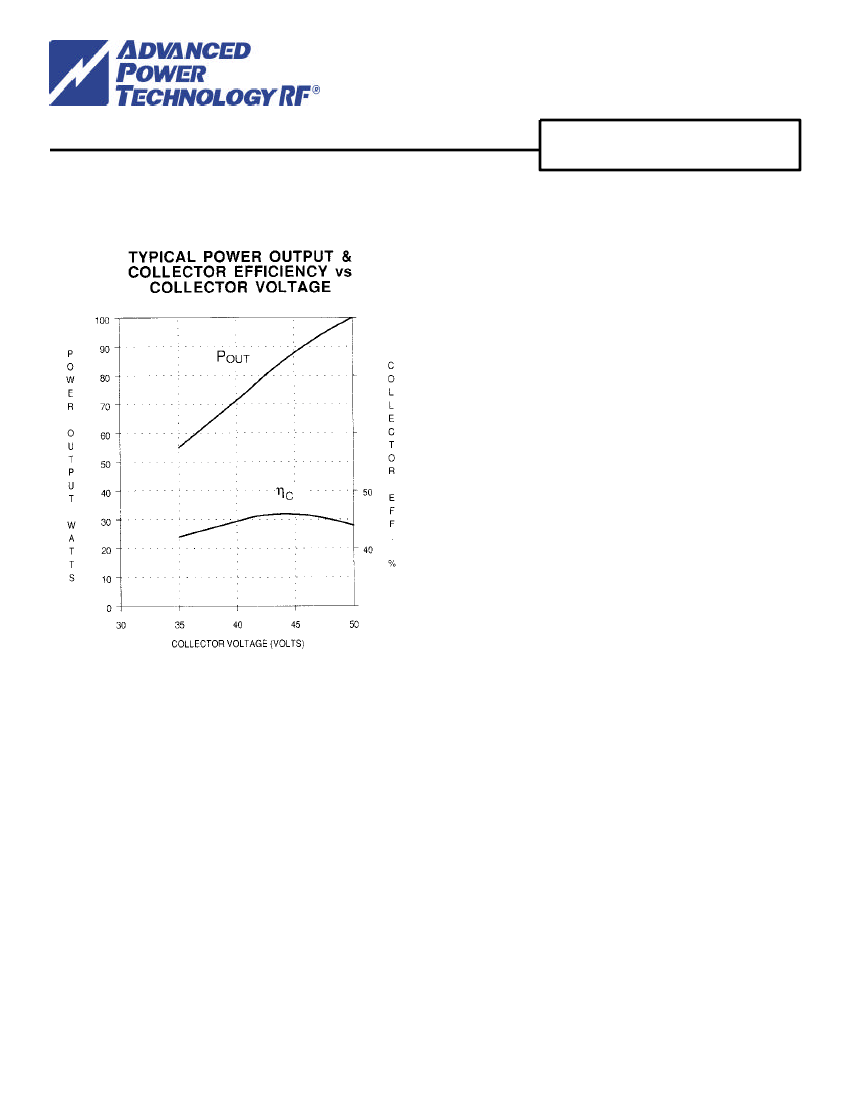

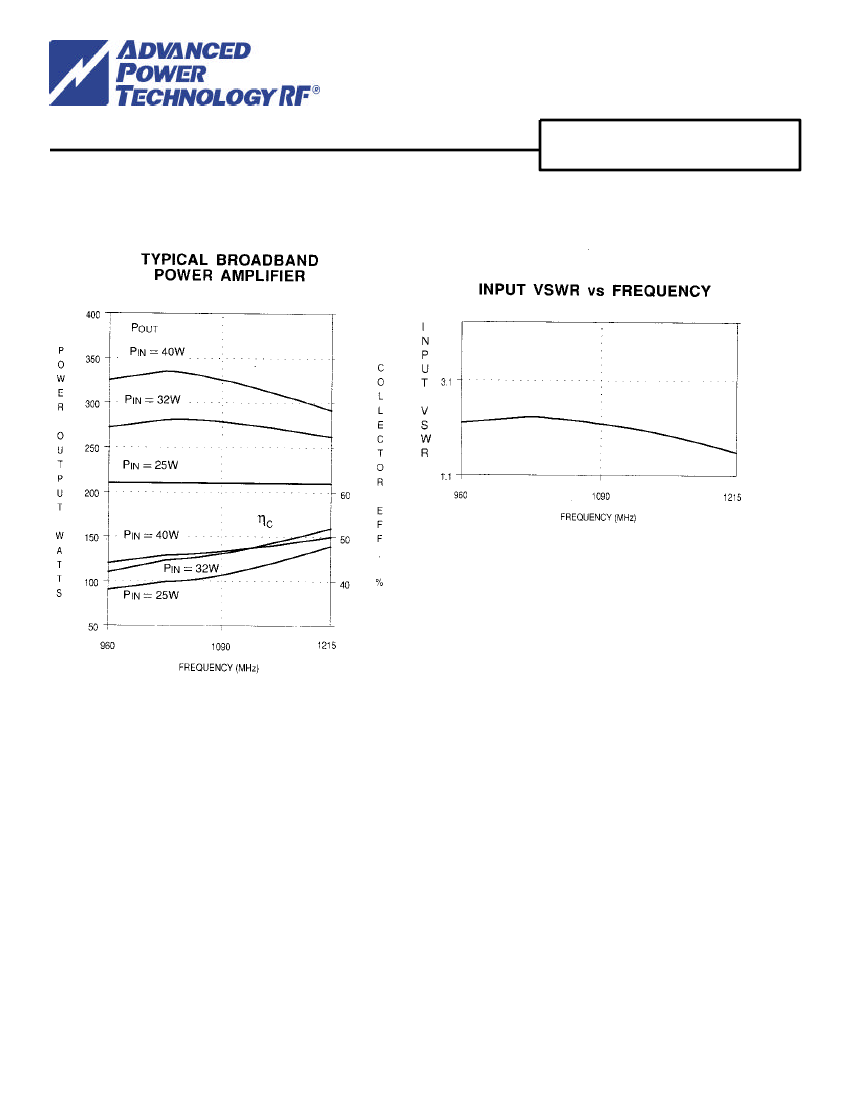

TYPICAL PERFORMANCE
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2267
TYPICAL PERFORMANCE (CONTINUED)
(CONTINUED)
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
MS2267

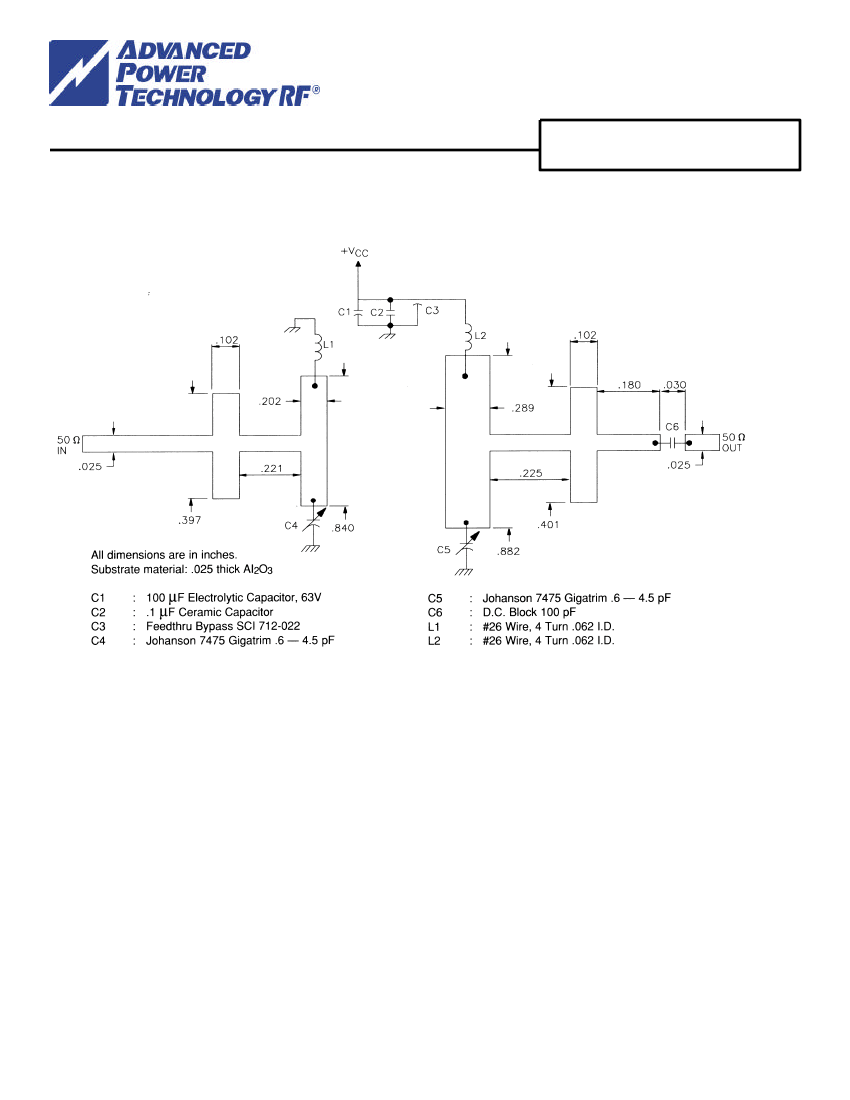

TEST CIRCUIT
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained herein
Visit our website at
WWW.ADVANCEDPOWER.COM
or contact our factory direct.
