2SK209-BL(TE85L,F)

Description
JFET N-CH SOT23
CategoryDiscrete semiconductor    The transistor
File Size282KB,4 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

2SK209-BL(TE85L,F) Overview

JFET N-CH SOT23

2SK209-BL(TE85L,F) Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionSMALL OUTLINE, R-PDSO-G3
Reach Compliance Codeunknown
Factory Lead Time16 weeks
Other featuresLOW NOISE
ConfigurationSINGLE
FET technologyJUNCTION
JEDEC-95 codeTO-236
JESD-30 codeR-PDSO-G3
Number of components1
Number of terminals3
Operating modeDEPLETION MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Polarity/channel typeN-CHANNEL
surface mountYES
Terminal formGULL WING
Terminal locationDUAL
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Base Number Matches1

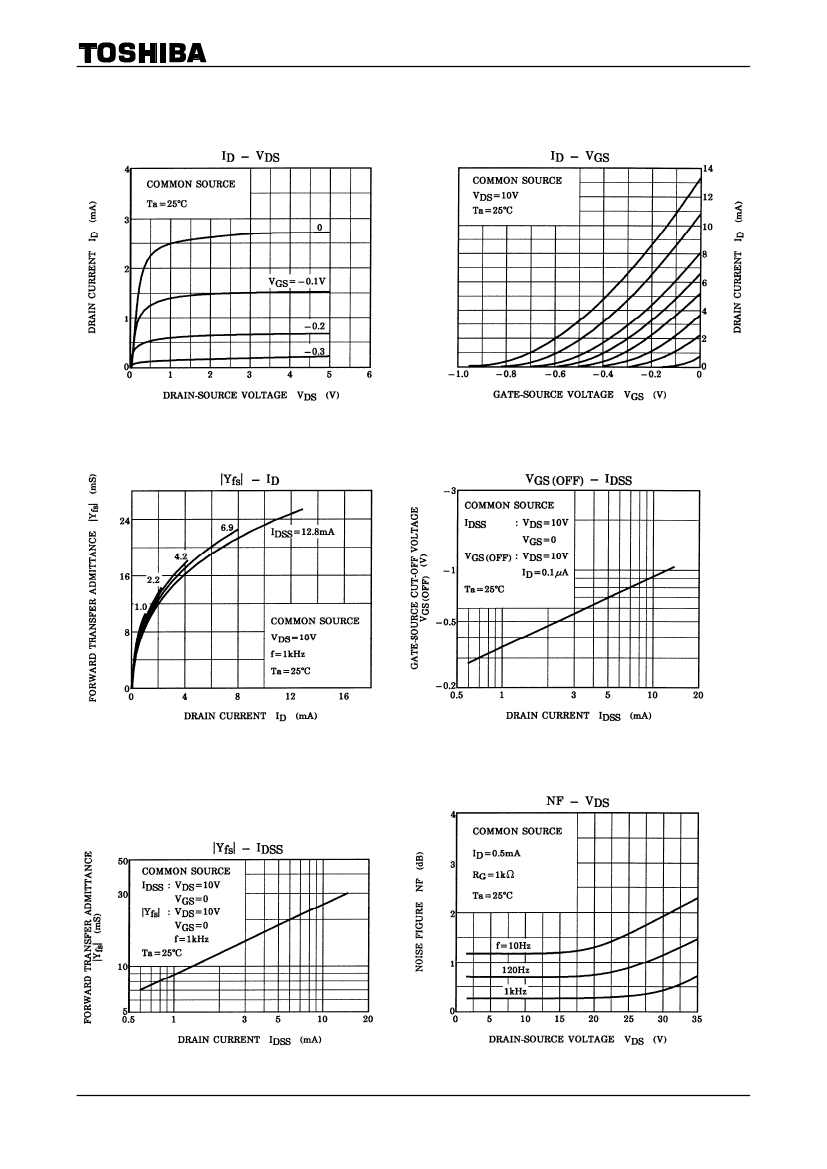

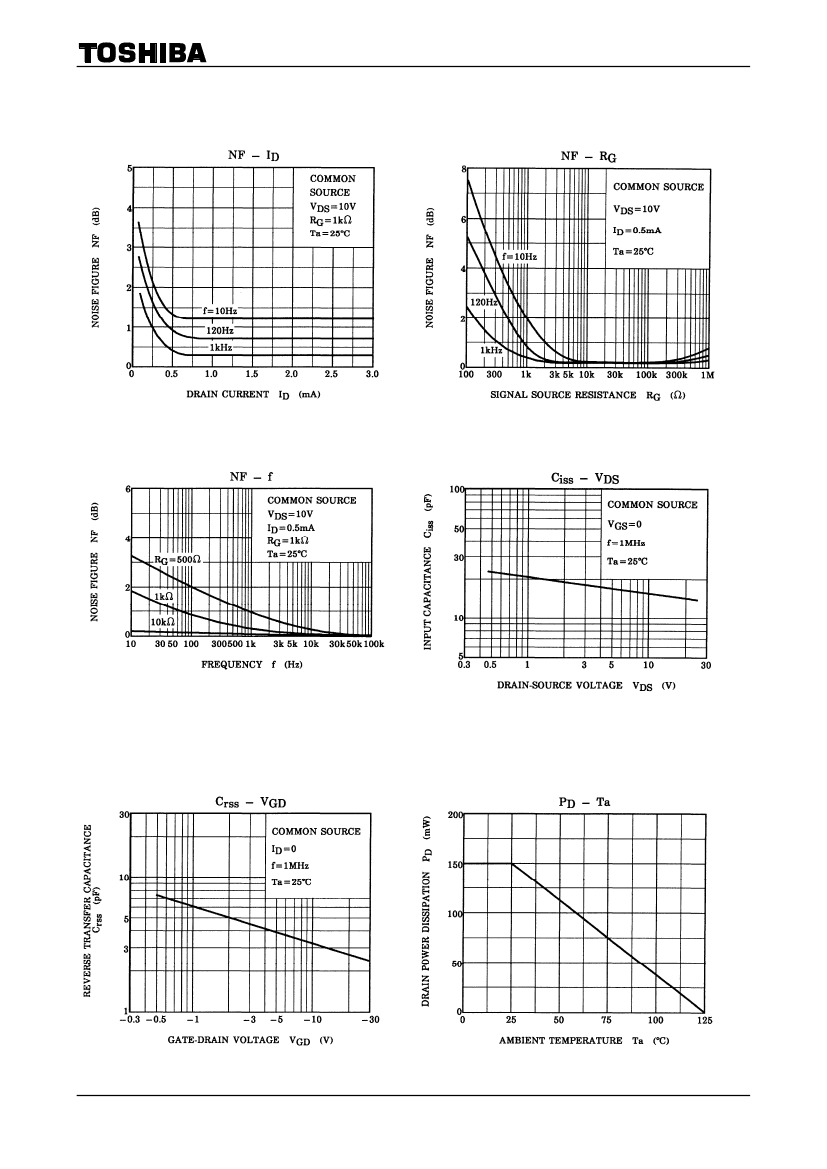

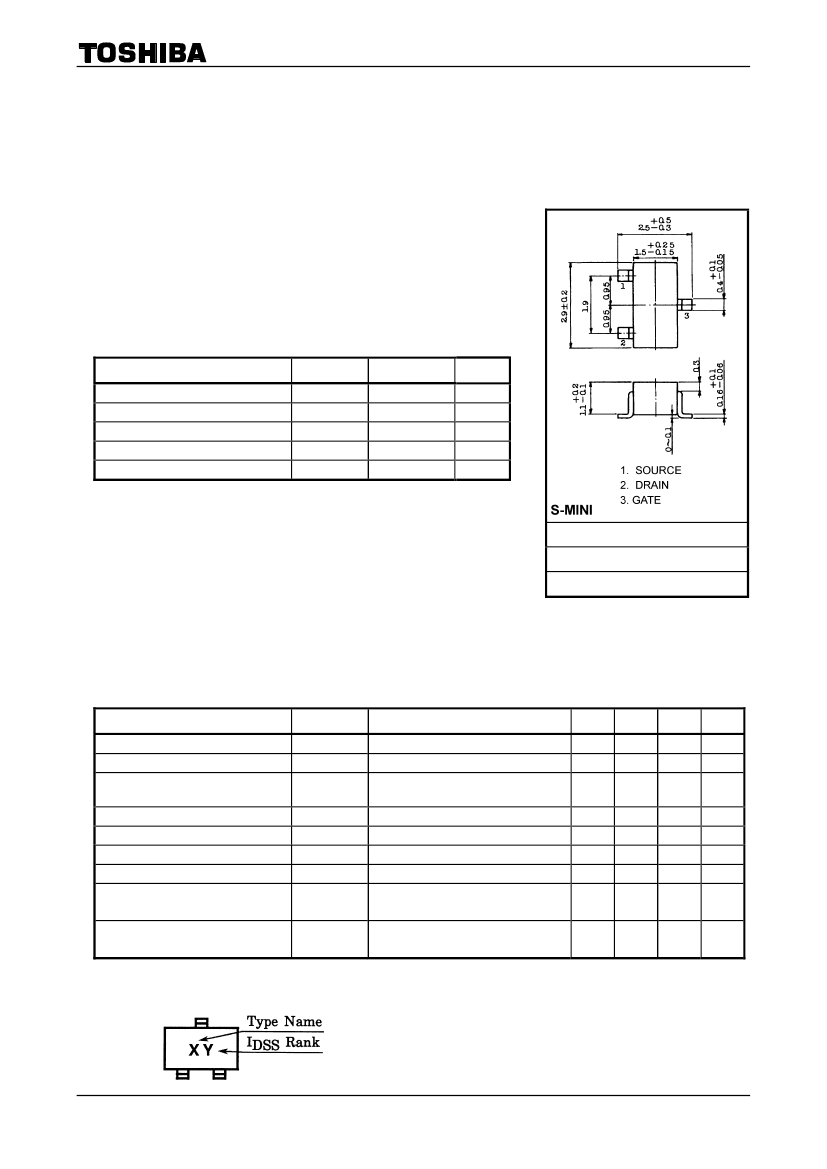

2SK209
TOSHIBA Field Effect Transistor
Silicon N Channel Junction Type
2SK209
Audio Frequency Low Noise Amplifier Applications
High |Y
fs
|: |Y
fs
| = 15 mS (typ.) at V
DS
= 10 V, V
GS
= 0
High breakdown voltage: V
GDS
=
−50
V
Low noise: NF = 1.0dB (typ.)
at V
DS
= 10 V, I
D
= 0.5 mA, f = 1 kHz, R
G
= 1 kΩ
High input impedance: I
GSS
=
−1
nA (max) at V
GS
=
−30
V
Small package
Unit: mm
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Gate-drain voltage
Gate current
Drain power dissipation
Junction temperature
Storage temperature range
Symbol
V
GDS
I
G
P
D
T
j
T
stg
Rating
−50
10
150
125
−55
to 125
Unit
V
mA
mW
°C
°C
Note:
Using continuously under heavy loads (e.g. the application of
high temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual
reliability data (i.e. reliability test report and estimated failure
rate, etc).
JEDEC
JEITA
TOSHIBA
TO-236
SC-59
2-3F1B
Weight: 0.012 g (typ.)
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Gate cut-off current
Gate-drain breakdown voltage
Drain current
Gate-source cut-off voltage
Forward transfer admittance
Input capacitance
Reverse transfer capacitance
Noise figure
Noise figure
Symbol
I
GSS
V
(BR) GDS
Test Condition
V
GS
= −30
V, V
DS
=
0
V
DS
=
0, I
G
= −100 μA
Min
−50
1.2
−0.2
4.0
Typ.
15
13
3
5
1
Max
−1.0
14.0
−1.5
Unit
nA
V
mA
V
mS
pF
pF
dB
dB
I
DSS
V
DS
=
10 V, V
GS
=
0
(Note)
V
GS (OFF)
⎪Y
fs
C
iss
C
rss
NF (1)
NF (2)
V
DS
=
10 V, I
D
=
0.1
μA
V
DS
=
10 V, V
GS
=
0, f
=
1 kHz
V
DS
=
10 V, V
GS
=
0, f
=
1 MHz
V
DG
=
10 V, I
D
=
0, f
=
1 MHz
V
DS
=
10 V, R
G
=
1 kΩ
I
D
=
0.5 mA, f
=
10 Hz
V
DS
=
10 V, R
G
=
1 kΩ
I
D
=
0.5 mA, f
=
1 kHz
Note: I
DSS
classification Y: 1.2~3.0 mA, GR: 2.6~6.5 mA, BL: 6.0~14 mA
Marking
Start of commercial production
1981-06
1
2014-03-01
