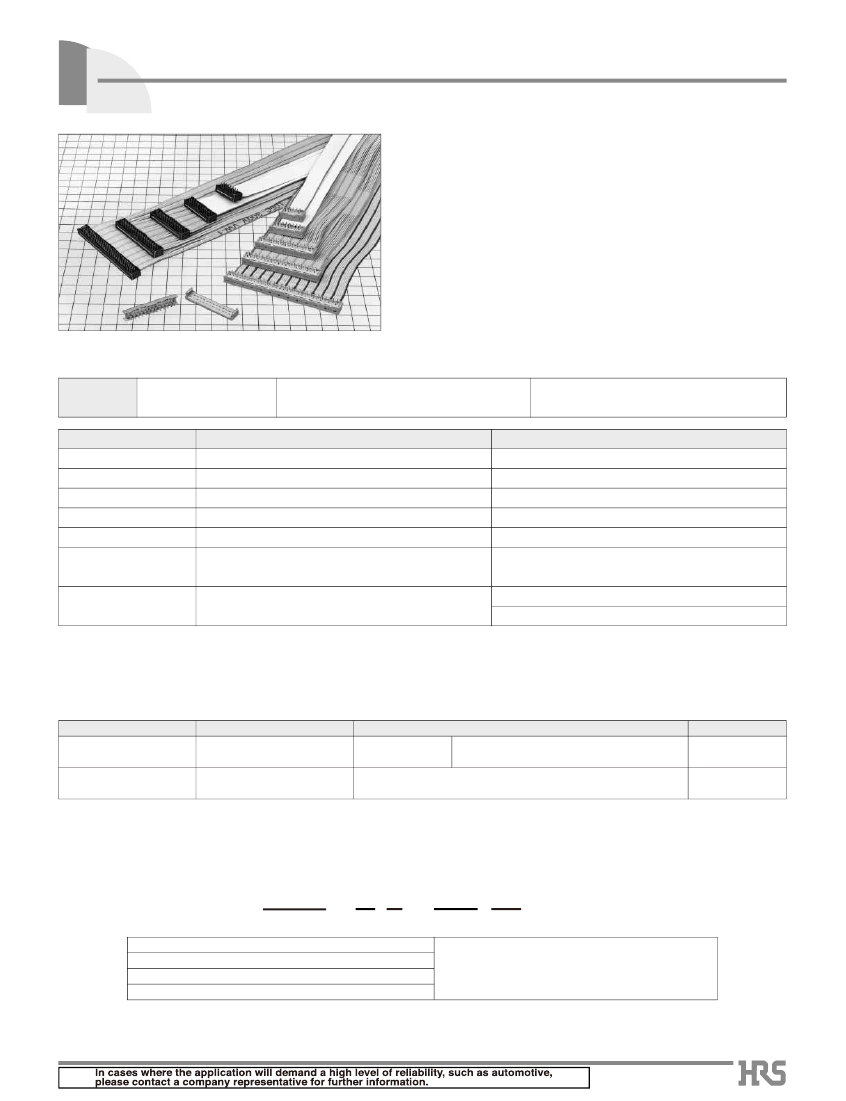

2.54mm Connectors Directly Mounted on Board
HIF2E Series
■Features
1. Directly Mounted on Board
This connector can be directly mounted on the board using the
1.27mm pitch flat cable.
2. Variation in Number of Contacts
10, 14, 16, 20, 26, 30, 34, 40, 50, and 60 contacts, are available
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Applicable Cable
The applicable cable is UL2651 28 AWG flat cable
(7 cores/0.127mm, jacket dia. : 0.8 to 1.0mm).
■Product
Specifications
Rating
Current rating : 1A
Operating Temperature Range :
–55 to +85ç
(Note 1) Storage Temperature Range :
–10 to +60ç
(Note 2)
Storage Humidity Range
Condition
500V DC
650V AC/1 minute
0.1A
: 40
to
70% (Note 2)
Voltage rating : 200V AC Operating Moisture Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000MΩ
min
Specification
No flashover or insulation breakdown.
15mΩ max
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç : 30 minutes
➝
15
to
35ç : 5 minutes max.
125ç : 30 minutes
➝
15
to
35ç : 5 minutes max.) 5 cycles
5.
Humidity (Steady state)
Insulation resistance : 1000MΩ min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Resistance to Soldering heat
No deformation of components affecting performance.
Solder bath :
260ç for 10 seconds
Manual soldering : 360ç for 5 seconds
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
■Materials
/ Finish
Part
Insulator
Contact
Material
PBT
Copper alloy
Black
Gray
Finish
HIF2E-*D-2.54R B
HIF2E-*D-2.54R A
Gold plated over nickel underplated
Remarks
UL94V-0
––––––
■
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
HIF2E -
*
D - 2.54 RB
q
q
Series Name
w
Number of Contacts
e
Contact alignment
r
Contact Pitch
w
e
r
t
: HIF2E
t
Connection method and contact plating type
: 10, 14, 16, 20, 26, 30, 34, 40, 50, and 60
RB : Universal type circuit plated
RA : Hirose original circuit plated
: D : Double
: 2.54mm
B9
