DF13EA-20DP-1.25V(75) datasheet, PDF

DF13EA-20DP-1.25V(75): DescriptionCONNECTOR; CategoryThe connector; File Size101KB，2 Pages; ManufacturerHirose Electric; Environmental Compliance

Download Datasheet Parametric View All

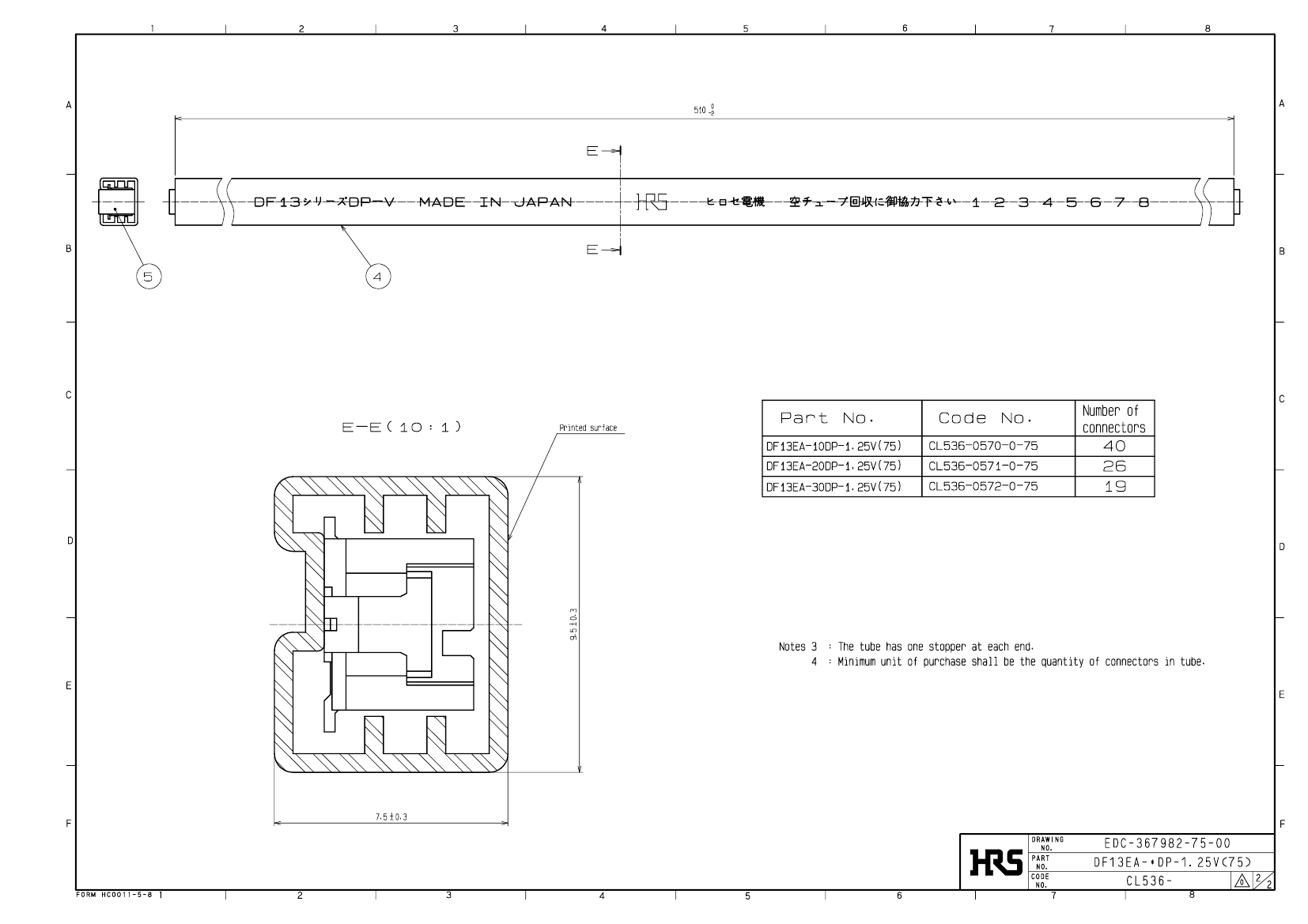

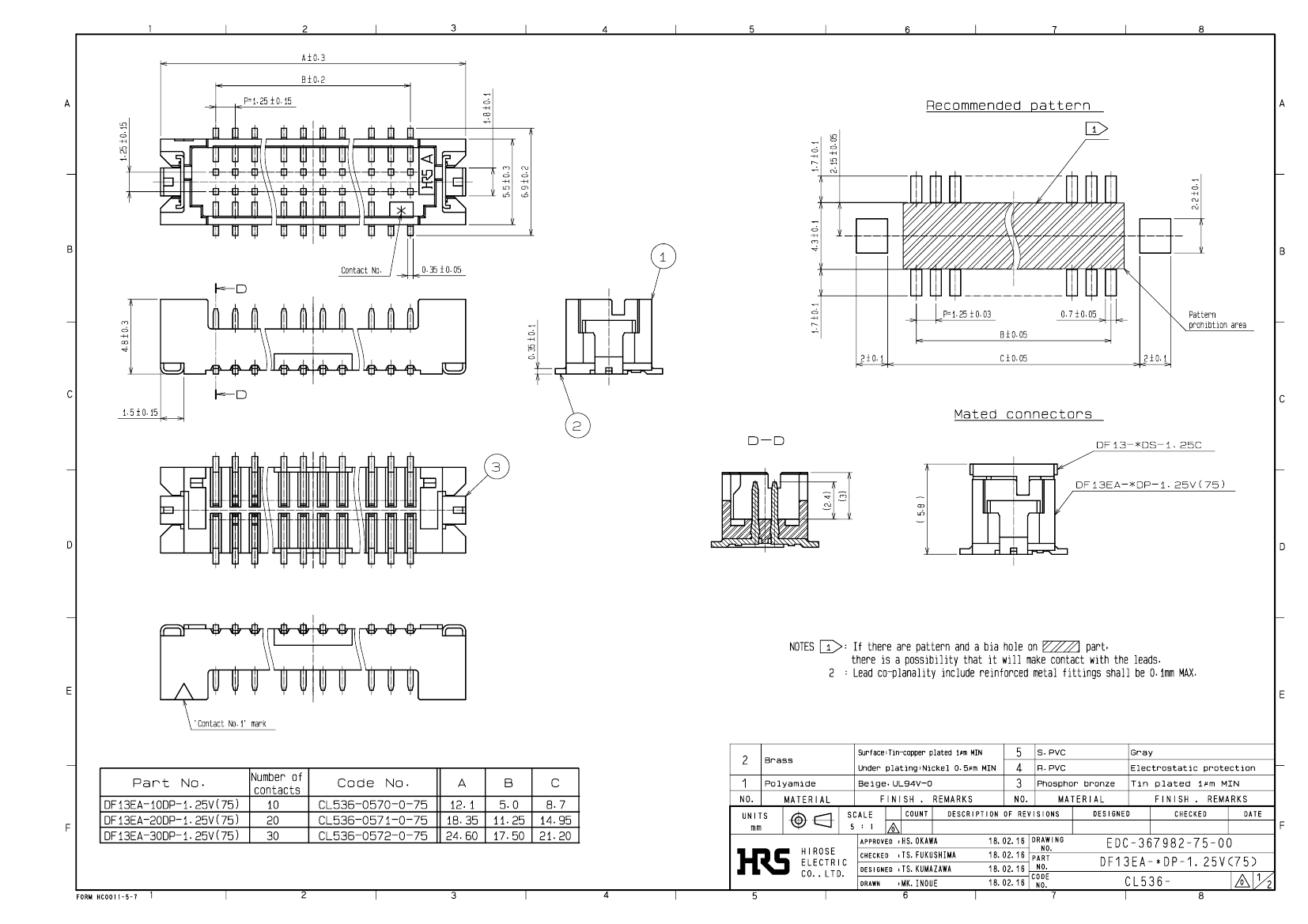

DF13EA-20DP-1.25V(75) Overview

CONNECTOR

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.049"（1.25mm）
Number of pins	20
Number of rows	2
Line spacing - patching	0.049"（1.25mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	pin lock
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.189"（4.80mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）
Contact Surface Preparation - Column	tin
Contact material	brass
Insulation Materials	Polyamide (PA), nylon
characteristic	Fixed solder tail
Operating temperature	-35°C ~ 85°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	beige
Rated current	1A
Rated voltage	150V
Joint stack height	-
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）
application	-

In case that the application demands a high level of reliability, such as automotive,

please contact a company representative for further information.
