Guard Lock Safety-door Switch/Slide key
D4GL/D4GL-SK10-LK@
CSM_D4GL_D4GL-SK10-LK_DS_E_6_1
Vertically Mounting Guard Lock
Safety-door Switch Ideal for Limited
Installation Space
<Guard Lock Safety-door Switch D4GL>
• Selectable Operation Key insertion direction.
• Slim safety-door switch with an electromagnetic lock or
unlock mechanism .
• Built-in switches with multiple-contact construction are
available.
• A key holding force of 1,000 N minimum.
• Can be used for either standard loads or microloads.
• Lineup includes models with a conduit size of M20.
• Variety of Metallic Heads Available.
Guard Lock
Safety-door Switches
Slide keys
<Slide key D4GL-SK10-LK@>
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
• The D4GL Vertical Electromagnetic Lock and Safety-door
Switches easily mount to a 40
×
40-mm aluminum frame section.
• The Switches are made of resin so they are suitable for lightweight doors.
Be sure to read the
“Safety Precautions”
on page 17 and
the
“Precautions for All Safety Door Switches”.
Model Number Structure
Model Number Legend
Switch (Standard type)
Switch (Metallic release key type)
D4GL-@@@@-@@
1 2 3 4
5 6
1. Conduit Size
1: Pg13.5
2: G1/2
4: M20
2. Built-in Switch (with Door Open/Closed Detection Switch and
Lock Monitor Switch Contacts)
A: 1NC/1NO (slow-action contacts) + 1NC/1NO (slow-action
contacts)
B: 1NC/1NO (slow-action contacts) + 2NC (slow-action contacts)
C: 2NC (slow-action contacts) + 1NC/1NO (slow-action contacts)
D: 2NC (slow-action contacts) + 2NC (slow-action contacts)
E: 2NC/1NO (slow-action contacts) + 1NC/1NO (slow-action
contacts)
F: 2NC/1NO (slow-action contacts) + 2NC (slow-action contacts)
G: 3NC (slow-action contacts) + 1NC/1NO (slow-action contacts)
H: 3NC (slow-action contacts) + 2NC (slow-action contacts)
3. Head Mounting Direction and Material
F: Four mounting directions possible (Front-side mounting at
shipping)/plastic
D: Four mounting directions possible (Front-side mounting at
shipping)/metal
4. Door Lock and Release
A: Mechanical lock/24 VDC solenoid release
G: 24 VDC solenoid lock/mechanical release
5. Indicator
A: 24 VDC (orange/green LED indicator)
6. Release Key Type
Blank: Standard release key (resin)
4:
Special release key (resin)
(Note: Release keys are provided.)
D4GL-@@@@-@@-SJ
1 2 3 4
5 6
1. Conduit Size
2: G1/2 (1-conduit)
4: M20 (1-conduit)
2. Built-in Switch
A: 1NC/1NO + 1NC/1NO
B: 1NC/1NO + 2NC
C: 2NC + 1NC/1NO
D: 2NC + 2NC
E: 2NC/1NO + 1NC/1NO
F: 2NC/1NO + 2NC
G: 3NC + 1NC/1NO
H: 3NC + 2NC
3. Head Material
F: resin
4. Door Lock and Release
A: Mechanical lock/24 VDC solenoid release
G: 24 VDC solenoid lock/ mechanical release
5. Indicator
A: 24 VDC (orange/green LED indicator)
Note:
The wiring specification is different from the wiring
specification for the standard type.
Please refer to the "Connection" section for details.
6. Release Key Type
Blank: Standard release key (metal)
Operation Key
D4DS-K@
1
1. Operation Key Type
1: Horizontal mounting
2: Vertical mounting
3: Adjustable mounting (horizontal)
5: Adjustable mounting (horizontal/vertical)
1
D4GL/D4GL-SK10-LK@
Slide keys

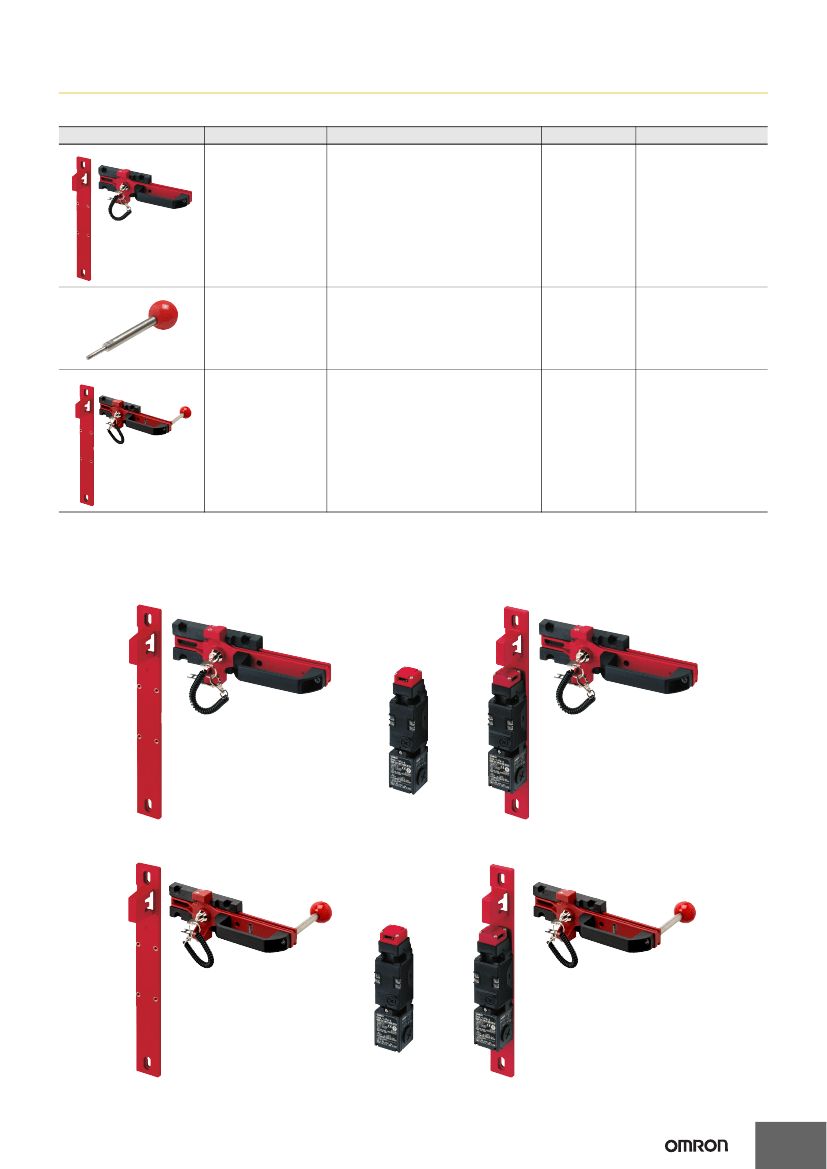

Appearance
Specifications
Contents
Model
Applicable Door Switch
Slide Key: 1 (not yet mounted)
D4GL mounting plate: 1
Door Switch special mounting screws: 4
Weight: Approx. 0.6 kg D4DS-K1 (operation key): 1
Mechanical durability: D4DS-K1 special mounting screws: 2
D4GL-SK10-LK
20,000 operations min. Lockout keys: 2
Lockout key strap: 1
Caution labels (stickers): 2 sheets (English
and Japanese)
D4GL
Weight:Approx.0.1kg
Inner Lever:1
D4SL-SK10H*
-
Slide Key: 1 (not yet mounted)
D4GL mounting plate: 1
Door Switch special mounting screws: 4
Weight:Approx.0.7kg
D4DS-K1 (operation key): 1
Mechanical durability: D4DS-K1 special mounting screws: 2
D4GL-SK10-LKH
20,000 operations min. Lockout keys: 2
Lockout key strap: 1
Caution labels (stickers): 2 sheets (English
and Japanese)
D4GL
Note: 1.
The Door Switch is not included. Select the Door Switch depending on the necessary number of contacts and the conduit size.
The contents are provided as a total set, individual contents cannot be ordered separately.
2.
Perform risk assessment for the equipment in question, configure relay units and other safety circuits, and use properly.
*
The inner lever for D4GL-SK10-LK/D4SL-NSK10-LK that can not be used for other products and applications.
D4GL-SK10-LK
+
D4GL-SK10-LK
D4GL
=
D4GL-SK10-LKH
+
D4GL-SK10-LKH
D4GL
=
