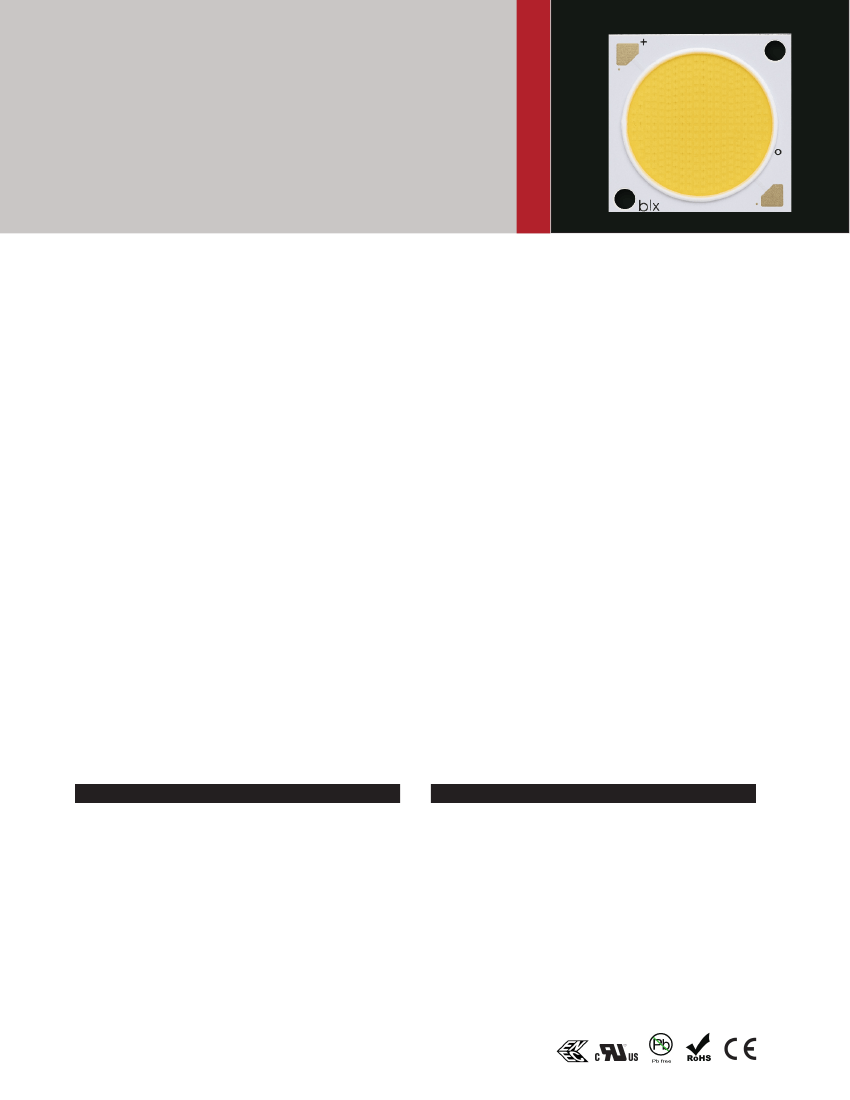

Introduction
The V Series™ LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package.
These chip on board (CoB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility not
previously possible. This high flux density light source is designed to support a wide range of high quality, low cost directional
luminaires and replacement lamps for commercial and residential applications.
The V22 LED Array is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility and
energy efficiencies.
Lighting system designs incorporating these LED arrays deliver increased system level efficacy and longer service life. Typical
applications include, replacement lamps, and task, accent, spot, track, wide area, security, wall pack and down lights.
Bridgelux Décor Series is our state of the art color line designed specifically for premium applications, producing unmatched
LED light quality with brilliant color-rendering options and offer pleasing and inspiring lighting palettes. Bridgelux Décor
Series color points are available on Vero® SE Series, Vero® Series, V Series™ and H Series™.
Décor Series Class A
is based on human response testing, providing color points with a combined GAI and CRI metric.
Décor Series™ Ultra
products provide a high CRI of 97 and a minimum R9 value of 93, which emphasizes the reds and color
tones to which the human eye is most receptive - perfect for the most luxurious retail shops and world renowned museums.
Décor Series Ultra is designed as a replacement for halogen lamps.
Décor Series™ Food
products offer color points developed to address the unique requirements of the food, grocery, and
restaurant industries. Highlighting the distinctive colors and nuanced patterns found in meats and breads, the Décor Series
Food products are a must have for any butcher counter or bakery.
Décor Series ™ Entertainment
products provide color points developed specifically for the healthcare and entertainment
industries. The 5600K cool white color point combined with a CRI of 90 or 97 provides the bright white required by these
industries.
Décor Series™ Street and Landmark
is designed to be a direct replacement for high pressure sodium lamps.
Décor Series™ Showcase
is the optimal solution for replacing ceramic metal halide lamps, incorporating the same pure white
light with enhanced spectrum coverage and higher efficacy.
Features
Benefits
• Efficacy of 155 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 65, 70, 80, 90 and 95 CRI options
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 3 SDCM and 4 SDCM options
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• V
f
bin code backside marking
• Enhanced optical control
• Clean white light without pixilation
• High quality true color reproduction
• Significantly reduced thermal resistance and
increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to
enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue

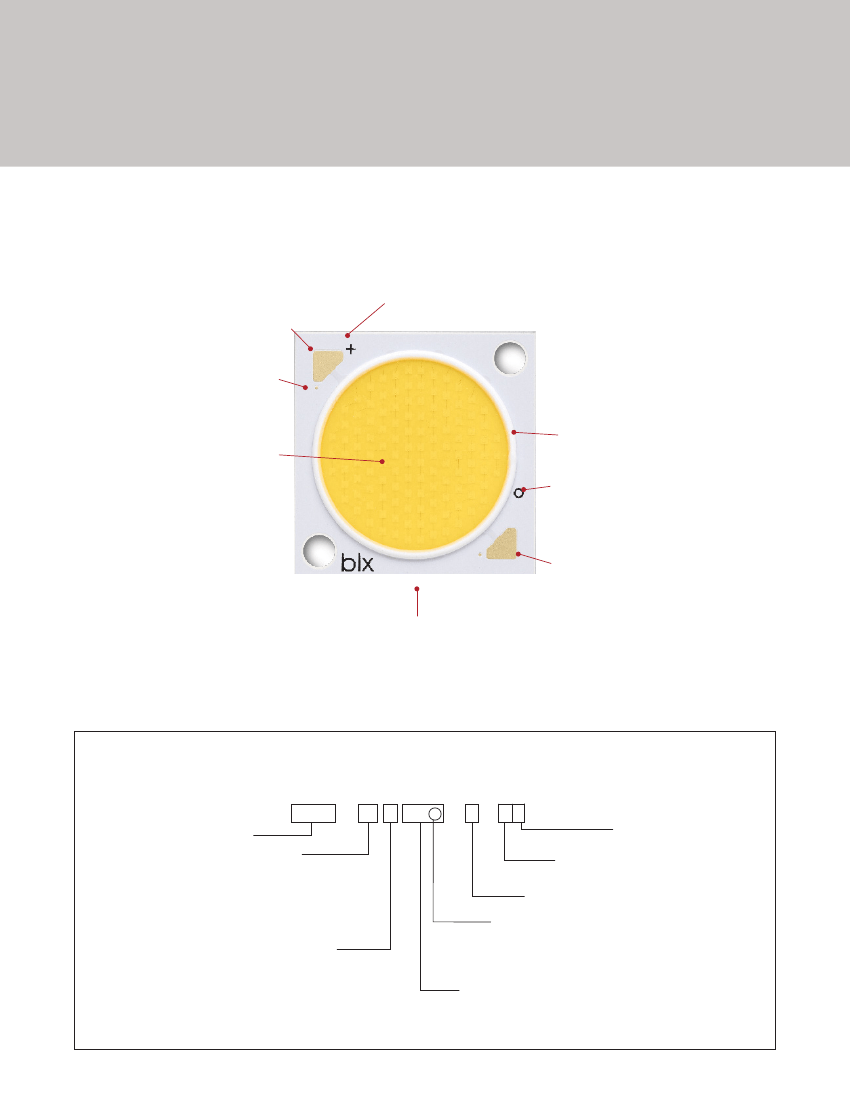

V Series
Product Feature Map
Bridgelux arrays are fully engineered devices that
provide consistent thermal and optical performance on an
engineered mechanical platform. The V Series arrays are
the most compact chip-on-board devices across all of
Bridgelux’s LED Array products. The arrays incorporate
several features to simplify design integration and
assembly. Please visit www.bridgelux.com for more
information on the V Series family of products.
Designed to comply with global
safety standards for creepage
and clearance distances
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Polarity symbols
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
) Measurement Point
Solder Pads
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
–
12
– 13 14
BXRE – 30 E 650 0 – C – 7 3
Product Family
Nominal CCT
17 = 1,750K
20 = 2,000K
25 = 2,500K
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
50 = 5,000K
56 = 5,600K
57 = 5,700K
65 = 6,500K
Gen. 7
CCT Bin Options
2 = 2 SDCM
3 = 3 SDCM
4 = 4 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted
1 = Hot Targeted
C = Décor Series Showcase Target
Flux Indicator
650x = 6500 lm
CRI
B = 65 CRI min.
C = 70 CRI min.
E = 80 CRI min.
G = 90 CRI min.
H = 97 CRI typ.
A = Class A
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
Nominal
CCT
1
(K)
1750
2000
2000
2500
2700
2700
2700
2700
2700
2700
2700
3000
3000
3000
3000
3000
3000
3000
3000
3500
3500
3500
3500
3500
3500
3500
4000
4000
4000
4000
4000
4000
CRI
2
Nominal Drive
Current
3
(mA)
1400
1440
1400
1400
1170
1440
1400
1170
1440
1400
1400
1170
1440
1400
1170
1440
1400
1400
1400
1170
1440
1400
1170
1440
1400
1400
1170
1440
1400
1170
1440
1400
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
4214
10862
7105
6811
9056
11147
7291
7547
9289
6076
5292
9433
11611
7595
7830
9637
6304
5880
5684
9716
11959
7823
8113
9986
6532
6272
9811
12075
7816
8396
10334
6760
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
3793
9776
6395
6130
8150
10032
6450
6792
8360
5376
4763
8490
10450
6719
7047
8673
5673
5292
5116
8745
10763
7041
7301
8987
5879
5645
8830
10868
7034
7556
9300
6084
Typical V
f
(V)
Typical
Power
(W)
49.0
74.9
49.0
49.0
60.8
74.9
49.0
60.8
74.9
49.0
49.0
60.8
74.9
49.0
60.8
74.9
49.0
49.0
49.0
60.8
74.9
49.0
60.8
74.9
49.0
49.0
60.8
74.9
49.0
60.8
74.9
49.0
Typical
Efficacy
(lm/W)
86
145
145
139
149
149
149
124
124
124
108
155
155
155
129
129
129
120
116
160
160
160
133
133
133
128
161
161
160
138
138
138
BXRE-17E6500-D-74
BXRE-20B6501-C-73
BXRE-20B6501-D-73
BXRE-25E6500-D-74
BXRE-27E6500-B-7X
BXRE-27E6500-C-7X
BXRE-27E6500-D-7X
BXRE-27G6500-B-7X
BXRE-27G6500-C-7X
BXRE-27G6500-D-7X
BXRE-27H6500-D-7X
BXRE-30E6500-B-7X
10
80
65
65
80
80
80
80
90
90
90
97
80
80
80
90
90
90
90
97
80
80
80
90
90
90
93
80
80
80
90
90
90
35.0
52.0
35.0
35.0
52.0
52.0
35.0
52.0
52.0
35.0
35.0
52.0
52.0
35.0
52.0
52.0
35.0
35.0
35.0
52.0
52.0
35.0
52.0
52.0
35.0
35.0
52.0
52.0
35.0
52.0
52.0
35.0
BXRE-30E6500-C-7X
10
BXRE-30E6500-D-7X
10
BXRE-30G6500-B-7X
BXRE-30G6500-C-7X
BXRE-30G6500-D-7X
BXRE-30G650C-D-73
BXRE-30H6500-D-7X
BXRE-35E6500-B-7X
10
BXRE-35E6500-C-7X
10
BXRE-35E6500-D-7X
10
BXRE-35G6500-B-7X
BXRE-35G6500-C-7X
BXRE-35G6500-D-7X
BXRE-35A6501-D-73
8,9
BXRE-40E6500-B-7X
10
BXRE-40E6500-C-7X
10
10
BXRE-40E6500-D-7X
BXRE-40G6500-B-7X
BXRE-40G6500-C-7X
BXRE-40G6500-D-7X
Notes for Table 1:
1. Nominal CCT as defined by ANSI C78.377-2011. Products with a CCT of 5000K-6500K are hot targeted to T
c
= 85°C.
2. CRI values are typical for Décor Series Ultra and Décor Series Class A products. CRI values are minimums for all other products. Minimum R9 value for
80 CRI products is 0, the minimum R9 values for 90 CRI products is 50, the minimum R9 values for 97 CRI products is 93. Bridgelux maintains a ± 3
tolerance on R9 values.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at the nominal test current are guaranteed by 100% test.
8. Nominal CCT is defined by the Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. GAI value is 80. To help ensure optimal fixture level performance, GAI is measured at the fixture level, on axis, at a case temperature of 70°C. GAI may
vary depending on fixture design and performance.
10. SKUs meet DLC premium (Outdoor Mid Output) requirements under certain system level conditions.
3
