IRL3715STRL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> IRL3715STRL

IRL3715STRL: DescriptionMOSFET N-CH 20V 54A D2PAK; Categorysemiconductor Discrete semiconductor; File Size312KB，12 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

IRL3715STRL Overview

MOSFET N-CH 20V 54A D2PAK

IRL3715STRL Parametric

Parameter Name	Attribute value
FET type	N channel
technology	MOSFET (metal oxide)
Drain-source voltage (Vdss)	20V
Current - Continuous Drain (Id) at 25°C	54A（Tc）
Drive voltage (maximum Rds On, minimum Rds On)	4.5V，10V
Rds On (maximum value) when different Id, Vgs	14 milliohms @ 26A, 10V
Vgs (th) (maximum value) when different Id	3V @ 250µA
Gate charge (Qg) at different Vgs (maximum value)	17nC @ 4.5V
Vgs (maximum value)	±20V
Input capacitance (Ciss) at different Vds (maximum value)	1060pF @ 10V
FET function	-
Power dissipation (maximum)	3.8W（Ta），71W（Tc）
Operating temperature	-55°C ~ 175°C（TJ）
Installation type	surface mount
Supplier device packaging	D2PAK
Package/casing	TO-263-3, D²Pak (2-lead + tab), TO-263AB

Preview

Download Datasheet

View All

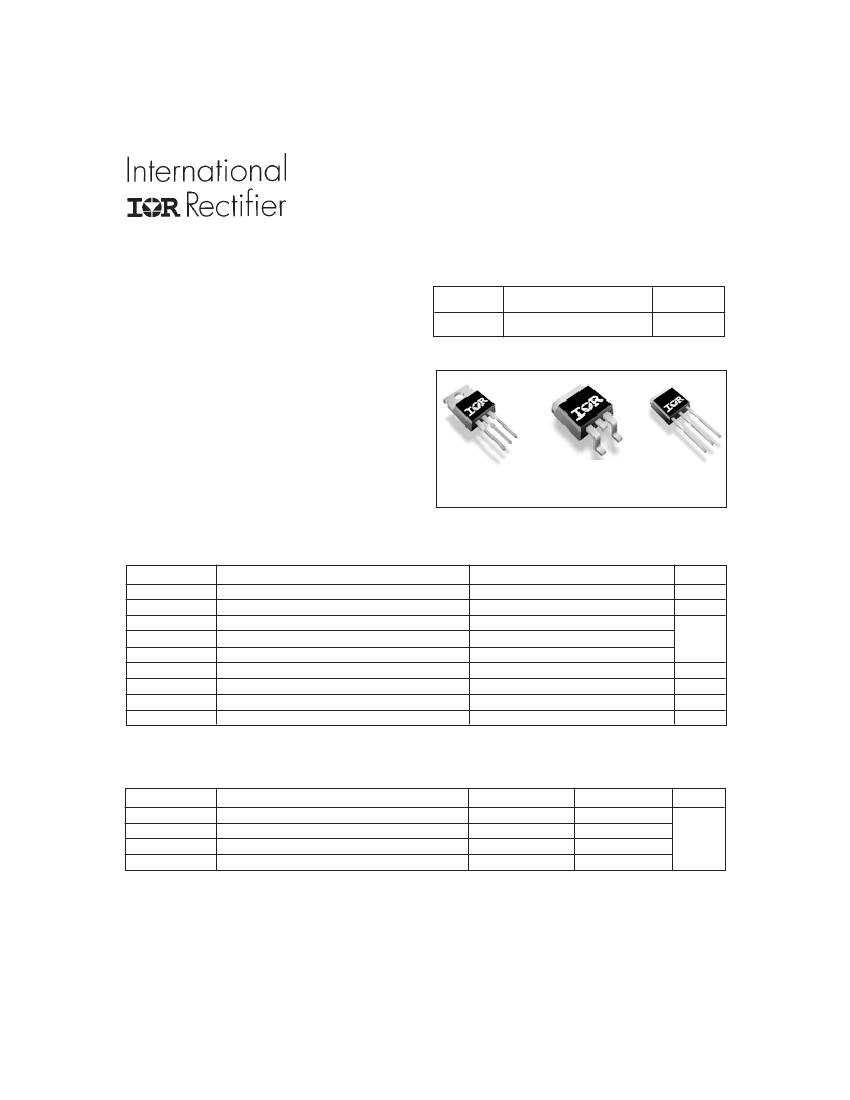

PD - 94194A

SMPS MOSFET

IRL3715

IRL3715S

IRL3715L

HEXFET

Power MOSFET

Applications

High Frequency Isolated DC-DC

Converters with Synchronous Rectification

for Telecom and Industrial Use

High Frequency Buck Converters for

Computer Processor Power

Benefits

DSS

20V

DS(on)

max

14mΩ

54A

Ultra-Low Gate Impedance

Very Low R

DS(on)

at 4.5V V

Fully Characterized Avalanche Voltage

and Current

TO-220AB

IRL3715

Pak

IRL3715S

TO-262

IRL3715L

Absolute Maximum Ratings

Symbol

@ T

= 25°C

@ T

= 100°C

= 25°C

, T

STG

Parameter

Drain-Source Voltage

Gate-to-Source Voltage

Continuous Drain Current, V

@ 10V

Continuous Drain Current, V

@ 10V

Pulsed Drain Current

Maximum Power Dissipation

Linear Derating Factor

Junction and Storage Temperature Range

Max.

± 20

210

3.8

0.48

-55 to + 175

Units

W/°C

°C

Thermal Resistance

Parameter

θJC

θCS

θJA

Junction-to-Case

Case-to-Sink, Flat, Greased Surface

Junction-to-Ambient

Junction-to-Ambient (PCB mount)

Typ.

–––

0.50

–––

Max.

2.1

–––

Units

°C/W

Notes

through

are on page 11

www.irf.com

6/5/01

IRL3715STRL Related Products

	IRL3715STRL	IRL3715	IRL3715L	IRL3715S	IRL3715STRR	IRL3715TR	IRL3715TRL	IRL3715TRR
Description	MOSFET N-CH 20V 54A D2PAK	MOSFET N-CH 20V 54A TO-220AB	MOSFET N-CH 20V 54A TO-262	MOSFET N-CH 20V 54A D2PAK	MOSFET N-CH 20V 54A D2PAK	MOSFET N-CH 20V 54A TO-220AB	MOSFET N-CH 20V 54A TO-220AB	MOSFET N-CH 20V 54A TO-220AB
FET type	N channel	N channel	N channel	N channel	N channel	N channel	N channel	N channel
technology	MOSFET (metal oxide)	MOSFET (metal oxide)	MOSFET (metal oxide)	MOSFET (metal oxide)	MOSFET (metal oxide)	MOSFET (metal oxide)	MOSFET (metal oxide)	MOSFET (metal oxide)
Drain-source voltage (Vdss)	20V	20V	20V	20V	20V	20V	20V	20V
Current - Continuous Drain (Id) at 25°C	54A（Tc）	54A（Tc）	54A（Tc）	54A（Tc）	54A（Tc）	54A（Tc）	54A（Tc）	54A（Tc）
Drive voltage (maximum Rds On, minimum Rds On)	4.5V，10V	4.5V，10V	4.5V，10V	4.5V，10V	4.5V，10V	4.5V，10V	4.5V，10V	4.5V，10V
Rds On (maximum value) when different Id, Vgs	14 milliohms @ 26A, 10V	14 milliohms @ 26A, 10V	14 milliohms @ 26A, 10V	14 milliohms @ 26A, 10V	14 milliohms @ 26A, 10V	14 milliohms @ 26A, 10V	14 milliohms @ 26A, 10V	14 milliohms @ 26A, 10V
Vgs (th) (maximum value) when different Id	3V @ 250µA	3V @ 250µA	3V @ 250µA	3V @ 250µA	3V @ 250µA	3V @ 250µA	3V @ 250µA	3V @ 250µA
Gate charge (Qg) at different Vgs (maximum value)	17nC @ 4.5V	17nC @ 4.5V	17nC @ 4.5V	17nC @ 4.5V	17nC @ 4.5V	17nC @ 4.5V	17nC @ 4.5V	17nC @ 4.5V
Vgs (maximum value)	±20V	±20V	±20V	±20V	±20V	±20V	±20V	±20V
Input capacitance (Ciss) at different Vds (maximum value)	1060pF @ 10V	1060pF @ 10V	1060pF @ 10V	1060pF @ 10V	1060pF @ 10V	1060pF @ 10V	1060pF @ 10V	1060pF @ 10V
Power dissipation (maximum)	3.8W（Ta），71W（Tc）	3.8W（Ta），71W（Tc）	3.8W（Ta），71W（Tc）	3.8W（Ta），71W（Tc）	3.8W（Ta），71W（Tc）	3.8W（Ta），71W（Tc）	3.8W（Ta），71W（Tc）	3.8W（Ta），71W（Tc）
Installation type	surface mount	Through hole	Through hole	surface mount	surface mount	Through hole	Through hole	Through hole
Supplier device packaging	D2PAK	TO-220AB	TO-262	D2PAK	D2PAK	TO-220AB	TO-220AB	TO-220AB
Package/casing	TO-263-3, D²Pak (2-lead + tab), TO-263AB	TO-220-3	TO-262-3, long lead, I²Pak, TO-262AA	TO-263-3, D²Pak (2-lead + tab), TO-263AB	TO-263-3, D²Pak (2-lead + tab), TO-263AB	TO-220-3	TO-220-3	TO-220-3
Operating temperature	-55°C ~ 175°C（TJ）	-55°C ~ 175°C（TJ）	-55°C ~ 175°C（TJ）	-55°C ~ 175°C（TJ）	-55°C ~ 175°C（TJ）	-	-	-
